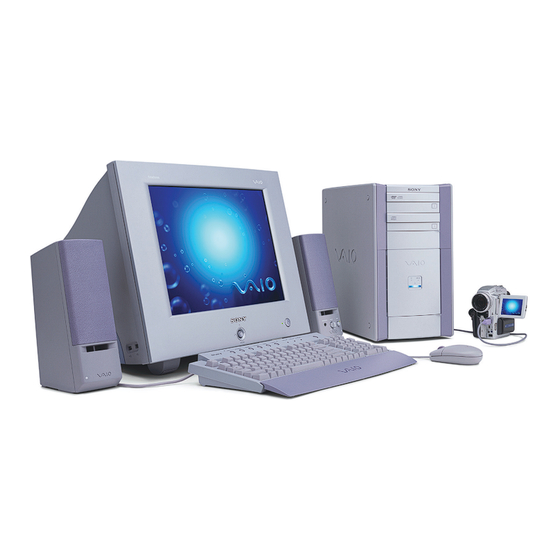

Sony VAIO Digital Studio PCV-RX650 Specifications

Video Audio Integrated Operation
FEATURES
• Intel Pentium 4 processor 1.60 GHz
® ®
• 512 MB PC-2100 DDR (expandable to 1 GB)
• 400 MHz Front Side Bus
• 80 GB Ultra ATA/100 hard drive
††
• 16X max. DVD-ROM/40X max. CD-ROM
• 16X10X40X max. CD-RW Drive
• Memory Stick Media Slot
®
• High-speed Internet ready with
10 Base-T/100Base-TX Fast Ethernet
• 4X AGP 3D Graphics Hardware Acceleration
(nVIDIA TNT2 M64)
®
• 32 MB Video Memory (SDRAM)
• i.LINK ® (IEEE 1394) chipset on motherboard
• Front and rear accessible i.LINK (IEEE 1394)
interfaces and USB connections
• Programmable VAIO Smart ™ Keyboard
• V.90 compatible data/fax modem
• Wheel mouse
• External stereo speakers
Sony Electronics Inc.
Information Technology Product Division
16765 West Bernardo Drive, San Diego, CA 92127
For more information: 1.800.4SONYPC (476-6972)
Web address: http://www.sony.com/vaio
Computer Interface: The computer industry lacks standards, and therefore, there are a
multitude of varying software packages and add-on hardware options. This personal computer
is not manufactured to any specific software, and Sony does not and cannot make any
warranty or representation with respect to the performance of this product with any particular
software packages and/or non-Sony add-on hardware option except those mentioned in this
document. Sony hereby disclaims any representations or warranty that this product is
compatible with any combination of non-Sony products you may choose to connect. While
Sony representatives or Sony authorized dealers may be able to assist you and may make
recommendations, they are NOT authorized to vary or waive this disclaimer. Purchasers must
determine for themselves the suitability and compatibility of the hardware and software in each
and every particular instance. Some pre-installed software titles may not include full
documentation. Software titles pre-installed on the Sony Desktop Computer are subject to
change without notice. Simulated graphic shown on display.
©2002 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without
written permission is prohibited. Sony, i.LINK, VAIO Digital Studio, VAIO Smart, Visial Flow,
SonicStage, DVgate, Media Bar, MovieShaker, PictureGear, and VAIO are trademarks of Sony.
Intel and Pentium are registered trademarks of Intel Corporation. Microsoft, Windows and
Outlook are trademarks of Microsoft Corporation. All other trademarks are trademarks of their
respective owners. This product meets the standards of the International Energy Star Program
for energy efficiency. Features and specifications are subject to change without notice. Non-
metric weights and measurements are approximate.
Printed in U.S.A. 1/02
* Camera and monitor are sold separately.

ADDITIONAL SPECIFICATIONS

Model
PCV-RX650
Processor
Intel ® Pentium
Cache Memory
†
256 KB Integrated On-Die Level 2
Front Side Bus Speed
400 MHz
Standard RAM
512 MB PC-2100 DDR (expandable to 1 GB)
Hard Drive
80 GB ††
DVD-ROM Drive
16X max. DVD-ROM
40X max. CD-ROM
CD-RW Drive
16X max. write / 10X max. rewrite / 40X max read
Floppy Disk Drive
3.5" 1.44 MB Floppy Disk Drive
Video & Graphics
4X AGP 3D Graphics Hardware Acceleration
(nVIDIA
32 MB Video Memory (SDRAM)
Modem
V.90 compatible data/fax modem
Ethernet
10Base-T/100Base-TX Fast Ethernet
1
Expansion Slots
One AGP (occupied by Graphics Card)
Three PCI (one occupied by Modem)
1
Memory Stick
Expansion Bays
Two 5.25" Half-Height (two occupied)
One External 3.5" (occupied)
Two Internal 3.5" (one occupied)
Port Connectors
Four USB (two front/two rear)
One PS/2
One PS/2
One VGA monitor port
One Serial
One Parallel
One 6pin i.LINK port
One 4pin i.LINK port
One Headphone
One Line In
One Microphone
Supplied Accessories
Speakers
VAIO Smart
PS/2 Wheel Mouse
®
RJ-11 Phone Cord
Power Cord
Power Requirements
100-120V -3A (50/60Hz)
Power Management
ACPI 1.0 Compliant
Sony VAIO Digital Studio
➢ DVD and CD-RW Drive
➢ Intel
Pentium
®
➢ Movie Editing and Video Email
➢ 10Base-T/100Base-TX Fast Ethernet and V.90 Modem
➢ i.LINK
(IEEE 1394) Interface and USB Connectors
®
® 4 Processor 1.60 GHz †
Ultra ATA/100 Hard Drive
® TNT2 M64)
Media Slot
®
Mouse
®
® Keyboard
Keyboard
™
PCV-RX650
4 Processor 1.60 GHz
® †
i.LINK
(IEEE 1394)
Dimensions (CPU)
8.0"(W) x 14.2"(H) x 14.6"(D)
Weight (CPU)
27.6 lbs.
Service
One Year Limited Express Repair Service (upon
registration; 90 days without registration)*
Limited Warranty
One Year Parts and Labor (upon registration; 90 days
without registration)*
Telephone Support
Hardware: One Year
Software and Operating System: 90 Days
Pre-Installed Software
Operating System
Microsoft Windows XP Home Edition
® ®
Sony Original Software
DVgate ™
Media Bar
®
MovieShaker
™
SonicStage ™ for VAIO ® PC
PictureGear
™
Smart Capture
VisualFlow ™
DigitalPrint
Other Software Applications
Adobe ® Acrobat ® Reader ®
Adobe ® Photoshop ® Elements
Apple QuickTime
®
ArcSoft PhotoPrinter ® 2000 Pro
Corel WordPerfect ®
Intuit Quicken 2002
® 2
Microsoft ® Outlook ® Express
Online Center
America Online **
®
EarthLink TotalAccess **
™
Tool Center
Trend Micro PC Cillin ®
Sony Application Recovery CD(s)
Sony System Recovery CD(s)
VAIO Support Agent
† GHz denotes microprocessor internal clock speed; other factors
may affect application performance.
†† GB means one billion bytes when referring to hard drive capacity.
Accessible capacity may vary.
* Certain restrictions apply.
** Requires payment of additional fees or subscription for use.
1 i.LINK is a trademark of Sony used only to designate that a product
contains an IEEE 1394 connector. All products with an i.LINK
connector may not communicate with each other.
2 Previous Quicken users may require additional upgrade.
PC
™
1
®
