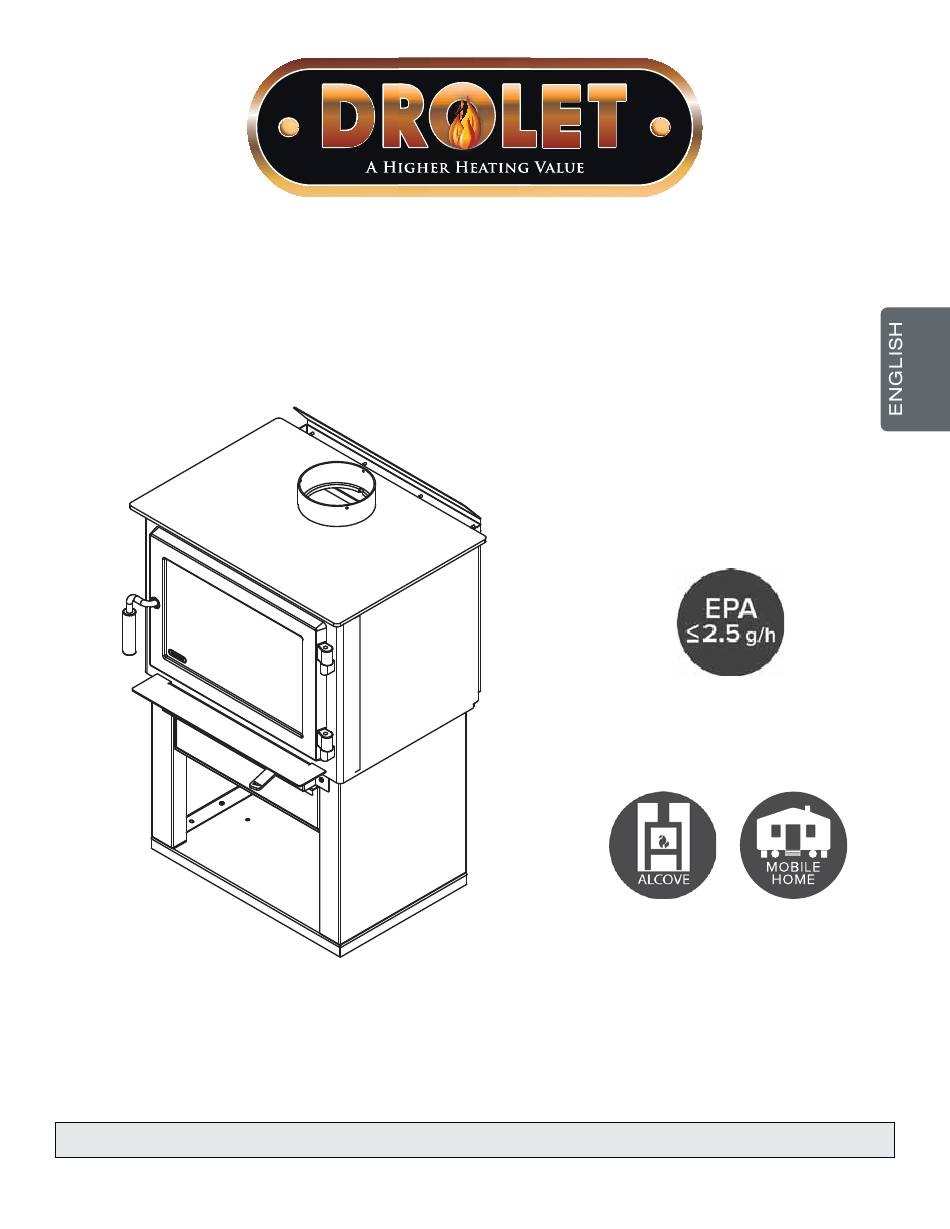

Installation and Operation Manual

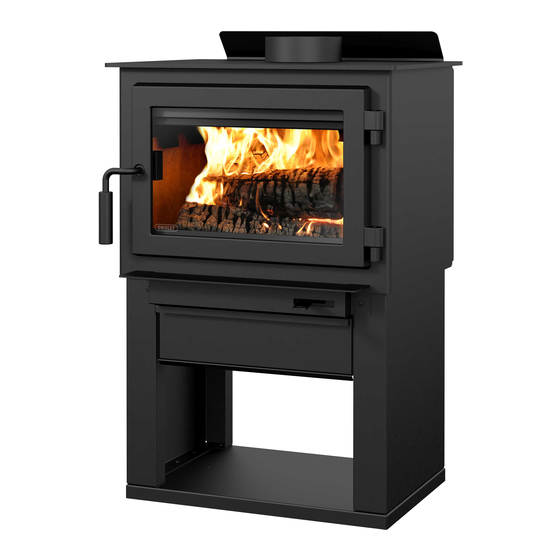

DROLET DECO II
(DB03205 model)
US Environmental Protection Agency
phase II certified wood stove compliant
with 2020 cord wood standard
Safety tested according to ULC S627,
UL 1482 and UL 737 standards by an
accredited laboratory.
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN
LOCAL AREA.
READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD STOVE. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
READ AND KEEP THIS MANUAL FOR REFERENCE
Printed in Canada
46175A
2020-05-27

Advertisement

Table of Contents
loading

Summary of Contents for Drolet DECO II

  • Page 1 Installation and Operation Manual DROLET DECO II (DB03205 model) US Environmental Protection Agency phase II certified wood stove compliant with 2020 cord wood standard Safety tested according to ULC S627, UL 1482 and UL 737 standards by an accredited laboratory.
  • Page 3 It is also highly recommended to register the warranty online at https://www.drolet.ca/en/warranty/warranty-registration/ Registering the warranty will help to quickly find the information needed on the unit. Installation and Operation Manual - Drolet Deco II Page 3...
  • Page 4: Table Of Contents

    5.7 Fire Types .........................20 6. Maintenance .......................... 22 6.1 Cleaning and Painting ......................22 6.2 Refractory Materials and Baffle ...................22 6.3 Glass Door ........................22 6.4 Door ..........................24 6.5 Exhaust System ........................26 Page 4 Installation and Operation Manual - Drolet Deco II...
  • Page 5 Appendix 5: Air Tubes and Baffle Installation ................48 Appendix 6: Mobile Home Installation ..................50 Appendix 7: Exploded Diagram and Parts List ................ 51 DROLET Limited Lifetime Warranty ................... 54 Dealer: Installer: Phone Number: Serial Number: Installation and Operation Manual - Drolet Deco II Page 5...
  • Page 6 CERTIFICATION PLATE Page 6 Installation and Operation Manual - Drolet Deco II...
  • Page 7: Part A - Operation And Maintenance

    This product can expose you to chemicals including carbon monoxide, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov/ Installation and Operation Manual - Drolet Deco II Page 7...
  • Page 8: General Information

    This appliance is officially tested and certified by an independent agency. Tested and certified in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and draft ASTM WK47329-14 Carbon monoxide. Page 8 Installation and Operation Manual - Drolet Deco II...
  • Page 9: Specifications

    CAN/CSA- Z240 MH standard. Tested and certified in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and draft ASTM WK47329-14. Installation and Operation Manual - Drolet Deco II Page 9...
  • Page 10: Dimensions

    13 1/2" 343mm 18" 458mm 14 1/2" 369mm Side view Combustion chamber - side view 8" 202mm 17 1/4" 19 5/8" 498mm 438mm Combustion chamber - front view Door opening Page 10 Installation and Operation Manual - Drolet Deco II...
  • Page 11: Materials

    Although the stove may be able to heat the main living areas of the house to an adequate temperature, it is strongly recommended to also have a conventional oil, gas or electric heating system to provide backup heating. Installation and Operation Manual - Drolet Deco II Page 11...
  • Page 12: Emissions And Efficiency

    Hardwoods are denser than softwoods. Homeowners with access to both hardwood and softwood use both types for different purposes. Page 12 Installation and Operation Manual - Drolet Deco II...
  • Page 13: Log Length

    Do not burn compressed logs made of wax impregnated sawdust or logs with any chemical additives. Follow the manufacturer’s instructions and warnings. Installation and Operation Manual - Drolet Deco II Page 13...
  • Page 14: Drying Time

    − Dry wood is much lighter in weight than wet wood, − The face of a fresh cut feels warm and dry; − The moisture content read by a moisture meter is between 15% to 20%. Page 14 Installation and Operation Manual - Drolet Deco II...
  • Page 15: Operating The Stove

    Ensure the blower power cord is not in contact with any surface of the stove to prevent electrical shock or fire damage. Do not run the power cord underneath the Airflow with a blower stove. Installation and Operation Manual - Drolet Deco II Page 15...
  • Page 16: Piedestal Wood Storage

    As hotter and hotter fires are burned, more of the painted surfaces reach the curing temperature of the paint. The smell of curing paint does not disappear until one or two very hot fires have been burned. Page 16 Installation and Operation Manual - Drolet Deco II...
  • Page 17: Lighting Fires

    Two spit logs are placed in the firebox with a few sheets of twisted newspapers in between the logs. Fine kindling is added across the two logs and some larger kindling across those, log cabin style. Newspaper is lit. Installation and Operation Manual - Drolet Deco II Page 17...
  • Page 18: Combustion Cycles

    Raking the coals is useful for two reasons. First, it brings them near where most of the combustion air enters the firebox. This will ignite the new load quickly. Secondly, the charcoal will not be Page 18 Installation and Operation Manual - Drolet Deco II...
  • Page 19: Removing Ashes

    If the wood is dry and the air control is used properly, the flames should decrease, but remain bright and stable. Installation and Operation Manual - Drolet Deco II Page 19...
  • Page 20: Fire Types

    − the amount of wood loaded, − the climate zone where the house is, and − the species of the wood, − the time of the year. − the wood moisture content, Page 20 Installation and Operation Manual - Drolet Deco II...
  • Page 21 Open the door slightly and move the log with a poker. Turn it over and create a passage for the air below, making a trench with the coal bed. Add small pieces of wood to restart the combustion. Installation and Operation Manual - Drolet Deco II Page 21...
  • Page 22: Maintenance

    This is normal and can be easily removed when the heater is cold by wiping with a damp cloth or paper towel and then drying. Page 22 Installation and Operation Manual - Drolet Deco II...
  • Page 23 The two main causes of broken door glass are uneven placement in the door and over- tightening the retaining screws. Installation and Operation Manual - Drolet Deco II Page 23...
  • Page 24: Door

    Remove the split pin by pulling and turning it using pliers. Turn the handle one counterclockwise turn to increase pressure. Reinstall the split pin with a small hammer. Removing the retaining pin Reinstalling the retaining pin Page 24 Installation and Operation Manual - Drolet Deco II...
  • Page 25 Using a flat screwdriver, turn the adjustable hinge rods in the direction shown to adjust the doors. Tighten all door hinge pressure screws when they are at the desired positions. Configurations 1-2-3- 4-5-6, show in which direction these act on the adjustment of the door. Installation and Operation Manual - Drolet Deco II Page 25...
  • Page 26: Exhaust System

    Even if creosote forms slowly in the system, the chimney should be cleaned and inspected at least once each year. Page 26 Installation and Operation Manual - Drolet Deco II...
  • Page 27 Do not use the appliance again until the stove and its chimney have been inspected by a qualified chimney sweep or a fire department inspector. Installation and Operation Manual - Drolet Deco II Page 27...
  • Page 28: Part B - Installation

    This stove must be connected to a chimney complying with the requirements for Type HT chimneys in the Standard for Factory-Built Chimneys for Residential Type and Building Heating Appliances, UL 103 and ULC S629 or to a code-approved masonry chimney with a flue liner. Page 28 Installation and Operation Manual - Drolet Deco II...
  • Page 29: Location Of The Certification Label

    The clearances of the appliance and the flue pipes must be met individually, meaning the appliance cannot be installed closer to the combustible materials than the single or double wall pipe allows. For a safe way to reduce clearances refer to section page 34 Installation and Operation Manual - Drolet Deco II Page 29...
  • Page 30 48" 36" 122 cm 92 cm Clearances - Top Clearances - Corner 84" (L) 213 cm Clearances - Side Page 30 Installation and Operation Manual - Drolet Deco II...
  • Page 31: Clearances

    6" (153 mm) from combustible materials must be used. Only in this case, the same clearances as a certified double wall pipe connector can be used. Installation and Operation Manual - Drolet Deco II Page 31...
  • Page 32 6" (153 mm) from combustible materials must be used. Only in this case, the same clearances as a certified double wall pipe connector can be used. Page 32 Installation and Operation Manual - Drolet Deco II...
  • Page 33 84" (2130 mm) 84" (2130 mm) The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. Installation and Operation Manual - Drolet Deco II Page 33...
  • Page 34: Floor Protection

    The floor protection at the back of the stove is limited to the stove’s required clearance if such clearance is smaller than 8 inches (203 mm). Only required under the horizontal section (Ho) of the connector. Must exceed each side of the connector by at least 2 inches (51 mm). See «Clearances - Side» Page 34 Installation and Operation Manual - Drolet Deco II...
  • Page 35 Brick, with a minimum of 24 gauge (0.61 mm) sheet metal backing, spaced out at least 1" (25 mm)* by non-combustible spacers 12" (305 mm) * In Canada this space can be " (21 mm). Installation and Operation Manual - Drolet Deco II Page 35...
  • Page 36 Mounting hardware must not be located closer than 8" (200 mm) from the vertical centre line of the appliance. G) Edge clearance for ceiling shields to side and back walls: 3" (75 mm). Shield extension beyond each side of the appliance: 18" (450 mm). Page 36 Installation and Operation Manual - Drolet Deco II...
  • Page 37 Heat shield clearances Heat shield clearances Heat shield clearances Installation and Operation Manual - Drolet Deco II Page 37...
  • Page 38: The Venting System

    Only components intended for the brand and model of chimney should be used. Never fabricate or substitute parts from other chimney brands. The chimney must be a type suitable for solid fuel. Page 38 Installation and Operation Manual - Drolet Deco II...
  • Page 39 Do not downsize the flue to less than 6" unless the venting system is straight and exceeds 25 feet in height. When passing through a combustible wall, the use of an insulated listed thimble is required. Installation and Operation Manual - Drolet Deco II Page 39...
  • Page 40: Minimum Chimney Height

    Called ‘stack effect’, it produces a slightly negative pressure in the lower part of the house (compared to the outside) and a slightly positive pressure zone in the high part of the house. Page 40 Installation and Operation Manual - Drolet Deco II...
  • Page 41: Supply Of Combustion Air

    (such as a kitchen range exhaust) causes the pressure in the house to become negative relative to outdoors. Air supply in conventional houses Installation and Operation Manual - Drolet Deco II Page 41...
  • Page 42: Installing The Chimney Connector

    They are also more stable and easier to maintain than assemblies with elbows. Horizontal runs of flue pipe should be avoided where possible because they reduce chimney draft. Best Acceptable Avoid Page 42 Installation and Operation Manual - Drolet Deco II...
  • Page 43 • A straight flue pipe assembly offers the least restriction to gas flow and results in a stronger draft. Straight assemblies also need less maintenance because there are no corners to collect creosote. • The chimney connector must be clean and in good condition. Installation and Operation Manual - Drolet Deco II Page 43...
  • Page 44: Appendix 1: Optional Fresh Air Intake Kit Installation

    Refer to air intake kit installation instructions for more details. DETAIL D Cut micro-joints on the top of the piece then rock it from top to bottom top detach the bottom microseals. Page 44 Installation and Operation Manual - Drolet Deco II...
  • Page 45: Appendix 2: Optional Fire Screen Installation

    Lift the fire screen upwards and push the bottom part towards the stove then let the fire screen rest on the bottom of the door opening. Warning: Never leave the stove unattended while in use with the fire screen. Installation and Operation Manual - Drolet Deco II Page 45...
  • Page 46: Appendix 3: Optional Blower Installation

    Ensure that the blower’s power cord is not in contact with any surface of the stove to prevent electrical shock or fire damage. Do not run the power cord beneath the stove. Page 46 Installation and Operation Manual - Drolet Deco II...
  • Page 47: Appendix 4: Optional Thermodisc Installation

    Screw the thermodisc (A) with the screws (B) provided on the back of the stove. The electrical cord of the thermodisc should not touch any surface of the stove to avoid electric shock or fire. Do not run the power cord under the stove. Installation and Operation Manual - Drolet Deco II Page 47...
  • Page 48: Appendix 5: Air Tubes And Baffle Installation

    Put the baffle in place. Repeat steps 1 and 2 for the three other tubes. To remove the tubes use the above steps in reverse order. Page 48 Installation and Operation Manual - Drolet Deco II...
  • Page 49 Note that secondary air tubes (B) can be replaced without removing the baffle board (A) and that all tubes are identical. Installation and Operation Manual - Drolet Deco II Page 49...
  • Page 50: Appendix 6: Mobile Home Installation

    APPENDIX 6: MOBILE HOME INSTALLATION Page 50 Installation and Operation Manual - Drolet Deco II...
  • Page 51: Appendix 7: Exploded Diagram And Parts List

    APPENDIX 7: EXPLODED DIAGRAM AND PARTS LIST Installation and Operation Manual - Drolet Deco II Page 51...
  • Page 52 SCREW PAN TORX TYPE F 1/4-20 X 1" BLACK AC01336 5"Ø FRESH AIR INTAKE KIT FOR WOOD STOVE ON PEDESTAL PL70966 FACEPLATE SE70697 REPLACEMENT HANDLE WITH LATCH KIT SE24343 DECO DROLET II DOOR ASSEMBLY Page 52 Installation and Operation Manual - Drolet Deco II...
  • Page 53 DRILLED BLACK WOODEN DOOR HANDLE 30185 17/64" AA TYPE WASHER BLACK 30025 1/4-20 X 1/2" PAN-HEAD QUADREX BLACK SCREW AC01299 RIGID FIRESCREEN 30898 ROUND WOODEN BLACK HANDLE DULL BLACK FINISH SE70906 ASH DRAWER ASSEMBLY Installation and Operation Manual - Drolet Deco II Page 53...
  • Page 54: Drolet Limited Lifetime Warranty

    Shall your unit or a component be defective, contact immediately your DROLET dealer. To accelerate processing of your warranty claim, make sure to have on hand the following information when calling: •...
  • Page 56 Resale is strictly prohibited. The manufacturer may update St-Augustin-de-Desmaures (Québec) Canada this document from time to time and cannot be responsible G3A 2H3 for problems, injuries, or damages arising out of the use 418-908-8002 of information contained in any document obtained from https://www.drolet.ca/en/ unauthorized sources. tech@sbi-international.com...
