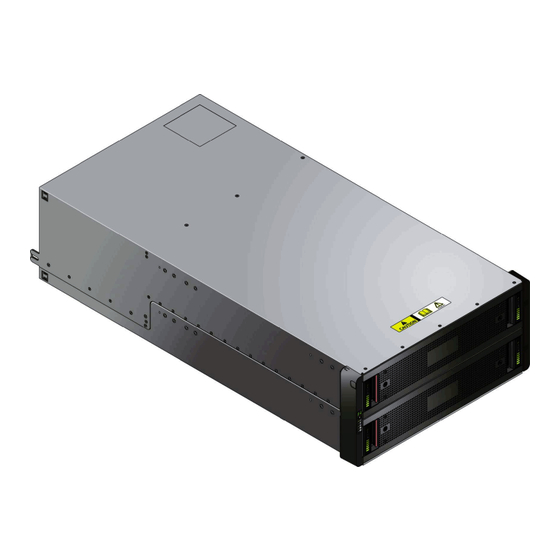

- Page 1 IBM ESS expansion Version 5.3.5 Installation and User Guide - Model 084 SC27462802...
- Page 2 • The information in the “Safety and environmental notices” on page ix • The information in the IBM Environmental Notices and User Guide (provided on a DVD) This edition applies to IBM ESS expansion Model 084 and is valid until replaced by new editions. ©...
-
Page 3: Table Of Contents
Environmental notices..........................xii Support information....................xiii Chapter 1. Appliance safety precautions..............1 Introduction..............................1 Damage................................ 1 Handling............................... 1 Relocating an ESS racked system 5147-084 (5U84)................. 3 Operation..............................3 Electrical safety............................5 Rack system safety precautions........................6 Electrostatic discharge (ESD) precautions....................7 Regional safety.............................7 Chapter 2. System overview.................. 9 Chassis................................. - Page 4 LEDs................................29 Thermal sensors............................34 Troubleshooting............................34 Dealing with hardware faults........................35 Firmware Updates............................. 36 Chapter 6. Module replacement................37 Overview..............................37 General procedures........................... 38 Replacing a disk drive in carrier (DDIC)....................40 Replacing a cooling module........................42 Replacing a power supply unit (PSU)......................43 Replacing an SBB I/O module........................
-
Page 5: Figures
Figures 1. Chassis label (FCC compliance)........................2 2. Module bay caution label..........................4 3. Compliance label with safety warning label....................5 4. Drawer caution label............................. 5 5. Enclosure: front view.............................9 6. Enclosure: rear view............................10 7. Module locations............................11 8. Drawer LEDs (left side only)........................12 9. - Page 6 24. Drawer LEDs (left sideplane only)......................32 25. Drive Fault LED............................33 26. SBB I/O module LEDs..........................33 27. Anti-tamper locks (shown disengaged)....................38 28. Opening the bottom drawer........................39 29. Drawer latch.............................. 39 30. Drive location plan............................ 40 31. Removing a DDIC............................41 32.
- Page 7 Tables 1. Table 1. Typical shipping environment......................3 2. Table 2. Typical storage environment......................3 3. Ops panel LEDs............................26 4. PSU LED states............................30 5. Cooling module LED descriptions....................... 30 6. Ops panel LED descriptions........................31 7. Drawer LED descriptions..........................32 8. 6Gb/s SAS EBOD I/O Module LED Descriptions..................34 9.
- Page 8 viii...
-
Page 9: Safety And Environmental Notices
Electrical voltage and current from power, telephone, and communication cables are hazardous. To avoid a shock hazard: • If IBM supplied the power cord(s), connect power to this unit only with the IBM provided power cord. Do not use the IBM provided power cord for any other product. - Page 10 It is the responsibility of the customer to ensure that the outlet is correctly wired and grounded to prevent an electrical shock. (R001 part 1 of 2) x IBM ESS expansion: Installation and User Guide - Model 084...
- Page 11 (R001 part 2 of 2): CAUTION: • Do not install a unit in a rack where the internal rack ambient temperatures will exceed the manufacturer's recommended ambient temperature for all your rack-mounted devices. • Do not install a unit in a rack where the air flow is compromised. Ensure that air flow is not blocked or reduced on any side, front, or back of a unit used for air flow through the unit.
-
Page 12: Environmental Notices
Use approved hearing protection and/ or provide mitigation or limit exposure. (L018) Environmental notices This information contains all of the required environmental notices for IBM Systems products in English and other languages. The IBM Systems Environmental Notices information includes statements on limitations, product information, product recycling and disposal, flat panel display, battery removal and disposal, refrigeration and water-cooling systems, external power supplies, and safety data sheets. -
Page 13: Support Information
Your location Method of contacting the IBM Support Center In the United States Call 1-800-IBM-SERV for support. Outside the United States Contact your local IBM Support Center or see the Directory of worldwide contacts. © Copyright IBM Corp. 2017, 2020 xiii... - Page 14 IBM ESS expansion: Installation and User Guide - Model 084...
-
Page 15: Chapter 1. Appliance Safety Precautions
46kg (101lb). Use appropriate lifting methods. The packaging includes lifting straps wrapped and buckled around the enclosure. Ensure the lifting straps buckle is properly closed, and lift with the loops attached to the lifting straps. © Copyright IBM Corp. 2017, 2020... -
Page 16: Height (Enclosure, Overall)
Do not lift the enclosure by the handles on the power supply units, cooling modules, or I/O modules. They are not designed to take the weight. Do not lift the enclosure higher than 20U (35 in.). Use mechanical assistance to lift above this height. 2 IBM ESS expansion: Installation and User Guide - Model 084... -
Page 17: Relocating An Ess Racked System 5147-084 (5U84)
Relocating an ESS racked system 5147-084 (5U84) Important: Relocation of this enclosure is not a Customer action. You must contact IBM service (www.ibm.com/planetwide) to relocate this enclosure. Loss of data or system damage may result if IBM service does not perform the relocation action. - Page 18 CAUTION: Operating temperatures inside the enclosure drawers can reach up to 60°C. Take care when opening drawers and removing drive carriers. CAUTION: A hot surface nearby. (L007) 4 IBM ESS expansion: Installation and User Guide - Model 084...
-
Page 19: Electrical Safety
Figure 3. Compliance label with safety warning label CAUTION: Before removing a PSU module, disconnect the power cord from that module. Otherwise, modules at the rear of the enclosure are hot-swappable. Do not use open drawers to support any other equipment. Figure 4. -
Page 20: Rack System Safety Precautions
Each PSU in each enclosure has a ground leakage current of 1.6mA. The design of the electrical distribution system must take into consideration the total ground leakage current from all the PSUs in all 6 IBM ESS expansion: Installation and User Guide - Model 084... -
Page 21: Electrostatic Discharge (Esd) Precautions
the enclosures. The rack must be labeled with the words: “HIGH LEAKAGE CURRENT. Ground connection essential before connecting supply.” The rack must meet the safety requirements of UL 60950-1 and IEC 60950-1. Electrostatic discharge (ESD) precautions Fit and check a suitable anti-static wrist or ankle strap and observe all conventional ESD precautions when handling plug-in modules and components. - Page 22 8 IBM ESS expansion: Installation and User Guide - Model 084...
-
Page 23: Chapter 2. System Overview
This enclosure is designed for high availability, with no single point of failure for data or power. It complies to the Storage Bridge Bay (SBB) v2.0 specification, which specifies interconnects, power budgets, power rails, mechanical and thermal form factors and footprints. © Copyright IBM Corp. 2017, 2020... -
Page 24: The Enclosure Core Product
Figure 6. Enclosure: rear view The enclosure core product The IBM ESS expansion design concept is based on an enclosure subsystem together with a set of plug-in modules. A typical enclosure system for direct dock comprises: • An enclosure chassis comprising the following parts: –... -
Page 25: Enclosure Chassis
Figure 7. Module locations Enclosure Chassis The chassis consists of a sheet metal enclosure assembly with an integrated midplane PCB, module runner system, and two drawers for drive modules. The chassis has a 19 inch rack mounting that enables it to be installed on to standard 19 inch racks and uses 5 EIA units of rack space (8.75 inches;... -
Page 26: Disk Drives In Carriers (Ddics)
Each drive is housed in a carrier (see the following figure) that enables secure insertion of the drive into the drawer and contains the appropriate transition card: • SAS carrier transition card. Figure 9. A disk drive in carrier (DDIC) 12 IBM ESS expansion: Installation and User Guide - Model 084... - Page 27 The following hard disk drives are supported: • 3.5” 7200rpm SAS drive The following solid state drives are supported: • 2.5” SAS solid state drive with 3.5” adapter Note: SSD drives are supported only for logtip backup. For details, see Spectrum Scale RAID Administration.
- Page 28 Drawer 1 Fault LED (amber) Indicates a drive, cable, or sideplane fault in drawer 1. Drawer 2 Fault LED (amber) Indicates a drive, cable, or sideplane fault in drawer 2. 14 IBM ESS expansion: Installation and User Guide - Model 084...
-
Page 29: Power Supply Unit (Psu)
The ops panel is an integral part of the chassis, and is not replaceable on site. Power supply unit (PSU) Power is provided by two 2800W PSUs. These units require an input of 200 to 240VAC at 50 to 60Hz. The following figure shows the PSU. -
Page 30: Sbb I/O Module
The platform has a variety of SBB I/O module options. Refer to the specific SBB I/O module documentation for details. All SBB I/O modules are mechanically and electrically compliant to the SBB V2 specification. The following figure shows a typical SBB I/O module. 16 IBM ESS expansion: Installation and User Guide - Model 084... -
Page 31: Enclosure Management
Figure 14. 6Gb/s SAS EBOD module The system can operate with one or two modules. If the enclosure is run with a single module, the other I/O module bay must be filled with a blank module. The presence of I/O modules is checked when the power is switched on. - Page 32 18 IBM ESS expansion: Installation and User Guide - Model 084...
-
Page 33: Chapter 3. Installation
2. Inspect the packaging for crushes, cuts, water damage or any other evidence of mishandling during transit. If there is any damage, photograph the packaging for future reference before opening. 3. Remove the packaging, as shown in the following figure. © Copyright IBM Corp. 2017, 2020... -
Page 34: Installation
Ensure the pins are fully located in the square or round holes in the rack posts, as shown in the following figure. 20 IBM ESS expansion: Installation and User Guide - Model 084... - Page 35 Figure 16. Mounting the system into a rack (left rail only) 4. Fully tighten all clamping screws and middle slide locking screws. 5. Ensure the rear spacer clips (x4) are fitted tight to the edge of the rack post. 6. Slide the enclosure fully home on its rails. 7.
-
Page 36: Power Cord Connection
Important: When more than one PSU is fitted, connect each PSU to separate and independent supplies to guarantee redundancy. CAUTION: Always remove the power connections before you remove the PSU from the enclosure. 22 IBM ESS expansion: Installation and User Guide - Model 084... -
Page 37: Grounding Checks
Grounding checks The product must only be connected to a power source that has a safety electrical ground connection. DANGER: If one or more 5U enclosures go into a rack, the importance of the ground connection to the rack increases, because the rack will have a larger "EARTH LEAKAGE CURRENT" ("TOUCH CURRENT"). - Page 38 24 IBM ESS expansion: Installation and User Guide - Model 084...
-
Page 39: Chapter 4. Operation
• Never turn off a PSU whilst any amber LED is lit on the partner PSU. Ops panel LEDs Ops panel LEDs indicate fault and status conditions. The following table shows the possible conditions for the LEDs. © Copyright IBM Corp. 2017, 2020... -
Page 40: Unit Identification Number
2. Press and release the Input switch to increment the number until the required digit is reached. 3. Press and hold the Input switch for a period of five seconds. The right digit flashes. 26 IBM ESS expansion: Installation and User Guide - Model 084... -
Page 41: Normal Power Down
4. Shut down the enclosure by switching off all the power swtiches of the installed PSUs. When the enclosure has to be powered down to perform service actions, follow the instructions provided by IBM service. Locking drawers A drawer can be locked shut by using a screwdriver with a Torx T20 bit to rotate both anti-tamper locks until the red arrows point away from the center of the enclosure. - Page 42 28 IBM ESS expansion: Installation and User Guide - Model 084...
-
Page 43: Chapter 5. Troubleshooting
Ensure that the enclosure is properly connected. See the approved cabling schema in the Cabling the Elastic Storage Server Appendix of Elastic Storage Server Deploying the Elastic Storage Server Guide. See subsection Disk Enclosure and HBA cabling in chapter Setting up IBM Spectrum Scale RAID in the Elastic Storage Server Spectrum Scale RAID Administration Guide. -
Page 44: Cooling Module Leds
Follow the procedure in "Replacing a Cooling Module." Battery Fault Not currently used. Fan Fault Amber indicates that a fan has failed. Follow the procedure in "Replacing a Cooling Module." 30 IBM ESS expansion: Installation and User Guide - Model 084... -
Page 45: Operator's Panel Leds
Operator’s panel LEDs The operator’s (ops) panel displays the aggregated status of all the modules, as shown in the following figure. Figure 23. Operator’s panel LEDs Table 6. Ops panel LED descriptions Display/LED Description Unit Identification Display Usually shows the identification number for the enclosure, but can be used for other purposes. -
Page 46: Drawer Leds (Left Sideplane Only)
Amber if there is a drive fault. Cable Fault Amber if the cabling between the drawer and the back of the enclosure has failed. Contact support to resolve the problem. 32 IBM ESS expansion: Installation and User Guide - Model 084... -
Page 47: Drive Fault Led
Table 7. Drawer LED descriptions (continued) Description Activity Bar Graph Shows the amount of data I/O from zero segments lit (no I/O) to all six segments lit (maximum I/O). Disk drive in carrier (DDIC) LED Each disk drive has a single amber drive fault LED as shown in the following figure. When lit, service action is required for the drive. -
Page 48: Thermal Sensors
Warning; no loss of drive power Drive power control fault Fault: critical; loss of drive power Insufficient power available Warning For information on how to remove and replace a module, see "Module Replacement." 34 IBM ESS expansion: Installation and User Guide - Model 084... -
Page 49: Dealing With Hardware Faults
Ensure that you have obtained a replacement module of the same type before removing any faulty module. Important: Only replace a module when it has been instructed by IBM service. Unplanned replacement of modules can lead to loss or access of data. When a module is removed for service, replace it immediately. -
Page 50: Firmware Updates
Firmware Updates Use Spectrum Scale RAID to update firmware. For updating enclosure firmware, see the Elastic Storage Server Spectrum Scale RAID Administration Guide. 36 IBM ESS expansion: Installation and User Guide - Model 084... -
Page 51: Chapter 6. Module Replacement
The drawer sideplanes can be hot-swapped in the field. Replacement of the sideplanes requires a special tool and should be carried out by service personnel only. Refer to the IBM ESS Expansion Hot Swap Side Card - Quick Installation Guide for full instructions. -
Page 52: General Procedures
(see the following figure). Unlock them if necessary by rotating them counterclockwise using a screwdriver with a Torx T20 bit. Figure 27. Anti-tamper locks (shown disengaged) 2. Push the drawer latches inward and hold them (see the following figure). 38 IBM ESS expansion: Installation and User Guide - Model 084... -
Page 53: Drawer Latch
Figure 28. Opening the bottom drawer 3. Pull the drawer all the way out until it locks open. Important: The drawer must not be left open for more than two minutes while the enclosure is powered. Closing a drawer 1. Press and hold both of the black latches on the sides of the drawer (see the following figure). Figure 29. -
Page 54: Replacing A Disk Drive In Carrier (Ddic)
3. Locate the drive to be replaced, either by using the drive plan in the previous figure or by looking for the amber LED on the drive that indicates a fault. 4. Push the drive carrier latch in the direction shown in the following figure to unlock the drive. 40 IBM ESS expansion: Installation and User Guide - Model 084... -
Page 55: Removing A Ddic
Figure 31. Removing a DDIC 5. Pull the drive upward and out of the drawer. Important: If you are not going to replace the drive immediately, close the drawer (see "Closing a Drawer") so that correct airflow and cooling are maintained in the enclosure. Inserting a DDIC Important: Failed drives must be replaced with approved drives. -
Page 56: Replacing A Cooling Module
2. As shown in the following two figures, push down and hold the red release latch (1) and pull the module out by its handle (2). Figure 35. Removing a Cooling Module (1) 42 IBM ESS expansion: Installation and User Guide - Model 084... -
Page 57: Replacing A Power Supply Unit (Psu)
Figure 36. Removing a Cooling Module (2) Important: The cooling module bay must not be empty for more than two minutes while the enclosure is powered up. Inserting a cooling module 1. Rotate the cooling module so that the black release latch and handle are on the right side. 2. - Page 58 Important: The PSU module bay must not be empty for more than two minutes while the enclosure is powered up. Inserting a PSU 1. Ensure the PSU is switched off. 44 IBM ESS expansion: Installation and User Guide - Model 084...
-
Page 59: Replacing An Sbb I/O Module
2. Rotate the PSU so that the red release latch and handle are on the left side. 3. Slide the PSU into its slot until the latch clicks home. 4. Connect the AC power cord. 5. Turn on the PSU power switch. 6. - Page 60 4. Pull the module out of the enclosure (2). Important: The SBB I/O module bay must not be empty for more than two minutes while the enclosure is powered. 46 IBM ESS expansion: Installation and User Guide - Model 084...
- Page 61 Inserting an SBB I/O module 1. Rotate the SBB I/O module so that the release latch is at the bottom. 2. Open the release latch and rotate it to its most open position, as shown in the previous figure. 3. Slide the I/O module into its slot until it will go no farther and the handle has started to close. 4.
- Page 62 48 IBM ESS expansion: Installation and User Guide - Model 084...
-
Page 63: Appendix A. Technical Specifications
Fully populated enclosure Drive carrier Cooling module Components (fully populated) The table shows the components that populate the enclosure. Table 14. Components Component Quantity Drawers Disk Drives In Carriers (DDICs) SBB I/O module PSUs Cooling modules © Copyright IBM Corp. 2017, 2020... -
Page 64: Thermal
+12V at 233A (2796W total output power) +5V standby voltage at 2.7A Input voltage range 200 to 240VAC Input frequency 50 to 60Hz Power factor correction >0.95 @ 100% load 50 IBM ESS expansion: Installation and User Guide - Model 084... -
Page 65: Supported Drives
Table 18. Supported drives for enclosure Type Description Hard disk drives (HDD) 4TB Enterprise HDD (IBM Part number: 00LY449) 8TB Enterprise HDD (IBM Part number: 00LY450) 10TB Enterprise HDD (IBM Part number: 00LY453) Solid State Drives (SSD) 800GB SDD (IBM Part number: 00LY451) Shock and vibration tolerance The table shows the shock tolerance for the enclosure. - Page 66 52 IBM ESS expansion: Installation and User Guide - Model 084...
-
Page 67: Appendix B. Standards And Regulations
• Japan • South Korea • EAC region Conducted emission standards Model 084 complies with the following EMC conducted emission standards: • EN 55022:2006 including A1:2007 / CISPR 22-Class A • EN 55032:2012/AC: 2013/CISPR32:2015-Class A • KN32:2015 and KN35:2015 • United States CFR47 Part 15: Radio Frequency Devices, Subpart B: Unintentional Radiators, Class A Class A labeling is used. -
Page 68: Safety
EN 60950- 1, and include the national differences for all countries in the CB scheme. The Model 084 enclosure meets the fire enclosure standards set out in the latest applicable edition of UL 60950-1. Environmental and Recycling... -
Page 69: Acoustics
The IBM ESS expansion Model 084 enclosure has been designed to comply with this directive in the future. An Environmental Impact Assessment (EIA) has been completed to provide information to support future compliance. -
Page 70: Ac Power Cords
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 56 IBM ESS expansion: Installation and User Guide - Model 084... -
Page 71: Notices
Consult your local IBM representative for information on the products and services currently available in your area. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any IBM intellectual property right may be used instead. -
Page 72: Trademarks
IBM, the IBM logo, and ibm.com are trademarks or registered trademarks of International Business Machines Corp., registered in many jurisdictions worldwide. Other product and service names might be trademarks of IBM or other companies. A current list of IBM trademarks is available on the Web at "Copyright and trademark information" at www.ibm.com/legal/copytrade.shtml. -
Page 73: Industry Canada Compliance Statement
Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. IBM is not responsible for any radio or television interference caused by using other than recommended cables and connectors, or by unauthorized changes or modifications to this equipment. -
Page 74: People's Republic Of China Class A Statement
Armonk,New York 10504 Tel: 914-499-1900 Der verantwortliche Ansprechpartner des Herstellers in der EU ist: IBM Deutschland GmbH Technical Regulations, Abteilung M372 IBM-Allee 1, 71139 Ehningen, Germany Tele: +49 7032 15-2941 Email: lugi@de.ibm.com Generelle Informationen: Das Gerät erfüllt die Schutzanforderungen nach EN 55024 und EN 55022 Klasse A. -
Page 75: Japan Electronics And Information Technology Industries Association (Jeita) Notice
3F, No 7, Song Ren Rd., Taipei Taiwan Tel: 0800-016-888 Japan Electronics and Information Technology Industries Association (JEITA) Notice This statement applies to products less than or equal to 20 A per phase. This statement applies to products greater than 20 A, single phase. This statement applies to products greater than 20 A per phase, three-phase. -
Page 76: Korean Communications Commission Class A Statement
This product may not be certified in your country for connection by any means whatsoever to interfaces of public telecommunications networks. Further certification may be required by law prior to making any such connection. Contact an IBM representative or reseller for any questions. 62 IBM ESS expansion: Installation and User Guide - Model 084... - Page 78 IBM® SC27462802...
