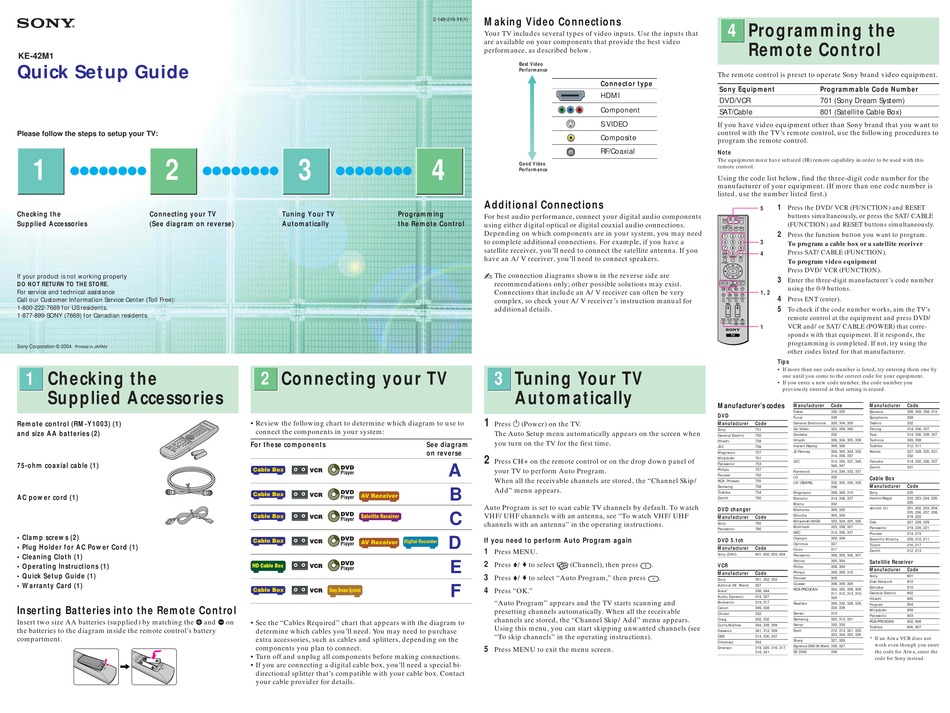

Sony WEGA KE-42M1 Quick Setup Manual

KE-42M1

Quick Setup Guide

Please follow the steps to setup your TV:
1 2
zzzzzzzz
Checking the Connecting your TV

Supplied Accessories

(See diagram on reverse)
If your product is not working properly
DO NOT RETURN TO THE STORE.
For service and technical assistance
Call our Customer Information Service Center (Toll Free):
1-800-222-7669 for US residents.
1-877-899-SONY (7669) for Canadian residents.
Sony Corporation © 2004
Printed in JAPAN
1 Checking the
Supplied Accessories
Remote control (RM-Y1003) (1)
and size AA batteries (2)
75-ohm coaxial cable (1)
AC power cord (1)
• Clamp screws (2)
• Plug Holder for AC Power Cord (1)
• Cleaning Cloth (1)
• Operating Instructions (1)
• Quick Setup Guide (1)
• Warranty Card (1)
Inserting Batteries into the Remote Control
Insert two size AA batteries (supplied) by matching the
e
the batteries to the diagram inside the remote control's battery
compartment.
3
zzzzzzzz zzzzzzzz

Tuning Your TV

Automatically
2 Connecting your TV
• Review the following chart to determine which diagram to use to
connect the components in your system:
For these components
and on
E • See the "Cables Required" chart that appears with the diagram to
determine which cables you'll need. You may need to purchase
extra accessories, such as cables and splitters, depending on the
components you plan to connect.
• Turn off and unplug all components before making connections.
• If you are connecting a digital cable box, you'll need a special bi-
directional splitter that's compatible with your cable box. Contact
your cable provider for details.
2-148-216-11(1)

Making Video Connections

Your TV includes several types of video inputs. Use the inputs that
are available on your components that provide the best video
performance, as described below.
Best Video
Performance
4
Good Video
Performance

Additional Connections

Programming
For best audio performance, connect your digital audio components
the Remote Control
using either digital optical or digital coaxial audio connections.
Depending on which components are in your system, you may need
to complete additional connections. For example, if you have a
satellite receiver, you'll need to connect the satellite antenna. If you
have an A/V receiver, you'll need to connect speakers.
The connection diagrams shown in the reverse side are
recommendations only; other possible solutions may exist.
Connections that include an A/V receiver can often be very
complex, so check your A/V receiver's instruction manual for
additional details.
3 Tuning Your TV
Automatically
1
Press 1 (Power) on the TV.
The Auto Setup menu automatically appears on the screen when
you turn on the TV for the first time.
See diagram
on reverse
2
Press CH+ on the remote control or on the drop down panel of
A
your TV to perform Auto Program.
When all the receivable channels are stored, the "Channel Skip/
B Add" menu appears.
Auto Program is set to scan cable TV channels by default. To watch
C
VHF/UHF channels with an antenna, see "To watch VHF/UHF
channels with an antenna" in the operating instructions.
D
If you need to perform Auto Program again
1
Press MENU.
E
2
Press V/v to select (Channel), then press
3
Press V/v to select "Auto Program," then press
F
4
Press "OK."
"Auto Program" appears and the TV starts scanning and
presetting channels automatically. When all the receivable
channels are stored, the "Channel Skip/Add" menu appears.
Using this menu, you can start skipping unwanted channels (see
"To skip channels" in the operating instructions).
5
Press MENU to exit the menu screen.
4 Programming the

Remote Control

The remote control is preset to operate Sony brand video equipment.
Connector type
Sony Equipment
HDMI
DVD/VCR
Component
SAT/Cable
S VIDEO
If you have video equipment other than Sony brand that you want to
control with the TV's remote control, use the following procedures to
Composite
program the remote control.
RF/Coaxial
Note
The equipment must have infrared (IR) remote capability in order to be used with this
remote control.
Using the code list below, find the three-digit code number for the
manufacturer of your equipment. (If more than one code number is
listed, use the number listed first.)
1
5
DVD/ SAT/ POWER
MUTING VCR CABLE
MODE
PICTURE WIDE SLEEP DISPLAY
2
3
4
FREEZE FAVORITES MENU
TOP MENU
3
F1
1, 2
F2
4
TV VIDEO 1/2/3 VIDEO 4 VIDEO 5
5
RESET PIC OFF MTS/SAP
GUIDE TV/SAT 1
Tips
• If more than one code number is listed, try entering them one by
• If you enter a new code number, the code number you
Manufacturer's codes
DVD
Manufacturer Code
Sony 751
General Electric 755
Hitachi 758
JVC 756
Magnavox 757
Mitsubishi 761
Panasonic 753
Philips 757
Pioneer 752
RCA, Proscan 755
Samsung 758
Toshiba 754
Zenith 760
DVD changer
Manufacturer Code
Sony 765
Panasonic 766
DVD 5.1ch
Manufacturer Code
Sony (DAV) 601, 602, 603, 604
.
VCR
Manufacturer Code
.
Sony 301, 302, 303
Admiral (M. Ward) 327
Aiwa* 338, 344
Audio Dynamic 314, 337
Broksonic 319, 317
Canon 309, 308
Citizen 332
Craig 302, 332
Curtis Mathes 304, 338, 309
Daewoo 341, 312, 309
DBX 314, 336, 337
Dimensia 304
Emerson 319, 320, 316, 317,
318, 341
Programmable Code Number
701 (Sony Dream System)
801 (Satellite Cable Box)
Press the DVD/VCR (FUNCTION) and RESET
buttons simultaneously, or press the SAT/CABLE
(FUNCTION) and RESET buttons simultaneously.
Press the function button you want to program.
To program a cable box or a satellite receiver
Press SAT/CABLE (FUNCTION).
To program video equipment
Press DVD/VCR (FUNCTION).
Enter the three-digit manufacturer's code number
using the 0-9 buttons.
Press ENT (enter).
To check if the code number works, aim the TV's
remote control at the equipment and press DVD/
VCR and/or SAT/CABLE (POWER) that corre-
sponds with that equipment. If it responds, the
programming is completed. If not, try using the
other codes listed for that manufacturer.
one until you come to the correct code for your equipment.
previously entered at that setting is erased.
Manufacturer Code Manufacturer Code
Fisher 330, 335 Sylvania 308, 309, 338, 310
Funai 338 Symphonic 338
General Electronics 329, 304, 309 Tashiro 332
Go Video 322, 339, 340 Tatung 314, 336, 337
Goldstar 332 Teac 314, 336, 338, 337
Hitachi 306, 304, 305, 338 Technics 309, 308
Instant Replay 309, 308 Toshiba 312, 311
JC Penney 309, 305, 304, 330, Wards 327, 328, 335, 331,
314, 336, 337 332
JVC 314, 336, 337, 345, Yamaha 314, 330, 336, 337
346, 347
Zenith 331
Kenwood 314, 336, 332, 337
LG 332 Cable Box
LXI (SEARS) 332, 305, 330, 335,
Manufacturer Code
338
Magnavox 308, 309, 310 Sony 230
Hamlin/Regal 222, 223, 224, 225,
Marantz 314, 336, 337
226
Marta 332
Jerrold, G.I. 201, 202, 203, 204,
Memorex 309, 335
205, 206, 207, 208,
Minolta 305, 304
218, 222
Mitsubishi/MGA 323, 324, 325, 326
Oak 227, 228, 229
Multitech 325, 338, 321
Panasonic 219, 220, 221
NEC 314, 336, 337
Pioneer 214, 215
Olympic 309, 308
Scientific Atlanta 209, 210, 211
Optimus 327
Tocom 216, 217
Orion 317
Zenith 212, 213
Panasonic 308, 309, 306, 307
Pentax 305, 304 Satellite Receiver
Philco 308, 309
Manufacturer Code
Philips 308, 309, 310
Sony 801
Pioneer 308
Dish Network 810
Quasar 308, 309, 306
Echostar 810
RCA/PROSCAN 304, 305, 308, 309,
311, 312, 313, 310, General Electric 802
329 Hitachi 805
Realistic 309, 330, 328, 335,
Hugues 804
324, 338
Mitsubishi 809
Sansui 314
Panasonic 803
Samsung 322, 313, 321
RCA/PROSCAN 802, 808
Sanyo 330, 335
Toshiba 806, 807
Scott 312, 313, 321, 335,
323, 324, 325, 326
* If an Aiwa VCR does not
Sharp 327, 328
work even though you enter
Signature 2000 (M.Ward) 338, 327
the code for Aiwa, enter the
SV 2000 338
code for Sony instead.
