Summary of Contents for Omega OC64TB

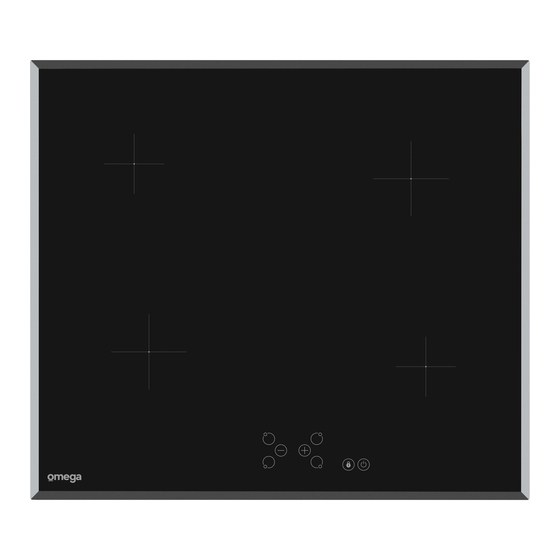

- Page 1 Instruction Manual Omega Cooktop OC64TB...
- Page 2 Thank you for purchasing an Omega appliance Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a welcome addition to the family. Omega caters to style-savvy customers who look for balance between stunning form and clever function.
-
Page 3: Table Of Contents
The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. Due to continual product development, Omega reserves the right to alter specifications and appearances without notice. -
Page 4: Important Safety Warnings
• If the supply cord is damaged, it must be replaced by the authorised Omega service center in order to avoid a hazard. WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric •... -
Page 5: Installation
Installation WARNING: This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations. • Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid. - Page 6 Installation Installation of the Hob The appliance is supplied with an installation kit including adhesive sealing material, fixing brackets and screws. • Cut the aperture dimensions as indicated in the figure. Locate the aperture on the worktop so that, after the hob is installed, the following requirements are followed. B (mm) min.
- Page 7 Installation Electrical Connection WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the current local regulations. WARNING: THE APPLIANCE MUST BE EARTHED. •...
-
Page 8: Operation Instructions
Operation Instructions The hob is controlled by pressing the appropriate electronic button. Each button pressed is followed by a buzzer sound. Heater display Activate/Deactivate heater Heat setting decrease Heat setting increase Decimal point Key lock indicator Key lock On/Off Mode Descriptions Mains supply is applied to the hob control and all Stand-By-... - Page 9 Operating Instructions Set Cooking Level with and without Heat Boost • All heaters are equipped with the heat boost function. • If the heat boost is required, set the heat from the current level to level 9 by pressing the button only.
- Page 10 Operating Instructions Child Lock The child lock function is used to lock the appliance in a complicated, multi-step process. Child lock (and unlocking) is only available in S-Mode. First, must be pressed until the buzzer sounds, then must be pressed simultaneously for at least 0.5 seconds, but no longer than 1 second.
- Page 11 Operating Instructions Operating Time Limitations The hob control unit has a limitation on the operating time. If the heat setting for a heater has not been changed for a certain time, the heater will switch off automatically. A “0” will be displayed for 10 seconds; however there may be some residual heat present.
-
Page 12: Cleaning And Maintenance
Cleaning and Maintenance WARNING: Switch off the appliance and allow it to cool before cleaning is to be carried out. • Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance. • Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces. -
Page 13: Australian & New Zealand Product Warranty Statements Of Standard Warranty Conditions
The Damage which occurs during delivery or installation. product will be repaired or replaced at the option of Omega, and 10. Claims to product surface coating due to liquid or solid all costs of installation, removal, cartage, freight travelling spill-overs, accidental damage or damage caused from expenses and insurance are to be paid by the customer.
