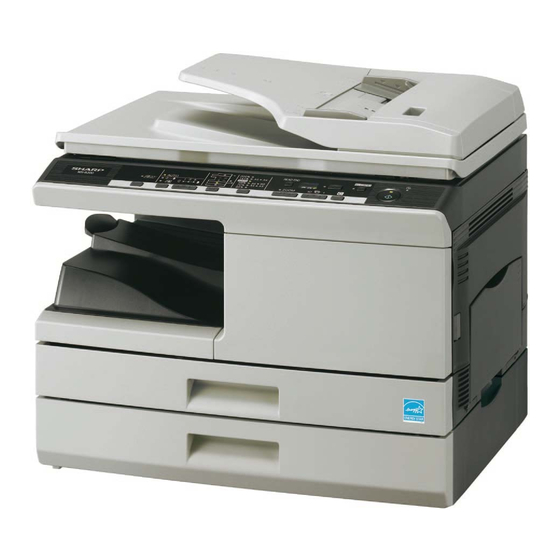

Sharp MX-B201D Start Manual

DIGITAL MULTIFUNCTIONAL SYSTEM
START GUIDE
This guide explains how to install the machine, and indicates important points to note for installation and usage. Read and understand this guide to
ensure that you install the machine correctly. The Operation Guide for the machine is on the accompanying CD-ROM. The procedure for viewing the
guide is explained in "4. HOW TO USE THE OPERATION GUIDE". After installation, read the Operation Guide to make full use of all the machine
has to offer.
1. TONER CARTRIDGE REPLACEMENT
When toner is low, the error indicator will light up and "TONER CARTRIDGE IS NEAR EMPTY." will appear in the display to alert you to purchase a
new toner cartridge. on purchasing a new toner cartridge. If copying is continued while the indicator is lit, copies will gradually become lighter until
the toner runs out. When the toner runs out, the machine will stop operating, the error indicator will blink, and "REPLACE THE TONER
CARTRIDGE" will appear in the display. Follow the procedure below to replace the toner cartridge.
• After the machine stops, it may be possible to make a few more copies by taking the toner cartridge out of the machine, shaking it horizontally,
then reinstalling it. If copying is not possible after this operation, replace the toner cartridge.
• During a long copy run of a dark original, "TONER REPLENISHMENT IN PROGRESS" appears in the display, and the machine may stop even
though toner is left. The machine will feed toner up to 2 minutes and then the ready indicator will light up. Press the [START] key (
resume copying.
Open the bypass tray, and then Push gently on both sides of the
1 2
open the side cover while pressing front cover to open the cover.
the side cover open button.
Remove the toner cartridge from the bag. Gently insert the toner cartridge along the
4 5
Grasp the cartridge on both sides and shake guides until it locks in place while pushing
it horizontally four or five times. After the lock release lever.
shaking the cartridge, remove the toner Remove the tape from the shutter. Pull the
seal. shutter out of the toner cartridge as shown
in the illustration. Discard the shutter.
4 or 5 times
Shutter
Toner seal
Grasp the toner cartridge as shown in
the illustration. Do not hold the
cartridge by the shutter. Be sure to
only shake the cartridge before the
toner seal is removed.
MODEL: MX-B201D
) to
Gently pull the toner cartridge out while pressing the lock
3
release lever.
Toner cartridge lock release lever
• After removing the toner cartridge, do not shake it or
tap on it. Doing so may cause toner to leak from the
cartridge. Put the old cartridge immediately in the bag
contained in the box of the new cartridge.
• Dispose of the old toner cartridge in accordance with
local regulations.
Close the front cover and then the side
6
cover by pressing the round projections
near the side cover open button. The error
indicator will go out and the ready indicator
will light up.
When closing the covers, be sure to
close the front cover securely and then
close the side cover. If the covers are
closed in the wrong order, the covers
may be damaged.
Even after a new toner cartridge is
installed, the start ( ) indicator may
not light up, indicating copying cannot
be restarted (toner is not sufficiently
fed). In this case, open and close the
side cover. The copier will feed toner
again approximately 2 minutes and
then copying can be restarted.
PRINTED IN CHINA 2010L KS1 TINSE2155QSZZ
2. LOADING PAPER
Raise the handle of the paper tray and Rotate the pressure plate lock in the direction
1 2
pull the paper tray out until it stops. of the arrow to remove it while pressing down
the pressure plate of the paper tray.
Squeeze the lever of paper guide (A) and slide Fan the paper and insert it into the tray.
4 5
the guide to match with the width of the paper. Make sure the edges go under the
Move paper guide (B) to the appropriate slot corner hooks.
as marked on the tray.
(B)
(A)
3. POWER ON AND OFF
If you use the unit in a country other than the country where the unit was purchased, you will need to make sure that your local power supply is
compatible with your model. If you plug the unit into an incompatible power supply, irreparable damage to the unit will result.
Turn the power switch on the left side of the unit to the "ON" position.
1
ON
The ready indicator will light up and other indicators which show the
initial settings of the display will also light up to indicate the ready
condition. For the initial settings, see "Initial settings" on the Operation
Guide.
About the scan head
The scan head lamp remains on constantly when the unit is in the ready condition (when the start (
The unit adjusts the scan head lamp periodically to maintain copying quality. At this time, the scan head moves automatically. This is normal and does not
indicate unit trouble.
4. HOW TO USE THE OPERATION GUIDE
Detailed explanations of the functions that can be used on the machine are provided in the Operation Guide in PDF format.
Insert the supplied CD-ROM into your Display the contents of the CD-ROM, and open
1 2
computer's CD-ROM drive. the Operation Guide file.
Manual English
Operation Guide CD-ROM
Store the pressure plate lock which has been
3
removed in step 2. To store the pressure plate
lock, rotate the lock to fix it on the relevant
location.
Gently push the paper tray back into the unit.
6
• Be sure that paper is free of rips, dust,
wrinkles, and curled or bent edges.
• Make sure all the paper in the stack is
the same size and type.
• When loading paper, ensure there is no
space between the paper and the
guide, and check if the guide is not set
too narrow causing the paper to bend.
Loading paper in these ways will result
in document skew or a paper jam.
Ensure that the power switch of the unit is in the OFF position.
2
OFF
If the power switch is turned off while the machine is in operation, a
misfeed may occur and the job that was in progress will be canceled. In
cases where the machine will not be used for a long time, turn off the
power switch and remove the power cord from the outlet.
) indicator is illuminated).
* To view the Operation Guide in PDF format,
® ®
Adobe Reader or Acrobat
Adobe Systems Incorporated is required.
® ®
Adobe Reader can be downloaded from the
Operation Guide file (PDF)
following URL:
http://www.adobe.com/
® ®
Reader of
