SERVICE MANUAL
NX750P-2
SMT Disclaimer
Due to the complex nature of the use of SMT installed components
in Yorkville equipment, we highly caution all service technicians in
attempting to repair or replace SMT factory installed components.
Many of these components may be glued prior to initial soldering.
Replacing SMT components requires expensive
specialized de-soldering equipment and training.
Yorkville Sound will repair and replace defective SMT components
to ensure proper quality assurance and installation is maintained.
NX750P-2
Manual-Service-NX750P-2-00-1v5 • Sep 20/2023
YS TYPE: 1037
Advertisement
Table of Contents

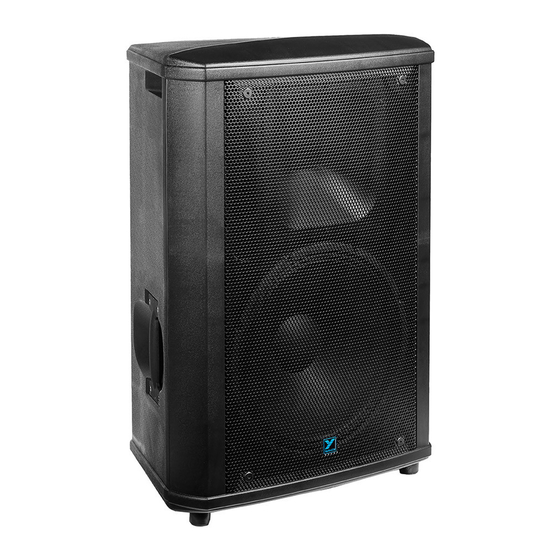

Related Manuals for YORKVILLE TWO Series
Summary of Contents for YORKVILLE TWO Series
- Page 1 Due to the complex nature of the use of SMT installed components 550 Granite Court 4625 Witmer Industrial Estate in Yorkville equipment, we highly caution all service technicians in Pickering, Ontario Niagara Falls, New York attempting to repair or replace SMT factory installed components.
- Page 2 IMPORTA NT SA FETY INSTRUCTIONS This lightning flash with arrowhead symbol, within an The exclamation point within an equilatereal triangle is intended to alert the user to the presence equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous of important operating and maintenance (servicing) instructions in the literature accompanying voltage”...
- Page 4 NOTES: ALL LINK CONNECTIONS FUNCTION AS INPUTS OR OUTPUTS. EXTERNAL MIXERS CONNECT TO LINK INPUTS W W W.YORK VILLE.COM Designed & Manufactured by YORKVILLE SOUND • TORONTO, CANADA LF ROLLOFF T R E B LE B AS S NX750P LEVEL...
- Page 5 Specifications 2-Way System Type Active Active or Passive Program Power (Watts) Self Powered Biampable Biamp Operation Only Max SPL (dB) 50 - 26k Frequency Response (Hz +/- 3db) 1400 Crossover Frequency (Hz) 15 inch / 1.5 inch Driver Configuration 1 inch Throat, Ceramic Magnet, 1 inch Polyester voicecoil HF Driver(s) HF Program Power (Watts) 80 x 50...
- Page 6 Spécifications Type De Système 2-Voies Active ou Passive Active Puissance nominale (Watts) Double Amplificateurs Autoalimenté Opération à double amplificateur seulement Pression sonore Maximum (dB) Réponse en Fréquence (Hz +/- 3db) 50 - 26k Fréquence de croisement (Hz) 1400 Configuration De Haut-Parleurs 15 pouces / 1.5 pouce Driver pour fréquences Aiguës(s) George de 1 pouce, Aimant en Céramique, Bobine mobile en...
- Page 7 M2002-03 Parts Reference List 2023-09-20 YS # Description YS # Description YS # Description YS # Description YS # Description AI-ASS M2002-59 NX750P-2 POWER AMP,SUPPLY PCB 6301 MURS360BT3 600V 3A DIO SMB SMT 6931 IRFP140N TO247 NCH MFET 7855 W125 270R 0805 SMT RES 7602 330P 50V 5%CAP...
- Page 8 M2257-04 Parts Reference List 2023-09-20 YS # Description YS # Description YS # Description YS # Description YS # Description AI-ASS M2257-59 NX750P-2 INPUT PCB AI 7750 CDSF4148 75V 0A15 1005 SMT R152 7676 W100 2K0 1% 0805 SMT RES 7903 NE5532D DUAL OPAMP SMT SO-8...
- Page 9 M1557 Parts Reference List 3/17/2020 YS # Description YS # Description YS # Description YS # Description YS # Description 5256 __1U 63V 5%CAP T&R RAD .2FLM 7750 CDSF4148 75V 0A15 1005 SMT R114 7625 W100 10K0 1% 0805 SMT RES R209 7625 W100 10K0 1%...
- Page 10 POWER AMPS C237 FROM POWER SUPPLY +15V_LS 1206 D208 D212 HORN AMP R264 R263 PHANTOM SUPPLY +/-15V_MOD W125 W100 1K62 DO-214AC DO-214AC D210 W2:8 0805 C236 0805 ES1J ES1J N1026 +15V_MOD +15V_ -177V_ +51V_ +15V_MOD +51V_ PSGND_ C238 W2:7 R265 100N N1027 +177V_...
- Page 11 POWER SUPPLY TO POWER AMP PCB AC IN SILENT W2_:1 N1040 W2_:2 N1041 W10:1 W2_:3 N1057 N1042 W2_:4 W10:2 -36VDC N1043 N1058 W2_:5 N1044 N1045 XFMR PRIMARY W2_:6 +177V Fuse 120V 129VAC W2_:7 NA : #2465 F 7A N1046 IEC_RECT 38VAC MR752 W34:6...
- Page 12 DESIGN HISTORY AND INFORMATION CHANGE HISTORY DATE VER# DESCRIPTION OF CHANGE 30-08-2023 Release For Production LEADS AND PINS REFERENCE MC33079 (YS#6804) IRS21844 (YS#6586) NE5532N (YS#6884) TL072 (YS#6882) LTV-8141S (YS#6668) IRFP140N (YS#6931) IRFP9140N (YS#6932) AIKW50N65DF5 (YS#2511) BDX54C (YS#6911) LM7815 (YS#6872) LM7915 (YS#6871) BDX53C (YS#6912) TO-247AC TO-247AC...
- Page 13 R269 R261 R267 0R47 2200U BDX54C MBS4992 C115 LABEL C111 0R47 100K C104 100R R268 R260 6912 4151 BDX53C 0R47 Yorkville Yorkville Yorkville 2018 2017 C6TP1 5912 L202 2K21 1000UH 18K2 2200U ES2G 0R47 5887 D210 680P 2200U 6931 15K0...
- Page 14 PCB ASSEMBLY DOCUMENTATION PCB HARDWARE SPECIAL PRODUCTION NOTES 8871 8871 8871 8871 8902 8902 8902 8902 8701 8701 8701 8701 8701 8701 8701 8701X 8 8667 8667 8667 8667 8667 8667 3501 3501 3501 3501 3501 3501 HW13 HW22 HW21 HW14 HW30 HW26...
- Page 15 DESIGN HISTORY AND INFORMATION CHANGE HISTORY DATE VER# DESCRIPTION OF CHANGE 30-08-2023 Release For Production LEADS AND PINS REFERENCE MC33079 (YS#6804) IRS21844 (YS#6586) NE5532N (YS#6884) TL072 (YS#6882) LTV-8141S (YS#6668) IRFP140N (YS#6931) IRFP9140N (YS#6932) AIKW50N65DF5 (YS#2511) BDX54C (YS#6911) LM7815 (YS#6872) LM7915 (YS#6871) BDX53C (YS#6912) TO-247AC TO-247AC...
- Page 16 PreAmp.SCHDOC AmpInput AmpInpGnd TO POWER AMP PCB HornOut Input.SCHDOC W1_:1 HornGnd N1001 LVGND INPUT / MIXER W1_:2 Horn/Woofer N1002 AmpInput AmpInpGnd W1_:3 N1003 +15V WOOFGnd_ W1_:4 LimitLED LimitLED N1004 WOOFOut -15V W1_:5 N1005 WOOFCLIP +27V W1_:6 N1006 W1_:7 N1007 W1_:8 N1008 W1_:9 N1009...
- Page 17 +27V R167 R168 W100 W500 10K0 0805 1210 R170 RAD .2in W100 10K0 0805 IGND R169 C107 R181 R174 R175 R172 NE5532D W100 MIXER SECTION W125 W125 W100 W100 DUAL OPAMP 6K80 MIC INPUT 562R 2K49 7903 249R0 +15V R171 0603 P2:1 0805...
- Page 18 R162 W100 C151 0805 R133 R112 U22:1 W125 W125 R125 330N +15V NE5532D 470R 1K87 W125 RAD .2in U36:1 0805 0805 3K32 R235 R234 0805 W100 W100 7669 U36:2 C150 C149 100V +15V 7903 NSL-32SR2 TL072 AmpInput 0805 0805 100N CDSF4148 AmpInput U36:3...
- Page 19 DESIGN HISTORY AND INFORMATION CHANGE HISTORY POTENTIOMETERS AND KNOBS POTENTIOMETERS AND KNOBS DATE VER# DESCRIPTION OF CHANGE FUNCTION POT# STYLE KNOB# 2023-08-30 Released for Production MAIN GAIN 4434 9916 MIC GAIN 4432 9915 BASS CONTROL 4435 9917 CD/LINE GAIN 4432 9915 TREBLE CONTROL 4434...
- Page 20 680P 680P R111 562R0 562R0 C119 681R0 100N R110 NE5532D TIP-SW TIP-SW R175 R190 R114 NE5532D R182 R185 10K0 R207 R103 R108 C138 4100 470P 470P 4010 4010 R109 R170 10K0 10K0 R167 C107 INPUT Yorkville Yorkville OUTPUT 2023 2023...
- Page 21 PCB ASSEMBLY DOCUMENTATION SPECIAL PRODUCTION NOTES 1. Bend and RTV appropriate caps. 2. Place solder jig before wave solder. 3. Use pizza cutter to separate boards from panel THIS SHEET CONTAINS SPECIAL PRODUCTION NOTES AND A LIST OF PCB HARDWARE PARTS REQUIRED FOR THE BUILD. Assembly Documentation Section: NX750P-2...
-
Page 22: Table Of Contents
DESIGN HISTORY AND INFORMATION CHANGE HISTORY POTENTIOMETERS AND KNOBS POTENTIOMETERS AND KNOBS DATE VER# DESCRIPTION OF CHANGE FUNCTION POT# STYLE KNOB# 2023-08-30 Released for Production MAIN GAIN 4434 9916 MIC GAIN 4432 9915 BASS CONTROL 4435 9917 CD/LINE GAIN 4432 9915 TREBLE CONTROL 4434... -
Page 23: Date
4167 3538 M1369 PCB_DATABASE_HISTORY MODEL(S):- CROW BAR DATE VER# DESCRIPTION OF CHANGE Woofer + W6:C W5:B Woofer + 28-NOV-2007 1.00 FIRST DESIGN 02-JUN-2008 2.00 UPDATE TABS 180K 19-JAN-2009 3.00 CHANGE THE BECLOC HOLE TO NON PLATED MBS4992 06-MAY-2011 Reduce size of the panel. - GG Q2:A STM-BTB-600BRG Woofer -... - Page 24 M1369 CROWBAR Yorkville 2014 5 POUNDS TORQUE 6517 STM-BTB-600BRG {Watts} TO220 5190 CLINCH INSERT ORIGIN LONG AXIS ORIGIN M1369 V06 StepAndRepeat - X5@2500Y4@2000...
- Page 25 SEE LAYOUT DIAGRAM M1369 PRODUCTION NOTES M1369 PCB_DATABASE_HISTORY MODEL(S):- CROW BAR DATE VER# DESCRIPTION OF CHANGE 28-NOV-2007 1.00 FIRST DESIGN 1. USE #8799, #6 1/4 PAN SCREW FOR TRIAC Q1 02-JUN-2008 2.00 UPDATE TABS 19-JAN-2009 3.00 CHANGE THE BECLOC HOLE TO NON PLATED 06-MAY-2011 Reduce size of the panel.
- Page 26 C146 2K5 NOTCH 100V 3K9 NOTCH R143 +15V -15V 20K0 MINI MAIN INPUT U13:B 100V R144 U14:A C145 1/4W 100V 100N 4148 180R -15V U14:C NE5532N 1/8W 100V 4100 NE5532N 681R FLMP U13:A FLMP -15V 681R 1/8W C147 +15V 100V U13:C 1/4W LVGND...
- Page 27 +56V IRFP140N Q12:A 6931 HORN AMP 1/4W 1/4W TO247 2K21 MINI FLMP PHANTOM SUPPLY 680P 1N5242B +22V 100V 12V0 +56V MR854 16V0 1N5246B 2.0W HORNGND BDX53C 1/4W 6912 680R Bias accross TP1 & TP2 FUSIBLE R219 MINI TO220 BC550C 1/4W 2N5551 100V 470R...
- Page 28 POWER SUPPLY TO POWER AMP PCB SILENT +145V FUSE 8 W12:G N.A.: #2465 F 7A IEC_RECT 6 W34:F MR752 CE: #2482 F3.15A 4007 CH1337U 6 W34:E +56V FUSE 4007 DPDT Switch W1:A Thermal Breaker AC BLACK 6 W34:D 1N5402 +22V +15V MC7815CT FAST BLOW...
-
Page 29: Potentiometers And Knobs
M1231.PCB_DATABASE_HISTORY LEADS & PINS REFERENCE POTENTIOMETERS AND KNOBS MODEL(S):- NX750P DATE VER# DESCRIPTION OF CHANGE AUGUST 2004 V1.00 MADE FROM M1158-V.200 NOV-26-2004 PC#6772: REV. WIRE COLORS ON WOOFER & HORN (GT) 74HC86N (YS#6605) IR2110 (YS#6887) MC33079P (YS#6804) M1231 - POTS LIST MAY30th 2005 V2.00 CHANGED POWER SUPPLY CAPACITORS TO NEW... - Page 30 C106 120V C128 C139 R191 R190 C129 R217 C126 100N C137 100N R197 R168 R206 10K0 680N 220R 220R 10K0 R203 250V 100N R207 5266 RING-SW 250V C108 332R0 4147 6884 R194 C125 5242 NE5532N 1300UH R199 R204 3921 6492 4147 AC GND R200...
- Page 31 SEE LAYOUT DIAGRAM PRODUCTION NOTES M1231 1. MAKE SURE TO RTV UNDER ALL LARGE CAPACITORS. **************IMPORTANT****************** 2. ADD AMPLE RTV UNDER ENTIRE BASE OF OUTPUT COIL L1 3. LEADS FOR 5 WATT RESISTORS MUST BE BENT ON THE MACHINE LEAD LOOP MUST NOT BE ABOVE TOP OF RESISTOR 5 WATT 4.
-
Page 32: Potentiometers And Knobs
SEE LAYOUT DIAGRAM M1231.PCB_DATABASE_HISTORY POTENTIOMETERS AND KNOBS MODEL(S):- LEADS & PINS REFERENCE NX750P DATE VER# DESCRIPTION OF CHANGE AUGUST 2004 V1.00 MADE FROM M1158-V.200 NOV-26-2004 PC#6772: REV. WIRE COLORS ON WOOFER & HORN (GT) M1231 - POTS LIST MAY30th 2005 V2.00 CHANGED POWER SUPPLY CAPACITORS TO NEW 74HC86N (YS#6605) IR2110 (YS#6887) - Page 33 SOCKET SOCKET UPSIDE DOWN NORMAL NORMAL LARGE SOCKET WITH DIRECTION CLINCH M1231 INSERT BlankSize - 1 1000x10000 Pcb Mech ORIGIN ORIGIN...
- Page 34 InputHorn.SCHDOC HornInput HornInGND TO POWER AMP PCB HornOut Input.SCHDOC W1_:1 HornGnd N1001 LVGND INPUT / MIXER W1_:2 LF_Rolloff N1002 ToAmpInputs LimitLED AmpInpGnd W1_:3 N1003 +15V W1_:4 LimitLED N1004 -15V W1_:5 N1005 +27V InputWoofer.SCHDOC W1_:6 LF_Rolloff N1006 WooferIn W1_:7 WoofInpGnd WOOFGnd_ N1007 WOOFOut W1_:8...
- Page 35 +27V R167 R168 W100 W500 10K0 MIXER SECTION 0805 1210 R170 RAD .2in W100 10K0 0805 IGND C107 R169 R181 R174 R175 R172 NE5532D W100 W125 W125 W100 W100 DUAL OPAMP MIC INPUT 6K80 562R 2K49 7903 249R0 +15V R171 P2:1 0603 0805...
-
Page 36: Mc33079D (Ys#7668)
100V +15V RAD .2in NE5532D NE5532D U27:3 R266 W125 220K 6K20 270R 7903 7903 100V 0805 0805 0805 U27:1 RAD .2in 2K5 NOTCH -15V HIGnd3 HornGnd +15V W125 R101 1K800 1K21 +15V R183 R152 NE5532D NE5532D 0805 0805 NE5532D W125 W100 W100 CDSF4148... - Page 37 Woofer Input NE5532D R126 U24:1 4K99 0805 C151 C149 7903 R233 150N WooferIn W100 +15V R133 R112 RAD .2in 150N U22:1 0805 W100 W100 470N 470N 150N R235 R234 R125 RAD .2in 2K21 CDSF4148 R162 RAD .2in RAD .2in RAD .2in W100 W100 W125...
- Page 38 DESIGN HISTORY AND INFORMATION CHANGE HISTORY POTENTIOMETERS AND KNOBS POTENTIOMETERS AND KNOBS DATE VER# DESCRIPTION OF CHANGE FUNCTION POT# STYLE KNOB# 2018-10-30 9145 New SMT version from the input section of M1555 MAIN GAIN 4434 9916 2019-01-14 9337 Remove R240 and replace attributes with Do Not Stuff (DNS) MIC GAIN 4432 9915...
- Page 39 681R0 100N R235 R234 C151 TIP-SW TIP-SW NE5532D R175 R190 R114 NE5532D R182 C73 C62 R111 R185 10K0 R110 C119 R207 R108 R103 C138 4100 470P 470P 4010 4010 R109 10K0 10K0 R167 C107 INPUT Yorkville Yorkville OUTPUT 2018 2018...
- Page 40 PCB ASSEMBLY DOCUMENTATION SPECIAL PRODUCTION NOTES 1. Bend and RTV appropriate caps. 2. Place solder jig before wave solder. 3. Use pizza cutter to separate boards from panel THIS SHEET CONTAINS SPECIAL PRODUCTION NOTES AND A LIST OF PCB HARDWARE PARTS REQUIRED FOR THE BUILD. Assembly Documentation Section: NX55P-2...
- Page 41 DESIGN HISTORY AND INFORMATION CHANGE HISTORY POTENTIOMETERS AND KNOBS POTENTIOMETERS AND KNOBS DATE VER# DESCRIPTION OF CHANGE FUNCTION POT# STYLE KNOB# 2018-10-30 9145 New SMT version from the input section of M1555 MAIN GAIN 4434 9916 2019-01-14 9337 Remove R240 and replace attributes with Do Not Stuff (DNS) MIC GAIN 4432 9915...
- Page 42 . y o r k v i l l e . c o m w w w . y o r k v i l l e . c o m Yorkville Sound Yorkville Sound Yorkville Sound Inc. Yorkville Sound Inc. 550 Granite Court 550 Granite Court...
- Page 43 . y o r k v i l l e . c o m w w w . y o r k v i l l e . c o m Yorkville Sound Yorkville Sound Yorkville Sound Inc. Yorkville Sound Inc. 550 Granite Court 550 Granite Court...
- Page 44 CLIP 60Hz 100Hz LF ROLLOFF TREBLE BASS LIMIT YS#9916 Gray Knob (qty: 1) NX750P LEVEL MIXER LINE / CD YS#9917 Green Knob (qty: 2) LINK YS#89915 Red Knob (qty: 2) OUTPUT INPUT LINE / CD OUTPUT INPUT WIRING-Z452D-nx750p-control-KNOB-COLORS-1v1.ai...
- Page 45 Yorkville Sound 550 Granite Court Pickering, Ontario Canada L1W 3Y8 www.yorkville.com Auto Attend: (905) 837-8550 Fax: (905) 837-8746...
