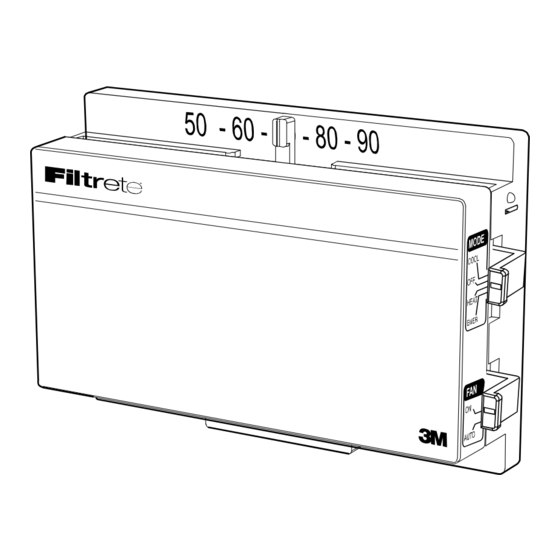

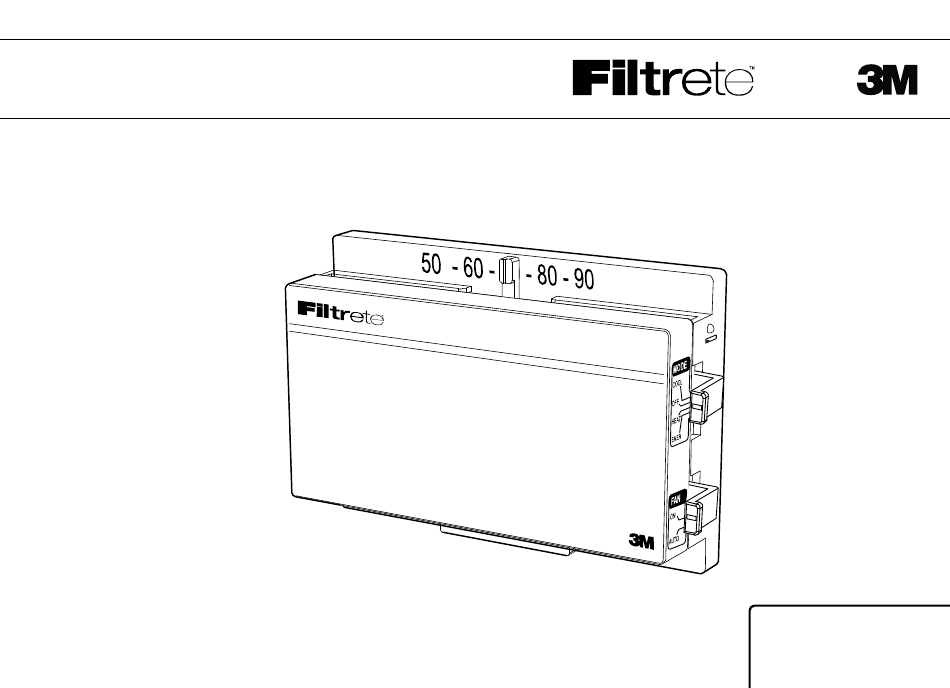

- Page 1 Install Guide 3M-10 ENGLISH...
- Page 2 Install Guide 3M-10 To avoid electrical shock and to prevent damage to the furnace, air conditioner, Caution and thermostat, disconnect the power supply before beginning work. This can be done at the circuit breaker, or at the appliance. You will need #1 Phillips screwdriver (small) and Tools Drill with 3/16-in.
- Page 3 •Remove the old thermostat from the wall. Fill wall opening with fiber glass insulation to prevent drafts. Mount the 3M-10 • Separate front from back of unit. Grasp the front of the unit and the back of the unit and pull apart. The thermostat body away from the base.
- Page 4 The batteries will last well over 1 year. If the batteries are not replaced the thermostat will stop working. 2) The 3M-10 can run on the C wire if available. As shown in the wiring diagrams, The C wire is the other side of the 24VAC heating...
- Page 5 Wire Connections Make sure your wires are labeled. This is necessary to determine which step-by-step wiring diagram you should use. This may require you to find the 'other end' connection for each wire on your heating or air conditioning equipment and read the label there. If you have a Zoned Heating/Cooling system with multiple thermostats, please refer to our website at www.radiothermostat.com/filtrete for installation notes or call 1-888-607-5824 Before you Connect Wires...
- Page 6 Go To Page 16 Go To Page 15 Go To Page 17 If you do not find the wiring information for your system try our webiste www.radiothermostat.com/filtrete for more information or call our customer service hotline at 888-607-5824. Wire Connections cont When you have finished connecting the wires attach control unit to wall unit.
- Page 7 2 WIRE Heating (GAS MILLIVOLT or 24vac STEP 1 - Connect the R Thermostat (or RH) wire to the RH terminal on the thermostat. This connects the Heater Power to the thermostat. jumper wire STEP 2 - Connect the W wire HEAT to the W terminal on the HEAT...
- Page 8 STEP 1 - Connect the Y wire to 4 WIRE NON_HEAT PUMP the Y terminal on the thermostat. This connects to the Cooler Thermostat compressor. STEP 2 - Connect the RH or R jumper wire wire to the RH terminal on the thermostat.
- Page 9 NORMAL 2 Stage Heat System STEP 1 - Connect the G wire to jumper wire the G terminal on the thermostat. Thermostat This connects the Fan. STEP 2 - Connect the between W wire to W. This connects the 1st stage heat. STEP 3 - Connect the between Two Stage Furnace...
- Page 10 Your HVAC system is now connected to the thermostat. 3M-10 Features The 3M-10 can be used with most 24 volt gas, oil or electric heating and air conditioning systems, heat pump systems with or without auxiliary heat, Normal 2 Stage systems, Zoned Hot-Water, Zoned Forced air systems, or gas millivolt heating systems.
