Summary of Contents for Telefunken B49U546A

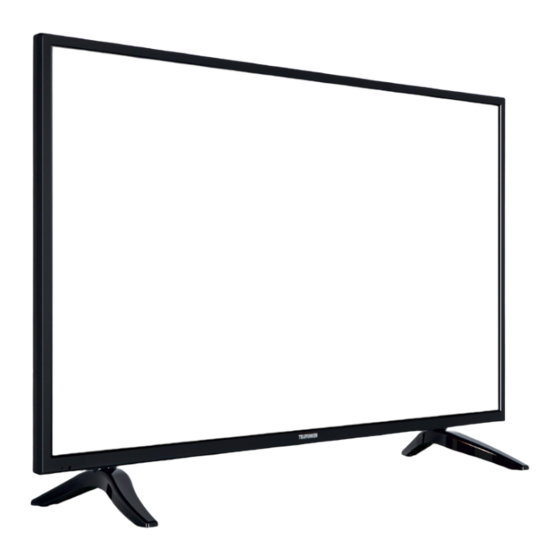

- Page 1 LCD TV BEDIENUNGSANLEITUNG INSTRUCTION MANUAL MODE D‘EMPLOI ISTRUZIONI PER L‘USO B49U546A...
-
Page 2: Table Of Contents
Contents Safety Information ..........35 Markings on the Product........35 Environmental Information........37 Features ...............37 Accessories Included..........37 Standby Notifications ..........37 TV Control Buttons & Operation ......38 Inserting the Batteries into the Remote ....38 Connect Power ............38 Antenna Connection ..........39 Notification ............39 Specification ............39 Remote Control ............40 Connections............41 Switching On/Off ...........42... -
Page 3: Safety Information
• Do not place any heat sources such as electric Safety Information heaters, radiators, etc. near the TV set. • Do not place the TV on the floor and inclined CAUTION surfaces. • To avoid danger of suffocation, keep plastic bags RISK OF ELECTRIC SHOCK DO NOT OPEN out of the reach of the babies, children and domestic... - Page 4 WARNING WALL MOUNTING WARNINGS Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the • Read the instructions before mounting your TV product may contain a coin/button cell battery. If the on the wall. coin/button cell battery is swallowed, it can cause •...
-
Page 5: Environmental Information
• Sleep timer Environmental Information • Child lock This television is designed to be environment friendly. To reduce energy consumption, you can follow these • Automatic sound mute when no transmission. steps: • NTSC playback If you set the Energy Saving to Minimum, Medium, •... -
Page 6: Tv Control Buttons & Operation
TV Control Buttons & Operation Inserting the Batteries into the Remote Remove the back cover to reveal the battery compartment. Insert two size AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. -
Page 7: Antenna Connection
Antenna Connection Specification Connect the aerial or cable TV plug to the AERIAL PAL BG/I/DK/LL’ TV Broadcasting INPUT (ANT-TV) socket or satellite plug to the SECAM BG/DK SATELLITE INPUT (ANT SAT) socket located on the VHF (BAND I/III) - UHF rear bottom side of the TV. -
Page 8: Remote Control
Remote Control Source: Shows all available broadcast and content sources Netflix: Launches the Netflix application, if this feature is supported by your TV YouTube: Launches the YouTube application Play: Starts to play selected media No function Rapid reverse: Moves frames backwards in media such as movies Language: Switches between sound modes (analogue TV), displays and changes audio/subtitle language... -
Page 9: Connections
Connections Connector Type Cables Device NOTE: When connecting a device via the YPbPr or Back Scart AV input, you must use the Connection connection cables to enable (back) connection. See the illustrations on the left side. | To enable YPBPR PC/YPbPr audio, you will need YPbPr Video to use the Back Audio inputs... -
Page 10: Switching On/Off
Direct, Single Satellite Cable or DiSEqC switch by Switching On/Off using “ ” or “ ” buttons. To Switch the TV On • Direct: If you have a single receiver and a direct Connect the power cord to a power source such as a satellite dish, select this antenna type. -
Page 11: Media Playback Via Usb Input
TV feature. Install the appropriate Smart Center (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable application to your mobile device. Start the application. channel number sequence (if available). For further information on using this feature refer to Note: Do not turn off the TV while initializing first time the instructions of the application you use. -
Page 12: E-Manual (If Available)
E-Manual (if available) You can find instructions for your TV’s features in the E-Manual. To use E-Manual, press to the Info button while main menu is displayed on the screen or press Quick Menu button, select Information Booklet and press OK. By using the directional buttons select a desired category. -
Page 13: Tv Menu Contents
TV Menu Contents System - Picture Menu Contents You can change the picture mode to suit your preference or requirements. Picture mode can Mode be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural. Contrast Adjusts the light and dark values on the screen. Brightness Adjusts the brightness values on the screen. - Page 14 System - Sound Menu Contents Volume Adjusts the volume level. Equalizer Selects the equalizer mode. Custom settings can be made only when in User mode. Balance Adjusts whether the sound comes from the left or right speaker. Sets headphone volume. Headphone Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
- Page 15 System - Settings Menu Contents Conditional Access Controls conditional access modules when available. Language You may set a different language depending on the broadcaster and the country. Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options.
- Page 16 This setting configures the power up mode preference. Last State and Standby options Power Up Mode are available. Virtual Remote Enable or disable the virtual remote feature. With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
-
Page 17: General Tv Operation
Internet Lock: If this option is set to ON, the open General TV Operation browser application in the portal will be disabled. Set Using the Channel List to OFF to release the application again. The TV sorts all stored stations in the Channel List. Set PIN: Defines a new PIN number. -
Page 18: Teletext Services
Now/Next Schedule Note: Do not unplug the power cord while led is blinking during the reboot process. If the TV fails to come on after the Navigate (Directional buttons): Press the upgrade, unplug, wait for two minutes then plug it back in. Directional buttons to navigate through the channels Troubleshooting &... -
Page 19: Pc Input Typical Display Modes
PC Input Typical Display Modes AV and HDMI Signal Compatibility The following table is an illustration of some of the Source Supported Signals Available typical video display modes. Your TV may not support all resolutions. SECAM Index Resolution Frequency NTSC4.43 640x350 85Hz (SCART) -
Page 20: Supported Video File Formats For Usb Mode
Supported Video File Formats for USB Mode Video Codec Resolution Bit Rate Container MPEG program stream (.DAT, .VOB, .MPG, .MPEG), MPEG MPEG1/2 transport stream (.ts, .trp, .tp), MP4 (.mp4, .mov), 3GPP (.3gpp, .3gp), AVI (.avi), MKV (.mkv), ASF (.asf) MPEG program stream (.MPG, .MPEG), MP4 (.mp4, .mov), 1080Px2@30fps, MPEG4 40Mbps... -
Page 21: Supported Audio File Formats For Usb Mode
Supported Audio File Formats for USB Mode Audio Codec Sample rate Bit Rate Container MP3 (.mp3), AVI (.avi), ASF (.asf), Matroska (.mkv, .mka), 32Kbps ~ MPEG1/2 Layer1 16KHz ~ 48KHz MPEG transport stream (.ts, .trp, .tp), MPEG program stream 448Kbps (.DAT, .VOB, .MPG, .MPEG), WAV (.wav) MP3 (.mp3), AVI (.avi), ASF (.asf), Matroska (.mkv, .mka), 8Kbps ~... -
Page 22: Supported Dvi Resolutions
Supported DVI Resolutions When connecting devices to your TV’s connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information. 72Hz 75Hz 56Hz 60Hz 66Hz 70Hz 640x480 þ þ 800x600 þ þ... -
Page 23: Connectivity
Connectivity network wall socket Wired Connectivity To Connect to a Wired Network • You must have a modem/router connected to an active broadband connection. • Ensure that Nero Media Home software is installed to your PC (for Audio Video Sharing function). See “Nero Media Home Installation”... -
Page 24: Wireless Display
If the selected network is protected with a password, please enter the correct key by using the virtual Broadband keyboard. You can use this keyboard via the directional connection buttons and the OK button on the remote control. Wait until the IP address is shown on the screen. This means that the connection is now established. -
Page 25: Connectivity Troubleshooting
Then press the Source button on the remote and connect to the internet. Contact your internet service switch to Wireless Display source. provider and request information on how to connect a different device, such as your TV, to the internet. A screen appears stating that the TV is ready for connection. -
Page 26: Nero Mediahome Installation
the device list, press the Green button. You can press the agreement. Installation is not possible without Menu to exit. this agreement. If you select the media type as Videos and choose 7. Click the Next button. On the next screen you can a device from the selection menu. -
Page 27: Internet Browser
Your TV does not support any download processes Third party internet services may change, be discontinued or restricted at any time. from the internet via the browser. Internet Browser All sites on the internet might not be supportted. According to the site; content problems may occur. To use the internet browser, enter the portal first. -
Page 28: Hbbtv System
HBBTV System HbbTV (Hybrid Broadcast Broadband TV) is a new industry standard that seamlessly combines TV services delivered via broadcast with services delivered via broadband and also enables access to Internet only services for consumers using connected TVs and set-top boxes. Services delivered through HbbTV include traditional broadcast TV channels, catch-up services, video-on-demand, EPG, interactive advertising,... -
Page 29: Smart Center
PORTAL: This tab displays the Portal applications in Smart Center scrollable view. Unless FollowMeTV (if available) is Smart Center is a mobile application running on iOS active, the selected application will be displayed on and Android platforms. With your tablet or phone, your TV screen. - Page 30 FollowMe TV Feature (if available) Requirements Tap on the FOLLOW ME TV widget located at the 1. Smart TV bottom left of the screen of your mobile device to 2. Network connection change the layout for FollowMe TV feature. 3. Mobile Device based on Android or iOS platform (Android OS 4.0 or higher;...
- Page 31 TELEFUNKEN ® Markenlizenz: TELEFUNKEN ® licensed by: TELEFUNKEN Licenses GmbH TELEFUNKEN Licenses GmbH Vertrieb: Vestel Germany GmbH, Imported by: Vestel Germany GmbH, D-85748 Garching bei München D-85748 Garching/Munich 1 Die Marke TELEFUNKEN ist eine eingetragene Marke der TELEFUNKEN Licenses GmbH.
