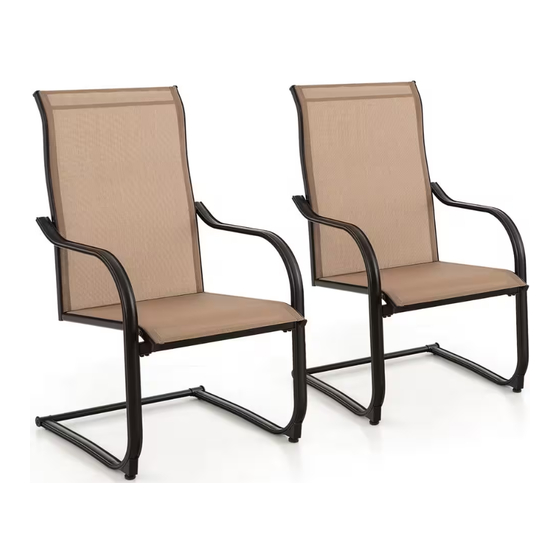

- Page 1 Outdoor Dining Chairs Set of 2 Lot de 2 Chaises de Salle à Manger d'Extérieur NP11095-2 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Before You Start
Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled. -
Page 3: Material Code
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE INTENDED FOR RESIDENTIAL USE ONLY. ATTENTION: CE PRODUIT N'EST PAS DESTINÉ À UN USAGE COMMERCIAL, MAIS UNIQUEMENT À UN USAGE RÉSIDENTIEL. PARTS LIST / LISTE DES PIÈCES PART MATERIAL CODE PART Q’TY RÉF CODE DU MATÉRIAU PIÈCE... - Page 4 Attention: Make sure that each bolt needed for all steps matches the corresponding figure to ensure proper assembly. Attention : Assurez-vous que chaque boulon nécessaire pour toutes les étapes correspond à la figure correspondante afin de garantir un assemblage correct. FIGURE 1 PARTS REQUIRED: 1, 2, 8, &...
- Page 5 FIGURE 2 PARTS REQUIRED: 3, 4, 5, 6, & 10 Keep the bolts loose. FIGURE 2 PIÈCES REQUISES : 3, 4, 5, 6, & 10 Laissez les boulons desserrés. Note: The labels marked “L” and “R” on arms (#3 and #4) should coincide with Figure 2 to ensure proper assembly.
- Page 6 FIGURE 3 PARTS REQUIRED: 2, 3, 4, 7, & 11 Keep the bolts loose. FIGURE 3 PIÈCES REQUISES : 2, 3, 4, 7, & 11 Laissez les boulons desserrés. FIGURE 4 PARTS REQUIRED: 1, 3, 4, 9, & 11 Tighten all bolts by using the supplied Hex key.
- Page 7 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
- Page 8 USA office: Fontana AUS office: Truganina GBR office: Ipswich FRA office: Saint Vigor d'Ymonville USA:cs.us@costway.com If you're having difficulty, our friendly AUS:cs.au@costway.com GBR:cs.uk@costway.com customer team is always here to help. FRA:cs.f r @costway.com...
