Summary of Contents for Echo CS-3000

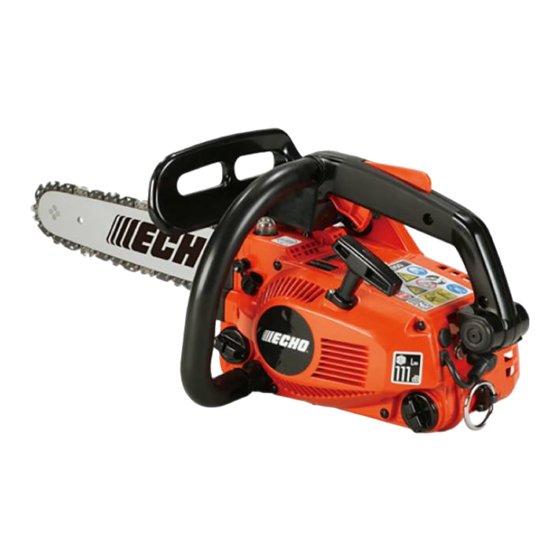

- Page 1 1Top cover ENGLISH DEUTSCH ITALIANO ESPAÑOL OPERATOR'S MANUAL CHAIN SAW CS-3000 CS-3400 WARNING This chain saw is designed especially for tree service by a trained operator. Read the instructions carefully and follow the rules for safe operation. Failure to do so could result in serious injury.
- Page 2 For future reference, you should keep this operator's manual. If this operator's manual has become illegible through impairment or is lost, please purchase a new one from your ECHO dealer. When renting or lending this machine to a person who will operate it, always include this operator's manual, which provides explanation and instructions.
-
Page 3: Table Of Contents
Contents Decals and symbols......................4 Rules for safe operation...................... 5 0. Tree service chain saw ....................5 1. General precautions ....................8 2. Kickback safety precautions ..................11 3. Other safety precautions..................12 Description........................14 Assembly .......................... 15 Mounting guide bar and chain ..................15 Operation .......................... -
Page 4: Decals And Symbols
Make sure the decal is legible and that you understand and The complete unit illustration found in the "Description" follow the instructions on it. section will help you locate them. If a decal cannot be read, a new one can be ordered from your ECHO dealer. -
Page 5: Rules For Safe Operation
0. Tree service chain saw NOTE When replacing guide bar or saw chain, ask your ECHO dealer. The saw is specially designed for tree service, i.e. for off-ground working in trees, and when being used as such should only be used be trained operators. - Page 6 Using the chain-saw in the tree An analysis of accidents with these saws during tree service operations shows the primary cause as being inappropriate one-handed use of the saw. In the vast majority of accidents, operators fail to adopt a secure work position that allows them to hold both handles of the saw.
- Page 7 3. One-hand use of the chain-saw Operators should not use tree service chain-saws one-handed when work position is unstable or in preference to a handsaw when cutting small diameter wood at the branch tips. Tree service chain-saws should only be used one-handed where operators cannot gain a work position enabling two-handed use, and they need to support their working position with one hand, and the saw is being used at full stretch, at right angles to and out of line with the operator's...
-
Page 8: General Precautions
Be thoroughly familiar with the chain saw's controls and how to use the chain saw properly. Failure to follow instructions could lead to personal injury. If you have any questions or problems, please contact your ECHO dealer. Physical condition Do not operate a chain saw when you are fatigued or under the influence of alcohol or drugs. - Page 9 Do not press socket wrench forcefully, since tank cap is plastic. Pressing forcefully can damage tank cap. If tank cap is damaged, do not start engine and ask your ECHO dealer for replacement. 1. Oil tank cap 2. Fuel tank cap...
- Page 10 Starting engine DANGER Do not drop start the chain saw, drop start puts chain saw in an insecure position and can result in injury. Start the chain saw in a correct manner. Move the chain saw at least 3 m from the fuelling point before starting the engine. Do not allow other persons to be near the chain saw when you are starting or cutting with the chain saw.
-
Page 11: Kickback Safety Precautions
2. Kickback safety precautions DANGER Kickback safety precaution for chain saw users: kickback may occur when the nose or tip of the guide bar touches an object or when the wood closes in and pinches the saw chain in the cut. In some cases, tip contact may cause a lightning-fast reverse reaction, kicking the guide bar up and back toward the operator (this is called a rotational kickback). -
Page 12: Other Safety Precautions
It is believed that a condition called Raynaud's Phenomenon, which affects the fingers of certain individuals, may be brought about by exposure to cold and vibration. Accordingly, your ECHO chain saw has shock mounts designed to reduce the intensity of vibration received through the handles. - Page 13 Machine conditions WARNING Do not modify a chain saw in any way. Only attachments and parts supplied by KIORITZ CORP. or expressly approved by KIORITZ CORP. for use with the specific KIORITZ CORP. chain saw models are authorized. Although certain unauthorized attachments are useable with the KIORITZ CORP. powerhead, their use may, in fact, be extremely dangerous.
-
Page 14: Description
Description 1. Air cleaner cover - Covers air filter. 12. Fuel tank cap - For closing the fuel tank. 2. Front hand guard - Guard between the front handle and 13. Starter handle - The grip of the starter, for starting the the saw chain for protecting the hand from injuries and engine. -
Page 15: Assembly
Assembly Mounting guide bar and chain WARNING For your own safety, always stop the engine before performing any of the following operations. CAUTION 1. All adjustments should be made cold. 2. Always wear gloves when working on chain. 3. Do not operate with a loose chain. NOTE Move the chain brake lever (Front hand guard) fully rearward to remove or install the clutch cover to the chain saw. -
Page 16: Operation
Do not use fuel containing methyl alcohol or more than 10 % of ethyl alcohol. Recommended mixture ratio; 50 : 1 (2 %) for ISO-L-EGD Standard (ISO/CD13738), JASO FC, FD grade and ECHO Premium 50 : 1 oil. - Do not mix directly in engine fuel tank. -
Page 17: Starting The Cold Engine
Starting the cold engine NOTE Do not pull starter rope out to the maximum position. Do not allow starter handle to snap back against the casing. A: Starter handle 1. Chain brake ACTIVATED position 2. Ignition switch (ON) 3. Choke control knob (CLOSE) 4. -
Page 18: When The Engine Is Hard To Start
When the engine is hard to start WARNING If engine is started in this latch condition, chain starts to turn. Do not start engine before chain brake is activated. CAUTION 1. When using throttle latch for starting, keep the brake in brake position. 2. -
Page 19: Starting The Warm Engine
Starting the warm engine 1. Chain brake ACTIVATED position Confirm there is fuel and chain oil in the tanks. Press hand guard forward. (Chain brake ACTIVATED position) Turn ignition switch forward, to position "RUN". Securely hold the chain saw. Pull starter handle. Choke may be used if necessary, but be sure to push it back on first firing sound. -
Page 20: Stopping The Engine
Stopping the engine NOTE If engine does not stop, pull choke control knob all the way out to stop engine. Return the unit to your authorized ECHO dealer to check and repair ignition switch before starting the engine again. 1. Throttle trigger 2. -
Page 21: Correct Use Of Chain Brake
Correct use of chain brake DANGER Kickback motion is very hazardous. If the tip of the bar touches wood or the like, the guide bar kicks back in an instant. The chain brake reduces the possibility of injury due to kickback. Always check that chain brake works properly before use. -
Page 22: Checking The Brake Function Of The Brake
4. The chain stop immediately. 5. Release the throttle trigger. If the chain does not stop immediately, take the saw to your ECHO dealer to repair. Release the chain brake When front hand guard is fully pulled towards the operator, chain brake is released. -
Page 23: Cutting Instruction
Cutting instruction DANGER Do not let the nose or tip of the guide bar touch anything while engine is running to avoid kickback. General In all circumstances the operation of the chain saw is a one-man job. It is difficult at times to take care of your own safety, so don't assume the responsibility for a helper as well. -
Page 24: Felling A Tree
Felling a tree A falling tree can seriously damage anything it may hit - a car, a house, a fence, a power-line or another tree. There are ways to make a tree fall where you want it, so first decide where that is! Before cutting, clear the area around the tree. -
Page 25: Limbing
Limbing WARNING Limbing in the proximity of power line can result in electrocution. Always switch off power supply before starting operation. CAUTION Don't saw above chest height. Limbing a fallen tree is much the same as bucking. Never remove a limb from a tree while it is supporting your weight. Be careful of the tip touching other limbs. -
Page 26: Tension And Compression In Timber
Tension and compression in timber WARNING Never use throttle latch for cutting jobs. CAUTION If you have misjudged the effects of tension and compression, and cut from the wrong side, the timber will pinch the guide bar and chain, trapping it. Racing the engine with the chain jammed will burn out your clutch. -
Page 27: Service Maintenance Guide
Service maintenance guide Area Maintenance Page Before use Monthly Air filter Clean / Replace • Fuel system Inspect • Fuel filter Inspect / Clean / Replace • Oil filter Inspect / Clean / Replace • Spark plug Inspect / Clean / Adjust / Replace •... -
Page 28: Troubleshooting
Not fuel at carburettor Fuel filter clogged Clean or replace cranks Fuel line clogged Clean Carburettor Ask your ECHO dealer Fuel at cylinder No fuel at cylinder Carburettor Ask your ECHO dealer Silencer wet with fuel Fuel mixture is too rich... -
Page 29: Saw Chain Maintenance
Saw chain maintenance WARNING Switch off the engine before sharpening the chain. Always wear gloves when working on chain. CAUTION The following faults will increase the risk of kickback considerably. 1) Top plate angle too large 2) Side plate angle too small 3) File diameter too small 4) Depth gauge too large NOTE... - Page 30 By using the correct file size (4.0 mm Round file) and a file holder, it is easier to receive a good result. Consult your ECHO dealer for correct sharpening tools and sizes. 1. Lock the chain - push the front hand guard forward.
-
Page 31: Service
Service If you have any questions or problems, please contact your ECHO dealer. Air filter 1. Air cleaner cover 2. Air filter Check before every use. Loosen bolt, and remove air cleaner cover and filter. Brush off dust lightly, or clean with compressed air, or replace the air filter. -
Page 32: Cylinder Fins (Cooling System)
Clogged fins will result in poor engine cooling. Remove dirt and dust from between fins to let cooling air pass easily. Guide bar NOTE When replacing guide bar or saw chain, ask your ECHO dealer. 1. Groove 2. Oil hole 3. Guide bar 4. -
Page 33: Storage
Storage Long term storage (Over 30 days) WARNING Do not store in an enclosure where fuel fumes may accumulate or reach an open flame or spark. NOTE For future reference, you should keep this operator's manual. Do not store your unit for a prolonged period of time (30 days of longer) without performing protective storage maintenance which includes the following: 1. -
Page 34: Disposal Procedure
The codes refer to the following materials; dispose of those plastic parts in accordance with local regulations. Mark Material >PA6-GF< Nylon 6 - Glass fiber >PP-GF< Polypropylene - Glass fiber >PE-HD< Polyethylene Please contact your ECHO dealer in case you do not know how you should dispose of waste oil / plastic parts. -
Page 35: Specifications
Do not use fuel containing methyl alcohol or more than 10 % of ethyl alcohol. 50 : 1 (2 %) for ISO-L-EGD Standard (ISO/CD13738), JASO FC, FD grade and ECHO Premium 50 : 1 oil. Oil (Chain oil) Special chain oil or motor oil... -
Page 36: Declaration "Ce" Of Conformity
7-2 SUEHIROCHO 1-CHOME OHME ; TOKYO 198-8711 JAPAN declares that the hereunder specified new unit: PORTABLE CHAIN SAW Brand: ECHO Type: complies with: * the requirements of Machinery Directive 98/37/EC (1998) (use of harmonized standard ISO 11681-2) and has been granted "CE Type Approval"... - Page 37 7-2 SUEHIROCHO 1-CHOME OHME ; TOKYO 198-8711 JAPAN declares that the hereunder specified new unit: PORTABLE CHAIN SAW Brand: ECHO Type: complies with: * the requirements of Machinery Directive 98/37/EC (1998) (use of harmonized standard ISO 11681-2) and has been granted "CE Type Approval"...
- Page 38 1Memorandum and back cover 7-2 SUEHIROCHO 1-CHOME, OHME, TOKYO 198-8711, JAPAN PHONE: 81-428-32-6118. FAX: 81-428-32-6145. X750-006 57 8 Printed in Japan 0907D 0259 ES X750 320-460 9 2004...
