Sony DPP-EX50 Quick Start Manual

Quick Start Guide
Follow the procedures in steps 1 through 6 to make a print.
DPP-EX50
For details, see the Operating Instructions.
1
Check the contents of the package.

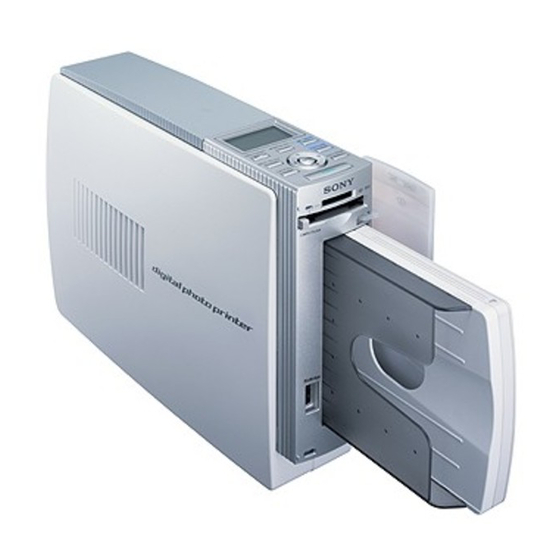

Printer (1) Paper tray (1)
CD-ROM(1)
• Sony DPP-EX50 Printer Driver Software for
Windows® 98SE/Me/2000 Professional/XP Home
Edition/XP Professional
• PictureGear Studio V.2.0
Cleaning cartridge (1) Clamp fi lter (1)
• Operating Instructions (1)
• Quick Start Guide (this leafl et, 1)
• Warranty (1)
• Owner registration card (1)
• Sony End User Software License Agreement (1)
© 2004 Sony Corporation Printed in Korea
Downloaded from: https://www.usersmanualguide.com/
2
Prepare the printing pack (not supplied).
For post card size printing:
SVM-25LS
Video connecting cable
• Post card (4 x 6 inch)
(1)
size print paper (25
sheets)
• Print cartridge (1)
For the details, see page 12 of Operating Instructions.
3
Load the print cartridge.
1
Slide open the cartridge
compartment cover.
3-207-730-12(1)
For 3.5 x 5 inch size For Small size printing:
printing:
SVM-30MS SVM-30SS
• 3.5 x 5 inch size print • Small (3.5 x 4 inch)
paper (30 sheets) size print paper (30
• Print cartridge (1) sheets)
• Print cartridge (1)
2 3
Insert the print Close the cover.
cartridge.
"Sony" logo
4
Insert the print paper.
1 2
Open the paper tray cover, and then Insert the print paper.
adjust the spacer to fi t the paper
size.
Insert the print paper with the arrow of the
Protective sheet facing backwards (the
feeding direction).
Spacer
3 4
Remove the protective sheet, and Push and open the printer's paper
then close the paper tray cover. tray compartment cover and insert
the paper tray into the printer.
Insert it fi rmly until it clicks into place.
You can use the protective sheet as
cleaning sheet. Keep it together with the
cleaning cartridge.
5
Connect to the AC outlet.
Connect the AC power cord to the AC
outlet.
AC power cord
6
Go to step .,
