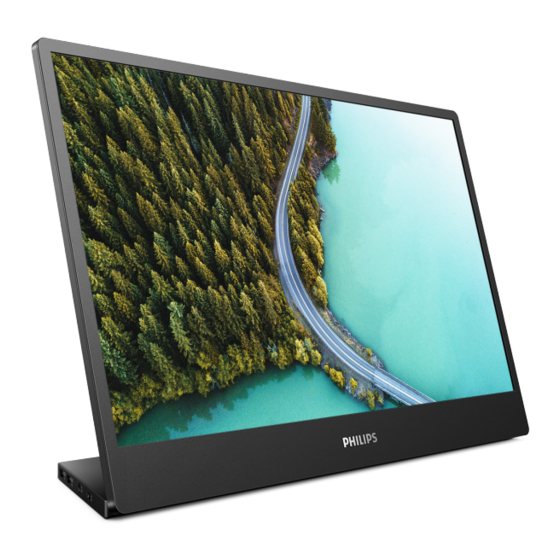

- Page 1 Portable Monitor 3000 Series 16B1P3302D User manual Customer care and warranty Troubleshooting and FAQs Register your product and get support at www.philips.com/welcome...
-
Page 2: Table Of Contents
..........13 5. Technical Specifications ������������14 5.1 Resolution & Preset Modes ..17 6� Customer care and warranty ���18 6.1 Philips’ Flat Panel Monitors Pixel Defect Policy ......... 18 6.2 Customer Care & Warranty ..21 7� Troubleshooting & FAQs ����������22 7.1 Troubleshooting ...... -
Page 3: Important
Keep the display away from oil. Oil may damage the plastic cover of the display and void the warranty. This electronic user’s guide is intended for anyone who uses the Philips monitor. • Remove any object that could fall Take time to read this user manual into ventilation holes or prevent before you use your monitor. - Page 4 monitor damage will not be covered • Oil-based cleaning solutions may under warranty. damage the plastic parts and void the warranty. • Do not knock or drop the monitor during operation or transportation. • Unplug the monitor if you are not going to use it for an extensive •...
-
Page 5: Notational Descriptions
1.2 Notational Descriptions Uninterrupted display of still or static images over an extended period may The following subsections describe cause “burn-in”, also known as “after- notational conventions used in this imaging” or “ghost imaging”, on your document. screen. • “Burn-in”, “after-imaging”, or Notes, Cautions and Warnings “ghost imaging”... -
Page 6: Disposal Of Product And Packing Material
From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or on entails participation in national take- its packaging illustrates that, under... -
Page 7: 2� Setting Up The Monitor
Connecting to your PC 2.1 Installation Package contents Portable Monitor 3000 Series 16B1P3302D Quick start Register your product and get support at www.philips.com/welcome Audio out USB C1 USB C2 *USB C-C/A *Protective case Kensington anti-theft lock *Different according to region Connect to PC 1. - Page 8 Power Delivery This monitor is powered through the USB port. There are four kinds of connections to turn on this monitor. 1. Power the monitor from laptop 2. Power the laptop up to 65W Connect the laptop with a USB type-C Connect one of the USB-C ports with the cable.
- Page 9 3. Power the monitor and devices from laptop Connect one of the USB-C ports to the laptop and then connect the other USB-C port to your device(s). The monitor can provide up to 5W of power to your device when the laptop supports at least 15W power to the monitor.
-
Page 10: Operating The Monitor
On, O On-Screen Display (OSD) is a feature 0~100 Volume Audio Mute On, O in all Philips LCD monitors. It allows an Color Color Temperature Native, 5000K, 6500K, 7500K, end user to adjust screen performance 8200K, 9300K, 11500K sRGB or select functions of the monitors... - Page 11 The over-the-air (OTA) firmware update Pivot is through the SmartControl software and is easily downloadable through the Philips website. What does SmartControl do? It is an additional software that helps control the photo, audio, and the other on-screen graphic settings of the monitor.
-
Page 12: Vesa Mounting
2.3 VESA Mounting This monitor accepts a 75mm VESA-Compliant mounting interface. VESA Mounting Screw M4 (VESA Mounting depth 7.0mm). Always contact manufacturer for wall-mount installation. 2 screws (M4) 75mm 120.86mm 163.37mm * Please note the VESA mounting is not in the center, if use the VESA, please kindly reference above dimensioning. -
Page 13: 3� Image Optimization
Office, Photo, Movie, Game, Economy, brightness, contrast, color and sharpness LowBlue Mode, Off. in real time. Whether you're working with text applications, displaying images or watching a video, Philips SmartImage delivers great optimized monitor performance. Why do I need it? ... -
Page 14: Smartcontrast
• Off: No optimization by SmartImage. Note Philips LowBlue mode, mode 2 compliance with TUV Low Blue Light certification, you can have this mode by simply press the hotkey , then press to select LowBlue Mode, see above SmartImage selection steps. -
Page 15: 4� Usb Docking Display
4. USB docking display introduction Philips USB-docking monitors deliver universal port replication, for a simple, clutter-free, notebook connection. Securely connect to transmit data, video and audio from laptop only using a single USB cable. 4.1 How to operate USB docking... -
Page 16: Technical Specifications
5. Technical Specifications Picture/Display Monitor Panel Type IPS Technology Backlight W-LED Panel Size 15.6" (39.6 cm) Aspect Ratio 16:9 Pixel Pitch 0.17925 (H) mm x 0.17925 (V) mm Contrast Ratio(typ.) 700:1 Optimum Resolution 1920 x 1080 @ 60 Hz Display Screen Coating Anti-Glare 3H, Haze 25% Viewing Angle 170°... - Page 17 Stand Tilt 0 / +90 degree Pivot +90 degree Power USB-C (input): PD version 3.0, up to 90W (5V/3A , 7V/3A, Power delivery 9V/3A, 10V/3A, 12V/3A, 15V/3A , 20V/4.5A) 9.5 W On mode Standby mode 0.5 W Off mode 0.3 W ECO mode 4.4 W Dimensions...
- Page 18 2. In order to update the monitor’s firmware to the latest version, Please download the SmartControl software from Philips website. It is necessary to be connected to a network when updating the firmware on SmartControl over-the-air (OTA).
-
Page 19: Resolution & Preset Modes
1920 x 1080. For best display quality, please follow this resolution recommendation. For best output performance, please always ensure that your graphic card is capable of achieving the maximum resolution and refresh rate of this Philips display. -
Page 20: 6� Customer Care And Warranty
Pixel Defect Policy pixels of other colors. Philips strives to deliver the highest Types of Pixel Defects quality products. We use some of the Pixel and sub pixel defects appear on the industry's most advanced manufacturing screen in different ways. - Page 21 Black Dot Defects the warranty period, a TFT Monitor panel Black dot defects appear as pixels or sub in a Philips flat panel monitor must have pixels that are always dark or 'off'. That pixel or sub pixel defects exceeding the is, a dark dot is a sub-pixel that stands tolerances listed in the following tables.
- Page 22 BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 4 or fewer 2 adjacent dark subpixels 2 or fewer...
-
Page 23: Customer Care & Warranty
Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below. -
Page 24: 7� Troubleshooting & Faqs
The Auto Function is not applicable in be corrected by a user. If the problem DVI-Digital mode as it is not necessary. still persists after you have tried these solutions, contact Philips customer service Visible signs of smoke or sparks representative. •... - Page 25 For further assistance, refer to the Service turned off. contact information listed in Important • Uninterrupted display of still or static information manual and contact Philips images over an extended period may customer service representative. cause "burn-in", also known as "after- * Functionality different according to imaging"...
-
Page 26: General Faqs
• Shut down your computer, disconnect applied to the panel surface side. your old monitor and reconnect your This may affect your warranty Philips LCD monitor. conditions. • Turn on your monitor and then turn on your PC. How should I clean the LCD... - Page 27 Q12: Why is my Display not showing any PC, workstation or Mac? sharp text, and is displaying Ans.: Yes. All Philips LCD monitors are jagged characters? fully compatible with standard Ans.: Your LCD monitor works best at its PCs, Macs and workstations. You...
- Page 28 Display controls locked Q14: Where can I find Important Information manual mentioned in EDFU? Ans.: Important Information manual can be download on the Philips website support page.
