AV Center
To cancel the demonstration (Demo) display, see page 19.
For the connection/installation, see page 30.

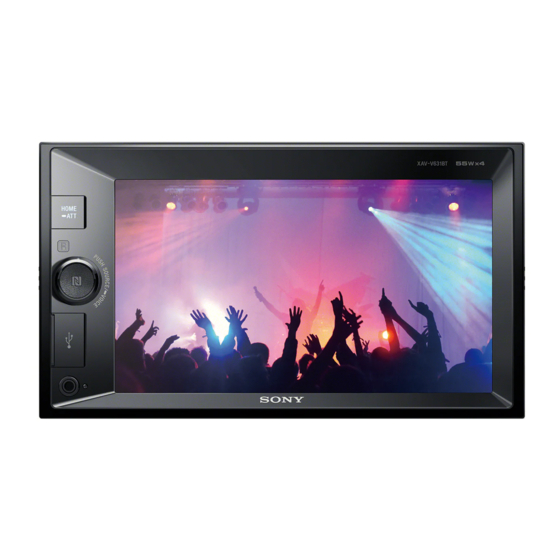

XAV-W651BT
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
cerca il tuo prodotto tra le
migliori offerte di Autoradio e Sistemi Multimediali
Sony XAV-W651BT
4-698-307-13(1)
Operating Instructions
o
GB
Advertisement
Table of Contents
Related Manuals for Sony XAV-W651BT
Summary of Contents for Sony XAV-W651BT
- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Sony XAV-W651BT cerca il tuo prodotto tra le migliori offerte di Autoradio e Sistemi Multimediali 4-698-307-13(1) AV Center Operating Instructions To cancel the demonstration (Demo) display, see page 19.
-
Page 2: Warning
The nameplate indicating operating voltage, etc., is suspended, or terminated without prior notice. located on the bottom of the chassis. Sony does not bear any responsibility in these sorts of situations. The validity of the CE marking is restricted to only those countries where it is legally enforced, mainly in the countries EEA (European Economic Area). - Page 3 Important notice Caution IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO...
-
Page 4: Table Of Contents
Connection/Installation Table of Contents Cautions ....... . . 30 Warning ........2 Parts List for Installation . -
Page 5: Guide To Parts And Controls
Guide to Parts and Controls Main unit SOURCE HOME Change the source. Each time it is pressed, it Open the HOME menu. displays a selectable source in a popup on the Press to pause playback. current display. To resume playback, touch VOICE ATT (attenuate) Press and hold to activate the voice command... - Page 6 /// RM-X170 remote commander Select a setup item, etc. ENTER The remote commander can be used to operate the Enter the selected item. audio controls. For menu operations, use the touch panel. MODE Select the radio band. VOL (volume) +/– Remove the insulation film before use.
-
Page 7: Getting Started
Status indication Lights up when the sound is attenuated. Getting Started Lights up when the “SongPal” connection is established between this Resetting the Unit unit and your Android phone. You must reset the unit before operating the unit Lights up when the BLUETOOTH signal is for the first time, after replacing the car battery, or on. - Page 8 Connecting with a smartphone by One Pairing and connecting with a touch (NFC) BLUETOOTH device By touching the N-Mark on the unit with an NFC* When connecting a BLUETOOTH device for the first compatible smartphone, the unit is paired and time, mutual registration (called “pairing”) is connected with the smartphone automatically.
-
Page 9: Connecting A Usb Device
Note Connecting a USB Device While connecting to a BLUETOOTH device, this unit cannot be detected by another device. To enable detection, enter the pairing mode and search for this unit from another Turn down the volume on the unit. device. -
Page 10: Listening To The Radio
Storing automatically (BTM) Listening to the Radio Select the desired band (FM1, FM2, FM3, AM1, or AM2). Listening to the Radio Touch Touch [BTM], then [Search]. To listen to the radio, press HOME then touch [Tuner]. The unit stores stations in order of frequency on the preset numbers (1 to 6). -
Page 11: Using Radio Data System (Rds)
Selecting program types (PTY) Using Radio Data System (RDS) During FM reception, touch [PTY]. To scroll the list, touch /. Setting alternative frequencies (AF) and Touch the desired program type. traffic announcement (TA) The unit searches for a station broadcasting the selected program type. -
Page 12: Playback
Using PBC (playback control) functions Playback The PBC menu interactively assists with operations while a PBC-compatible VCD is played. Playing a Disc Start playing a PBC-compatible VCD. The PBC menu appears. Depending on the disc type, some operations may be different or restricted. Touch The menu control panel appears. -
Page 13: Playing A Usb Device
Changing the audio channel Playing a BLUETOOTH Device When playing a VCD, you can listen to both left and right channels, right channel only or left channel You can play contents on a connected device that only, via both right and left speakers. supports BLUETOOTH A2DP (Advanced Audio During playback, touch repeatedly until the... -
Page 14: Searching And Playing Tracks
Searching and Playing Tracks Other Settings During Playback Further settings are available in each source by touching . The available items differ depending Repeat play and shuffle play on the source. During playback, touch (repeat) or Picture EQ (shuffle) repeatedly until the desired play Adjusts the picture quality to suit the interior mode appears. -
Page 15: Handsfree Calling (Via Bluetooth Only)
(voice command)* Say a voice tag stored on the cellular phone. Handsfree Calling (via BLUETOOTH (phone number input) Enter the phone number. only) Preset numbers (1 to 6) Select the stored contact. To use a cellular phone, connect it with this unit. For To store the contact, see “Presetting phone details, see “Preparing a BLUETOOTH Device”... -
Page 16: Useful Functions
Android phone may differ. When SMS, Twitter/Facebook/Calendar • For further details on “SongPal,” visit the following URL: notifications, etc., are received, they are http://rd1.sony.net/help/speaker/songpal/ automatically announced through the car speakers. Establishing the SongPal connection Make the BLUETOOTH connection with Android phone (page 9). -
Page 17: Using Siri Eyes Free
Activating voice recognition Using Siri Eyes Free By registering applications, you can control an application by voice command. For details, refer to Siri Eyes Free allows you to use an iPhone the help section of the application. handsfree by simply speaking into the microphone. This function requires you to connect an iPhone to To activate voice recognition the unit via BLUETOOTH. -
Page 18: Settings
Camera Input Selects the image from the rear view camera: Settings [OFF], [Normal], [Reverse] (mirror image). Steering Control Basic Setting Operation Selects the input mode for the connected remote control. To prevent a malfunction, be sure to You can set items in the following setup categories: match the input mode with the connected General Settings, Sound Settings,... -
Page 19: Sound Settings
SOURCE Key Func. Screen Settings Assigns the voice command function or the display menu to the SOURCE button: [Voice], Demo [DSPL]. Activates the demonstration: [OFF], [ON]. Rear View Camera Wallpaper Adjusts the length and/or position of the marker Changes the basis color of the background by lines on the picture from the rear view camera by touching the desired color. -
Page 20: Additional Information
Notes on LCD panel • Do not get the LCD panel wet or expose it to liquids. This may cause a malfunction. Additional Information Precautions • Cool off the unit beforehand if your car has been parked in direct sunlight. •... - Page 21 Notes on finalizing discs Notes on discs The following discs are required to be finalized to play on this unit. • Do not expose discs to direct sunlight or heat – DVD-R/DVD-R DL (in video mode) sources such as hot air ducts, nor leave it in a car –...
-
Page 22: Maintenance
Usable sensitivity: 10 dBf your unit that are not covered in this Operating Selectivity: 70 dB at 400 kHz Instructions, consult your nearest Sony dealer. Signal-to-noise ratio: 70 dB (mono) Separation at 1 kHz: 30 dB Frequency response: 20 Hz – 15,000 Hz... - Page 23 Steering control input terminal Tuning range: 531 kHz – 1,602 kHz Antenna (aerial) input terminal Antenna (aerial) terminal: Microphone input terminal External antenna (aerial) connector Parking brake control terminal Intermediate frequency: Reverse input terminal 9,267 kHz or 9,258 kHz/4.5 kHz Camera input terminal AUX audio input terminal (Front) Sensitivity: 44 μV...
- Page 24 Bluetooth SIG, Inc. and any distribution. use of such marks by Sony Corporation is under – Neither the name of the Xiph.org Foundation nor license. Other trademarks and trade names are the names of its contributors may be used to those of their respective owners.
-
Page 25: Troubleshooting
(b) both the above copyright notice(s) and this Stored stations and correct time are erased. permission notice appear in associated The fuse has blown. documentation, and The unit makes noise when the position of the (c) there is clear notice in each modified Data File or ignition is switched. - Page 26 The ATT function is activated. There are no traffic announcements. The format is not supported. Activate TA (page 11). – Check if the format is supported by this unit The station does not broadcast any traffic (page 21).
- Page 27 USB playback The name of the detected device does not appear. Items cannot be played via a USB hub. Depending on the status of the other device, it Connect iPod/USB devices to this unit without may not be possible to obtain the name. USB hub.
- Page 28 Some functions do not work. Overcurrent Caution on USB Check that the connecting device supports the The USB device is overloaded. functions in question. – Disconnect the USB device, then change the source by pressing the SOURCE button. A call is answered unintentionally.
-
Page 29: Language Code List
1053 Bashkir 1235 Interlingua If these solutions do not help improve the situation, 1057 Byelorussian 1239 Interlingue consult your nearest Sony dealer. 1059 Bulgarian 1245 Inupiak If you take the unit to be repaired due to disc 1060 Bihari 1248... -
Page 30: Connection/Installation
Code Language Code Language 1353 Moldavian 1528 Thai Connection/Installation 1356 Marathi 1529 Tigrinya 1357 Malay 1531 Turkmen Cautions 1358 Maltese 1532 Tagalog • Do not install this unit in a car that has no ACC 1363 Burmese 1534 Setswana position. Otherwise, the display does not turn off 1365 Nauru 1535... -
Page 31: Connection
Connection Subwoofer* Power amplifier* Portable audio/ video device* Rear view camera* Monitor* * from a wired remote control (not supplied) White White/black striped Front speaker* Gray Gray/black striped Green Green/black striped Rear speaker* Purple Purple/black striped Black Yellow For details, see “Making Blue/white striped connections”... - Page 32 To the parking brake switch cord *1 Not supplied *2 Speaker impedance: 4 Ω – 8 Ω × 4 The mounting position of the parking brake *3 RCA pin cord (not supplied) switch cord depends on your car. *4 Depending on the type of car, use an adaptor for a wired Be sure to connect the parking brake lead (light remote control (not supplied).
- Page 33 Installing the microphone Using the wired remote control To capture your voice during handsfree calling, you When using the steering wheel remote need to install the microphone . control Installation of the connection cable RC-SR1 (not supplied) is required before use. ...
-
Page 34: Installation
Mounting the unit in a Japanese car Installation You may not be able to install this unit in some Japanese cars. In such a case, consult your Sony dealer. Mounting the unit in the dashboard To the dashboard/center console When mounting in a Japanese car, see “Mounting... - Page 36 ©2017 Sony Corporation Printed in China...
