Summary of Contents for Stagg STK-520

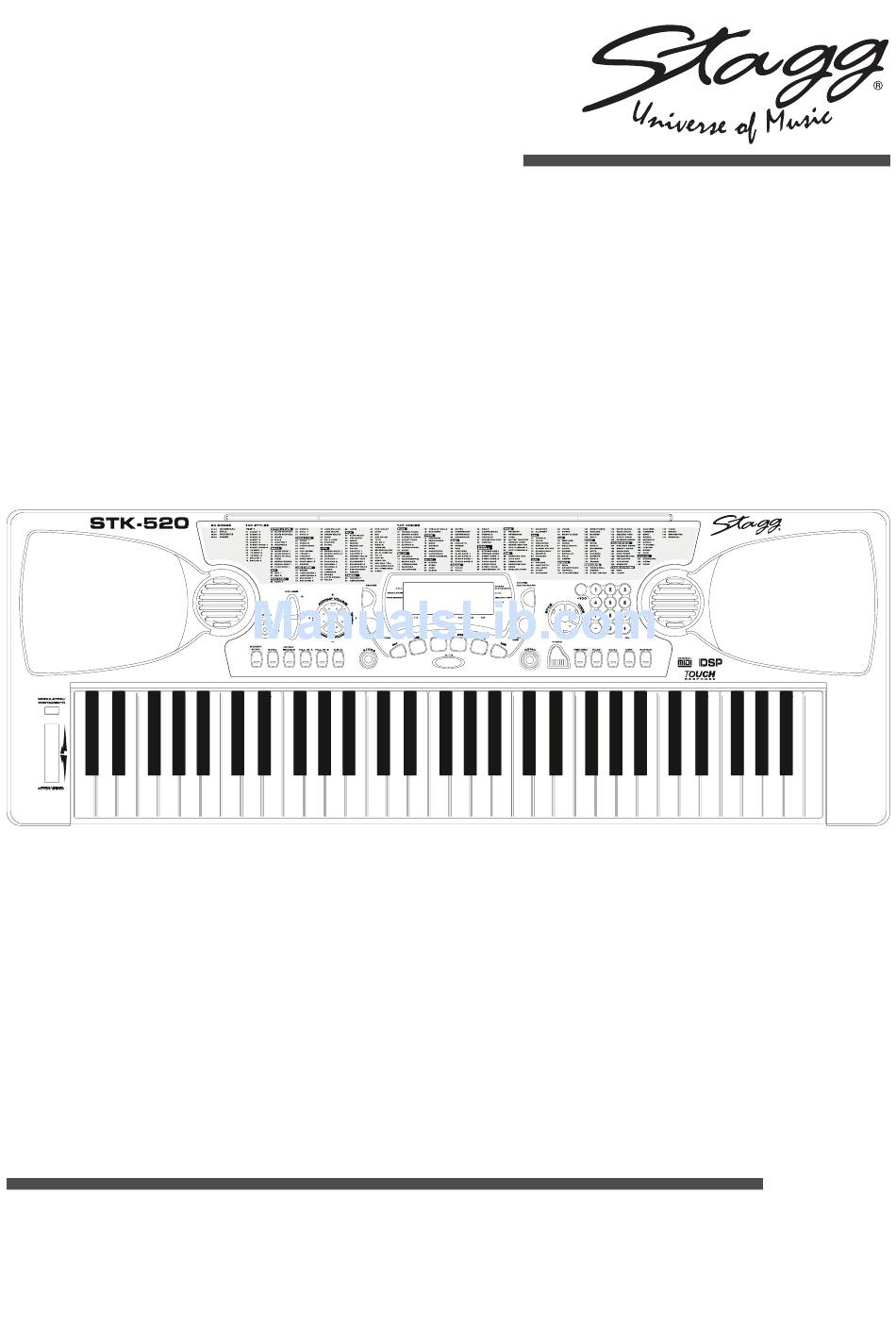

- Page 1 USER MANUAL ELECTRONIC KEYBOARD STK-520...
-
Page 2: Table Of Contents
2. Tune 3. MIDI Channel 4. Touch Response 5. Octave 6. Modulation/Portamento MIXER CONTROL MEMORIZE PANEL SETTINGS RECORD - Getting ready to record - Start Recording - Stop Recording - Playback ONE TOUCH SETTING (O.T.S) MIDI SPECIFICATIONS USER MANUAL STK-520... - Page 3 USER MANUAL STK-520...
- Page 4 2. REAR PANEL MIDI IN PORT MIDI OUT PORT SUSTAIN JACK AUX. OUT JACK PHONES JACK DC 12V JACK USER MANUAL CHORD BASS CLEF TREBLE CLEF BEAT TEMPO METRONOME SUSTAIN CHORD DICTIONARY 13 14 DUAL MELODY OFF TOUCH O.T.S. MEMORY 1-6 STK-520...
-
Page 5: Introduction
Dim, difficult to read display. Abnormally low speaker/headphone volume. Distortion of sound output. Sudden power failure when playing at high volume. Abnormal rhythm or demo song plays. Dimming of the display when playing at high volume. STK-520 USER MANUAL... -
Page 6: Using The Ac Adaptor
The internal speaker system is automatically shut off when the headphones are plugged into the PHONES jack. The sustain jack An optional foot switch can be plugged into the SUSTAIN jack for sustain control. The foot switch functions like the pedal on a piano-press for sustain, release for normal sound. USER MANUAL STK-520... -
Page 7: The Aux.out Jack
They will give you a good idea of what your keyboard can do. Turn the power ON by pushing the [POWER] switch upwards. Adjust the volume to a appropriate level by pressing the [VOLUME+/-] button. STK-520 Stereo System MIDI IN... -
Page 8: Listen To A Particularly Demo Song
Press the [START/STOP] button to start playing the demo song. The song will play in endless loop, re-starting after it reaches the end. Press the [START/STOP] button again to stop the play. USER MANUAL � � � � � � � � � � � � STK-520... -
Page 9: Basic Operation
17, briefl y press the [1] button and then the [7] button. Three digit voice number - e.g. to select voice number 100, are entered by fi rst pressing the [+] and [1] buttons, then press the remaining two digits in sequence [0], [0]. STK-520 USER MANUAL �... -
Page 10: Sustain Voice Effect
The [PITCH BEND] wheel allows the pitch of notes played on the electronic keyboard to be bent up or down. Roll the wheel away from you to bend up, and towards you to bend down. The pitch bend range is from -2 to +2 in semitone. USER MANUAL STK-520... -
Page 11: Digital Signal Processor (Dsp)
Digital Signal Processor (DSP) The Digital Signal Processor (DSP) consists of two units (Reverb and Chorus) which process the Performances with Reverb and Chorus effects. To turn on/off the DSP, simply press the DSP button. STK-520 The Reverb and Chorus icon USER MANUAL... -
Page 12: Auto-Accompaniment
To select a style simply enter the two digits in sequence--e.g. to select style number 15, briefl y press the [1] button and then the [5] button. USER MANUAL � � � � � � � � � � � � STK-520... -
Page 13: Playing The Selected Style
Use synchro to start the style Press the [SYNC] button, the display shows the fl ashing beat indicator and put the keyboard into synchro start standby. Play a chord on the keyboard and the style starts to play automatically. STK-520 USER MANUAL... -
Page 14: Select The Fill-In And Change Style Variation
Fingered mode, otherwise, the keyboard respond with Single Fingered mode. To turn off the Auto Bass Function, press the [A.B.C.] Button again. USER MANUAL B is Variation. When you press the [FILL-IN A] or [FILL-IN B] Auto Bass Chord STK-520... -
Page 15: Set The Tempo
[-/NO]/[+/YES] button to adjust the level. 2. Tune Press the [FUNCTION] button as many time as necessary until «TUN xx» appear in the display, you can use the [-/NO]/[+/YES] button to adjust the level. USER MANUAL STK-520... -
Page 16: Midi Channel
[-/NO]/[+/YES] button to turn on/off the touch response function. 5. Octave Press the [FUNCTION] button as many time as necessary until «oCT xx» appear in the display, you can use the [-/NO]/[+/YES] button to adjust the level. USER MANUAL STK-520... -
Page 17: Modulation/Portamento
MEMORY button. Any data that was previously in the selected location is erased and MEMORY button. Any data that was previously in the selected location is erased and MEMORY replace by the new settings. Note: When you turn off the keyboard, the setting will be erased. STK-520 Range Default Setting 0...31 0...31 0...31 0...31... -
Page 18: Record
Stop recording by pressing the [RECORD] button. If you press the [INTRO/ENDING] button while recording the Accompaniment track, recording will stop automatically with an ending phrase. Playback After you have recorded a performance, you can press the [PLAY] button to playback the recorded performance. USER MANUAL STK-520... -
Page 19: One Touch Setting (O.t.s)
One Touch Setting buttons - [M1] through [M4] to select the appropriate settings. [M1] or [M2] is for FILL-IN A mode, [M3] or [M4] is for FILL-IN B mode. Press the [OTS] button again to turn off this function. STK-520 USER MANUAL... -
Page 20: Midi
• Record performance data using the keyboard Auto Accompaniment on an external computer (equipped w/ a MIDI card) or an external sequencer (featuring MIDI facilities). After recording, edit the data with the computer/ sequencer, then play it again on the keyboard. STK-520 • Play music from another MIDI Keyboard. STK-520 •... -
Page 21: Specifications
Overall Control: Transpose, Tune, MIDI Channel, Octave, Pitch Bend,Portamento, Modulation Other Control: Record & Playback Connectors: DC 12V, Phones, Aux. Out, Sustain, MIDI IN/OUT Weight: 6.2 kg / 13.7 lb (without batteries) Dimensions(W*D*H): 975*350*135mm / 38.4*13.8*5.3 in USER MANUAL STK-520... - Page 22 Cmadd9 Cm(9) Cm7(9) Cm11 Cm7(11) CmM7 CmM7 CmM9 CmM7(9) Cdim Cdim Cdim7 Cdim7 C7sus4 C7sus4 C7b5 C7b5 C7 9 C7(9) C7#11 C7(#11) C7 13 C7 13 C7b9 C7(b9) C7b13 C7(b13) C7#9 C7(#9) CM7aug CM7aug C7aug C7aug Csus4 Csus4 C1+2+5 STK-520...
- Page 23 NOTES USER MANUAL STK-520...
