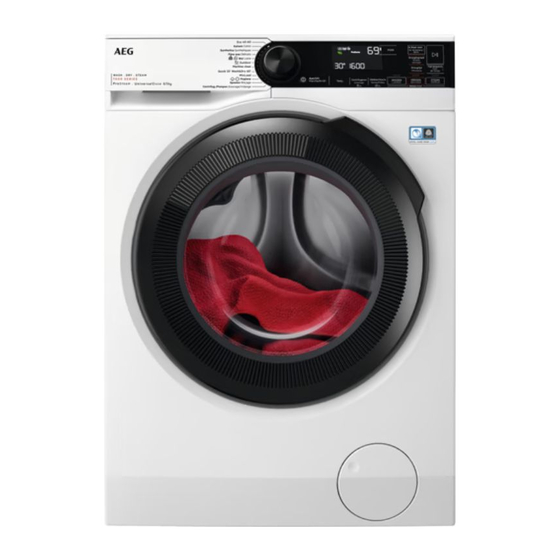

AEG LWR7586CUB User Manual
  1. Manuals
  2. Brands
  3. AEG Manuals
  4. Washer/Dryer
  5. LWR7586CUB
  6. User manual
AEG LWR7586CUB User Manual

AEG LWR7586CUB User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LWR7586CUB
USER
MANUAL
EN
User Manual
Washer Dryer

Advertisement

Table of Contents
loading

Related Manuals for AEG LWR7586CUB

Summary of Contents for AEG LWR7586CUB

  • Page 1 LWR7586CUB User Manual Washer Dryer USER MANUAL...

  • Page 2: Table Of Contents

    20. ENVIRONMENTAL CONCERNS..............54 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

  • Page 3: Safety Information

    ENGLISH Subject to change without notice. SAFETY INFORMATION Before beginning the installation and use of this appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage.
  • Page 4 Children shall not carry out cleaning and user • maintenance of the appliance without supervision. 1.2 General Safety This appliance is for washing and drying domestic- • type machine-washable and dryable laundry only. Do not use the dryer function if laundry has been •...
  • Page 5 ENGLISH The operating water pressure at the water entry point • from the outlet connection must be between 0.5 bar (0.05 MPa) and 10 bar (1.0 MPa). The appliance maximum load is 8.0 kg. Do not exceed • the maximum load of each programme (refer to the "Programmes"...

  • Page 6: Safety Instructions

    The final part of the washer dryer cycle takes place • without heat (cool down cycle) to ensure that items reach a temperature that will not cause damage to them. Do not use high pressure water sprays and/or steam •...
  • Page 7 ENGLISH • Before connection to new pipes, pipes • Remove a detergent ball (if used) not used for a long time, where repair before starting a drying programme. work has been carried out or new • Do not use a detergent ball if setting a devices fitted (water meters, etc.), let non-stop programme.

  • Page 8: Product Description

    Ironing will compartment dedicated to each type be easier! of detergent, including a compartment • The AEG Steam Fragrance - thanks for PODS®, equipped with a system to the steam mode - offers the perfect able to spread and mixing the...

  • Page 9: Technical Data

    ENGLISH Rating plate Mains cable Drain pump filter Transit bolts Feet for levelling the appliance Hose support Drain hose Inlet hose connection The rating plate reports: A. model name B. product number Mod. xxxxxxxxx 910000000 00 Prod.No. C. electrical ratings 000V ~ 00Hz 0000 W D.
  • Page 10 5. Carefully put the appliance down on WARNING! its rear side. Use the gloves. 6. Put the front polystyrene packaging element on the floor under the 1. Remove the external film. If appliance. necessary, use a cutter. Make sure not to damage the hoses.
  • Page 11 ENGLISH It is possible to see Make sure that carpets do water flowing from the not stop the air circulation drain hose. This is due below the appliance. to the testing with water Make sure that the appliance of the appliance in does not touch the wall or factory.
  • Page 12 If you install the appliance on a plinth leaks from the couplings. that is not an accessory supplied by AEG, secure the appliance with the fixing Do not use an extension plates. This spare part is available in web hose if the inlet hose is too shop or from authorised dealer.
  • Page 13 ENGLISH 4. If the end of the drain hose looks like this (see the picture), you can push it directly into the stand pipe. 2. On the edge of a sink - Fasten the guide to the water tap or to the wall. Make sure that the plastic guide cannot move when the appliance drains.

  • Page 14: Control Panel

    Check that your domestic electrical The power supply cable must be easily installation can take the maximum load accessible after installing the appliance. required, also taking into account any For any electrical work required to install other appliances in use.
  • Page 15 ENGLISH Stains/Prewash touch button and Temperature touch button permanent Extra Rinse option Spin touch button and permanent Child Lock option 6.2 Display Washing phase indicator. It flashes during pre-wash and wash phase. Rinsing phase indicator. It flashes during rinse phase. Spinning and draining phase indicator.
  • Page 16 The digital indicator can show: • Programme duration (e. g. , washing and/or drying phase). The time shown when the programme is set could not correspond to effective duration and change af‐ ter ProSense phase. • Maximum load. •...

  • Page 17: Dial And Buttons

    ENGLISH 7. DIAL AND BUTTONS 7.1 On/Off The option remains active also for next cycles until it is deactivated and if it is Pressing this button for a few seconds selectable with the set programme. allows to activate or deactivate the appliance.
  • Page 18 In this case, the temperature 95°C is As the programme is very quiet, it is not selectable. suitable for use at night time when The led of the button is on and the cheaper electricity tariffs are display shows the set programme available.
  • Page 19 ENGLISH 7.14 Auto Dry containing sand, dust , mud and other solid particles. First activate the drying mode by means The options can increase the of relevant button and then touch this programme duration. button to set one of 3 automatic dryness levels proposed by the appliance.

  • Page 20: Settings

    Its benefit would Fragrance) evaporate. • Use the fragrance with different The AEG Steam Fragrance allows you to purposes than those here described. refresh even your delicate clothes, • Use the fragrance on new garments. removing wrinkles and adding freshness...

  • Page 21: Before First Use

    ENGLISH 8.4 Permanent Extra Rinse When it is activated, the appliance will default to this option after you switch it off or change/reset the programme. With this option you can permanently This option increases the have an extra rinse when you set a new programme duration.
  • Page 22 Programme Reference Maximum Programme description Default tempera‐ spin speed load ture Spin speed Temperature range range Eco 40-60 + Cup‐ 5.0 kg White cotton and fast-coloured cotton. board dry level (Dry only mode) White cotton and coloured cotton. Nor‐...
  • Page 23 ENGLISH Programme Reference Maximum Programme description Default tempera‐ spin speed load ture Spin speed Temperature range range Maintenance cycle with hot water to clean and freshen the drum and to re‐ Machine Clean move residue that may cause odour. Be‐ 60 °C fore running this cycle, remove all items from the drum.
  • Page 24 Programme Reference Maximum Programme description Default tempera‐ spin speed load ture Spin speed Temperature range range 1600 rpm To spin the laundry and to drain the wa‐ 1600 rpm - 8.0 kg ter in the drum. All fabrics, except wool‐...
  • Page 25 ENGLISH Options ■ ■ ■ Extra Silent ■ No Spin ■ ■ ■ Stains ■ ■ Prewash ■ ■ ■ ■ ■ ■ ■ Extra Rinse Auto Dry ■ ■ ■ Time Dry ■ ■ ■ ■ ■ ■ ■ ■...
  • Page 26 Programme Universal Liquid Uni‐ Liquid for Delicates Special versal coloureds woollens powder Synthetics ▲ ▲ ▲ Delicates ▲ ▲ Wool/Hand‐ ▲ ▲ wash Outdoor ▲ ▲ Quick 20' Wash&Dry ▲ ▲ MixLoad ▲ ▲ Hygiene ▲ ▲ ▲ 1) At temperature higher than 60 °C the use of powder detergent is recommended.
  • Page 27 ENGLISH Dryness Level Type of fabric Load Cottons and Linen up to 5.0 kg (bathrobes, bath towels, etc) Extra Dry For towelling materials Cottons and Linen up to 5.0 kg (bathrobes, bath towels, etc) Synthetics and mixed fab‐ up to 3.0 kg Cupboard Dry For items to be stored rics...

  • Page 28: Daily Use

    Dryness Level Type of fabric Load (kg) Suggested Spin speed duration (rpm) (mins) 100 - 120 1600 40 - 50 1600 Synthetics and mixed fabrics 80 - 100 (jumpers, blouses, underwear, house‐ 1200 hold and bed linen) 45 - 55...
  • Page 29 ENGLISH 11.3 Filling the detergent and default temperature, the default spin speed and the indicators of the phases additives making up the programme. 11.2 Loading the laundry 1. Open the appliance door. 2. Shake the items before you put them in the appliance.
  • Page 30 After a washing cycle, if necessary, remove any detergent residue from the detergent dispenser. Proceed as follows 1. Open the detergent dispenser. 2. If a prewash phase is set, put the powder detergent in compartment 3. For main wash, chose the proper...
  • Page 31 ENGLISH To change or cancel this declared load for the set programme (only for a few seconds), the default option: temperature, the default spin speed and the washing phase indicators (when 1. Switch the appliance off by means of available). the On/Off button.
  • Page 32 When the phase ends the relevant In case of in case of indicator stops flashing and is steady on. drum overload, the The next phase indicator starts flashing. maximum declared load indicator comes on again with the indicator E.g. the rinse phase is running: blinking.
  • Page 33 ENGLISH 11.11 Opening the door - When you activate the Adding garments appliance again, the display show the end of the last While a programme or the delay start selected programme. Turn operates, the appliance door is locked. the programme dial to set a new cycle.

  • Page 34: Daily Use - Washing & Drying

    • After 5 minutes from the end of the In any case, the appliance washing programme empties the water out Press the On/Off button to activate automatically after the appliance again. approximately 18 hours. The display shows the end of the last set programme.

  • Page 35: Daily Use - Drying Only

    ENGLISH 2. Touch the Start/Pause button to start the programme. The ProSense Extra dry: for cotton estimation starts. items. The time value on the display is the In the display the door locked duration of both cycles washing and indicator comes on and the indicator of drying.
  • Page 36 13.3 Timed Drying The indicators You can also exclude the automatic appear in the display. drying mode, and choose a drying time manually: When drying a big amount of laundry, to have good drying 1. Tap on the Time Dry button...

  • Page 37: Fluff In The Fabrics

    ENGLISH 14. FLUFF IN THE FABRICS During the washing and/or drying phase, • Clean the drain filter. some types of fabric, (sponge, wool, • After the drying phase, clean the sweatshirt) could release fluff. empty drum, the gasket and the door with a wet cloth.
  • Page 38 15.2 Stubborn stains other treatments without exceeding the indicated maximum level ( For some stains, water and detergent is • Do not mix different types of not sufficient. detergents. We recommend that you pre-treat these • Use less detergent if: stains before you put the items in the –...

  • Page 39: Care And Cleaning

    ENGLISH 15.6 Prepare the drying cycle • speed of the last spin • dryness level • Open the water tap. • type of laundry • Check if the drain hose is connected • weight of the load properly. Refer to installation chapter for more information.
  • Page 40 16.3 External cleaning After each cycle, keep the door and the detergent dispenser slightly ajar to get air Clean the appliance with mild soap and circulation and dry the humidity inside warm water only. Fully dry all the the appliance: this will prevent mildew surfaces.
  • Page 41 ENGLISH available, run the Machine Clean programme. 16.6 Door seal This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal. Coins, buttons, other small items can be recovered at the end of the cycle.
  • Page 42 CAUTION! Press the bottom cover as indicated in the picture. Make sure that it is closed properly. CLICK 6. Turn the dispenser up side down and open the bottom cover as indicated in the picture. 9. Reassembly the drawer as follows: a.
  • Page 43 ENGLISH Clean the drain pump if: • The appliance does not drain the water. • The drum does not turn. • The appliance makes an unusual noise because of the blockage of the drain pump. • The display shows the alarm code WARNING! •...
  • Page 44 1. Remove the inlet hose from the tap and clean the filter. 11. Put the filter back into the special guides by turning it clockwise. Make sure that you tighten the filter correctly to prevent leakages.

  • Page 45: Troubleshooting

    ENGLISH 16.11 Frost precautions If the appliance is installed in an area where the temperature can reach the values around 0° C or drop below, remove the remaining water from the inlet hose and the drain pump. 1. Disconnect the mains plug from the mains socket.
  • Page 46 With some problems, the display shows an alarm code and the Start/Pause button may flash continuously: If the appliance is overloaded, remove some items from the drum and/or keep pressed the door while touching the Start/Pause button until the indicator stops flashing (see the picture below).
  • Page 47 ENGLISH • The programme was not finished properly or the appliance stopped too early. Switch the appliance off and on again. Internal fail. No com‐ • If the alarm code appears again, contact the Authorised Serv‐ munication between ice Centre. electronic elements of the appliance.
  • Page 48 Problem Possible solution • Make sure that a washing programme that ends with water in tub, has not been selected. • Make sure that the washing programme is finished. • Set the drain or the spin programme if there is water in the You cannot open the drum.
  • Page 49 ENGLISH Problem Possible solution The fabrics washed in the previous cycle released fluff of a differ‐ ent colour: The laundry is full of • The drying phase helps to eliminate some fluff. different colours fluff. • Clean the clothes with a fluff remover. In case of an excessive amount of fluff in the drum refer to “Fluff in the fabrics"...

  • Page 50: Consumption Values

    18. CONSUMPTION VALUES 18.1 Introduction See the web link www.theenergylabel.eu for detailed information about Energy Label. The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.
  • Page 51 ENGLISH Eco 40-60 pro‐ Litres hh:mm °C gramme Half load 0.405 40.0 02:45 44.0 26.0 1600 Quarter load 0.260 28.0 02:40 45.0 23.0 1600 1) Maximum spin speed. Wash and dry cycle Eco 40-60 pro‐ gramme and Litres hh:mm °C Cupboard dry level Full load...

  • Page 52: Quick Guide

    Programme Litres hh:mm °C Wool 0.250 50.0 01:10 30.0 30.0 1200 30°C 1) Maximum spin speed. 2) Suitable for washing heavily soiled textiles. 3) Suitable for washing lightly soiled cottons, synthetic and mixed fabrics. 4) It also performs as quick washing cycle for lightly soiled laundry.
  • Page 53 ENGLISH • Push the On/Off button to turn the appliance off. 19.2 Cleaning the drain pump filter 180˚ Clean the filter regularly and, especially, if the alarm code appears on the display. 19.3 Programmes Programmes Load Product description Low energy cycle for cottons. Decreases tem‐ 8.0 kg perature and extends time to reach good Eco 40-60...

  • Page 54: Environmental Concerns

    Programmes Load Product description White cotton items. This programme removes 8.0 kg more than 99,99% of bacteria and viruses Hygiene It also ensure a proper reduction of allergens. All fabrics, except woollens and very delicate 8.0 kg fabrics. Programme for rinsing and spinning.
