Speco SG-WM200 Instruction Manual

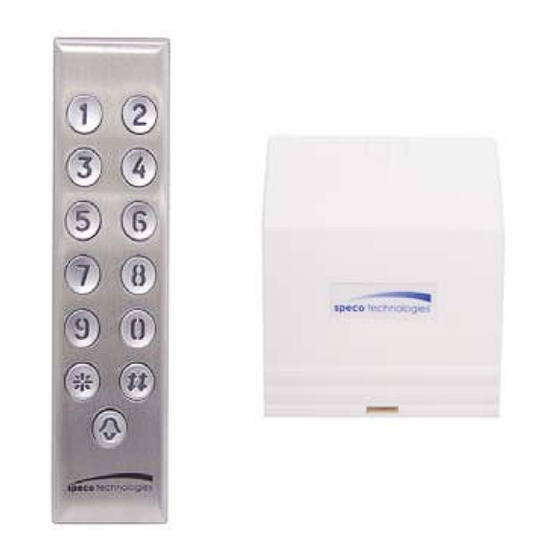

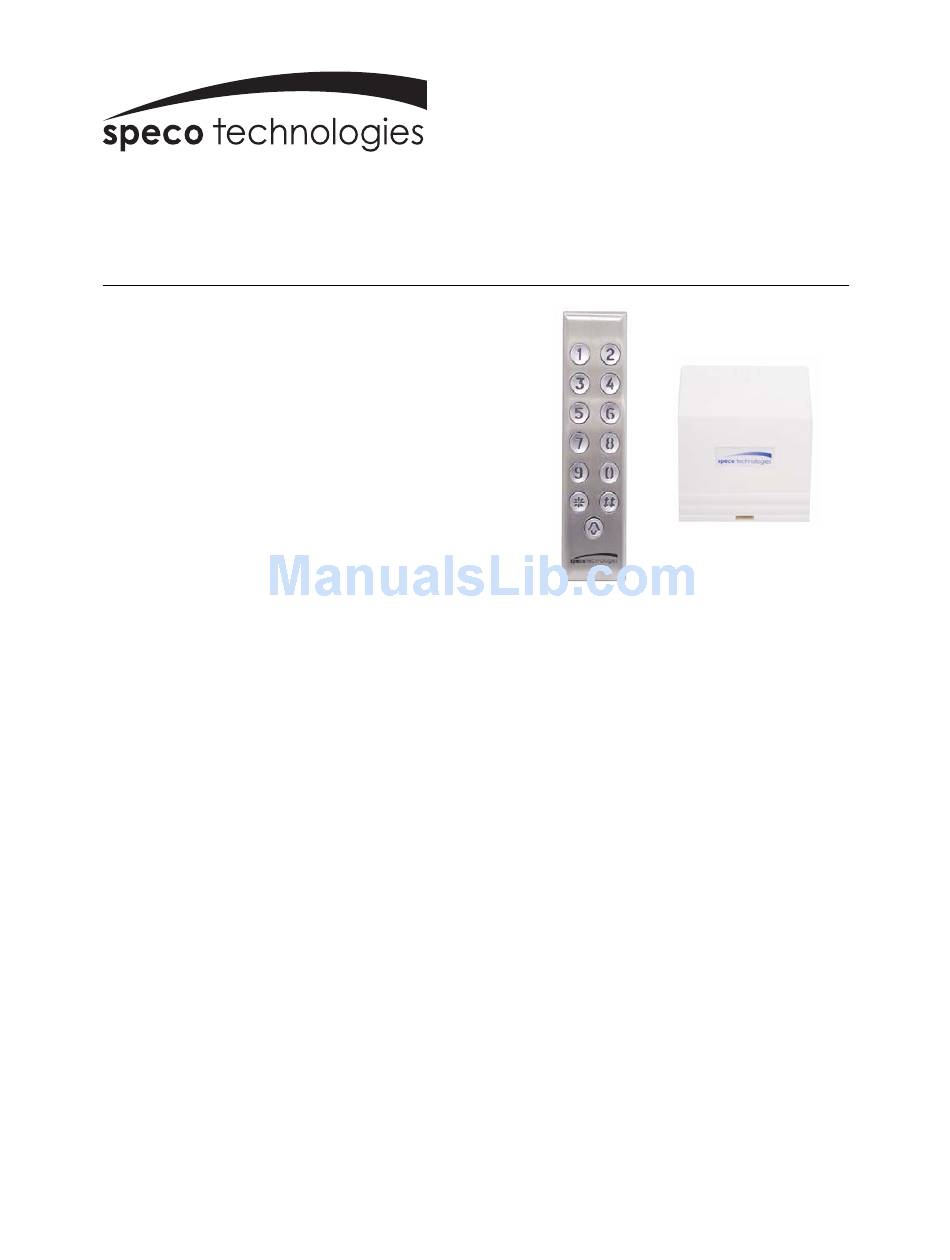

Speco Technologies weatherproof mullion backlit keypad (SG-WM200) is designed to meet
most residential, commercial and industrial single door access control requirements. It is a two
piece unit that is fully sealed for all environments. The electronics reside in the protected area.

Key Features:

•
Mounts on the narrow mullion of glass
and aluminum doors
•
Indoor/Outdoor surface mount
applications
•
12 backlit keys
•
Sounder
•
Weather resistant
•
130 users
•
Input trigger for request to exit
•
3 independent relay outputs (5A/250V AC)
•
Adjustable time relay of up to 99 seconds
for each relay output or latched
•
Rank/Code program administration
•
Each output is assignable by code
•
Codes can range from 3 to 6 digits
•
Unit shuts down for 20 seconds after
entering 3 incorrect codes
•
Master code can shut down all others as a
temporary lock-out
•
Audible function confirmation
•
12/24 Volt – AC/DC operation
Codes
The Speco Technologies architectural backlit keypad
allows up to 130 user codes, of 3 to 6 digits in length,
to be programmed.
•
The master code and user codes must be the
same length.
•
Available ranks are from 001-129 and ranks
are all 3 digit values.
•
0-9 are valid digits for user codes, but ' * ' or
' # ' is not allowed to be used in a user or
master code.
•
By default, a valid user code activates output
1 if not defined.
•
Hardware (jumper) reset is provided by the
master code.
•
Can assign up to two outputs per code.
•
Each user code must be different. Trying to
enter the same code twice will generate an
error.
•
The Master code is strictly reserved for
configuration and cannot be used to operate
an output.
•
All parameters are saved on EEPROM.
•
A valid user code needs to be followed by
the * key.
Speco Technologies® 0106 SG-WM200
Instruction Manual
Weatherproof Mullion Backlit Keypad
®
SG-WM200
Programming
All programming is done from the front of the
keypad. Sounder guidance helps to make
programming easy and authorized users can
change codes in seconds.
Key Press Audible Feedback
The sounder can be deactivated by
programming for user code entries (function 60).
Memory
EEPROM non-volatile memory means your
programming is safe. The codes and
instructions will still be there anytime power is
removed.

Keypad Lockout

•
If needed, every programmed user's
code can be disabled without deleting
them. This is achieved by using
function 90 'Keypad Lockout ON'
•
When 'Keypad Lockout' is active, any
'Request To Exit' devices connected
on the EXIT SW input will still activate
relay one to allow exiting.
•
When 'Keypad Lockout' is active, the
master code (MC) will only activate
output one. Activation time of output
one is the time configured in rank 000
which is also the time used for
'Request To Exit' function.
1
