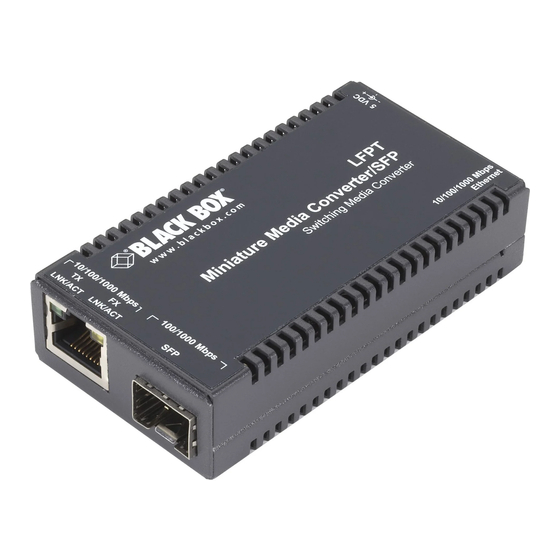

MultiPower Miniature Media Converter
Converts 10-/100-/1000-Mbps copper
to 1000-Mbps SFP.
This tiny Gigabit converter automatically senses speed
on the copper side.
Customer
Order toll-free in the U.S. or for FREE 24/7 technical support:
Support
Call 877-877-BBOX (outside U.S. call 724-746-5500)
Information
www.blackbox.com • info@blackbox.com
www.
LGC135A-R3
Advertisement
Table of Contents
Related Manuals for Black Box LGC135A-R3
Summary of Contents for Black Box LGC135A-R3
- Page 1 LGC135A-R3 MultiPower Miniature Media Converter Converts 10-/100-/1000-Mbps copper to 1000-Mbps SFP. This tiny Gigabit converter automatically senses speed on the copper side. Customer Order toll-free in the U.S. or for FREE 24/7 technical support: Support Call 877-877-BBOX (outside U.S. call 724-746-5500) Information www.blackbox.com •...
- Page 2 Disclaimer Black Box Network Services shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover damages, resulting from any errors in the product information or specifications set forth in this document and Black Box Network Services may revise this document at any time without notice.
- Page 3 FCC and IC RFI Statements FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause inter ference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference...
- Page 4 NOM Statement Normas Oficiales Mexicanas (NOM)Electrical Safety Statement INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura. 3.
- Page 5 NOM Statement 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada. 13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.
-
Page 6: Table Of Contents
Table of Contents Table of Contents 1. Specifications ........................7 2. Overview ..........................8 2.1 Introduction ......................... 8 2.2 Features ........................8 2.3 What’s Included ......................9 2.4 Hardware Description .................... 11 3. Installation and Operation..................... 12 3.1 Installing the MultiPower Media Converter ............. 12 3.2 Powering the Media Converter ................ -
Page 7: Specifications
Chapter 1: Specifications 1. Specifications Approvals FCC Class A, UL/cUL, CSA, CE, RoHS Standards IEEE 802.3 10BASE-T twisted pair, IEEE 802.3u 100BASE-X twisted pair, IEEE 802.3ab 1000BASE-T twisted pair; IEEE 802.3z 1000BASE-LX or -SX fiber Ethernet Fixed copper port: 10/100/1000BASE-T, autonegotiation, Connections auto-cross, flow control, 1,536 MTU, full line-rate forwarding;... -
Page 8: Overview
Chapter 2: Overview 2. Overview 2.1 Introduction The MultiPower Miniature Media Converter links 10-, 100-, or 1000-Mbps CATx segments to fiber cabling. An SFP port enables you to use an SFP to link the converter to dual-strand LC connectors, or single-strand fiber SFPs with LC connectors. -
Page 9: What's Included
Chapter 2: Overview 2.3 What’s Included Your package should include the following items. If anything is missing or dam- aged, contact Black Box Technical Support at 877-877-269 or info@blackbox.com. • MultiPower Miniature Media Converter • (1) 100–240 VAC, 50–60 Hz power adapter •... - Page 10 Chapter 2: Overview Table 2-1. SFP modules. Product Code Description LFP411 SFP, 1250-Mbps Fiber with Extended Diagnostics, 850-nm Multimode, LC, 550 m LFP412 SFP, 1250-Mbps Fiber with Extended Diagnostics, 1310-nm Multimode, LC, 2 km LFP413 SFP, 1250-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, LC, 10 km LFP414 SFP, 1250-Mbps Fiber with Extended Diagnostics,...
-
Page 11: Hardware Description
Chapter 2: Overview 2.4 Hardware Description RX LED TX LED RJ-45 connector SFP slot Figure 2-1. LGC135A-R3. 877-877-2269 | BlackBox.com Page 11... -
Page 12: Installation And Operation
3. Installation and Operation 3.1 Installing the MultiPower Miniature Media Converter The LGC135A-R3 installs in a PowerTray or can be used as a standalone media converter. As a standalone, the converter uses a universal external switching power cube with 100–240 ±10% VAC input and 5 VDC output. -
Page 13: Appendix: Fiber Optic Cleaning Guidelines And Electrostatic Discharge
2. Dust caps are installed at Black Box to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. If you disconnect the fiber device, reinstall the protective dust caps. - Page 14 NOTES 877-877-2269 | BlackBox.com Page 14...
- Page 15 NOTES 877-877-2269 | BlackBox.com Page 15...
- Page 16 Our IT infrastructure solutions, services, and products enable secure, flawless connectivity and meaningful collaboration across town or around the globe. To learn more, visit the Black Box website at https://www.blackbox. com. Follow the company on Twitter @BlackBox_ns. © Copyright 2016, 2023. Black Box Corporation. All rights reserved. Black Box and the Double ®...
