ULTRA OCTAVER UO100
All manuals and user guides at all-guides.com

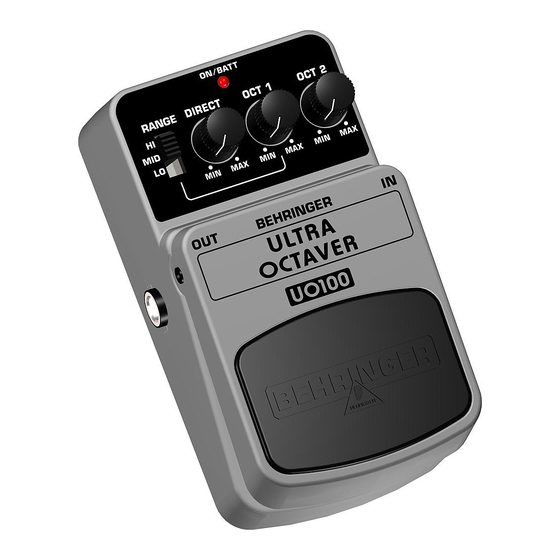

Thank you for showing your confidence in us by purchasing the BEHRINGER ULTRA
OCTAVER UO100. This high-quality effects pedal creates a monster sound by adding
two additional tones using your guitar—one and two octaves below the original tone.
Thanks to its high-performance features you’ll get natural, clear octave sounds with
constant pitch, even for staccato playing.
Octave effect is possible due to a circuitry that generates signals one or more octaves
below the input signal.
The TRACK selector allows you to optimize the effect pedal for HI, MID and LOW
frequencies and use instruments with different frequency ranges (guitar, bass
guitar, keyboards etc.).
The DIRECT control adjusts the level of the original input signal.
The OCT 1 control adjusts the level of the generated signal one octave below the
original signal.
The OCT 2 control adjusts the level of the generated signal two octaves below the
original signal.
The ON/BATT LED illuminates when the effect is activated. It also serves as a
battery level indicator.
Use the footswitch to activate/deactivate the effect.
Use this 1/4" TS IN connector to plug in the instrument cable.
The 1/4" TS OUT connector sends the signal to your amp.
Use the DC IN connection to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or
replace the 9 V battery, press the hinges with a ballpen and remove the pedal cover. Be
careful not to scratch the unit.
1. CONTROLS
Top view
