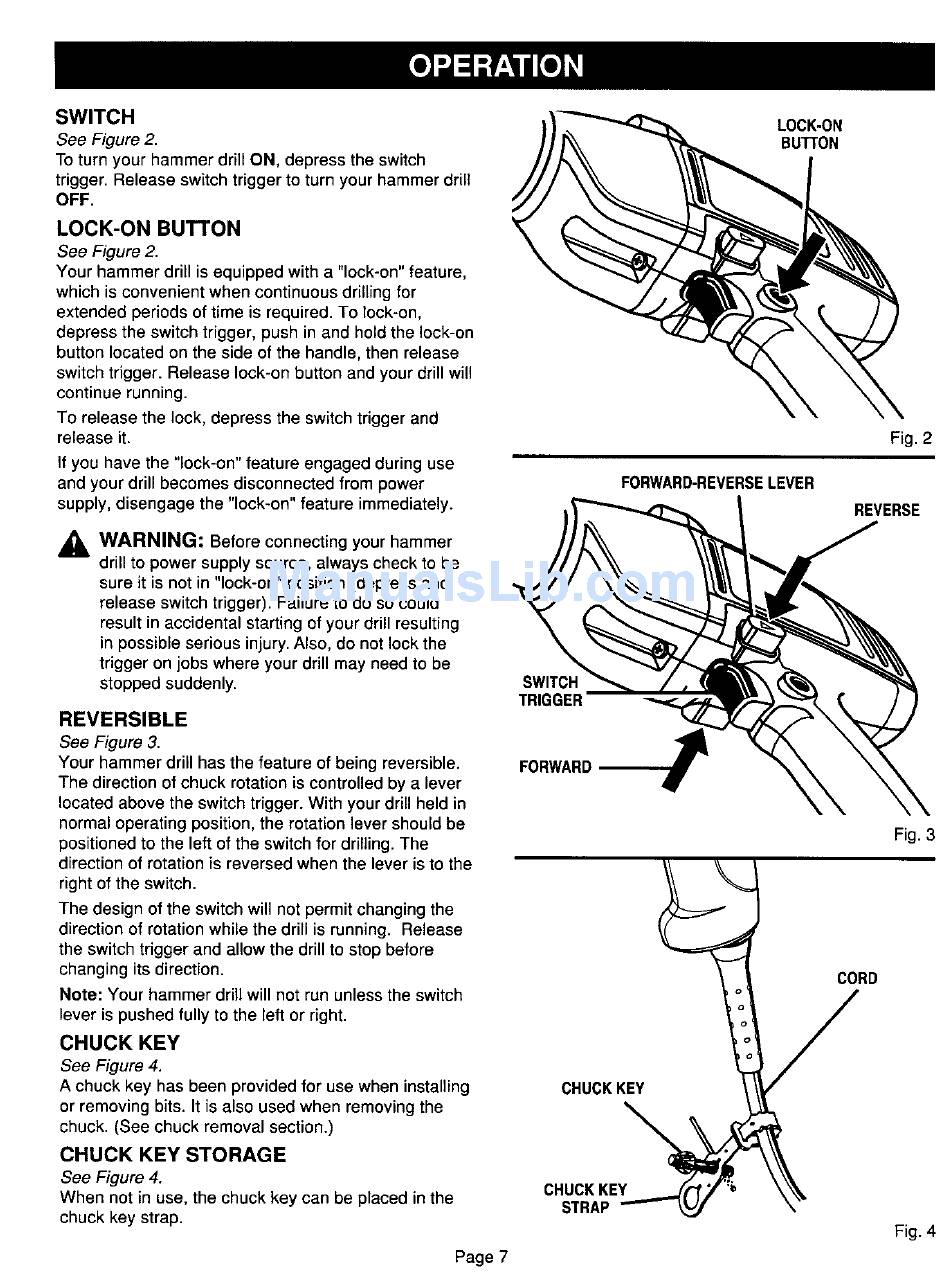

SWITCH
See Figure 2.
To turn your hammer drill ON, depress the switch
trigger. Release switch trigger to turn your hammer drill
OFF.
LOCK-ON BUTTON
See Figure 2.
Your hammer drill is equipped with a "lock-on" feature,
which is convenient when continuousdrillingfor
extended periods of time is required. To lock-on,
depress the switch trigger, push in and hold the lock-on
button located on the side of the handle, then release
switch trigger. Release lock-on button and your drill will
continue running.
To release the lock, depress the switchtrigger and
release it.
if you have the "lock-on" feature engaged during use
and your drill becomes disconnected from power
supply, disengage the "lock-on" feature immediately.
_L
WARNING:
Before connecting
hammer
your
drill to power supply source, always check to be
sure it is not in "lock-on" position (depress and
release switch trigger). Failure to do so could
result in accidental starting of your drill resulting
in possible serious injury. Also, do not lock the
trigger on jobs where your drill may need to be
stopped suddenly.
REVERSIBLE
See Figure 3.
Your hammer drill has the feature of being reversible.
The direction of chuck rotationis controlledby a lever
located above the switch trigger. With your drill held in
normal operating position,the rotation lever should be
positioned to the left of the switch for drilling.The
direction of rotation is reversed when the lever is to the
right of the switch.
The design of the switch will not permit changing the
direction of rotation while the drill is running. Release
the switch trigger and allow the drill to stop before
changing its direction.
Note: Your hammer drill will not run unless the switch
lever is pushed fully to the left or right.
CHUCK
KEY
See Figure 4.
A chuck key has been provided for use when installing
or removing bits. It is also used when removing the
chuck. (See chuck removal section.)
CHUCK
KEY STORAGE
See Figure 4.
When not in use, the chuck key can be placed in the
chuck key strap,
LOCK-ON
BU'I-I'ON
FORWARD-REVERSELEVER
Fig. 2
REVERSE
SWITCH
TRIGGER
FORWARD
Fig. 3
Fig. 4
Page 7
