Toto EGO II TX443SESN Manual

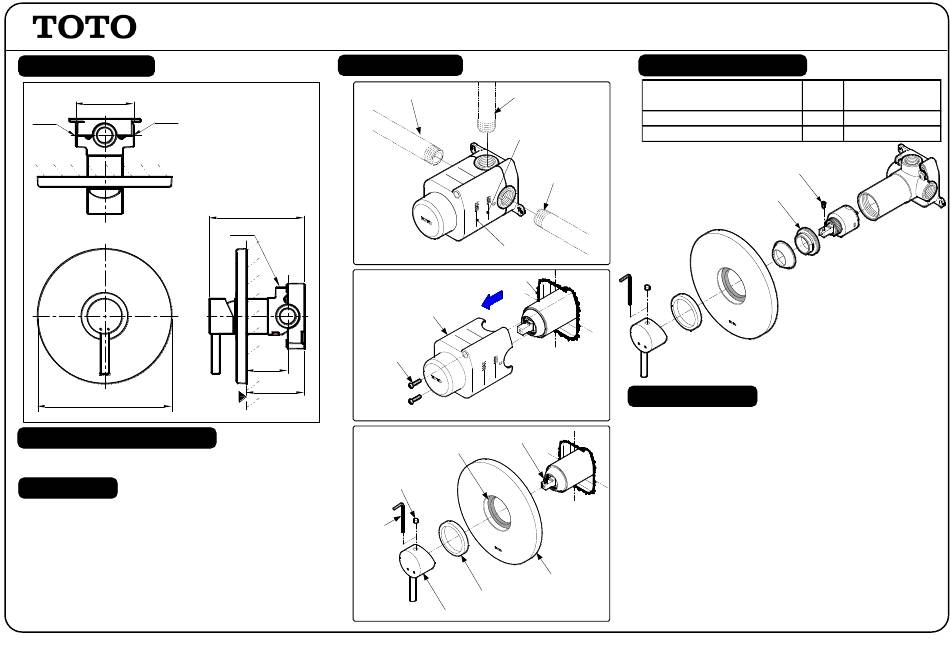

SPECIFICATIONS
70
G½
G½
WALL
Ø162
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
ATTENTION
1.Don t use abrasive cleaners or solvents on faucets and
fittings.
2. As the product model is constantly updated, the actual
product may not look the same as it shown in the diagram,
but the basic installation principles are the same.
S06255S
"EGO II" SINGLE LEVER SHOWER MIXER TX443SESN
INSTALLATION
1.
Hot Water
Supply *
115
G½
* Pipe supplied by owner
2.
Cover *
0
50 Bolt
-20
0
70
-20
* Remove the cover after the mortar has dry
3.
Cap
Hex.
Key
To Shower Head *
Minimal
Mortar Level
Cold Water
Supply *
Maximal
Mortar Level
Mortar
Bolt
Packing
Flange
Ring w/ O-Ring
Handle
TROUBLESHOOTING
CHECK
PROBLEM
POINT
Water leaks around the handle
Handle is loose
2. BOLT
1. CONNECTING NUT
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm
water. Wipe entire surface completely dry with clean soft
cloth. Many cleaners may contain chemicals, such as
ammonia, chlorine, toilet cleaner etc. which could adversely
affect the finish and are not recommended for cleaning
SOLUTION
1 Tighten
2 Tighten
R9
