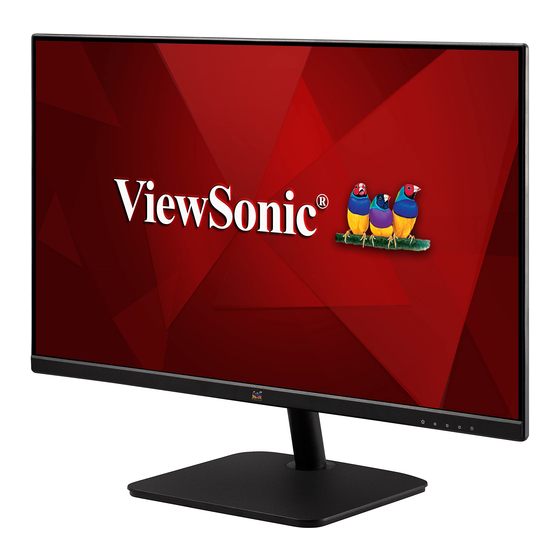

VA2432-h
VA2432-mh
Display
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right
corner of our website.
Model No. VS17789
P/N: VA2432-H | VA2432-MH
Advertisement
Table of Contents
Related Manuals for ViewSonic VA2432-h
Summary of Contents for ViewSonic VA2432-h
- Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website.
- Page 2 As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.
-
Page 3: Safety Precautions
Safety Precautions • Read these instructions completely before using the equipment. • Keep these instructions in a safe place. • Heed all warnings and follow all instructions. • Sit at least 18” / 45 cm from the monitor. • When installing the monitor, please leave 4” / 10 cm of open space around the monitor for ventilation safety purposes. - Page 4 • If smoke appears, an abnormal noise, or a strange odor is present, immediately switch the display off and contact your dealer or ViewSonic. It is dangerous to continue using the display. •...
- Page 5 • Stability Hazard: The display may fall, causing serious personal injury or death. To prevent injury, this display must be securely attached to the floor/wall in accordance with the installation instructions. • Fastening the monitor to a wall or fixed object using cordage or other restraining devices can help support the weight of the monitor in order to prevent the monitor from falling over.
-
Page 6: Table Of Contents
Contents Safety Precautions ............3 Contents ..............6 Introduction ..............8 Package Contents ....................8 Product Overview ....................9 Front and Rear View ....................9 I/O Ports ......................... 9 Initial Setup ............... 10 Installing the Stand ....................10 Wall Mounting ......................11 Using the Security Slot ..................12 Making Connections .......... - Page 7 Appendix ..............26 Specifications ......................26 Glossary ........................28 Troubleshooting ....................32 Maintenance......................34 General Precautions ....................34 Cleaning the Screen ....................34 Cleaning the Case ....................34 Regulatory and Service Information ......35 Compliance Information ..................35 Declaration of RoHS2 Compliance................. 36 Indian Restriction of Hazardous Substances ............37 Product Disposal at End of Product Life ..............
-
Page 8: Introduction
Introduction Package Contents • Monitor • Power cord • Power adapter • Video cable • Quick start guide NOTE: The power cord and video cables included in your package may vary depending on your country. Please contact your local reseller for more information. -
Page 9: Product Overview
Product Overview Front and Rear View I/O Ports HDMI 1. HDMI 2. VGA 3. Audio Out 4. DC IN NOTE: For more information about the 1(«)/2/3/4/5( ) key and its functions, refer to “Hot Keys” on page 18. -
Page 10: Initial Setup
Initial Setup Installing the Stand NOTE: Always place the device on a flat, stable surface. Failure to do so may cause the device to fall and damage the device and/or result in personal injury. -
Page 11: Wall Mounting
4 pieces NOTE: Wall mount kits are sold separately. To obtain a wall mounting kit, contact ViewSonic® or your local dealer. 1. Turn off the device and disconnect all cables. 2. Place the device on a flat, stable surface with the screen facing down. -
Page 12: Using The Security Slot
Using the Security Slot To help prevent the device from being stolen, use a security slot locking device to secure the device to a fixed object. Additionally, fastening the monitor to a wall or fixed object using a security cable can help support the weight of the monitor in order to prevent the monitor from falling over. -
Page 13: Making Connections
Making Connections This section guides you on how to connect the monitor with other equipment. Connecting to Power 1. Connect the power cord to the DC IN jack at the rear of the device. 2. Plug in the power cord to a power outlet. -
Page 14: Connecting External Devices
Connecting External Devices HDMI HDMI... -
Page 15: Using The Monitor
Using the Monitor Adjusting the Viewing Angle Tilt Angle Adjustment Tilt the monitor forwards or backwards to the desired viewing angle (-5˚ to 20˚). NOTE: When adjusting, support the stand firmly with one hand while tilting the monitor forwards or backwards with the other hand. -
Page 16: Turning The Device On/Off
Turning the Device On/Off 1. Plug the power cord into a power outlet. 2. Press the Power button to turn on the monitor. 3. To turn the monitor off, press the Power button again. NOTE: The monitor will still consume some power as long as the power cord is connected to the power outlet. -
Page 17: Quick Menu
Quick Menu Press the 1( ) to activate the Quick Menu. « View Mode Standard Game Movie Text Mono NOTE: Follow the key guide that appears on the screen to select the option or make adjustments. Menu Description ViewMode Select one of the preset color settings. Volume Adjust the level, or mute the volume. -
Page 18: Hot Keys
Hot Keys When the On-Screen Display (OSD) Menu is off, you can quickly access special functions by using the Joy Key. Description ) + 2 Press and hold the keys to lock/unlock the OSD Menu. « When the menu appears on the screen, continue holding both keys for 10 seconds to lock/unlock the OSD Menu. - Page 19 Description 2 + 3 Press and hold the keys to lock/unlock the Power button. When the menu appears on the screen, continue holding both keys for 10 seconds to lock/unlock the Power button. Power Lock/Unlock Locking Power Button Press and hold for 10s to lock power If the Power...
-
Page 20: Configuring The Settings
Configuring the Settings General Operations 1. Press the 2/3/4 key to display the On-Screen Display (OSD) Menu. Input Audio Adjust ViewMode Color Adjust Manual Image Setup Menu Select Adjust D-SUB HDMI 1920 x 1080 @ 60Hz 2. Press the 1(«) or 2 key to select the main menu. Then press the 3 key to enter the selected menu. - Page 21 3. Press the 1(«) or 2 key to select the desired menu option. Then press the 3 key to enter the sub-menu. Input Audio Adjust ViewMode Color Adjust Manual Image Setup Menu Select Adjust Contrast/Brightness Contrast Color Temperature Brightness Color Space Color Range 1920 x 1080 @ 60Hz 4.
-
Page 22: On-Screen Display (Osd) Menu Tree
On-Screen Display (OSD) Menu Tree Main Menu Sub-menu Menu Option D-Sub Input Select HDMI Volume (-/+, 0~100) Audio Adjust Mute Standard Game Movie ViewMode Text Mono Contrast (-/+, 0~100) Contrast/Brightness Brightness (-/+, 0~100) sRGB Bluish Cool Native Color Temperature Warm (-/+, 0~100) Color Adjust User Color... - Page 23 Main Menu Sub-menu Menu Option Auto Image Adjust (for D-Sub only) Horizontal Size (-/+, 0~100) (for D-Sub only) Horizontal Position (-/+, 0~100) H./V. Position (for D-Sub only) Vertical Position (-/+, 0~100) Fine Tune (-/+, 0~100) (for D-Sub only) (-/+, Sharpness 0/25/50/75/100) Blue Light Filter (-/+, 0~100)
- Page 24 Main Menu Sub-menu Menu Option English Français Deutsch Español Italiano Suomi Svenska Русский Language Türkçe Česká Tiếng Việt Setup Menu 日本語 한국어 繁體中文 简体中文 AMD FreeSync (for HDMI only) 1ms Mode Information Native OSD Size Large OSD Timeout (-/+, 5/15/30/60)
- Page 25 Main Menu Sub-menu Menu Option OSD Background Power Indicator Auto Power Off 30 minutes 45 minutes Sleep 60 minutes (for HDMI only) Setup Menu 120 minutes Standard ECO Mode Optimize Conserve Auto Detect DDC/CI Memory Recall...
-
Page 26: Appendix
Appendix Specifications Item Category Specifications IPS, Color a-Si TFT Active Matrix 1920 x 1080 LCD; Type 0.2745 (H)mm x 0.2745 (V)mm pixel pitch Display Size 60.4 cm, 23.8” viewable Color Filter RGB vertical stripe Glass Surface Anti-Glare (Haze 25%), Hard Coating (3H) Analog D-Sub: f 24~86 kHz, f... - Page 27 Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display. Please use the power cord from ViewSonic® or an authorized source only. The test condition follows EEI standards.
-
Page 28: Glossary
Glossary This section describes the standard glossary of terms used in all LCD display models. All terms are listed in alphabetical order. NOTE: Some terms may not be applicable to your monitor. Advanced DCR Advanced DCR technology automatically detects the image signal and intelligently controls the backlight brightness and color to improve on the ability to make the black blacker in a dark scene, and make the white whiter in a bright environment. - Page 29 Displays the timing mode (video signal input) coming from the graphics card in the computer, the LCD model number, the serial number, and the ViewSonic® website URL. See your graphics cards’s user guide for instructions on changing the resolution and refresh rate (vertical frequency).
- Page 30 Manual Image Adjust Displays the “Manual Image Adjust” menu. You can manually set a variety of image quality adjustments. Memory Recall Returns the adjustments back to factory settings if the display is operating in a factory preset timing mode listed in the “Specifications” of this manual. NOTE: ...
- Page 31 ViewMode ViewSonic’s unique ViewMode feature offers “Game”, “Movie”, “Web”, “Text”, “MAC”, and “Mono” presets. These presets are specifically designed to deliver an optimized viewing experience for different screen applications. 1ms Mode <MPRT> Choose whether to activate Moving Picture Response Time (MPRT); default setting is Off.
-
Page 32: Troubleshooting
Troubleshooting This section describes some common problems that you may experience when using the monitor. Problem or Issue Possible Solutions • Make sure you have turned on the monitor by pressing the Power button. • Make sure the power cord is properly and securely No power connected to the monitor and power outlet. - Page 33 Problem or Issue Possible Solutions The OSD Menu • Check whether the OSD Menu is locked. does not appear • Turn off the monitor, unplug the power cord, plug it on the screen/the back in, and then turn on the monitor. OSD controls are •...
-
Page 34: Maintenance
• ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the monitor. • ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 35: Regulatory And Service Information
Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. The following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). -
Page 36: Declaration Of Rohs2 Compliance
Declaration of RoHS2 Compliance This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Proposed Maximum Substance... -
Page 37: Indian Restriction Of Hazardous Substances
Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®... -
Page 38: Copyright Information
VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA. Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 39: Customer Service
For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia www.viewsonic.com/au/ Bangladesh www.viewsonic.com/bd/ www.viewsonic.com.cn www.viewsonic.com/hk/ 中国 (China) 香港 (繁體中文) Hong Kong (English) www.viewsonic.com/hk-en/ India www.viewsonic.com/in/... -
Page 40: Limited Warranty
How long the warranty is effective: ViewSonic® displays are warranted for between 1 and 3 years, depending on your country of purchase, for all parts including the light source and for all labor from the date of the first consumer purchase. - Page 41 (e) the serial number of the product. • Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®. • For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®. Limitation of implied warranties:...
- Page 42 Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: • Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of...
-
Page 43: Mexico Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components &... - Page 44 Exclusion of damages: ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: • Damage to other property caused by any defects in the product, damages...
- Page 45 Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas, Col. San Fernando Huixquilucan, Estado de México Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004 Hermosillo: Villahermosa: Distribuciones y Servicios Computacionales SA de CV.
