Getting Started

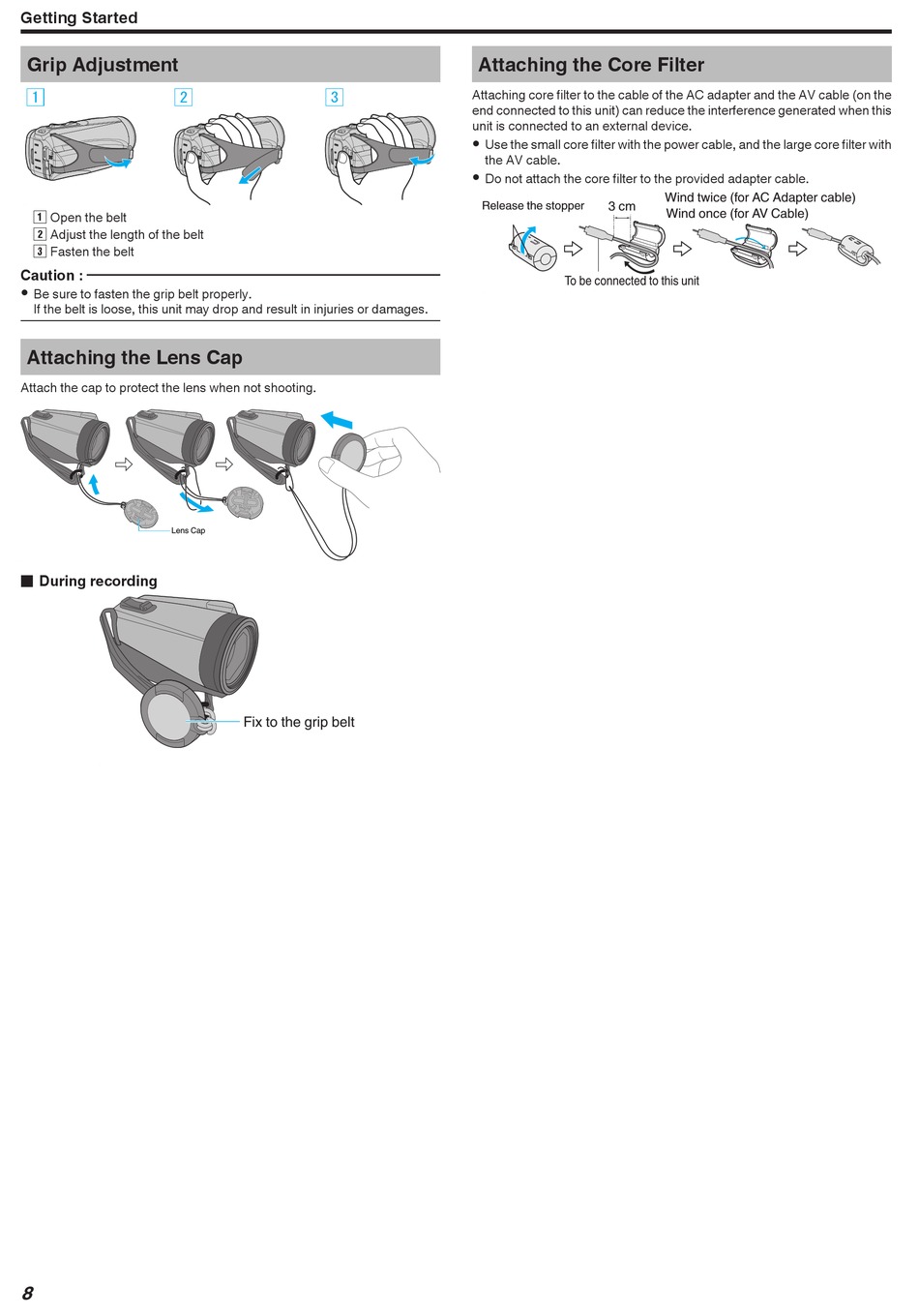

Grip Adjustment

.
A Open the belt
B Adjust the length of the belt
C Fasten the belt
Caution :
Be sure to fasten the grip belt properly.
0
If the belt is loose, this unit may drop and result in injuries or damages.

Attaching the Lens Cap

Attach the cap to protect the lens when not shooting.
Lens Cap
.
During recording
o
.
8
Fix to the grip belt

Attaching the Core Filter

Attaching core filter to the cable of the AC adapter and the AV cable (on the
end connected to this unit) can reduce the interference generated when this
unit is connected to an external device.
Use the small core filter with the power cable, and the large core filter with
0
the AV cable.
Do not attach the core filter to the provided adapter cable.
0
Release the stopper 3 cm
To be connected to this unit
.
Wind twice (for AC Adapter cable)
Wind once (for AV Cable)
