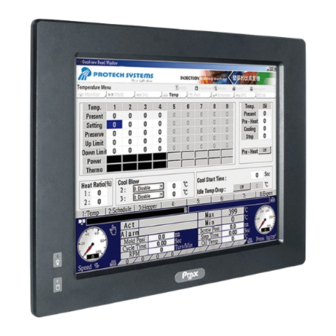

Protech Systems SP-6205 Quick Reference Manual

SP-6205/
SP-6207/
SP-6209
Quick
Reference
Guide
Jumper Setting
Flash Descriptor
Over-ride Selection
1 1
JP20
Disable Enable
(default)
LVDS Voltage
Selection
6 5 6 5
2 1 2 1
3.3V 5V
(default)
Clear CMOS Data
Selection
1 1
Normal Clear
CMOS
(default)
LVDS Panel
Brightness Control
3 1 3 1
4 2 4 2
1
Up Down
(default)
11
1
COM2 Auto Detect
Selection
1 1
Normal Auto
(default)
All Rights Reserved. Copyright 2013
JP21
5
3 1
1 4 2
2 20
1 19
6 5
DIO1
2 1
1 1
JP19
JP3 JP4
JP6 JP5
1
1
Battery
SP1
1
2
1 2
JP10
7 8
71
1 72
KB1
73 74
SO_DIMM2
1
MS1
1
JP22
203
204
1
SYS_FAN1
2
JP14
12
IR1
B9
B1 B1
A9 A9
A1 A1
USB1 USB2
LAN1 LAN2
Specification
System
CPU Support
Chipset
OS
Memory Support
Watchdog
Drive Bay
Power Supply
Front Bezel
IP65
Mounting Type
Net Weight &
Dimension (WxHxD)
Certificate
I/O Ports
Serial Port
USB
Parallel Port
VGA
LAN
Audio
Digitial I/O
Expansion slot
Display
LCD Panel Size &
Resolution
Touchscreen
Environment
Operating Temp.
Ver. Q1
(Ambient with Airflow)
Storage Temp.
Humidity
14
1
LPT1
2 10
1 9
USB5
®
Intel
HM76/
QM77
M_PCIE1
1
2
®
Intel Core™
71 72
3 rd Gen.
73 74
Mobile i3/i5/i7
(rPGA-988)
SO_DIMM1
203
204
1 JP12
1
9
10 2
(COM2) (COM1)
JP13
JP17 JP18
5 1 5 1
6 2 6 2
14
10
21 24
15 18
LINE_IN1
1 5
1
1 5 4
6 9
5 1
10 6
15 11
AUDIO1
VGA1
COM1/2
SP-6205/6207/6209
rd
Intel ® Core™ 3 Gen. Mobile i3/i5/i7 (rPGA-988) processor on board
Intel ® HM76/QM77
Microsoft Windows XP/7
2 x 204pin DDR3 SO-DIMM, support DDR3/DDR3L
1600/1333/1066 up to 8GB/slot
1~255s Watchdog timer
2 x 2.5" SATA HDD
DC-in 9~36V
Aluminum
Front panel only
VESA 100/Wall Mount
SP-6205: 7.5 kg ; 408 x 308 x 128 mm
SP-6207: 9 kg ; 448 x 352 x 139 mm
SP-6209: 11.5 kg ; 471 x 396 x 133 mm
FCC/CE
4 x COM ports (COM1/3/4 for RS-232, COM2 for RS-232/422/485,
pin-9 is 5V/12V/RI selectable)
4 x USB 3.0
1 x DSUB-25
1 x VGA
LAN1: Intel ® 82579LM (10/100/1000 Mbps)
LAN2: Intel ® 82583V (10/100/1000 Mbps)
Support wake-on-LAN
High Definition:1 x Line out, 1 x MIC-in
DSUB-25, 8in/8out
1 x Mini-PCIe slot (for WLAN module & 3G module)
1 x SIM card slot
1 x CFast card slot
1 x PCIe(4x), 10W/slot max. (Optional)
SP-6205: 15" ; 1024 x 768 XGA 400nit LED backlight
SP-6207: 17" ; 1280 x 1024 SXGA 350nit LED backlight
SP-6209: 19" ; 1280 x 1024 SXGA 300nit LED backlight
(ELO) 5W Analog resistive (USB interface)
General: -5 ~ 45°C
CFast Card (SP-6205/6207, Wide Temp. Grade, w/o audio): -5 ~ 55°C
-20 ~ 80°C
10 ~ 90%
SP-6205/6207/6209
SIM1
26
13
1 SYSRST1
1
PWRBTN1 1 PWRLED1
1 HDDLED1
SIO
1 1
JP7JP8
9 1
10 2
JP9
(COM4) (COM3)
JP15 JP16
ATX_PWR1
5 1 5 1
4 2
6 2 6 2
3
14
10 1
15 18
4
1 5 3
6 9
2 1
PWR_IN1
COM3/4
Hardware Power
Failure Selection
1 1
Disable Enable
(default)
CFAST Voltage
Selection
1 1
3.3V 5V
(default)
COM Port RI Voltage
Selection
5 1 5 1
2
2
6 6
RI 12V
(default)
5 1
6 2
5V
COM2 RS-232/422/485
Selection
9 1 9 1
10 2 10 2
RS-232 RS-422
(default)
9 1
10 2
RS-485
