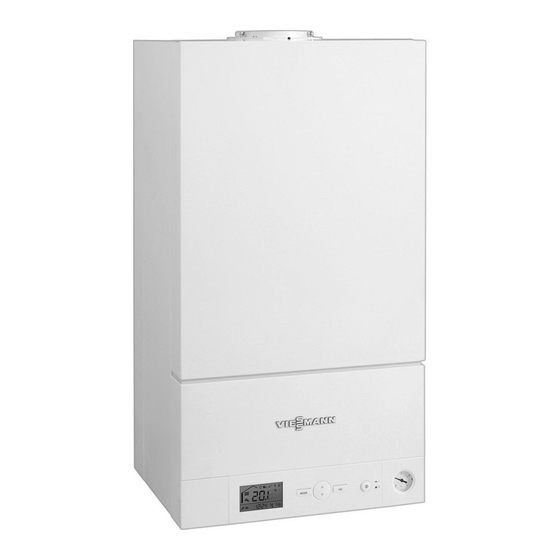

VITODENS 050-W

Commissioning Quickstart Guide

This guide highlights the new and unique process for commissioning. For installation,

please refer to the detailed steps in the Installation & Service Instructions.

User interface

Getting started

On the following pages you will find a step by step guide to commission the product by using

the control panel. The default parameters are highlighted for each step. Note that you can also

use ViGuide – our mobile application – to carry out the commissioning. Important: If you want to

connect the boiler to the internet – using ViGuide monitoring – or connect a Viessmann ViCare

Thermostat or Vitotrol 100-E you have to use ViGuide. Please refer to the last page of this docu-

ment to receive more information.

Heating circuit

DHW temperature

System pressure

DHW ECO function

Wifi connection

Service menu

Fault display

Burner status

OK > confirm settings

Menu > opens the main menu

Up & down > change parameter

Page 1 ViGuide – our mobile application – to carry out the commissioning. Important: If you want to connect the boiler to the internet – using ViGuide monitoring – or connect a Viessmann ViCare Thermostat or Vitotrol 100-E you have to use ViGuide. Please refer to the last page of this docu-...
Page 2 Commissioning steps: Access Point AP 4 seconds to start commissioning Indicates the boiler is ready to be set up press from the panel C.1 Filling programme ON > moves diverter valve to mid position for ease of filling via filling loop, OFF - default >...
Page 3 C.7 Operating Mode 1 > built in time program, 4 > weather comp., 13 - default > constant operation (switch live) with optional room thermostat, 14 > OpenTherm, press OK to confirm the setting C.8 Hydraulic/System Scheme 1 > combi or system boiler on S/Y plan, 3 - default > system boiler with 4 pipe cylinder sensor or demand box, press OK to confirm the setting C.9 Activating Switch Live with Weather Compensation (only available if C.7 = 4) To activate plug 96 switch live with weather compensation select 1,...
Page 4 & services The application can be downloaded from the Google Play Store or Apple App Store. For Once your Viessmann Account is set up, further information scan the QR code: you can access the Partner Portal via the QR code: Viessmann Account Further Information &...
