- Page 1 User's Manual Rev. 1001 GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen. Also, to reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
- Page 2 The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Product Introduction ..................4 Motherboard Layout ..................4 Chapter 2 Hardware Installation ..................5 Installation Precautions ..................5 Product Specifications ..................6 Installing the CPU and CPU Cooler ..............9 Installing the Memory ..................12 Installing an Expansion Card ................. 13 Back Panel Connectors .................. -
Page 4: Chapter 1 Product Introduction

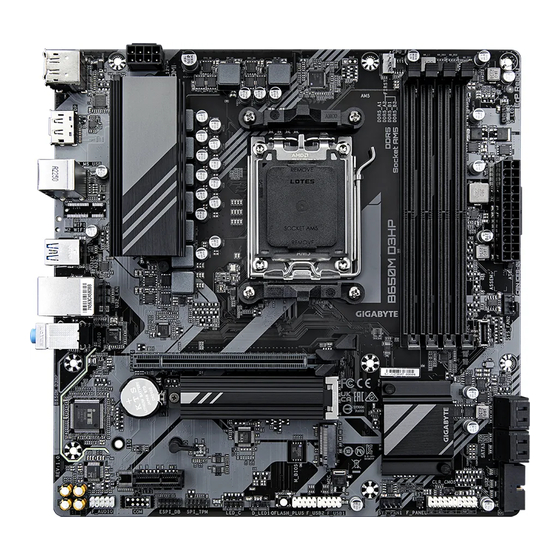

Chapter 1 Product Introduction Motherboard Layout ATX_12V CPU_FAN DP_HDMI D_LED2 SOCKET AM5 KB_MS_USB U32_LAN Realtek ® 2.5GbE LAN AUDIO PCIEX16 ® Super I/O Chipset CODEC M_BIOS PCIEX1 CLR_CMOS QFLED SYS_FAN1 F_USB1 ESPI_DB LED_C D_LED1 F_AUDIO QFLASH_PLUS SPI_TPM F_USB2 F_PANEL Temperature sensors - 4 -... -
Page 5: Chapter 2 Hardware Installation
Chapter 2 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •... -
Page 6: Product Specifications
2-2 Product Specifications AMD Socket AM5, support for: Š AMD Ryzen 7000 Series Processors ™ (Go to GIGABYTE's website for the latest CPU support list.) Chipset AMD B650 Š MEMORY Support for DDR5 5200/4800/4400 MT/s memory modules Š 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) Š... - Page 7 CPU: Š 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support ® 1 x USB 3.2 Gen 1 port on the back panel 1 x USB 2.0/1.1 port on the back panel Chipset: Š 2 x USB 3.2 Gen 1 ports on the back panel 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the...
- Page 8 Micro ATX Form Factor; 24.4cm x 24.4cm Form Factor Š * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. & Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest version of apps.
-
Page 9: Installing The Cpu And Cpu Cooler
Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage. - Page 10 B. Installing the CPU Follow the steps below to correctly install the CPU into the motherboard CPU socket. j G ently press the CPU socket lever handle down and away from the socket. k C ompletely lift up the CPU socket lock- ing lever.
- Page 11 C. Installing the CPU Cooler Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the CPU cooler to be used. Refer to the user's manual for your CPU cooler.) Apply an even and thin layer of thermal grease on the surface of the installed CPU.
-
Page 12: Installing The Memory
Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) •... -
Page 13: Installing An Expansion Card
Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: • Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card. • Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage. -
Page 14: Back Panel Connectors
The reversible USB port supports the USB 3.2 Gen 1 specification and is compatible to the USB 2.0 specification. Use this port for USB devices. (Note) To enable the Q-Flash Plus function, please navigate to the "Unique Features" page of GIGABYTE's website for more information. - Page 15 You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. & Please visit GIGABYTE's website for details on configuring the audio software. https://www.gigabyte.com/WebPage/697/realtek897-audio.html - 15 -...
-
Page 16: Onboard Buttons
Q-Flash Plus button. The QFLED will flash when the BIOS matching and flashing activities start and will stop flashing when the main BIOS flashing is complete. QFLED QFLASH_PLUS To enable the Q-Flash Plus function, please navigate to the "Unique Features" page of GIGABYTE's website for more information. - 16 -... -
Page 17: Internal Connectors
Internal Connectors ATX_12V F_AUDIO F_U32C CPU_FAN F_U32 SYS_FAN1/SYS_FAN2 F_USB1/F_USB2 D_LED1/D_LED2 SPI_TPM LED_C SATA3 0/1/2/3 CLR_CMOS M2A_CPU/M2C_SB F_PANEL Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. •... - Page 18 1/2) ATX_12V/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and The power connector possesses a foolproof design.
- Page 19 LED strip. For how to turn on/off the lights of the LED strip, please navigate to the "Unique Features" page of GIGABYTE's website. Before installing or removing the devices, be sure to turn off the devices and your computer. Unplug...
- Page 20 1.5Gb/s standard. Each SATA connector supports a single SATA device. The SATA connectors support RAID 0, RAID 1, and RAID 10. Please navigate to the "Configuring a RAID Set" page of GIGABYTE's website for instructions on configuring a RAID array.
- Page 21 M.2 PCIe SSDs. Please note that an M.2 PCIe SSD cannot be used to create a RAID set with a SATA hard drive. Please navigate to the "Configuring a RAID Set" page of GIGABYTE's website for instructions on configuring a RAID array.
- Page 22 Connects to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch (please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Soft-Off by PWR-BTTN" for more information).
- Page 23 10) F_AUDIO (Front Panel Audio Header) The front panel audio header supports High Definition audio (HD). You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module connector match the pin assignments of the motherboard header. Incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it.
- Page 24 12) F_U32 (USB 3.2 Gen 1 Header) The header conforms to USB 3.2 Gen 1 and USB 2.0 specification and can provide two USB ports. For purchasing the optional 3.5" front panel that provides two USB 3.2 Gen 1 ports, please contact the local dealer.
- Page 25 F_USB3 F 14) SPI_TPM (Trusted Platform Module Header) You may connect an SPI TPM (Trusted Platform Module) to this header. Pin No. Definition Data Output Power (3.3V) No Pin Data Input Chip Select S F_ S S_F 15) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off.
- Page 26 Reset The reset jumper provides you with several functions to use. To remap the button to perform different tasks, please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "RST_SW (MULTIKEY)" for more information. - 26 -...
-
Page 27: Chapter 3 Bios Setup
If this occurs, try to clear the CMOS values and reset the board to default values. • Refer to the introductions of the battery/clear CMOS jumper in Chapter 2 or navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Load Optimized Defaults" for how to clear the CMOS values. - Page 28 Startup Screen: The following startup Logo screen will appear when the computer boots. Function Keys Function Keys: <DEL>: BIOS SETUP\Q-FLASH Press the <Delete> key to enter BIOS Setup or to access the Q-Flash utility in BIOS Setup. <F12>: BOOT MENU Boot Menu allows you to set the first boot device without entering BIOS Setup. In Boot Menu, use the up arrow key <h>...
-
Page 29: Chapter 4 Installing The Operating System And Drivers
Step 1: Go to GIGABYTE's website, browse to the motherboard model's web page, download the AMD RAID Preinstall Driver file on the Support\Download\SATA RAID/AHCI page, unzip the file and copy the files to your USB thumb drive. -
Page 30: Drivers Installation
(GCC). Click Install to proceed with the installation. (In BIOS Setup, make sure Settings\Gigabyte Utilities Downloader Configuration\Gigabyte Utilities Downloader is set to Enabled.) When the End User License Agreement dialog box appears, press <Accept> to install GIGABYTE Control Center (GCC). On the GIGABYTE CONTROL CENTER screen, select the drivers and applications you want to install and click Install. -
Page 31: Chapter 5 Appendix
• An Internet connected computer. • A USB thumb drive. An M.2 PCIe SSD cannot be used to set up a RAID set with a SATA hard drive. & Please visit GIGABYTE's website for details on configuring a RAID array. https://www.gigabyte.com/WebPage/918/amd600-raid.html - 31 -... -
Page 32: Regulatory Notices
Commission Delegated Directive (EU) 2015/863 Statement Diretiva RSP 2011/65/UE. A conformidade com estas diretivas é verificada GIGABYTE products have not intended to add and safe from hazardous utilizando as normas europeias harmonizadas. substances (Cd, Pb, Hg, Cr+6, PBDE, PBB, DEHP, BBP, DBP and DIBP). -
Page 33: Contact Us
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231 TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : https://esupport.gigabyte.com WEB address (English): https://www.gigabyte.com WEB address (Chinese): https://www.gigabyte.com/tw GIGABYTE eSupport • To submit a technical or non-technical (Sales/Marketing) question, please link to: https://esupport.gigabyte.com...
