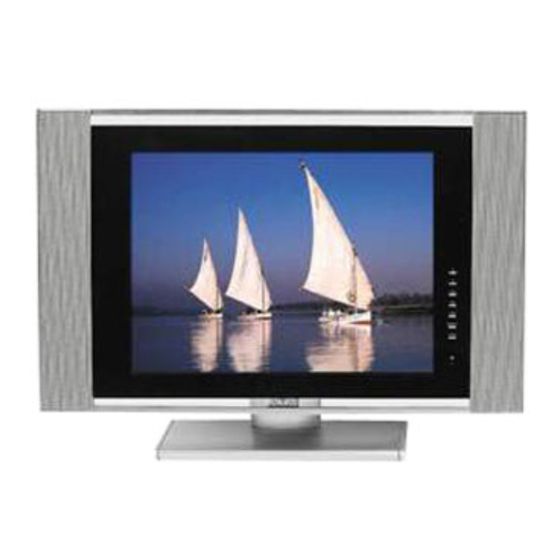

- Page 1 15”LCD TV SERVICE MANUAL LTA-15A301 VERSION: DESIGNED BY: CHECKED BY: APPROVED BY:...
- Page 2 CONTENTS SPECIFICATION----------------------------------------------------------3-5 REMOTE CONTROLLER-----------------------------------------------6 EXPLODED VIEW DIAGRAM-----------------------------------------7-10 BOLCK DIAGRAM--------------------------------------------------------11 MAIN BOARD CIRCUIT-------------------------------------------------12-21 TUNER CIRCUIT----------------------------------------------------------22 INVERTER CIRCUIT-----------------------------------------------------23 ADAPTER CIRCUIT------------------------------------------------------24 COMPONENT DIAGRAM----------------------------------------------25-33 BILL OF MATERIAL-----------------------------------------------------34-58...
- Page 3 KXD 15”LCD TV SPECIFICATION FEATURES ●POWER SUPPLY:DC 12V/4A(ADAPTER) ADAPTER POWER SUPPLY:AC 100∽240V 50/60Hz ●MULTI TV SYSTEM:PAL BG/DK/I and SECAM BG/DK/LL’ ●MULTI VEDEO SYSTEM:PAL/NTSC/SECAM ●VERSATILE INPUT SOURCES:TV,VIDEO,S-VIDEO,SCART, PC(ANALOG) ●FULL FUNCTION REMOTE CONTROLLER ●EXCELLENT SOUND EFFECT WITH VOLUME,TRABLE,BASS, BALANCE, ADJUSTABLE ●SMART SOUND & PICTURE MODE SET: STANDARD,SPEECH,MUSIC;STANDARD,SOFT,RICH ●ADAPTIVE 2/4 LINE COMB FILTER FOR PAL/NTSC ●VTR FOR WEAK AND DISTORETED SIGNAL FROM VIDEO TAPE...
- Page 4 Y/C IN -Y：1.0±0.2V 75Ω C:0.7 V 75Ω VIDEO IN----1.0 ±0.2V 75Ω AUDIO IN----Approx,500mV AV IN/OUT SPECIFICATION VIDEO OUT----1.0±0.2 V 75Ω AUDIO OUT----Approx,400mV RGB IN ---------0.7 V (analog RGB signal) PC INPUT 2.4-5V(HSYNC&VSYNC) O H M A N T E N N A I N P U T I M P E D A N C E ENGLISH/SPAINISH/ITALIAN OSD LANGUAGE RUSSIAN/GERMAN/FRENCH...
- Page 5 PART3:PC INPUT RESOLUTION Recommended resolution is 1024*768@60Hz Band Polarity RESOLUTION V.Freq(Hz) H.Freq(KHz) Width(MHz) 720*400 31.47 28.322 640*350 31.469 25.175 640*480 31.47 25.175 640*480 37.86 31.5 640*480 37.50 31.5 800*600 35.156 800*600 37.88 800*600 46.88 49.5 800*600 48.08 1024*768 48.36 1024*768 56.48 1024*768 60.02...
- Page 6 REMOTE CONTROL DESCRIPTION DESCRIPTION OF 1.POWER:turn on or off the TV 2.NUMBER KEYS 3.VOL+/- :adjust volume 4.CH+/- :change program forward/backward 5.MENU: access main menu 6.BOTONES : move cursor in main menu 7.BOTONES : adjust item you selected 8.REVEAL: recall program number, system etc on the screen 9.Q VIEW: return to the last viewed program 10.SOURCE: select external video source...
- Page 11 15-LCD TV DIAGRAM FROM PC MAIN BOARD HSYNC VSYNC U201 CVBS 74LV14 ANTENNA TUNER U701 SAA7118H VIDEO DECODER IIC1 U301 +3.3V KEYBOARD U101 U802 IIC2 SAA5264PS +3.3V IIC2 U102 /M3/0104 EEPROM LCD DRIVER TELETEXT ON/OFF ON/OFF +3.3V IC 605 +3.3V +12V IC602 IC606...
- Page 12 mcu.Sch DDC_SCL MCU_RESET DDC_SDA CABLE TUNER_SDA TUNER_SCL audio audio.Sch TUNER_SCL TUNER_SDA AUDIO_TV VIDEO input VIDEO input.Sch scalar scalar.Sch output output.Sch RGB-B[0-23] RGB_B[0-23] RGB_A[0-23] RGB_A[0-23] EN_TV Y[0-7] Y[0-7] D_HSYNC D_HSYNC UV[0-7] UV[0-7] D_VSYNC D_VSYNC VS_VID VS_VID D_DE D_DE HS_VID HS_VID DCLK DCLK DE_VID DE_VID...
- Page 13 C111 C110 22uF/16V 0.1uF R104 C107 Q101 9015 GMCU D101 R101 22pF R120 R121 IN4148 100K ORANGE X101 R106 /EA[VP] P0.0 R105 GREEN R103 P0.1 12MHz 5.1K P0.2 P0.3 CABLE C101 C104 P0.4 EN_TV C108 R134 R122 P0.5 TUNER_SDA 10uF LEDO P0.6 TUNER_SCL...
- Page 14 +5V2 C901 FB901 C644 C910 C902 C911 0.1uF 22uF/16V 47uF/16V C903 R913 U901 C917 C904 VOUT VIDEO 68pF R905 R908 HS_IN +5V2 2.2K VS_IN R906 R909 GREEN 2.2K R915 R907 13K R910 4.7K BLUE R903 2.2K RREF R904 R911 C912 2.7K 3.9K R902...
- Page 15 RGB_A[0-23] U501 CN501 CON30 C501 C502 RGB_A4 TXIN4 0.1uF 0.1uF RGB_A7 RGB_A3 VDD_LV TXIN5 TXIN3 RGB_A5 RGB_A2 VDD_LP TXIN6 TXIN2 RGB_A8 TXIN7 RGB_A1 TXIN1 RGB_A9 RGB_A0 TXIN8 TXIN0 RGB_A10 RGB_A6 TXIN9 TXIN27 RGB_A4 RGB_B4 RGB_A14 RGB_A7 TXIN10 LVDSGND RXE0- 100PF 100PF 100PF TXOUT0-...
- Page 16 +12V1 +5V1 IC601 POWER601 L601 +5V2 FEEDBACK +12V1 CN601 OUTPUT 47uH ON/OFF C601 C602 C603 DC-005 R602 D601 C604 C605 C606 L602 2.2K AP1501/LM2596-5.0 INV_EN 0.3-1.6V TEST 0.1uF/16V 470uF/16V 470uF/16V IN5822 TRANS1 R603 C602 VGND Q601 R601 PGND BRI_ADJ + C608 C610 C607 9014...
- Page 17 RGB-B[0-23] R304 C321 C322 INV_EN R305 LVDS_PD R303 BRI_ADJ R323 MCU_RESET VADCA R302 C323 R307 R308 R301 33*4 33*4 33*4 33*4 33*4 33*4 CLK_VID R306 C301 DE_VID CAP_HREF DOBVSS HS_VID CAP_HSYNC BLU_OUTB_7 VS_VID CAP_VSYNC BLU_OUTB_6 RP13 BLU_INB_0/Y0 BLU_OUTB_5 BLU_INB_1/Y1 BLU_OUTB_4 BLU_INB_2/Y2 DOBVDD BLU_INB_3/Y3...
- Page 18 3V3_A C802 CVBS U802 VOUT R809 R807 R808 P2.0/PWM R812 P2.1/PWM0 R811 P2.2/PWM1 R810 U801 P2.3/PWM2 C812 P2.4/PWM3 P2.5/PWM4 X801 22pF R817 R818 R819 R820 SCL(NVRAM) XTALOUT SDA(NVRAM) 12MHz P2.6/PWM5 XTALIN 24C16 C813 P2.7/PWM6 CVBS1 P3.0/ADC0 OSCGND VGND C804 22pF VGND P3.1/ADC1 P1.5...
- Page 19 CN201 R207 AGND U201 R203 R209 DDC_SDA1 VGA_VSYNC PA_VSYNC AGND VGA_HSYNC AGND D204 VGA_VSYNC R205 PIN7 DAN217K 2.2K C208 DDC_SCL1 DGND 100PF C206 CABLE 74LV14 100pF 0.1uF C201 Z201 DB15 C207 C202 0.1UF D205 DAN217K 100pF R206 2.2K C209 100PF R204 R208 R210...
- Page 20 AV701 FB701 C717 47n V656_VS RP701 RP702 R701 18 C734 V656_HS V656_0 V656_4 CN702 R733 V656_1 V656_5 C701 C703 120@100M V656_7 R719 R709 V656_CLK V656_2 V656_6 C732 C733 R718 V656_6 V656_3 V656_7 L704 V656_5 X701 10uH V656_4 R717 V656_3 V656_2 3V3_D 24.576M V656_1...
- Page 21 IC401 7809 +12V1 Q405 9015 C401 C403 C415 C418 100uF/16V 47uF/16V Z402 C419 C404 FB401 C408 1u/50V AV_L401 R437 R401 22uF/16V 120@100M CN404 R411 C405 C406 ON/OFF U401 SCL1 GMCU FB402 C411 1u/50V AV_R401 R402 SDA1 R422 SCL1 AUDIO_TV AGND TUNER_SCL 120@100M C420...
- Page 22 TUNER 10uH TV-VIN TV-AUDIO 100u/16V 100u/16V TV-AUDIO TV-VIN TV-VIN...
- Page 23 VBUSS BC847A VDDP 100nF 20% 50V VBUSS JST SM02 B-BHSS-1-TB 330 Ohm, 0805 5A, 1206 SLEEP 10pF 3KV 220pF 16V VDDP SGE2655-3 VDDA 4.3K CN2A 22uF 20% 25V 100K MMBT2907A 130 Ohm 1% 100nF Molex 53261-0690 390 Ohm 430K BAV70 3.3nF AOUT BC847A...
- Page 24 INPUT OUTPUT UU--10.5 10mH L1 T12*8*4 50--100uH 2A 600V 2.5A/250V R14B 470K R14A 100K 100K MOV1 7N471 CON1 682/1KV 334/275V 470K R14C R14D 104/275V 100K 100K L1 T12*8*4 50--100uH 100uF/400V MBR10100CT UF4007 +12V/4A 100K 100K R22A 47R 470K 100K 100K 560R 2.7K 152/1KV...
- Page 25 MAIN BOARD ASSEMBLY DATE: 2004-09-09 PART NO. DESCRIPTION LOCATION 4041920002010 CONNECTOR,2PIN,2.0mm,180°,DIP 2.000 CN402,CN403 4041920007010 CONNECTOR,7PIN,2.0mm,180°,DIP 2.000 CN401,CN102 4041920006010 CONNECTOR,6PIN,2.0mm,180°,DIP 2.000 CN601 4041920011010 CONNECTOR,11PIN,2.0mm,180°,DIP 2.000 CN101,CN701 414101R16RM00 CAP-EL 1.000 C433 16V-1uF-M 414110116RM00 CAP-EL 9.000 C508,C611-C614,C646,C647,C649,C608,C508 16V-100uF-M 414110R16RM00 CAP-EL 4.000 C101,C305,C324,C434 16V-10uF-M 414022116RM00 CAP-EL 3.000 C636,C615,C616...
- Page 26 415201N582200 SCHOTTKY BARRIER DIODE 1.000 D601 IN5822 28V,3A 4160000901400 NPN TRANSISTOR(TO-92) 6.000 Q102-103,401,601,602,604 PSS9014C NPN（β=200-400） 4160000901500 PNP TRANSISTOR<TO-92> 1.000 Q101 PSS9015B (β=150-250) 417000LA78050 3-Terminal Positive Regulator<TO-220> 1.000 IC606 LA7805 417000M806410 8-bit MTP Micro-controller<PLCC44> 1.000 U101 M8064 4170000TL4310 Precision Adjustable Shunt Regulator<T0 1.000 IC301 TL431 41700AT24C160 16K-bit 2-WIRE SERIAL CMOS EEPROM...
- Page 27 42903D1428110 COMMON FILTER 1.000 L602 JLF-794-280uH 425T170100020 HEAT SINK 1.000 U402 42902154411R0 Φ12.7 COIL INDUCTOR 1.000 FB607 JCI-1544-11uH 405T150105310 1517-MRTTV100.PCB 1.000 PCB 412700R01AJ80 CHIP RES 0603 3.000 R319-R320,R317 1/10W-0Ω-J 412701011AJ80 CHIP RES 0603 6.000 R120,R121,R226,R227,R731,R732 1/10W-100Ω-J 412701021AJ80 CHIP RES 0603 6.000 R122,R123,R132,R306,R603,739 1/10W-1K-J 412701031AJ80...
- Page 28 412702721AJ80 CHIP RES 0603 3.000 R119,R604,R130 1/10W-2.7K-J 412702731AJ80 CHIP RES 0603 1 R439 1/10W-27K-J 412703321AJ80 CHIP RES 0603 3.000 R223-R225 1/10W-3.3K-J 4127033R1AJ80 CHIP RES 0603 18.000 R124-R129,R134-R137,R301,R718,R723-R725,R733,R737,R302 1/10W-33Ω-J 412703921AJ80 CHIP RES 0603 1.000 R710 1/10W-3.9K-J 412704721AJ80 CHIP RES 0603 17.000 R702,R104,R107-112,115-118,605,613,614,730,R133 1/10W-4.7K-J 4127047R1AJ80 CHIP RES 0603...
- Page 29 50V-102-K 413510350RK60 CHIP CAP 0603 6.000 C214-219 50V-10nF-K 413510425RZ60 CHIP CAP 0603 73.000 C1-20,C22,C23,25-31,33,34,C111-120,C201-205,301-304,323,601,602 25V-100nF-Z 606,610,617-627,639-642,648,650,729 413510510RZ60 CHIP CAP 0603 4.000 C105,C106,C307,C643,C306,C104 10V-105-Z 413515150RK60 CHIP CAP 0603 1.000 C308 50V-151-K 413522R50RJ60 CHIP CAP 0603 4.000 C320,C325,C326,C327 50V-22pF-J 413533150RK60 CHIP CAP 0603 14.000 C701,C703,C705-C712,C714,715,C730,C735 50V-330P-K 413539R50RJ60...
- Page 30 417024LC21A00 1K 2.5V DUAL .ODE IIC SERIAL EEPROM 1.000 U202 24LC21A SO-8 4170074LV1440 HEX SCHMITT-TRIGGER INVERTERS<SO14> 1.000 U201 74LV14 41700TDA7266D 5+5 DUAL BRIDGE AMPLIFIER（SO20) 1.000 U402 TDA7266D 41700AMS11170 800mA Low-Dropout Linear Regulator 2.000 IC604,IC605 AMS1117-3.3V SOT-223 417AZ1084S3V3 5 Amp Low Dropout Positive Voltage Regu 1.000 IC602 AZ1084S-3.3V TO-263 417MASCOTV200 IC<PQFP>...
- Page 31 4290512207020 CHIP BEAD 1206 5.000 FB207,302,301,604,605 HCB3216K-122T10 4290512207030 CHIP BEAD 1206 2.000 FB601,FB608,FB607 HCB3216K-122T25 4290550108010 CHIP BEAD 0603 1.000 FB208 500 OHM@100MHz 《END》...
- Page 32 15 INVERTER(15"AU PANEL) DATE: 2004-09-09 PART NO. DESCRIPTION LOCATION 4042920006010 CONNECTER,6PIN,2.0mm,90°,DIP 1.000 CN1 413010R302J00 HIGH VOLTAGE CAP 4.000 C9，C14，C18，C23 3KV-10p-J 414110125RM00 CAP-EL(105℃) 2.000 C19，C10 CD11HL 25V-100uF-M ...3 4042940004010 SOCKET 2.000 CN2A,CN3A SM04(4.0)B-BHS-1-TB ...3 405T150105210 1517INVERTER100.PCB 1.000 40MM*140MM 2004.06.28 ...3 411SIT0931A00 TRANSFORMER 4.000 T1-T4 SIT18130-0931A...
- Page 33 1/10W-20K-J ...3 412702041AJ80 CHIP RES 0603 2.000 R7,R11 1/10W-200K-J ...3 412702731AJ80 CHIP RES 0603 1.000 R5 1/10W-27K-J ...3 412703311AJ60 CHIP RES 0805 1.000 R1 1/10W-330Ω-J ...3 412703011AJ80 CHIP RES 0603 2.000 R24,R35 1/10W-300Ω-F ...3 412703321AJ80 CHIP RES 0603 2.000 R50,R46 1/10W-3.3K-J ...3 412703911AJ80...
- Page 34 ...3 413547250RK60 CHIP CAP 0603 1.000 C5 50V-472-K ...3 413547450RZ60 CHIP CAP 0603 1.000 C3 50V-470nF-Z ...3 4151MMSZ5V660 ZENER DIODE MMSZ5V6 1.000 D1 ...3 415200BAV7060 DIODE S0-23 5.000 D2-D5,D18 BAV70 ...3 415200BAW5660 DIODE S0-23 4.000 D7,D8,D13,D16 BAW56 ...3 415201N414870 DIODE 8.000 D6,D9,D10,D12,D14,D15,D17,D11 ...3 41600BC847A20...
- Page 35 15-20"TUNER ASSEMBLY DATE: 2004-09-09 PART NO. DESCRIPTION LOCATION 405T150105700 TURNER.PCB 1.000 PCB 91*63.4mm 413210450RZ00 2.000 C2,C3 50V-104-Z 414133R10RM00 CAP-EL 2.000 C1,C4 CD110-10V-33uF-M 420ET15010920 1.000 CN1 D-Sub,9 Pin,180° DB-9A MAIL（BLACK） 429EC041010R0 COIL INDUCTOR 1.000 L1 10uH 500mA 4320006000500 JUMPER 2.000 J4,J5 4320006001000 JUMPER 1.000 J1...
- Page 36 1501KEYBOARD ASSEMBLY DATE: 2004-09-09 PART NO. DESCRIPTION LOCATION 40300T1701000 SWITCH 7.000 P+,P-,V-,V+,MENU,SOURCE,POWER 6*6*5mm 4041920011010 CONNECTER,11PIN,2.0mm,180°,DIP 1.000 C0N1 TJC4-11Y 405T150105110 TVM1501KEY.PCB 1.000 PCB 410A010300020 LED<DIP> 1.000 LED COMMON CATHODE(RED&GREEN) 415201N414840 DIODE DIP 2.000 D1,D2 1N4148 4300KSM603LM0 INFRERED SENSOR(CSC9900) 1.000 REMOUT KSM-603LM(MT2)\GPLUV701QS 《END》...
- Page 37 15" SCART ASSEMBLY(WITHOUT NICAM) DATE: 2004-09-09 PART NO. DESCRIPTION LOCATION 4041920006010 CONNECTOR 6PIN PIH=2.0mm 1.000 CN1 4041920010010 CONNECTOR 10PIN PIH=2.0mm 1.000 CN2 405T150105410 1517SCART.PCB 1.000 SCART PCB BOARD 04/06/22 420BT15012110 SCART SOCKET 1.000 CN3 RC-2105 4320006000500 JUMPER 3.000 J1,J2,J3 COMPONENTS IN MAIN BOARD ABOUT SCART 414110R16RM00 CAP-EL 2.000 C432,C438 16V-10uF-M...
- Page 38 1/10W-10K-J 412701011AJ80 CHIP RES 0603 1.000 R406 1/10W-100Ω-J 412701021AJ80 CHIP RES 0603 1.000 R424 1/10W-1K-J 4290512106010 CHIP BEAD 0805 4.000 FB407,FB702,FB408,FB708 120 OHM@100MHz 4127056R1AJ80 CHIP RES 0603 1.000 R745 1/10W-56Ω-J 412702021AJ80 CHIP RES 0603 1.000 R140 1/10W-2K-J 412700R01AJ80 CHIP RES 0603 2.000 R113,R708 1/10W-0Ω-J...
- Page 39 15"AU PALEL DATE: 2004-09-09 PART NO. DESCRIPTION LOCATION 420FT15013000 SOCKET 1.000 CN503 30PIN PIH=0.5 420FT15014510 SOCKET 1.000 CN502 45PIN PIH=0.5 417AZ1084S3V3 IC(TO-263) 1.000 IC603 AZ1084S-3.3V 413510425RZ60 4.000 C501,C503,C505,C506 CHIP CAP 25V-100nF-Z 4290512207020 3.000 L501 CHIP BEAD HCB3216K-122T10 《END》...
- Page 40 SOUND(WITHOUT NICAM) DATE: 2004-09-09 PART NO. DESCRIPTION LOCATION ...3 412703911AJ80 CHIP RES 0603 1.000 R437 1/10W-390Ω-J ...3 413510425RZ60 CHIP CAP 0603 3.000 C403,C404,C407 25V-100nF-Z ...3 4290512106010 CHIP BEAD 0805 6.000 FB401-FB406 120 OHM@100MHz ...3 4127047R1AJ80 CHIP RES 0603 6.000 R401-R404,R407,R408 1/10W-47Ω-J ...3 412701031AJ80...
- Page 41 414110116RM00 CAP-EL<RB.2/.5>(DL:6*8) 1.000 C415 16V-100uF-M 414101R16RM00 CAP-EL<RB.2/.5> 8.000 C408-C411,C413,C414,C430,C431 16V-1uF-M 413127225RK00 CAP-FILM 2.000 C420,C421 25V-2n7-K 413110425RK00 CAP-FILM 6.000 C422-C427 25V-104-K 41412R216RM00 CAP-EL<RB.2/.5> 2.000 C429,C428 16V-2.2uF-M 414110R16RM00 CAP-EL 2.000 C412,C437 16V-10uF-M 414122R16RM00 CAP-EL∮5*11 1.000 C419 CD110-16V-22uF-M 417000078L090 IC (TO-92) 1.000 IC401 78L09 《END》...
- Page 42 TELETEXT ASSEMBLY DATE: 2004-09-09 PART NO. DESCRIPTION LOCATION 412701031AJ80 CHIP RES 0603 2.000 R807,R808 1/10W-10K-J 412702431AJ80 CHIP RES 0603 1.000 R813 1/10W-24K-J 4127039R1AJ80 CHIP RES 0603 4.000 R809-R812 1/10W-39Ω-J 412701511AJ80 CHIP RES 0603 3.000 R817-819 1/10W-150Ω-J 412701011AJ80 CHIP RES 0603 3.000 R814、R815、R816 1/10W-100Ω-J 4127033R1AJ80...
- Page 43 417S0AT24C160 IC AT24C16 S08 1.000 U801 4240000061240 CYSTAL<49S> 1.000 X801 12MHz(20PF,+-20PPM) 414110116RM00 CAP-EL<RB.2/.5>(DL:6*8) 1.000 C817 16V-100uF-M 《END》...
- Page 44 1501 NO COMMON PART DATE: 2004-09-09 PART NO. DESCRIPTION LOCATION 704T1501B0020 REMOTE CONTROLLER 1.000 RM612 40910T2001PW0 POWER CORD 1.000 437T150100030 FFC WIRE 1.000 H502 0.5mm 45PIN 437T150100040 FFC WIRE 1.000 H503 0.5mm 30PIN 419T1501TTL10 15''TFT PANEL 1.000 AU PANEL 437T150100020 WIRE(10P-11P,2.0)(2468 26#) 1.000 10P,2.0)H701 MTV-1501SCART VIDEO WIRE（50mm）...
- Page 45 15 ADAPTER DATE: 2004-09-09 PART NO. DESCRIPTION LOCATION 4105010300010 DIODE 1.000 LED 411BCK2960A10 TRANSISTOR（PQ26） 1.000 T1 BCK-PQ26-2960A 4129005R01J20 NTC RES 1.000 NTC MWF22-5D-9(5Ω,3A) 412A07D471K01 PIEZORESISTANCE 1.000 MOV1 HEL-7D471K DIP 412BR01205J00 COPPER WIRE 1.000 RM1 5W-0.012Ω +-5% 4130152102K00 HIGH VOLTAGE CAP 1.000 C14 CC1-1000V-152-K 4130682102K00...
- Page 46 415301N400740 DIODE 1.000 D1 1N4007 41530UF400740 DIODE 1.000 D2 UF4007 4153MBR20100C DIODE MBR20100CT TO-220 1.000 D4 415400RS40610 BRIDGE 1.000 BD1 3A 600V(RS406) 41600BT169D00 Silicon Controlled Rectifier 1.000 Q3 BT169D 4160010N60B00 MOSFET SSS7N60B 1.000 Q1 TO-220 41700000P6210 IC(DIP) 1.000 IC4 PC817 4170000TL4310 IC<T0-92>...
- Page 47 4320006001000 JUMPER 2.000 J3，J4 10mm 437T150100090 GROUND WIRE 1.000 50mm 437UC38430020 DC LINE 1.000 1.5m KXD-31(1450mm) ...3 405T150105000 1.000 PCB(UC3843POWER.PCB) ...3 412700R014J70 CHIP RES 1206 1.000 R9 1/4W-0Ω-J ...3 4127010114J70 CHIP RES 1206 1.000 R17 1/4W-100Ω-J ...3 412701021AJ60 CHIP RES 0805 2.000 R5,R29 1/10W-1K-J...
- Page 48 1/4W-2.7K-J ...3 412730911AF60 CHIP RES 0805 1.000 R25 1/10W-3.09K-F ...3 412703931AJ60 CHIP RES 0805 1.000 R28 1/10W-39K-J ...3 4127047414J70 CHIP RES 1206 3.000 R1,R2,R11 1/4W-470K-J ...3 4127047R14J70 CHIP RES 1206 2.000 R22A,R22B 1/4W-47Ω-J ...3 412704R714J70 CHIP RES 1206 1.000 R15 1/4W-4.7Ω-J ...3 4127056114J70...
- Page 49 ...3 4151LL55C1860 ZENER DIODE(SMT) 1.000 Z01 LL55C18V ...3 415201N414870 DIODE 3.000 D03,D06,D07 IN4148 ...3 4170000LM3580 IC(S0-8) 1.000 IC3 LM358 ...3 417000UC38430 IC(S0-8) 1.000 IC1 UC3843(CM3843) 305UC38430320 GROUND 2.000 《END》...
