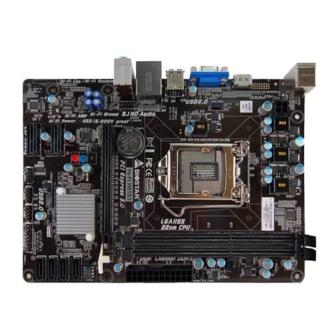

Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual
UEFI BIOS Setup ........................................................................... 1
1 Main Menu................................................................................... 3
2 Advanced Menu.......................................................................... 4
3 Chipset Menu............................................................................ 14
4 Boot Menu................................................................................. 21
5 Security Menu........................................................................... 24
6 Performance Menu ................................................................... 25
7 Exit Menu .................................................................................. 29
i

Advertisement

Table of Contents
loading

Related Manuals for Biostar Hi-Fi H61S3

Summary of Contents for Biostar Hi-Fi H61S3

  • Page 1 Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual UEFI BIOS Setup ................1 1 Main Menu................... 3 2 Advanced Menu................4 3 Chipset Menu................14 4 Boot Menu................. 21 5 Security Menu................24 6 Performance Menu ..............25...

  • Page 2: Uefi Bios Setup

    Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual UEFI BIOS Setup Introduction The purpose of this manual is to describe the settings in the AMI UEFI BIOS Setup program on this motherboard. The Setup program allows users to modify the basic system configuration and save these settings to NVRAM.

  • Page 3: Supported Cpus

    Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual Supported CPUs This AMI UEFI BIOS supports the Intel CPU. Using Setup When starting up the computer, press <Del> during the Power-On Self-Test (POST) to enter the UEFI BIOS setup utility.
  • Page 4 Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual 1 Main Menu Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the screen providing an overview of the basic system information. BIOS Information It shows system information including UEFI BIOS version, model name, marketing name, built date, etc.

  • Page 5: Advanced Menu

    Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual 2 Advanced Menu The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power Management, and other system devices. Notice Beware of that setting inappropriate values in items of this menu may cause system to malfunction.
  • Page 6 Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual PCI ROM Priority In case of multiple option ROMs (Legacy and EFI Compatible), this item specifies what PCI Option ROM to launch Options: Legacy ROM (Default) / EFI Compatible ROM PCI Latency Timer This item sets the value to be programmed into PCI Latency Timer Register.

  • Page 7: Acpi Settings

    Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual ACPI Settings Enable ACPI Auto Configuration This item enables or disables BIOS ACPI auto configuration function. Options: Disabled (Default) / Enabled Enable Hibernation This item enables or disables system ability to hibernate (0S/S4 sleep state).

  • Page 8: Cpu Configuration

    Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual Wake system with Fixed Time This item enables or disables the system to wake on by alarm event. When this item is enabled, the system will wake on the hr::min::sec specified.
  • Page 9 Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual Limit CPUID Maximum When the computer is booted up, the operating system executes the CPUID instruction to identify the processor and its capabilities. Before it can do so, it must first query the processor to find out the highest input value CPUID recognizes.

  • Page 10: Sata Configuration

    Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual SATA Configuration SATA Controller(s) This item enables/disables Serial ATA Device. Options: Enabled (Default) / Disabled SATA Mode Selection This item determines how SATA controller(s) operate. Options: IDE (Default) / AHCI SMART Self Test This item allows you run SMART self test on all HDDs during POST.
  • Page 11 Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual Legacy USB Support This item determines if the BIOS should provide legacy support for USB devices like the keyboard, mouse, and USB drive. This is a useful feature when using such USB devices with operating systems that do not natively support USB (e.g.

  • Page 12: Smart Fan Control

    Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual SMART FAN Control CPU Smart FAN This item allows you to control the CPU Smart Fan function. Options: Disabled (Default) / Auto CPU FAN Calibrate Press [ENTER] to calibrate CPU FAN.

  • Page 13: Super Io Configuration

    Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual Super IO Configuration Serial Port 1 Configuration Serial Port This item enables or disables Serial Port (COM). Options: Enabled (Default) / Disabled Change Settings This item allows you to select an optimal setting for Super IO device.
  • Page 14 Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual H/W Monitor Shutdown Temperature This item allows you to set up the CPU shutdown Temperature. Options: Disabled (Default) / 70℃/158℉ / 75℃/167℉ / 80℃/176℉ / 85℃/185℉ / 90℃/194℉...

  • Page 15: Chipset Menu

    Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual 3 Chipset Menu This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed of the CPU itself uses when communicating with its own special components.
  • Page 16 Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual PCI Express Configuration ASPM This item sets PCI Express Active State Power Management settings. Options: Disabled (Default) / L0s / L1 / L0sL1 / Auto PCIe Speed This item selects PCI Express port speed.
  • Page 17 Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual PCH Azalia Configuration Azalia This item controls detection of the Azalia device. Disabled = Azalia will be unconditionally disabled. Enabled = Azalia will be unconditionally Enabled. Auto = Azalia will be enabled if present, disabled otherwise.

  • Page 18: System Agent (Sa) Configuration

    Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual On Board PCIe Device Onboard PCIE Giga LAN This item controls the PCI Express Root Port. Options: Enabled (Default) / Disabled * Note: (Hi-Fi H61S3L is Fast Ethernet LAN) Onboard LAN Option ROM This item enables or disables onboard LAN option ROM.

  • Page 19: Primary Display

    Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual Graphics Configuration Primary Display This item selects which of IGFX/PEG/PCI Graphics device should be Primary Display or select SG for Switchable Gfx. Options: Auto (Default) / IGFX / PEG Internal Graphics This item keeps IGD enabled based on the setup options.

  • Page 20: De-Emphasis Control

    Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual RC6+ (Deep RC6) This item enables Deep RC6 (RC6+) support Options: Enabled (Default) / Disabled NB PCIe Configuration PEX16_1 – Gen X This item configures PEG0 B0:D1:F0 Gen1-Gen3. Options: Auto (Default) / Gen1 / Gen2 / Gen3 PEG0 ASPM This item controls ASPM support for the PEG: Device 1 Funtion0.
  • Page 21 Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual Memory Configuration Max TOLUD This item sets maximum value of TOLUD. Dynamic assignment would adjust TOLUD automatically based on largest MMIO length of installed graphic controller. Options: Dynamic (Default) / 1 GB / 1.25 GB / 1.5 GB / 1.75 GB / 2 GB / 2.25 GB / 2.5 GB / 2.75 GB / 3 GB / 3.25 GB...
  • Page 22 Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual 4 Boot Menu This menu allows you to setup the system boot options. Setup Prompt Timeout This item sets number of seconds to wait for setup activation key. Options: 2 (Default) Bootup NumLock State This item selects the keyboard NumLock state.

  • Page 23: Csm Parameters

    Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual INT 19 Capture BIOS reaction on INT19 trapping by Option ROM: IMMEDIATE – execute the trap right away; POSTPONED – execute the trap during legacy boot. Options: Postponed (Default) / Immediate BIOS Flash protection While enabled, it can’t flash write and flash erase by SMI.
  • Page 24 Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual Launch Storage OpROM policy This option controls the execution of UEFI and Legacy Storage OpROM Options: Legacy only (Default) / UEFI only / Do not launch Launch Video OpROM policy...

  • Page 25: Security Menu

    Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual 5 Security Menu Administrator Password This item sets Administrator Password. User Password This item sets User Password.

  • Page 26: Performance Menu

    Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual 6 Performance Menu This submenu allows you to change voltage and clock of various devices. (However, we suggest you use the default setting. Changing the voltage and clock improperly may damage the device.)

  • Page 27: Clock Spread Spectrum

    Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual Clock Spread Spectrum This item enables or disables CPU Clock Spread Spectrum Options: Enabled (Default) / Disabled CPU C1E C1E is “Enhanced Halt State” function, this function helps to save power and decrease heat by lowering CPU frequency while the processor is not working.
  • Page 28 Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual DDR3 DRAM Timing Control This item allows you to choose to manually or automatically regulate the DRAM Timing. Options: By SPD (Default) / Manual / XMP Profile 1 DDR3 DRAM Multiplier This item allows you to set DDR3 DRAM Multiplier.
  • Page 29 Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual Write to Read Delay (tWTR) This item allows you to select Internal Write to Read Command Delay of DDR3. Options: 6 (Default) / 3 ~ 31 Active to Active Delay (tRRD) This item allows you to select Row Active to Row Active Delay of DDR3.

  • Page 30: Launch Efi Shell From File System Device

    Hi-Fi H61S3 / Hi-Fi H61S3L / Hi-Fi H61S3D UEFI BIOS Manual 7 Exit Menu This menu allows you to load the optimal default settings, and save or discard the changes to the BIOS items. Discard Changes and Exit Abandon all changes made during the current session and exit setup.
