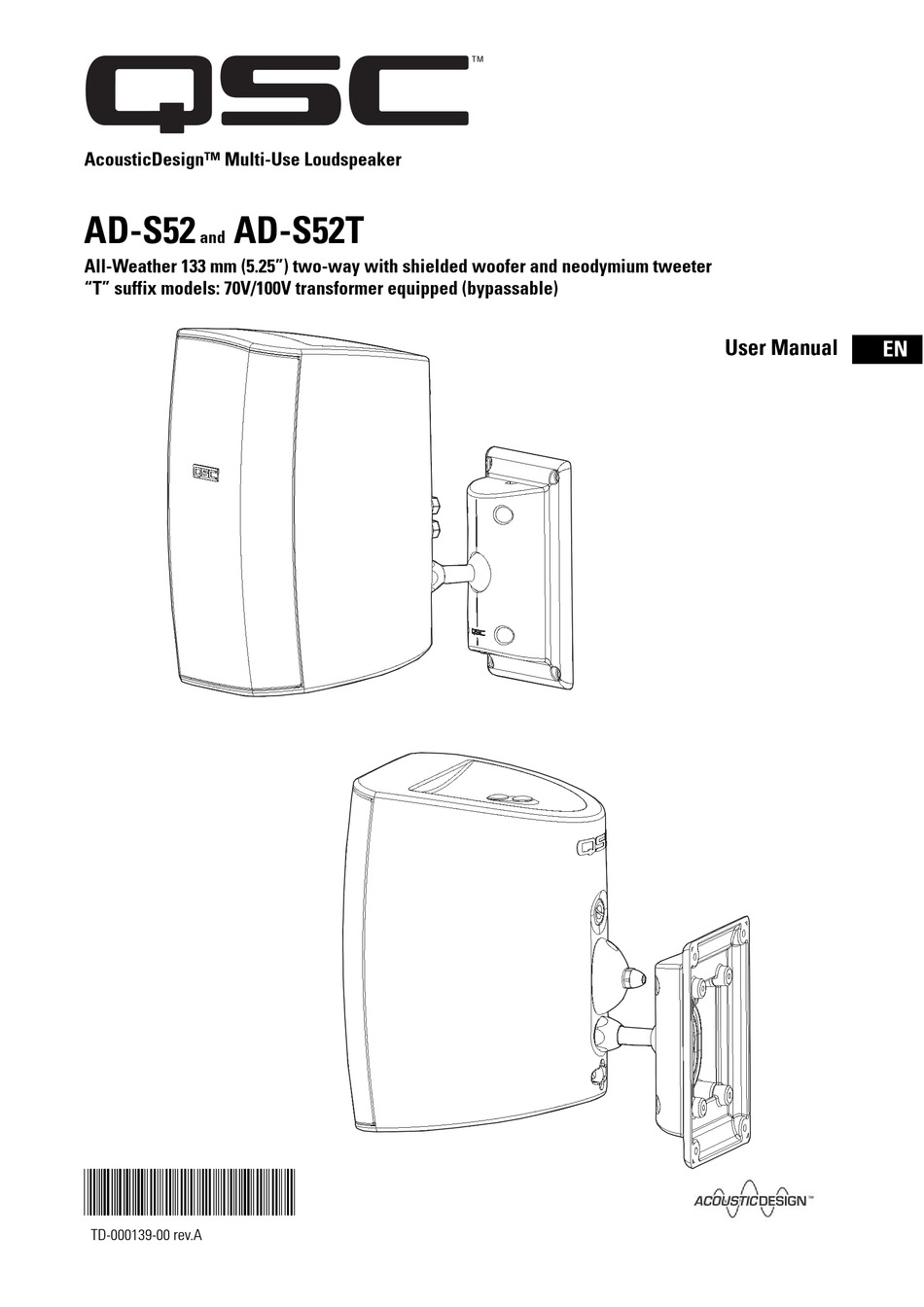

- Page 1 AcousticDesign™ Multi-Use Loudspeaker AD-S52 AD-S52T All-Weather 133 mm (5.25”) two-way with shielded woofer and neodymium tweeter “T” suffix models: 70V/100V transformer equipped (bypassable) User Manual *TD-000139-00* TD-000139-00 rev.A...
- Page 2 (USA only; other countries, see your dealer or distributor) Disclaimer QSC Audio Products, Inc. is not liable for any damage to amplifiers, or any other equipment that is caused by negligence or improper installation and/or use of this loudspeaker product.
-
Page 3: What's Included
Introduction Thank you and congratulations on your purchase of the AcousticDesign AD-S52 multi-use, weather resistant loudspeakers. These products rep- resent the state-of-the-art in all-weather, lightweight SR (sound rein- forcement) loudspeaker systems. To get the most from your investment, we encourage you to review this manual carefully. The AD-S52 loudspeaker systems are full range, high output, two-way designs delivering superior sound quality and high SPL in a lightweight, weather resistant enclosure. - Page 4 (15 N-m) of tightening torque be applied to both fasteners. Optional Yoke Mount There is an optional yoke mount available, model YM-5. Contact your QSC Audio Products representative for details. Connection AD-S52 or AD-S52T? Connection is the same for both models, but for the AD-S52T you must set the transformer Tap Selector Switch to the appropriate setting before applying audio.
- Page 5 Wiring Connect the amplifier’s + and - outputs directly to the loud- speaker’s + (red) and - (black) terminals. The binding post terminals accept wire, spade terminals, or banana plugs. Use only wire connections when using the Input Cover. The AMPLIFIER terminals are spaced 0.75”...
-
Page 6: Specifications
Specifications Frequency Response 90- 20k Hz (-6 dB) 70- 21k Hz (-10 dB) Drivers: low frequency- 5.25” (133 mm) magnetically shielded high frequency- metallized dome, neodymium magnet structure Maximum Output 103 dB SPL continuous rms output (calculated) 106 dB SPL peak output Impedance: 8 ohms nominal 6.3 ohms minimum, 280 Hz... - Page 7 Dimensions...
-
Page 8: Painting The Loudspeaker
Painting the Loudspeaker The loudspeaker enclosure, grill, and mount can be painted to match any decor, provided the following precautions are observed. The cabinet is made of high impact polystyrene which requires controlled painting procedures in order to obtain good results. Use a paint “system”... - Page 10 (714) 754-6174 Customer Service FAX (714) 754-6173 World Wide Web: www.qscaudio.com E-mail: info@qscaudio.com service@qscaudio.com QSC Audio Products, Inc. 1675 MacArthur Boulevard Costa Mesa, California 92626 USA ©2003 “QSC” and the QSC logo are registered with the U.S. Patent and Trademark Office.
