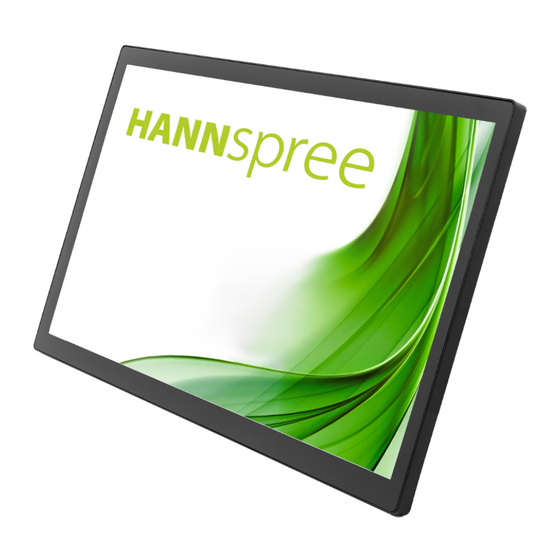

- Page 1 HT221PPB (HSG1420) LCD Monitor...
- Page 2 Electromagnetic Compatibility, and 2014/35/EU and 93/68/EEC with regard to Low Voltage directive. Socket-outlet shall be near the equipment and shall be accessible. Trademark Notice: Hannspree products incorporate High-Definition Multimedia Interface (HDMI ) technology. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
- Page 3 User’s Manual RECYCLING INFORMATION We, the Hannspree care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life. These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels.
-
Page 4: Table Of Contents
User’s Manual TABLE OF CONTENTS SAFETY NOTICE ....................5 PRECAUTIONS....................5 SPECIAL NOTES ON LCD MONITORS ............6 BEFORE YOU OPERATE THE MONITOR ............7 FEATURES......................7 CHECKING THE CONTENTS OF THE PACKAGE ........7 POWER....................... 8 SETTING THE MONITOR ON THE WALL ..........8 MAKING CONNECTIONS................ -
Page 5: Safety Notice
User’s Manual SAFETY NOTICE 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. -
Page 6: Special Notes On Lcd Monitors
User’s Manual SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears. -
Page 7: Before You Operate The Monitor
User’s Manual BEFORE YOU OPERATE THE MONITOR FEATURES 54,6cm / 21.5” Wide Screen TFT Color LCD Monitor Crisp, Clear Display Ergonomic Design Space Saving, Compact Case Design CHECKING THE CONTENTS OF THE PACKAGE The product package should include the following items: LCD Monitor Cables and User manual Power Cord... -
Page 8: Power
*Installing the LCD Monitor requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. Hannspree bears no responsibility for improper mounting or mounting that results in accident or injury. You can ask a... -
Page 9: Making Connections
User’s Manual MAKING CONNECTIONS CONNECTING TO A PC Turn off your computer before performing the procedure below. 1. Connect one end of the HDMI cable to the back of the monitor and connect the other end to the computer’s HDMI port. 2. -
Page 10: Operating Instructions
User’s Manual OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 3). By changing these settings, the picture can be adjusted to your personal preferences. -
Page 11: Front Panel Control
User’s Manual FRONT PANEL CONTROL Power Button: Press this button to switch ON/OFF of monitor’s power. Power Indicator: Green — Power On mode. Green flicker — Power Saving mode. MENU / ENTER: Turn the OSD menu on/off or enter. Adjust ◄... - Page 12 User’s Manual Resolution 640×400@70Hz ↔ 720×400@70Hz 640×480@60Hz ↔ 720×480@60Hz 1024×768@70Hz ↔ 1280×768@70Hz 1280×768@60Hz ↔ 1360×768@60Hz 1400×1050@60Hz ↔ 1680×1050@60Hz 1400×1050@RB 60Hz ↔ 1680×1050@RB 60Hz 1400×1050@75Hz ↔ 1680×1050@75Hz 1440×900@60Hz ↔ 1600×900@60Hz 1360×768@60Hz ↔ 1366×768@60Hz 1280×960@60Hz ↔ 1600×900@60Hz ** The screen resolutions available will depend on the purchased model. NOTES: Do not install the monitor in a location near heat sources such as radiators or air dusts, or in a ...
-
Page 13: How To Adjust A Settings
User’s Manual HOW TO ADJUST A SETTINGS BRIGHTNESS/ CONTRAST Adjust the contrast value of the display according to your preference. Select「CONTRAST」option to adjust the contrast CONTRAST value. Adjust the brightness value of the display according to your preference. Select「BRIGHTNESS」option to adjust the BRIGHTNESS brightness value. - Page 14 User’s Manual the OSD Language depends on the selected model] Select 「OSD H-POSITION」option to adjust the horizontal OSD H-POSITION position of the OSD. Enter the option and adjust the level. Select 「OSD V-POSITION」 option to adjust the vertical position OSD V-POSITION of the OSD.
-
Page 15: Plug And Play
User’s Manual PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 16: Technical Support (Faq)
User’s Manual TECHNICAL SUPPORT (FAQ) Q & A FOR GENERAL PROBLEMS PROBLEM & QUESTION POSSIBLE SOLUTION *Check if the Power Switch is in the ON position. Power LED is not on *Power Cord should be connected. *Check if the PC system is Plug & Play compatible. *Check if the Video Card is Plug &... - Page 17 62,5cm / 24.6 (16:9) 68.6cm / 27” (16:9) 70cm / 27.5” (16:10) 1920×1200@60Hz 1920×1200@50Hz And if you still have display problem after doing the above procedure, please visit Hannspree support and Service Website: http://www.hannspree.com Windows is a registered trademark of Microsoft Corporation.
-
Page 18: Error Message & Possible Solutions
User’s Manual ERROR MESSAGE & POSSIBLE SOLUTIONS CABLE NOT CONNECTED: 1. Check that the signal-cable is properly connected, if the connector is loose, tighten the connector’s screws. 2. Check the signal-cable’s connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table. - Page 19 User’s Manual 1400×1050 @60Hz 64.744 59.948 1680×1050 @60Hz 65.290 59.954 1920×1080 @60Hz 67.500 60.000 (Video mode) MODE RESOLUTION 640×480p @60Hz 720×480i @60Hz 720×480p @60Hz 720×576i @50Hz 720×576p @50Hz 1280×720p @60Hz 1920×1080i @50Hz 1920×1080i @60Hz 1920×1080p @50Hz 1920×1080p @60Hz ** We ensure that the monitor can be lighted under interlace signal mode, but we can not guarantee the image quality.
-
Page 20: Appendix
Touch Method Finger(s) input *** The above specification is subject to actual product specification and is subject to change without prior notice. NOTES: The Maximum Resolution will depends on the display card supporting. Related issue can refer to www.hannspree.com FAQ section.
