Sony STR-DA50ES Dimensions

STR-DA50ES
1/2"
1 3/16"
DVD
LD
COAX
OPTICAL
DVD
IN
DBS
IN
CD
IN
DAT
IN
MD
OUT
DIGITAL
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES IN
THE DESIGN OR MANUFACTURE OF ENCLOSURES .
Sony Electronics Inc • Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 930-7891
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
1/4 inch = 1 inch Scale 4:1

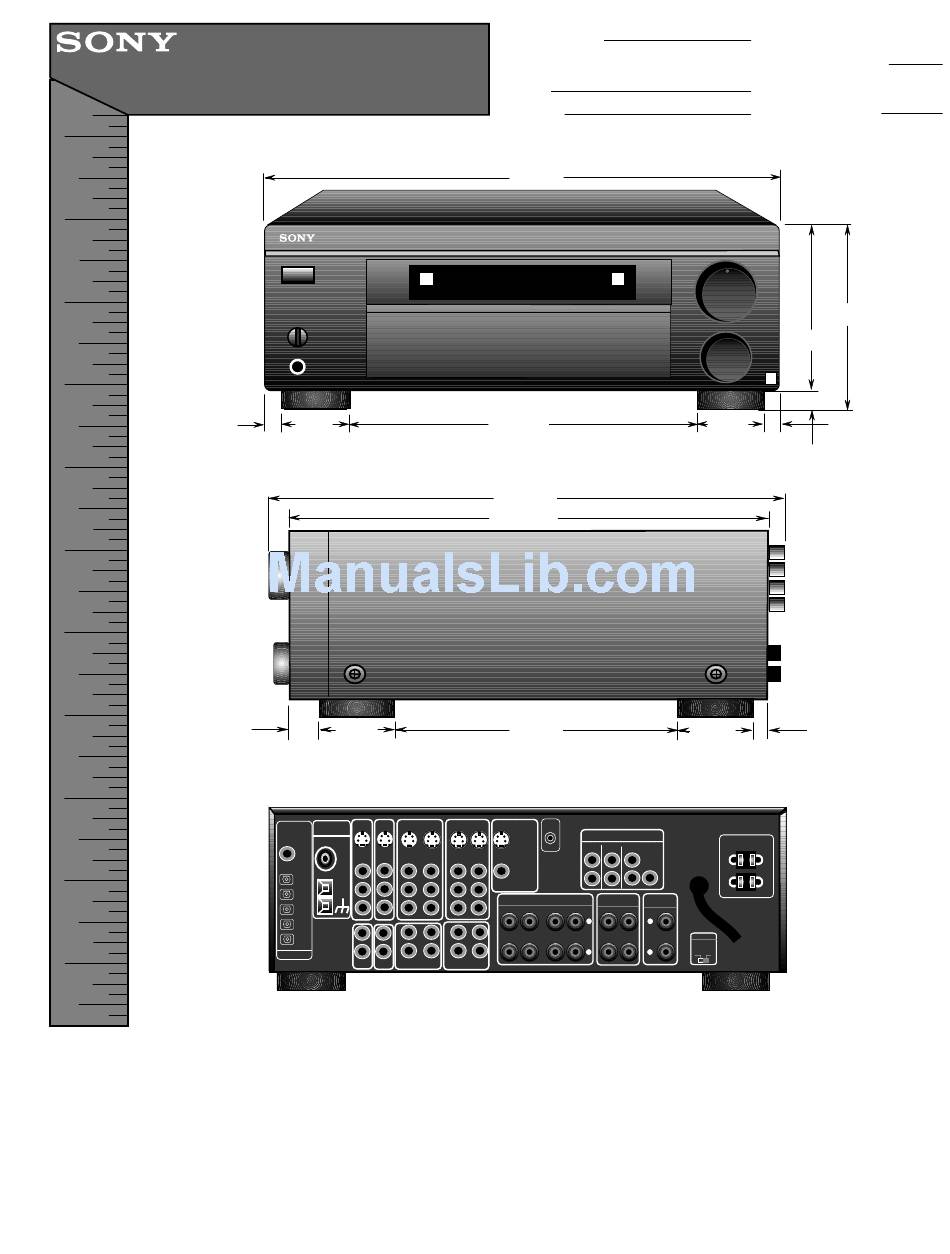

FRONT VIEW

R
DVD DOLBY DIGITAL
2 "

SIDE VIEW

2 "

BACK VIEW

DVD VIDEO 2 VIDEO 1
TV/DSS
ANTENNA
FM
AM.
PH CD MD/DAT TAPE
Dolby- Digital
DESCRIPTION:
Receiver
DIMENSIONS
(WHD):
17" x 6 3/8" x 16 1/4"
WEIGHT:
33 lbs 3 oz
17"
R
12"
16 1/4"
14 5/8"
8 1/2"
S-LINK
MONITOR
PRE OUT
FRONT REAR WOOFER
CENTER
AC CORD
FRONT SPKS REAR CENTER
+ +
- -
POWER
REQUIREMENTS:
POWER
CONSUMPTION:
6 3/8"
5 3/4"
ES
2 " 1/2"
5/8"
2 " 5/16 "
AC OUTLET
IMP
4 8
WE
120V
60H
380
Watts
