Coleman SUNDOME 9180A3061 Instructions

When You Are Ready
To Set Up Your Tent
– Select a level campsite clear of
rocks, branches and other hard
or sharp objects.
– Do not set up your tent under trees.
– For best results in windy conditions,
do not position the door of tent
into the wind.

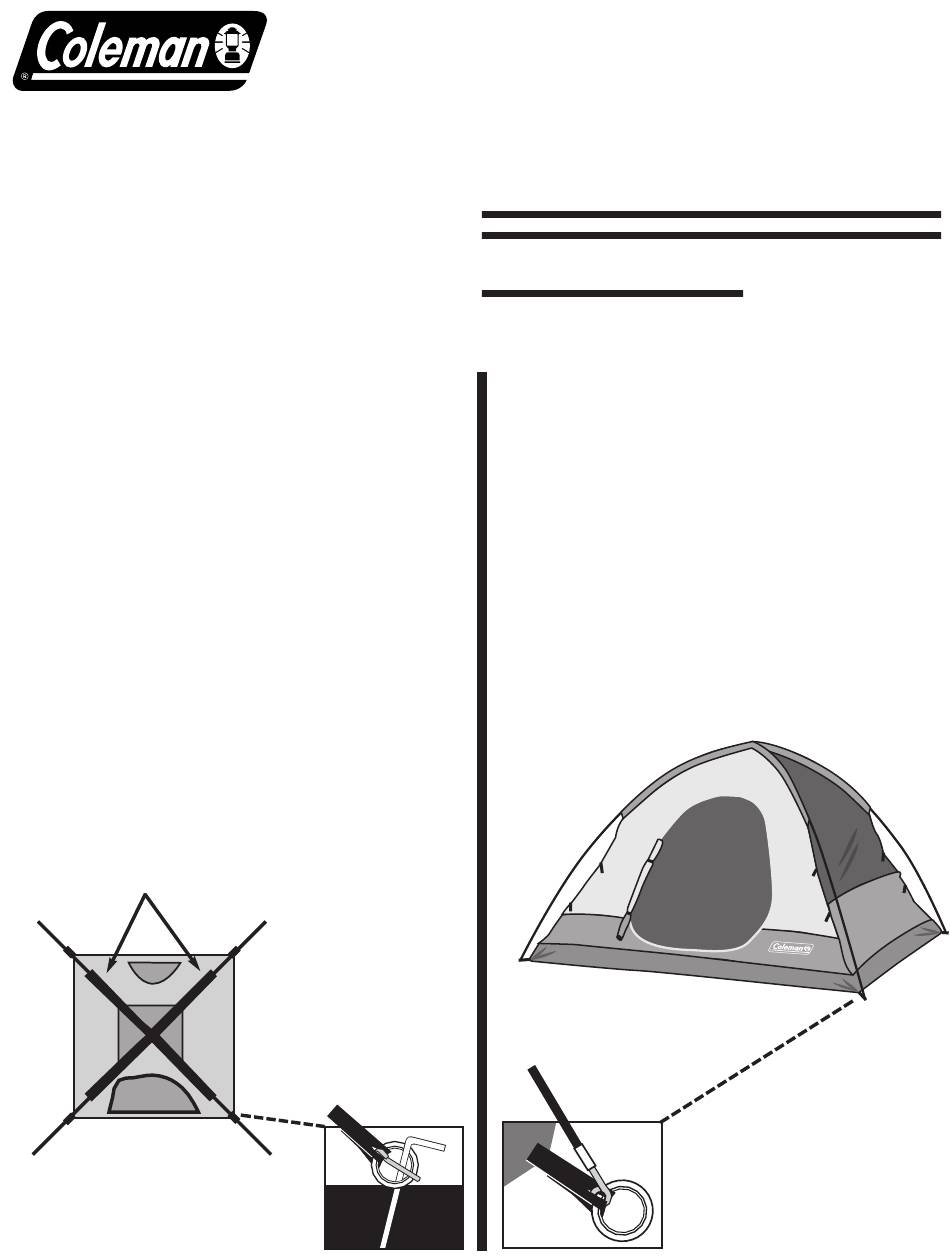

1 Layout & Positioning
of Tent, Pole Assembly
– Layout and position tent with door
facing desired direction. (illus. 1)
– Unzip door.
– Stake down tent using the rings of the
pin & ring system at the corners of the
tent. Keep the floor taut. (illus. 2)
– Assemble frame poles by
interlocking shock-corded poles.
This will make two long poles.
– Insert the poles diagonally into pole
sleeves.The center of the poles should
cross forming an "X" in the middle of
tent. (illus. 1)
Assembled poles
inserted through
pole sleeves
illus. 1
Tent stake through ring
SUNDOME
Instructions apply to Part Number 9280-717
Main Tent
Poles
Rainfly
Pole
illus. 2
® 7'x7'
POLE ASSEMBLY PARTS
Part No. 9180A3061
Part No. 9180A3051
Rainfly Part No. 9180A3041
2 Connect Frame to Tent
– Insert one end of main tent pole
onto pin of pin & ring system at tent
corner. (illus. 3)
– Go to opposite end of pole and
gradually apply pressure to the pole
forming an arch until you are able to
insert the pin into the pole.
– Repeat for second pole. (illus. 4)
illus. 4
Tent frame set-up
illus. 3
Insert pole end onto
pin & ring
