IOD Series
Water/Ice Dispensers
Installation, Operation and Maintenance Manual
Original Instructions — This manual is updated as new information and models are released. Visit our website for the
latest manual.
www.scotsman-ice.com
Part Number 020009324 May 10, 2023

Advertisement

Table of Contents
loading

Summary of Contents for Scotsman IOD Series

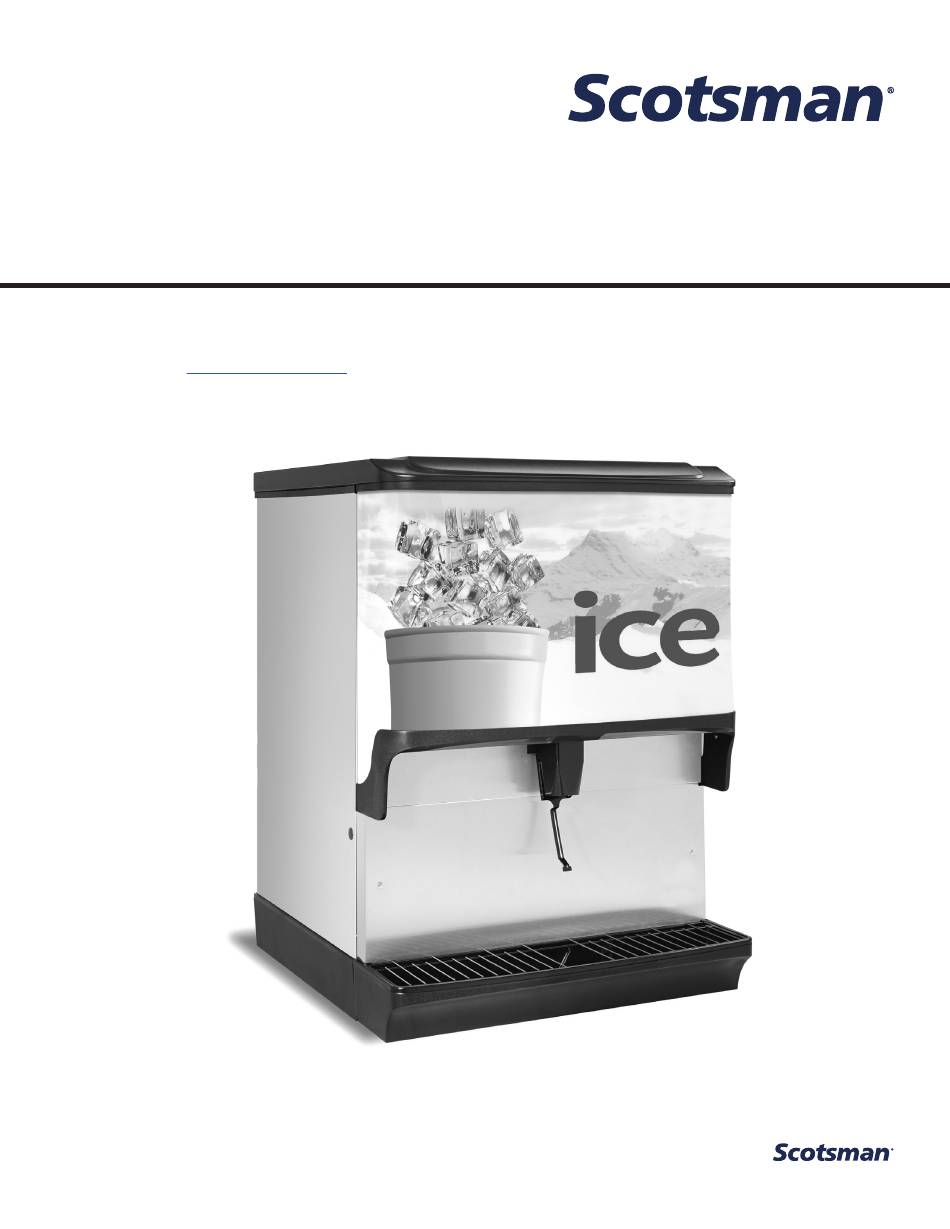

  • Page 1 IOD Series Water/Ice Dispensers Installation, Operation and Maintenance Manual Original Instructions — This manual is updated as new information and models are released. Visit our website for the latest manual. www.scotsman-ice.com Part Number 020009324 May 10, 2023...
  • Page 2 Safety Notices Read These Before Proceeding As you work on Scotsman Ice equipment, be sure to Warning pay close attention to the safety notices in this manual. PERSONAL INJURY POTENTIAL Disregarding the notices may lead to serious injury and/or Do not operate equipment that has been misused, damage to the equipment.
  • Page 3: Table Of Contents

    Table of Contents Section 1 General Information Read This Manual ....................... 5 Unit Inspection ........................5 Serial Number Location ..................... 5 Warranty Information ......................5 Model Numbers ........................5 How to Read a Model Number ......................5 Accessories .......................... 6 Legs ................................6 Manual Fill Lid ............................6 Ice Flow Restrictor ..........................6 Section 2...
  • Page 4 Table of Contents (continued) Section 4 Maintenance Cleaning & Sanitizing .......................17 General ..............................17 Daily Cleaning............................17 Cleaning Checklist ..........................18 Preventative Maintenance ....................19 Disassembly ........................19 Disassembly for Cleaning & Maintenance .................. 19 Disassemble the Rocking Chute ....................20 Non-front Serviceable Gear Motor Removal ................20 Front Serviceable Gear Motor Removal ..................
  • Page 5: General Information

    Section 1 General Information Read This Manual Warranty Information Scotsman Ice developed this manual as a reference guide Visit www.scotsman-ice.com for: for the owner/operator and installer of this equipment. • Warranty Verification Please read this manual before installation or operation of •...
  • Page 6: Accessories

    General Information Section 1 Accessories LEGS Legs are optional equipment with most dispensers. Standard legs are 4" (10.2 cm) tall stainless steel legs. If an ice machine is installed on top of the dispenser, legs must not be installed. We do not recommend using legs when an ice machine is mounted on the dispenser.
  • Page 7: Installation

    Important These instructions are provided to assist the qualified Failure to follow these installation guidelines may affect installer. Contact your Scotsman Service Agent or call warranty coverage. Scotsman for information regarding start-up services. The unit should be installed and serviced by a suitably trained person.
  • Page 8: Footprints

    Installation Section 2 Footprints Minimum Area for Cutout Maximum Area for Cutout NOTE: Footprint for IOD shown. Maximum Minimum 19.00" 17.81" 8.00" 8.00" (48.3 cm) (45.2 cm) (20.3 cm) (20.3 cm) 26.00" 17.81" 8.00" 8.00" (66.0 cm) (45.2 cm) (20.3 cm) (20.3 cm) 26.00"...
  • Page 9: Location

    Section 2 Installation Location Location Requirements for Top Mounted Ice Machine Installations The location selected for the beverage dispenser must meet the following criteria. If any of these criteria are not met, Location — Avoid placing the dispenser and/or ice select another location.
  • Page 10: Electrical

    VOLTAGE equipment-grounding conductor to a live terminal. The standard voltage for IOD Series dispensers is 120VAC- Check with a qualified electrician or serviceman if the 60Hz. A power cord is provided with 120VAC-60Hz models grounding instructions are not completely understood, only.
  • Page 11: Pump Deck Wiring

    Section 2 Installation PUMP DECK WIRING Warning The supply cord is equipped with a three-prong 5-15P. When using electric appliances, basic precautions must When a Ground Fault Circuit Interrupter (GFCI) is required always be followed, including the following: by code, a breaker type protector must be used. We do Read all the instructions before using the not recommend GFIC outlets as they are known for more appliance.
  • Page 12: Water Supply

    6’ (1.8 m) of the dispenser for optimum performance. See BIB installation diagram for system pressure settings. Drains IOD Series dispensers drain through a double connection to the drain pan. 90° Elbow Fitting Straight Fitting Radiator Clamp...
  • Page 13: Step By Step Installation

    1. Place the dispenser in the desired location. GENERAL 2. Run the beverage lines and water lines; make sure IOD Series dispensers have a stainless steel cabinet and to install the water connections to the proper inlets. lighted merchandiser standard.
  • Page 14: Starting Your Water/Ice Dispenser

    Installation Section 2 C. Using the provided radiator clamps connect and Important secure the drain lines to the collector box fittings If incoming water pressure is under 40 psi (2.76 BAR, with a standard screwdriver or 5/16 nut driver. 275,790 Pa), a water booster is recommended. If incoming water pressure is over 55 psi (3.79 BAR 379, 211 Pa), a water regulating valve is required.
  • Page 15: Operation

    Section 3 Operation Component Identification Merchandiser Key Switch Splash Panel Drainpan Grid Counter Drainpan ICE STORAGE AND DISPENSING Sequence of Operation As the customer presses the rocking chute, the arm at the top left rear of the chute pushes upward on the door lock. ICE RECOMMENDED FOR DISPENSING The door opens until it contacts the stops in the mounting Dispensers are designed to dispense hard, cube ice up to...
  • Page 16: Agitation Timer

    Operation Section 3 AGITATION TIMER Begin by observing the chute by slowly pushing against the rocking chute. When the ice delivery switch clicks, The timer is non-adjustable and is set to agitate the ice for 3 measure the distance from the door stops on the rocking seconds every 3.5 hours.
  • Page 17: Maintenance

    Section 4 Maintenance Cleaning & Sanitizing Clean the exterior and drain pan: 1. Lift the grid and remove it from the drain pan. GENERAL 2. Using mild soap, warm water and a clean cloth, wipe You are responsible for maintaining the dispenser the drain pan and splash panel.
  • Page 18: Cleaning Checklist

    Maintenance Section 4 Cleaning/Sanitizing Procedure 6. Prepare approximately 2 gallons (7.6 liters) of sanitizing solution by mixing 1/2 ounce (15 ml) of household This procedure must be performed a minimum of once bleach (that contains 5.25% sodium hypochlorite) with every six months. 2 gallons (7.6 liters) of 120°F water.
  • Page 19: Preventative Maintenance

    Disassemble parts in the following order: 3. If the Scotsman Ice machine is operating, wait for the sheet of ice to fall into the dispenser bin, then place A. Merchandiser toggle switch of the ice machine to the OFF position.
  • Page 20: Disassemble The Rocking Chute

    Maintenance Section 4 7. Remove agitator arm and paddlewheel pin. 8. Remove paddle wheel, bin liner and paddle wheel area. Non-front Serviceable Motor 9. Move the front of the agitator to one side and slide the agitator forward until the rear of the agitator shaft is Rotate the agitator arm so the paddle wheel pin clear of the bushing.
  • Page 21 Section 4 Maintenance These instructions are provided as a guide for the removal 4. Remove the agitator assembly from the dispenser bin of the gear motor. Depending on the model number of your by pushing the agitator to the back of the bin. Angle dispenser, these instructions may vary slightly.
  • Page 22: Front Serviceable Gear Motor Removal

    Maintenance Section 4 FRONT SERVICEABLE GEAR MOTOR REMOVAL 6. New motor must have the same alignment (within 15 degrees). These instructions are provided as a guide for the removal of the gear motor. Depending on the model number of your 7.
  • Page 23: Troubleshooting

    Section 5 Troubleshooting Checklist If a problem arises during operation of your dispenser, follow the checklist below before calling service. Routine adjustments and maintenance procedures are not covered by the warranty. Problem Possible Cause To Correct Dispenser will not No power. Check electrical connection.
  • Page 24 SCOTSMAN ICE SYSTEMS 101 Corporate Woods Parkway Vernon Hills, IL 60061 www.scotsman-ice.com 800-726-8762 Part Number 020009324...
