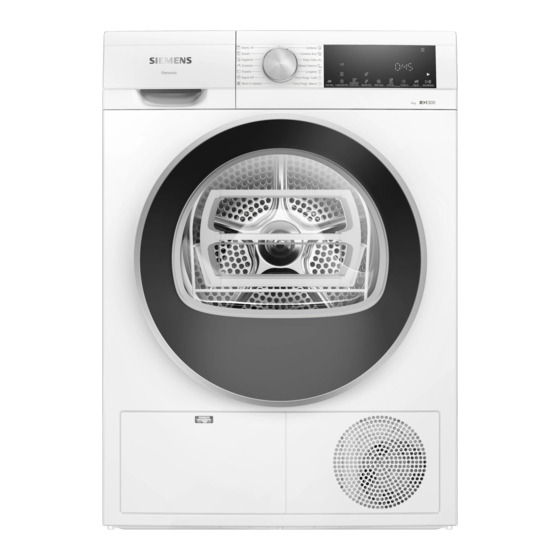

- Page 1 WP30A2X0HK Tumble dryer EN User manual and installation instructions Register your appliance on My Siemens and discover exclusive services and offers. Siemens Home Appliances...
-
Page 2: Table Of Contents
Further information and explanations are available online: Table of contents 1 Safety ........... 4 8 Dryness level...... 24 1.1 General information.... 4 8.1 Changing the dryness level.. 24 1.2 Intended use...... 4 8.2 Adjusting the dryness level .. 24 1.3 Restriction on user group.. 4 9 Programmes ...... 25 1.4 Safe installation ...... - Page 3 15 Basic settings...... 35 15.1 Overview of the basic set- tings........ 35 15.2 Changing the basic set- tings........ 36 16 Cleaning and servicing ... 36 16.1 Tips on cleaning and care .. 36 16.2 Base unit ....... 36 16.3 Moisture sensor..... 38 17 Troubleshooting...... 40 18 Transportation, storage and disposal ........ 44...
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe ¡ for future reference or for the next owner. Do not connect the appliance if it has been damaged in transit. ¡... -
Page 5: Safe Installation
Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. Connect and operate the appliance only in accordance with the ▶ specifications on the rating plate. Connect the appliance to a power supply with alternating cur- ▶ rent only via a properly installed socket with earthing. The protective conductor system of the domestic electrical in- ▶... - Page 6 en Safety If the power cord is too short and a longer one is not available, ▶ please contact an electrician to have the domestic installation adapted. WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted. Do not lift the appliance on your own.
-
Page 7: Safe Use
Safety en CAUTION ‒ Risk of cutting! Touching sharp edges on the appliance may lead to cuts. Do not touch the sharp edges on the appliance. ▶ Wear protective gloves when installing and transporting the ap- ▶ pliance. 1.5 Safe use WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. - Page 8 en Safety WARNING ‒ Risk of explosion! If there is coal dust or flour in the air around the appliance, this may cause an explosion. Keep the area around the appliance clean during operation. ▶ WARNING ‒ Risk of poisoning! Condensation water from this appliance is not suitable for drinking and may be contaminated with fluff.
-
Page 9: Safe Cleaning And Maintenance
Safety en If drying is interrupted early, remove the laundry immediately ▶ and spread it out. CAUTION ‒ Risk of injury! The covering plate may break if you stand on or climb onto the appliance. Do not stand on or climb onto the appliance. ▶... - Page 10 en Safety WARNING ‒ Risk of injury! The use of non-original spare parts and non-original accessories is dangerous. Only use the manufacturer's original spare parts and original ac- ▶ cessories. WARNING ‒ Risk of poisoning! Poisonous fumes may be given off if you use cleaning agents that contain solvents.
-
Page 11: Preventing Material Damage
Preventing material damage en Clean the appliance with nothing ▶ 2 Preventing material but water and a soft, damp cloth. Remove all detergent residue, damage ▶ spray residue or other residues im- mediately if they come into contact ATTENTION! with the appliance. The functionality of the appliance may be impaired if you use the wrong quantity of fabric softener, de-... -
Page 12: Energy Saving Mode
en Installation and connection Check the appliance for visible After drying, clean the fluff filter damage. → Page 30. Open the door. a If the fluff filter is dirty, this reduces Remove any accessories from the the air flow in the appliance, ex- drum. -
Page 13: Requirements For The Install- Ation Location
Installation and connection en Included with Description Installation loca- Requirements the appliance tion Wool basket with In a washer-dryer Only use the ori- insert stack ginal connection set from the → "Wool basket", dryer manufac- Page 33 turer when set- ting up this appli- 4.3 Requirements for the in- ance in a stallation location... - Page 14 en Installation and connection hose to drain away excess condens- Pull out the condensation hose ation directly into the waste water from the connecting piece. system. Notes Operate this appliance using the ¡ water drain hose provided. If you connect the water drain hose → Page 14, you do not have to regularly empty the condensation container → Page 32.
- Page 15 Installation and connection en Push the water drain hose as far Water outlet connection types as it will go into the connecting ATTENTION! piece. In the event of a blocked or covered outlet, accumulated wastewater can flow back into the appliance. Before operating the appliance, en- ▶...
-
Page 16: Aligning The Appliance
en Installation and connection Secure the elbow to the gully. 4.5 Aligning the appliance In order to reduce vibrations and noises, align the appliance correctly. To align the appliance, turn the ap- ▶ pliance feet. Check that the appli- ance is level using a spirit level. All appliance feet must stand firmly on the ground. -
Page 17: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. Ventilation opening Maintenance flap on the base unit → Page 36 Fluff filter → Page 30... -
Page 18: Wool Basket
en Familiarising yourself with your appliance 5.2 Wool basket Securing foot Wool basket Insert Tab for securing in the hook 5.3 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. Programmes → Page 25 Programme selector → Page 29... -
Page 19: Display
Display en 6 Display The display shows the current settings, options or relevant information. Example: Display Display Description 0:40 Expected programme duration or programme time re- maining in hours and minutes. 1:25 The timed programme is set. → "Timed programmes", Page 26 Recommendation for the maximum load capacity for the selected program in kg. - Page 20 en Display Display Description The dryness level is activated. → "Buttons", Page 22 The dryness level is activated. → "Buttons", Page 21 The adjusted dryness level is activated. → "Dryness level", Page 24 The crease-reduction function is activated. → "Buttons", Page 22 Gentle drying is activated for delicate fabrics. → "Buttons", Page 22 ...
-
Page 21: Buttons
Buttons en 7 Buttons Below is an overview of the buttons and their setting options. Button Selection Description Start/Reload Start Start, cancel or pause ¡ the programme. Cancel ¡ Pause ¡ 3 sec. Activate Activate or deactivate the ¡ childproof lock. Deactivate ¡... - Page 22 en Buttons Button Selection Description Cupboard Dry Cupboard Dry Selecting Cupboard ¡ ¡ Dry activates the dry- ¡ ness level. ¡ The dryness level ¡ defines how damp or dry the laundry is after the programme ends. → "Dryness level", Page 24 The dryness level can ¡...
- Page 23 Buttons en Button Selection Description Finish in Programme end time Set the programme ¡ ¡ end time. Programme duration ¡ The programme dura- tion is already in- cluded in the set num- ber of hours. Once the programme has started, the pro- gramme duration is displayed.
-
Page 24: Changing The Dryness Level
en Dryness level 8 Dryness level Each automatic programme has a specified dryness level. The dryness level defines how dry or damp your laundry is after the programme ends. Dryness level Laundry Drying result Cupboard Multi-layered, thick laundry The laundry is dry. Extra Dry that does not dry readily. -
Page 25: Programmes
Programmes en 9 Programmes You can dry your fabrics using either an automatic programme or a timed pro- gramme. 9.1 Automatic programmes Automatic programmes are pro- Tips grammes in which humidity sensors Select the dryness level according ¡ measure the residual moisture in the to the type of fabric or the desired laundry during the drying cycle. -
Page 26: Timed Programmes
en Programmes Programme Description Max. load (kg) Shirts 15' Suitable for shirts and blouses made of cotton, linen, synthetics or blended fab- rics. Note: For optimal drying results, dry a maximum of 5 shirts or 5 blouses at the same time. Once the laundry is dry, iron it or hang it up. - Page 27 Programmes en Programme Description Max. load (kg) Time Progr. Warm Dry all types of fabric except for wool and silk. Suitable for pre-dried or slightly damp laundry and for drying off multi-layered, thick laundry. Note: This programme is suitable for dry- ing using the wool basket. → "Wool basket", Page 33...
-
Page 28: Accessories
en Accessories 10 Accessories Use original accessories. These have been made especially for your appli- ance. Note: Some accessories are avail- able in other colours. Contact → "Customer Service", Page 45. Order number Connection kit To save space, stack the WZ11410 appliance on a suitable washing machine of the same width and depth and that is from the... -
Page 29: Laundry
Laundry en 12.2 Setting a programme 11 Laundry Turn the programme selector and set the required programme. 11.1 Preparing the laundry → "Programmes", Page 25 If required, adjust the programme ATTENTION! settings. Objects remaining in the laundry may damage the laundry and the drum. 12.3 Loading laundry Remove all items from any pock- ▶... -
Page 30: Cancelling The Programme
en operation The cooling process starts auto- Requirements matically after approximately 30 The display shows the following ¡ seconds and cools down the laun- after drying: "End" dry while the drum is rotating. If or the display shows the following ¡ you want to avoid or cancel the during operation: ... -
Page 31: Condensation Container
operation en Open the fluff filter. Close the fluff filter. Remove the fluff. Insert the fluff filter. Clean the fluff filter thoroughly un- Close the door. der warm, running water and then dry it off. 12.10 Condensation con- tainer Condensation forms during drying, which your appliance uses for auto- matic cleaning. -
Page 32: Childproof Lock
en Childproof lock Emptying the condensation Inserting the condensation container container If the drying programme has finished Push the condensation container ▶ or the display shows a notification in as far as it will go. while the appliance is in operation, empty the condensation container. -
Page 33: Wool Basket
Wool basket en 14.2 Starting a programme 14 Wool basket with the wool basket Use the wool basket to gently dry ATTENTION! delicate fabrics, soft toys or sports If items of laundry in the wool basket shoes in a stationary position. touch the rotating drum or the ribs of Note: You can order this optional the drum, the laundry may cause ma- → "Accessories", Page 28 from our... -
Page 34: The Wool Basket
en Wool basket Laundry item Programme Example duration in Pullover hours:minutes Thin woollen Approx. 1:20 pullover Thick woollen Approx. 1:30 - pullover 3:00 Skirt Approx. 1:00 - Sports shoes Lift the tongues 1:30 of the shoes. Trousers Approx. 1:00 - Remove the in- 1:30 soles or heel cushions. -
Page 35: Basic Settings
Basic settings en 15 Basic settings You can configure the basic settings for your appliance to meet your needs. 15.1 Overview of the basic settings Basic setting Programme Value Description position End signal 0 (off) Set the volume of the signal at the 1 (quiet) end of the programme. -
Page 36: Changing The Basic Set- Tings
en Cleaning and servicing 15.2 Changing the basic set- nothing but water and a damp tings cloth. Set the programme selector to po- Remove all de- Fresh deposits sition 1. tergent residue, are easier to re- spray residue or move without other residues leaving any immediately. - Page 37 Cleaning and servicing en Open the lever for the heat ex- Clean the heat exchanger cover changer cover. under running water and dry it. Make sure that you remove all dirt Pull out the heat exchanger cover from the seal. by the handle. Pull out the heat exchanger hori- zontally.
-
Page 38: Moisture Sensor
en Cleaning and servicing Clean the opening with a soft, Insert the heat exchanger cover by damp cloth. the handle. Slide the heat exchanger in hori- Close the lever for the heat ex- zontally as far as it will go. changer. Ensure that the heat exchanger is Close the maintenance flap. - Page 39 Cleaning and servicing en ance changes the duration of the Note: If you do not clean the appli- automatic programme depending on ance as described, the appliance's the residual moisture in the laundry. functionality may be impaired. Open the door. Cleaning the moisture sensor Clean the moisture sensor with a Over time, residue from limescale, sponge.
-
Page 40: Troubleshooting
en Troubleshooting 17 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 41 Troubleshooting en Fault Cause and troubleshooting Creasing. The laundry lies in the drum for too long after drying. Remove the laundry from the drum as soon as the drying programme has finished. Spread the items of laundry for cooling. Unsuitable programme for the type of fabric. Set the suitable programme for the type of fabric.
- Page 42 en Troubleshooting Fault Cause and troubleshooting The programme does Childproof lock is activated. not start. → "Deactivating the childproof lock", Page 32 ▶ Start/Reload has not been pressed. Press Start/Reload . ▶ No programme set. → "Setting a programme", Page 29. → "Starting the programme", Page 29. The length of the pro- The programme operation is optimised electronically.
- Page 43 Troubleshooting en Fault Cause and troubleshooting Water is leaking from Ensure that the water drain hose is connected cor- ▶ the appliance. rectly. → "Connecting the water drain hose", Page 14 The laundry is too Unsuitable programme for the type of fabric. damp. Set a timed programme for the subsequent drying.
-
Page 44: Transportation, Storage And Disposal
en Transportation, storage and disposal Ensure that you do not bend the 18 Transportation, stor- water drain hose. age and disposal Empty the condensation container → Page 32. Insert the condensation container 18.1 Preparing the appliance → Page 32. for transportation Disconnect the appliance's mains plug from the power supply. The appliance is now ready to be CAUTION transported. -
Page 45: Customer Service
Customer Service en tronic appliances (waste electrical and electronic equipment - WEEE). The guideline determ- ines the framework for the return and recycling of used appliances as applicable throughout the EU. 19 Customer Service Detailed information on the warranty period and terms of warranty in your country is available from our after- sales service, your retailer or on our website. -
Page 46: Consumption Values
en Consumption values 20 Consumption values The specified values are indicative amount of laundry being loaded, en- only and were determined in accord- vironmental conditions and the activ- ance with the applicable standard ation of additional functions. IEC61121. The expected programme dura- The actual values may deviate from tion/"Ready in"... -
Page 47: Eu Declaration Of Conform- Ity
EU Declaration of Conformity en sions of the directives and regula- Mains voltage 220-240 V, tions listed below and conform to the 50 Hz following standards: Minimum in- 13 A stallation protec- 2006/42/EC EN 60335-1 tion EN 50570 Nominal power 2800 W EN 62233 EN ISO 12100 Ambient temper- Minimum: ¡... - Page 48 EN Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG BSH Hausgeräte GmbH Carl-Wery-Straße 34 81739 München, GERMANY siemens-home.bsh-group.cn *9001872414* 9001872414 (030525)
