Installation Manual
Wall Mount
Support
Before use of this product, please
read "Safety Precautions" to
ensure trouble-free use.
After reading the installation
manual, store it in a convenient
place for future reference.

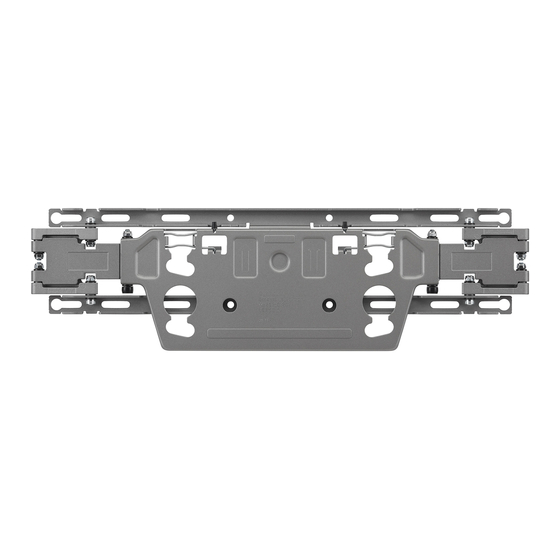

WB22EGB
www.lg.com
Printed in Korea
Copyright © 2022 LG Electronics Inc.
All Rights Reserved.
*MFL717954132204rev00*
Advertisement
Related Manuals for LG WB22EGB
Summary of Contents for LG WB22EGB
- Page 1 Before use of this product, please read “Safety Precautions” to ensure trouble-free use. After reading the installation manual, store it in a convenient place for future reference. WB22EGB www.lg.com Printed in Korea Copyright © 2022 LG Electronics Inc. All Rights Reserved. *MFL717954132204rev00*...
- Page 2 Accessories Wall mount fixing anchors Wall mount fixing 8 pcs screws 8 pcs Guide paper Guide label Blue: 2 pcs Red: 2 pcs Installation Manual Paper BOX...
-
Page 3: Safety Precautions
Safety Precautions - Professional installers should read this manual carefully to ensure proper installation. - Professional installers should forward this manual to customers after installation and encourage them to read and store it in a convenient place for future reference. After reading the installation manual, keep it in a convenient place for future reference. - Page 4 Warning Install the product according to the instructions in the installation manual. Failure to install the product according to the instructions in the installation manual can result in serious personal injury or product damage. Make sure a wall is available prior to proceeding with installation.
-
Page 5: Before Installation
* Install the product only on a vertical wall. Do not install on a tilted wall that exceeds building standards or on the heavily titled wall or ceiling. LG is not responsible for problems caused by improper installation of the product, e.g., heavily tilted walls and ceilings. -
Page 6: How To Install
How to install - The appearance of tools may differ from the enclosed images. - Always consult a professional when installing a wall mount. Watch the installation video For more information, watch the installation video on your smart device. Wearing gloves Attaching the guide paper to the wall Attach the guide paper to the wall when determining... - Page 7 (For installation on concrete wall) Anchors for fixing the wall mount Screws for fixing the wall mount a. Drill holes in anchor locations with a drill bit of Ø 8 mm to a depth of 80 mm (3.1 inches) to 100 mm (3.9 inches).
- Page 8 How to install the wall mount support - It is recommended that this product be installed only on concrete walls. Installing it elsewhere (e.g. walls made of wood, plywood, bricks, etc.) is not recommended and may result in the product falling.
- Page 9 How to combine the wall mount support and TV 1. Pull the wall mount bracket installed on the wall forward as much as possible. - Use tools if necessary. 2. Fold the installation guide label into an ‘L’ shape. - Take out two blue labels from the enclosed plastic bag in the box and fold them.
- Page 10 5. Insert the anti-push paper box inside the bracket to prevent the bracket from being pushed back while installing the TV. - Place the box with the front/back arrows on the box facing up. - After inserting the anti-push paper box, push the bracket so that the box does not fall off.
- Page 11 8. Align the power cord and other cables using the cable holder. Caution: Keep the cables within the designated area. (Cables outside the designated area may prevent the TV from being attached to the wall.) OLED55/65G2* OLED77/83G2*...
- Page 12 9. Attach the red installation guide label, folded in an ‘L’ shape, to the top surface of the wall mount. - Take 2 pieces of guide labels out of the plastic bag provided in the box and fold them the same way as Step 2.
- Page 13 11. Remove the anti-push paper box. - Pull the TV forward as much as possible to make it easier to remove the box. 12. Pull the two safety pins on the left and right sides of the bracket to close them. Caution: Ensure the safety pins are closed and secured.
- Page 14 13. Push the TV until it makes close contact with the wall. - Gently push the top and bottom of the TV without excessive force. - Push the center of the TV gently once more to mount it tight to the wall. Caution: Avoid applying excessive force to the screen.
- Page 15 How to connect additional cables while watching TV 1. Pull the TV forward. - Gently pull the top and bottom sides of the TV, and pull from the left side to check where the cables connect. 2. Once the TV has been pulled out, you can now begin connecting the cables.
- Page 16 OLED77/83G2*...
- Page 17 3. Push the TV until it makes close contact with the wall. - Gently push the top and bottom of the TV without excessive force. - Push the center of the TV gently once more to mount it tight to the wall. Caution: Avoid applying excessive force to the screen.
-
Page 18: Product Specifications
Product Specifications (mm (inches)) 130 (5.1) Model name WB22EGB Width (mm (inches)) 452 (17.7) Height (mm (inches)) 129 (5.0) Depth (mm (inches)) 13 (0.5) Weight (kg (lbs)) 1.2 (2.6) Maximum tensile load 50 (110.2) (kg (lbs)) Spacer Screw Spacing 180 x 55 (Width x Length) (7.0 x 2.1)
