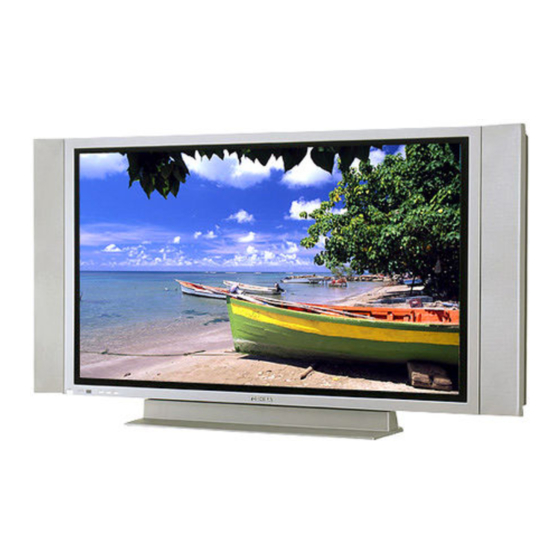

Toshiba 50WP16A Service Manual

Plasma display monitor
Hide thumbs Also See for 50WP16A:

Advertisement

Quick Links

Download this manual
FILE NO. 050-200122
SERVICE MANUAL
PLASMA DISPLAY MONITOR
50WP16A, 50WP16C
50WP16H, 50WP16R
50WP16EA, 50HP81
2
PRINTED IN JAPAN Oct.,2001

Advertisement

loading

Related Manuals for Toshiba 50WP16A

Summary of Contents for Toshiba 50WP16A

  • Page 1 FILE NO. 050-200122 SERVICE MANUAL PLASMA DISPLAY MONITOR 50WP16A, 50WP16C 50WP16H, 50WP16R 50WP16EA, 50HP81 PRINTED IN JAPAN Oct.,2001...
  • Page 2 13 Block and Schematic Diagrams 13.1. Schematic Diagram Notes Remarks: Important Safety Notice 1. The Power Circuit contains a circuit area which uses a separate power supply to isolate the earth connection. Components identified by mark have special characteristics important for safety. The circuit is defined by HOT and COLD indications in the schematic diagram.
  • Page 3 13.2. Main Block Diagram š ­›˜ ª‰ SS.R. SS.R. SS.R. SS.R. SS.R. SS.R. SS.R. SS.R. SS.R. SS.R. SS.R. ŽŒ­ ªˆ ­›˜ ­›˜ ŽŒ­ ŽŒ­ Ž­ ªŠ SS41 ­›˜ ŽŒ­ ­›˜ ŽŒ­ SS15 Ž­ Ž­ Ž­ Ž­ œÅ¼É¾Ð ɼºÆÍ¼É SS12 šŽ Ž­...
  • Page 4 13.3. Power (F, P1, P3, P4, P5, P6, P7, P8 and P9 Board) Block Diagram DRIVE VOLTAGE PROTECTOR PROCESS VOLTAGE PROTECTOR SOS IN Q750 Q775 IC750 IC775 D601 D604 Q636 IC751 Q751 Q776 COMPARATO COMPARATO IC635 P26 To C72 6 FB 2 VDA 5 15V Q601...
  • Page 5 13.4. P1-Board (1/2) Schematic Diagram...
  • Page 6 13.5. P1-Board (2/2) Schematic Diagram...
  • Page 7 13.6. P3 and P4-Board Schematic Diagram...
  • Page 8 13.7. P5, P6, P7 and P8-Board Schematic Diagram...
  • Page 9 13.8. P9 and F-Board Schematic Diagram 50HP81 50WP16 SERIES...
  • Page 10 13.9. H-Board Block Diagram VIDEO JK3501 S-VIDEO Q3503 VIDEO/Y Q3501 TO DG BOARD IC3505 IC3508 COMPONENT/RGB IN RGB - PC SEL. RGB/PC - TUNER SEL. Pb/B Pb/B Pb/B Pr/R Pr/R Pr/R PC IN RGB PC RGB&PC TUNER MEMORY DAC2 DAC3 IC3504 SYNC.SEL.
  • Page 11 13.10. H-Board (1/4) Schematic Diagram...
  • Page 12 13.11. H-Board (2/4) Schematic Diagram...
  • Page 13 13.12. H-Board (3/4) Schematic Diagram...
  • Page 14 13.13. H-Board (4/4) Schematic Diagram...
  • Page 15 13.14. DG Board Block Diagram IC8001 IC8014 IC8018 D-Board Q8007 Q8006 IC8015 /LC8002 Q8032 Q8001 Q8014 COMB Q8005 IC8007 FILTER Q8031 IC8003 JK8003 NTSC COLOUR Sub Contrast 3D YC DECODER COMB FILTER IC8002 JK8002 D-Board SYNC. IC8004 JK8001 L : 3D YC PROCESS 4M DRAM FIELD MEMORY...
  • Page 16 13.15. DG-Board (1/4) Schematic Diagram...
  • Page 17 13.16. DG-Board (2/4) Schematic Diagram...
  • Page 18 13.17. DG-Board (3/4) Schematic Diagram...
  • Page 19 13.18. DG-Board (4/4) Schematic Diagram...
  • Page 20 13.19. T11 Board Schematic Diagram...
  • Page 21 13.20. D-Board IC Location IC No. */36 Page IC No. */36 Page IC9000 IC9502 IC9001 IC9503 IC9002 IC9504 IC9003 IC9505 IC9004 IC9506 IC9005 IC9507 IC9006 IC9508 IC9007 IC9509 IC9008 IC9510 IC9009 IC9511 IC9010 IC9512 IC9012 IC9513 IC9014 IC9516 IC9015 IC9520 IC9016 IC9521 IC9017...
  • Page 22 13.21. D-Board Information (1/4)
  • Page 23 13.22. D-Board Information (2/4)
  • Page 24 13.23. D-Board Information (3/4)
  • Page 25 13.24. D-Board Information (4/4)
  • Page 26 13.25. D-Board Block Diagram IC9503 IC9502 IC9401 š š î î ° ° ø ø " " ˜ ˜ 16M SDRAM 16MSDRAM IC9554 8M FLASH MEMORY ODD-LINE EVEN-LINE BUFFER MEMORY MEMORY ™ ™ IC9560 BUFFER š š ( 3 ~ 6) IC9015  šŒˆ‰...
  • Page 27 13.26. D-Board (1/36) Schematic Diagram...
  • Page 28 13.27. D-Board (2/36) Schematic Diagram...
  • Page 29 13.28. D-Board (3/36) Schematic Diagram...
  • Page 30 13.29. D-Board (4/36) Schematic Diagram...
  • Page 31 13.30. D-Board (5/36) Schematic Diagram...
  • Page 32 13.31. D-Board (6/36) Schematic Diagram...
  • Page 33 13.32. D-Board (7/36) Schematic Diagram...
  • Page 34 13.33. D-Board (8/36) Schematic Diagram...
  • Page 35 13.34. D-Board (9/36) Schematic Diagram...
  • Page 36 13.35. D-Board (10/36) Schematic Diagram...
  • Page 37 13.36. D-Board (11/36) Schematic Diagram...
  • Page 38 13.37. D-Board (12/36) Schematic Diagram...
  • Page 39 13.38. D-Board (13/36) Schematic Diagram...
  • Page 40 13.39. D-Board (14/36) Schematic Diagram...
  • Page 41 13.40. D-Board (15/36) Schematic Diagram...
  • Page 42 13.41. D-Board (16/36) Schematic Diagram...
  • Page 43 13.42. D-Board (17/36) Schematic Diagram...
  • Page 44 13.43. D-Board (18/36) Schematic Diagram...
  • Page 45 13.44. D-Board (19/36) Schematic Diagram...
  • Page 46 13.45. D-Board (20/36) Schematic Diagram...
  • Page 47 13.46. D-Board (21/36) Schematic Diagram...
  • Page 48 13.47. D-Board (22/36) Schematic Diagram...
  • Page 49 13.48. D-Board (23/36) Schematic Diagram...
  • Page 50 13.49. D-Board (24/36) Schematic Diagram...
  • Page 51 13.50. D-Board (25/36) Schematic Diagram...
  • Page 52 13.51. D-Board (26/36) Schematic Diagram...
  • Page 53 13.52. D-Board (27/36) Schematic Diagram...
  • Page 54 13.53. D-Board (28/36) Schematic Diagram...
  • Page 55 13.54. D-Board (29/36) Schematic Diagram...
  • Page 56 13.55. D-Board (30/36) Schematic Diagram...
  • Page 57 13.56. D-Board (31/36) Schematic Diagram...
  • Page 58 13.57. D-Board (32/36) Schematic Diagram...
  • Page 59 13.58. D-Board (33/36) Schematic Diagram...
  • Page 60 13.59. D-Board (34/36) Schematic Diagram...
  • Page 61 13.60. D-Board (35/36) Schematic Diagram...
  • Page 62 13.61. D-Board (36/36) Schematic Diagram...
  • Page 63 13.62. C1, C2, C3, C4, C5, C6, C7 and C8 Board Block Diagram...
  • Page 64 13.63. C1-Board Schematic Diagram...
  • Page 65 13.64. C2-Board Schematic Diagram...
  • Page 66 13.65. C3-Board Schematic Diagram...
  • Page 67 13.66. C4-Board and V1-Board Schematic Diagram...
  • Page 68 13.67. C5-Board Schematic Diagram...
  • Page 69 13.68. C6-Board Schematic Diagram...
  • Page 70 13.69. C7-Board Schematic Diagram...
  • Page 71 13.70. C8-Board Schematic Diagram...
  • Page 72 13.71. SC-Board Block Diagram SC41 IC6505 D6501 31 FSIU P1 SS1 PHOTO Vsus 32 FCLU COUPLER To SC44 PIN 29, 59 33 FCLKU PHOTO IC6507 IC6508 34 PROU COUPLER To SC44 PIN 28, 58 6 35 SU D6502 D20 SC2 D6503 IC6506 PHOTO...
  • Page 73 13.72. SC-Board (1/2) Schematic Diagram...
  • Page 74 13.73. SC-Board (2/2) Schematic Diagram...
  • Page 75 13.74. SD-Board (1/2) Schematic Diagram...
  • Page 76 13.75. SD-Board (2/2) Schematic Diagram...
  • Page 77 13.76. SU-Board (1/2) Schematic Diagram...
  • Page 78 13.77. SU-Board (2/2) Schematic Diagram...
  • Page 79 13.78. SS, SS2 amd SS3 Board Block SS41 SS15 SS21 VSUS 10 10 SS42 IC6705 SS12 IC6701 Q6721 Q6727 Q6724 Q6732 S2,S3 CONTROL SS43 Q6740 Q6741 Q6746 Q6744 Q6745 Q6753 SS44 IC6703 Q6703 Q6701 Q6702 Q6706 SS45 TPSS1 DISCHARG D6740 TPSS2 1/2 Vo IC6704...
  • Page 80 13.79. SS-Board (1/2) Schematic Diagram...
  • Page 81 13.80. SS-Board (2/2) SS2-Board, SS3-Board and S1-Board Schematic Diagram...
