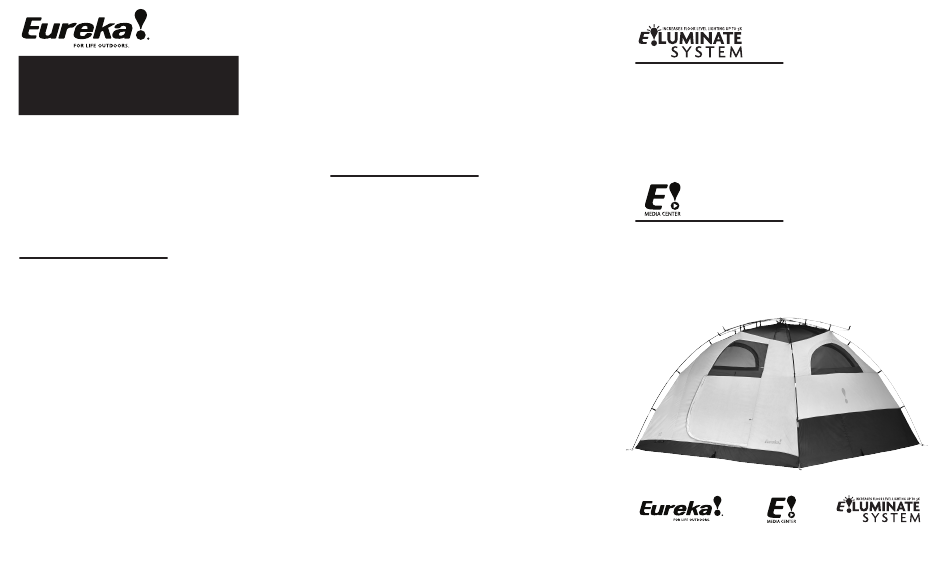

Eureka Sunrise EX 4 Setup Instructions

Eureka! Set-Up Instructions

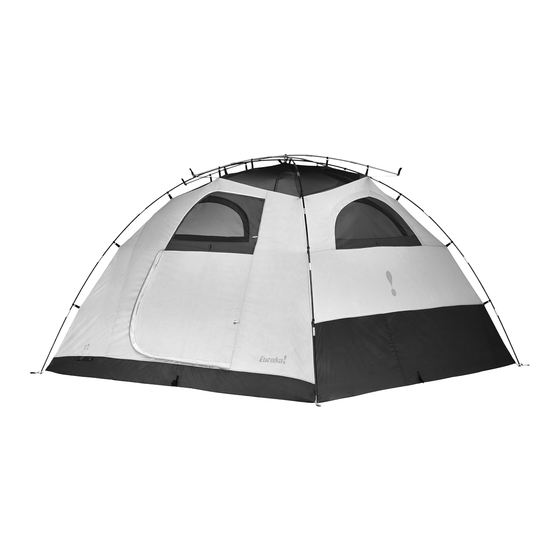

Sunrise EX 4 (#2629182)
Sunrise EX 6 (#2629184)
Sunrise EX 8 (#2629186)
Contents of Carry bag
Tent body
Tent fly
Pole Bag: 2 long main poles, 2 shorter ridge poles
Stake bag: Stakes and guy-out cords
E!Luminate System: 2 reflective panels
Eureka! Media Center
Fabric Divider Curtain (#2629186 Sunrise EX 8 only)
Setting up the Tent Body
1. Spread out the tent body, floor side down. Locate the yellow webbing
corner loop, as this marks the front right hand corner of the tent.
2. Assemble the two long main poles by inserting each pole section into the
corresponding metal ferrule.
3. Starting at the corner with the yellow webbing, place one end of the pole
into the metal grommet at webbing end, then place the pole diagonally
across the tent. From the opposite corner, apply pressure to the pole to
bend it and insert the pole end into the corresponding metal grommet.
Repeat this process with second long main pole by securing one end into
the corner metal grommet before then securing the opposite end.
4. Raise the two main poles and attach the tent where the poles cross, using
the fabric loop and toggle.
5. Walk around the tent and attach the tent body to the poles by clipping
each of the black plastic fasteners.
6. Assemble the two short length ridge poles by inserting each pole section
into the corresponding metal ferrule.
7. Starting above the tent door, grab the grey webbing and place one end of
the short ridge pole through the grommet on the grey webbing while laying
the ridge pole across the top of the tent. From the opposite side, place the
opposite end of ridge pole through corresponding grommet by holding onto
grey webbing loop.
8. Repeat this process with the second ridge pole.
9. Attach the remaining black plastic fasteners by attaching them to the
two ridge poles
10. Secure the tent to the ground using the provided stakes. Starting at
the yellow webbing corner, drive the stake through the webbing loop
and into the ground. Next proceed to the opposite corner and repeat
this process after firmly pulling the tent tout. Proceed to repeat this
process for the remaining corners, taking care to equalize tension
between all sides.
Attaching the Fly Sheet
1. Locate the yellow webbing end corner of fly sheet to indicate the front
right corner orientation.
2. Place fly sheet over the top of the tent and all poles, aligning and
centering the fly on the tent body so the four bungee cords with hooks
mate with the stake out loops and D-Rings at each of the four corners of
the tent.
3. On the underside of the flysheet, locate the four black webbing
pockets at the center of each side. Insert each of the ridge pole ends
into its respective pocket by opening the hook and loop attachment
before securing around the ridge pole end assembly.
4. Ensure that all 4 bungee cords with hooks are clipped to the D-Rings
at each of the four tent corners.
5. Four guy out cords are included within your stake bag. We recom-
mend always using the guy out cords to secure your tent, as weather
conditions may change rapidly. Tie the guy lines to webbing loops on
the fly at each of the four corner poles of the tent and secure this line to
a staked out position or nearby object.
E!Luminate System:
Increases the brightness of floor-level lighting provided by LED lanterns
inside the tent. Two removable triangular silver-reflective E!Luminate panels
install in the ceiling with small webbing loops & toggles and reflect a lantern's
light downwards to the floor, increasing the brightness of floor-level light up to
3 times. A reinforced webbing hang loop with D-ring securely holds LED
lanterns at the tent's peak. An elegant, yet simple & effective solution to
brighten the nighttime camping experience.
NOTE: Only for use with battery powered LED lanterns.
EUREKA! Media Center:
Watch video on tablets & other small electronics from the comfort of your
sleeping bag. The clear center panel of the Media Center is touchscreen
friendly. The Media Center attaches with hooks to pre-installed webbing
loops located in each corner of the tent.
REV 091115
