Toto REI S TX496SRSN Quick Start Manual

SPECIFICATIONS
120 120
Ø50 Ø50
Ø50
G½
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc. )
MAINTENANCE
Always wipe chrome plated area with dry soft cloth,
and sometimes wipe it with cloth soaked in mild soap.
INSTALLATION
1
Ø35 Hole
Ø32 Hole
Ø40 Hole
S060135N

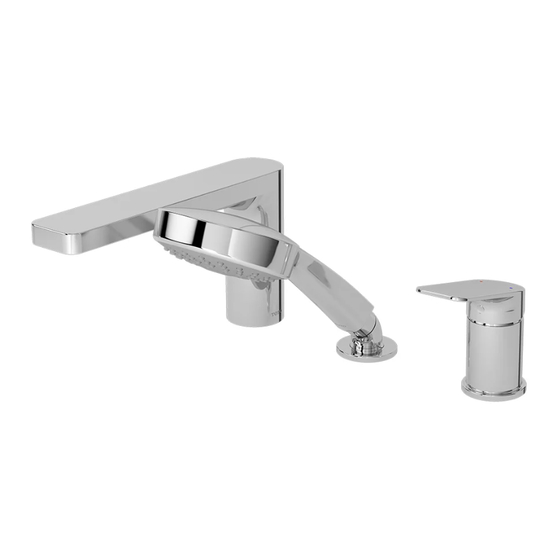

"REI S" 3 HOLES BATH & SHOWER SET TX496SRSN
2
Body
Packing
Packing
Lock Nut
255
To Hot
182
Water Supply
To Cold
Water Supply
210
4
Flexible Hose
6
Shower
Packing
Stopper
Hose Spring
3
Body
Spout
Ø40
Hole
Ø35
Packing
Hole
Wavy
Washer
Lock Nut
Connector
Nut
c
5
Shower
Holder
Packing
Ø32 Hole
Packing
Nut
Packing
Flexi b le Hose
Shower Holder
TROUBLESHOOTING
CHECK
PROBLEM
POINT
1
Unsatisfactory spray
2
Water leaks around the handle
Handle is loose 3
Flow Regulator Inside
(Don t remove)
1. NOZZLES
2. CONNECTING
NUT
ATTENTION
1.
Don t use abrasive cleaning material such as;
detergents containing hydrochloric acids, thinner,
polishing powder, and nylon brush.
2. Flow Regulator should not be remove because it
could damage the system
3. As the product model is constantly updated, the
actual product may not look the same as it
shown in the diagram, but the basic installation
principles are the same.
SOLUTION
Clean
Tighten
Tighten
3. BOLT
c
R8
