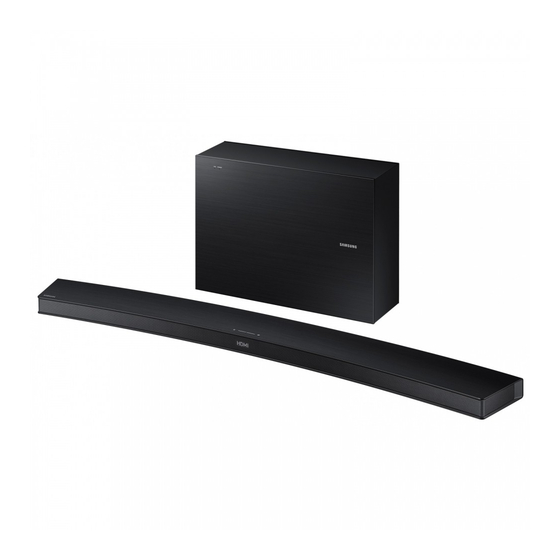

HW-J7500 HW-J7501 User manual Curved Soundbar Imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register...
Wi-Fi storage devices such as MP3 players, USB flash capabilities. Simply access the Samsung Multiroom App memory, etc. using the Soundbar's USB HOST function. to experience the best of the internet’s subscription Bluetooth Function streaming music services.
GETTING STARTED SAFETY INFORMATION SAFETY WARNINGS TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lighting flash and arrowhead within the CAUTION triangle indicates that there is dangerous voltage Inside the product.
Page 4
GETTING STARTED PRECAUTIONS 2.7 inch 3.9 inch 3.9 inch 3.9 inch Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches).
GETTING STARTED CONTENTS GETTING STARTED 24 FUNCTIONS Features Input Mode Safety Information Bluetooth What’s Included Using the Network Standby On Function DESCRIPTIONS Using the Multiroom Link Software Update Top / Front Panel Rear / Bottom Panel 31 TROUBLESHOOTING Remote Control Troubleshooting 11 INSTALLATION 32 APPENDIX...
GETTING STARTED WHAT’S INCLUDED BEFORE READING THE USER’S MANUAL Note the following terms before reading the user manual. + Icons used in this manual Icon Term Definition Caution Indicates a situation where a function does not operate or settings may be canceled. Note Indicates tips or instructions on the page that help you operate a function.
DESCRIPTIONS DESCRIPTIONS TOP / FRONT PANEL VOL. - / + (Power) Button Controls the volume level. The numeric value of the volume level Turns the power on and off. appears in the front panel display. (Source) Button Display Selects the D.IN, AUX, HDMI, BT, TV, or Displays the current mode.
DESCRIPTIONS REAR / BOTTOM PANEL OPTICAL IN (D.IN) Connect to the digital (optical) output of an external device. HDMI OUT (TV-ARC) Outputs digital video and audio signals simultaneously using an HDMI cable. HDMI IN Inputs digital video and audio signals simultaneously using an HDMI cable.
(Default : Auto Power Link OFF, ON - ANYNET+ / OFF - POWER LINK or OFF - ANYNET+ / ON - POWER LINK). The Anynet+ function lets you control the Soundbar with the remote from an Anynet+ compatible Samsung TV. The Soundbar must be connected to the TV via an HDMI cable.
Page 10
DESCRIPTIONS Power Turns the Soundbar on and off. Volume Adjusts the volume level of the unit. Play / Pause Press the p button to pause the playing of a file temporarily. Press the p button again to play the selected file. Skip Back If there is more than one file on the device you are playing, and you press the [ button, the previous file is selected.
INSTALLING BOTH SOUNDBAR AND TV TO THE WALL MOUNT TYPE ● This model corresponds to the 2015 Samsung curved TV S8500/S9000 - 55"/65", S9500 - 65". Please refer to the home page of Samsung Electronics to see the detail list of corresponding models.
Page 12
INSTALLATION 3. Fasten the four Holder-Screws 1 and four of the Holder-Screws 2 to the four holes in the Soundbar, as shown in the illustration. If the Holder-Foot is attached, remove it first to install the TV-Mount. 65” S9500 TV 5.
Page 13
INSTALLATION 65” S9500 TV 6. If you mount the Soundbar on a matched Samsung TV, use the Guide on TV to put the TV-Mount on TV securely. 7. Fasten the TV-Mount to the TV using the remaining 4 Holder-Screws 2.
INSTALLATION INSTALLING SOUNDBAR TO TV STAND You can install Soundbar to TV stand if you have Soundbar matching TV with this model. Check for the supplied accessories shown below. Holder-Foot : 3EA Holder-Screw 2 : 3EA 1. Place the Soundbar as shown in the illustration, ensuring that none of the buttons touch the surface it is lying on. 2.
INSTALLATION 4. Align the Soundbar’s center with the center of the base of the TV, and then carefully push it onto the stand as far as it will go, as shown in the illustration. Be careful not to unbalance the TV. ●...
INSTALLATION ASSEMBLING THE CLAMP-WIRE Clamp-Wire Attach the clamp-wire to the unit as shown, and then run the cables through the clamp-wire to keep them neat. MOUNTING THE COVER-FOOT ONTO SUBWOOFER 1. Place each Cover-Foot on the 4 holes correspondingly as shown in the illustration. 2.
CONNECTIONS CONNECTIONS ● Do not connect the power cord of this product or your TV to a wall outlet until all connections between components are complete. ● Before moving or installing this product, be sure to turn off the power and disconnect the power cord. CONNECTING THE SUBWOOFER CONNECTING TO THE SUBWOOFER AUTOMATICALLY The main unit and subwoofer should link (connect wirelessly) automatically when the main unit and subwoofer are...
CONNECTIONS ● Before moving or installing the product, be sure to turn off the power and disconnect the power cord. ● If the main unit is powered off, the wireless subwoofer will be in standby mode and the STANDBY LED on the upper side will come on after the Link indicator (Blue LED) blinks for 30 seconds.
CONNECTIONS CONNECTIONS WITH TV USING OPTICAL (DIGITAL) CABLE Optical Cable (not supplied) OPTICAL OUT OPTICAL IN 1. Connect OPTICAL IN (Audio) on the Soundbar to the OPTICAL OUT jack of the TV. 2. Press the (Source) button on the top panel of Soundbar or the SOURCE button on remote control to select the D.IN mode.
CONNECTIONS TV SOUNDCONNECT You can enjoy TV sound through your Soundbar when it is connected to a Samsung TV that supports the TV SoundConnect function. Connect 1. Turn on the TV and Soundbar. • Turn on the menu of the TV.
CONNECTIONS CONNECTIONS WITH EXTERNAL DEVICE HDMI CABLE HDMI is the standard digital interface for connecting to TVs, projectors, DVD players, Blu-ray players, set top boxes, and more. HDMI prevents any degradation to the signal due to conversion to analog and maintains the video and audio quality of the original digital source.
CONNECTIONS + AUX Cable 1. Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the Source Device. 2. Press the (Source) button on the top panel of Soundbar or the SOURCE button on remote control to select the AUX mode.
Page 23
CONNECTIONS ● Connect USB devices directly to the USB port of the product. Otherwise, you may encounter a USB compatibility problem. ● Do not connect multiple storage devices to the product via a multi-card reader. It may not operate properly. ●...
FUNCTIONS FUNCTIONS INPUT MODE (Source) button on the main unit’s top panel or the SOURCE button on the remote control to select Press the the mode you want. Input mode Display Optical Digital input D.IN ARC (HDMI OUT) input AUX input HDMI HDMI input BLUETOOTH mode...
• The device name can only be displayed in English. An underline " _ " will be displayed if the name is not in English. • If the Bluetooth device has failed to pair with the Soundbar, delete the previous "[Samsung] HW-Jxxxx" found by the Bluetooth device and have it search for the Soundbar again.
Page 26
● You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function. ● Once you have paired the Soundbar to a Bluetooth device, selecting "[Samsung] HW-Jxxxx" from the device's scanned devices list will automatically change the Soundbar to BT mode.
● Wi-Fi connection to the Soundbar will be terminated if its power cord was disconnected or the power was cut off. Turn on the Soundbar and reconnect. USING THE MULTIROOM LINK Once the Soundbar is connected to a smart device with Multiroom App, you can connect multiple Samsung Multiroom devices together wirelessly. BEFORE YOU BEGIN...
Page 28
To use the Soundbar, you must download and then install the Samsung Multiroom App by accessing the app through Google play or the App Store. With the Samsung Multiroom App installed, you can play music stored in your smart device, from connected devices and other content providers, and from Internet radio stations.
Note that if there are multiple update files, you must load them onto the USB device singly and use them to update the firmware one file at a time. Please visit samsung.com or contact the Samsung call center to receive more information about downloading updates files.
Page 30
FUNCTIONS ● After the update, all settings are reset to their factory default settings. We recommend you write down your settings so that you can easily reset them after the update. Note that updating firmware resets the subwoofer connection too. If connection to the subwoofer is not re-established automatically after the update, refer to page 17.
The TV SoundConnect (TV pairing) failed. • Does your TV support TV SoundConnect? ¼ TV SoundConnect is supported by some Samsung TVs released from 2012 on. Check your TV to see if it supports TV SoundConnect. • Is your TV firmware the latest version? ¼...
S/n ratio, distortion, separation, and usable sensitivity are based on measurements using AeS (Audio engineering Society) guidelines. nominal specification Samsung electronics Co., Ltd reserves the right to change the specifications without notice. Weight and dimensions are approximate. For the power supply and Power Consumption, refer to the label attached to the product.
Page 33
All warranty repairs must be performed by a SECA Authorized Service Center. (The name and address of the location nearest you can be obtained by calling toll free: 1- 800- SAMSUNG) LABOR PARTS...
Page 34
Derry Road West, Mississauga, Ontario L5N 0B9 Canada TEL: 1-800-SAMSUNG (1-800-726-7864) www.samsung.com/ca/support Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Area Contact Center Web Site ` North America www.samsung.com/ca/support (English)
Page 35
HW-J7500 HW-J7501 Manuel d'utilisation Curved Soundbar Imaginez les possibilités Merci d’avoir choisi un appareil Samsung. Pour recevoir une assistance plus complète, veuillez enregistrer votre produit sur www.samsung.com/register...
Page 36
HÔTE USB de Soundbar. grâce à ses capacités Wi-Fi. Il vous suffit d’accéder à l’application Samsung Multiroom pour profiter pleinement Fonction Bluetooth des services de diffusion de fichiers musicaux en continu accessibles par abonnement Internet.
Page 37
DÉMARRAGE INFORMATIONS RELATIVES À LA SÉCURITÉ AVERTISSEMENTS POUR ÉVITER LES RISQUES DE CHOC ÉLECTRIQUE, NE DÉMONTEZ PAS LE CAPOT. L’APPAREIL NE CONTIENT PAS DE PIÈCES RÉPARABLES PAR L’UTILISATEUR. S’ADRESSER À UN SERVICE APRÈS-VENTE QUALIFIÉ. L’éclair et la flèche dans le triangle indiquent la MISE EN GARDE présente d’une tension dangereuse à...
Page 38
DÉMARRAGE PRÉCAUTIONS 2.7 inch 3.9 inch 3.9 inch 3.9 inch Assurez-vous que l'alimentation c.a. de votre domicile satisfait aux normes inscrites sur l'étiquette d'identification située à l'arrière du produit. Installez votre produit horizontalement, sur un socle approprié (meuble), en laissant un espace suffisant pour la ventilation sur le pourtour 3~4 po.
Page 39
DÉMARRAGE SOMMAIRE DÉMARRAGE 24 FONCTIONS Caractéristiques Mode entrée Informations relatives à la sécurité Bluetooth Contenu Utilisation de la fonction Network Standby On DESCRIPTIONS Utilisation du Lien Multipièces Mise à jour du logiciel Sur la face Avant/Du Haut Face arrière/Inférieure 31 DÉPANNAGE Télécommande Dépannage 11 INSTALLATION...
DÉMARRAGE CONTENU AVANT DE LIRE LE MANUEL D'UTILISATION Lisez attentivement la signification des termes suivants avant de commencer la lecture du manuel d'utilisation. + Icônes utilisées dans le présent manuel Icône Terme Définition Indique qu'une fonction ne fonctionne pas ou que des paramètres peuvent être Mise en garde annulés.
DESCRIPTIONS descriptions SUR LA FACE AVANT/DU HAUT VOL. - / + Touche (Alimentation) Permet de régler le volume. Permet d'allumer/d'éteindre La valeur numérique du volume sonore l'ensemble Soundbar. s’affiche sur le panneau avant. Touches (Source) Écran d’affichage Sélection des entrées D.IN, AUX, HDMI, BT, Affichent le mode actuel.
DESCRIPTIONS FACE ARRIÈRE/INFÉRIEURE OPTICAL IN (D.IN) Connexion jusqu'à la sortie numérique (optique) d'un périphérique externe. HDMI OUT (TV-ARC) Transmet les signaux vidéo et audio numériques simultanément au moyen d’un câble HDMI. HDMI IN Reçoit les signaux vidéo et audio numériques simultanément à l’aide d’un câble HDMI.
- ANYNET+ / ON - POWER LINK). La fonction Anynet+ vous permet de contrôler le Soundbar à l'aide de la télécommande à l’aide d’un téléviseur Samsung compatible avec la fonction Anynet+. Le Soundbar doit être branché au téléviseur à l’aide d’un câble HDMI.
Page 44
DESCRIPTIONS Alimentation Permet d'allumer/d'éteindre l'ensemble Soundbar. Volume Pour régler le volume de l’unité. Lecture/Pause Appuyez de nouveau sur la touche p pour interrompre temporairement la lecture du fichier temporaire. Appuyez sur la touche p pour lire le fichier sélectionné. Saut vers l’arrière Lorsqu’un lecteur utilisé...
SUPPORT À FIXATION MURALE ● Ce modèle correspond aux téléviseurs courbés Samsung modèles S8500/S9000 de 55 po/65 po, S9500 de 65 po. Veuillez vous reporter à la page d’accueil de Samsung Electronics pour consulter la liste détaillée des modèles correspondants.
Page 46
INSTALLATION 3. Serrez les quatre Vis De Support 1 et les quatre Vis De Support 2 dans les quatre orifices du Soundbar, comme l’indique l’illustration. 4. Si le Pied de support est fixé, retirez-le avant d’installer la fixation du téléviseur. 65 po S9500 TV 5.
Page 47
INSTALLATION 65 po S9500 TV 6. Si vous installez le Soundbar sur un téléviseur Samsung compatible, utilisez le guide sur le téléviseur pour placer la Support de téléviseur en toute sécurité sur le téléviseur. 7. Serrez la Support de téléviseur sur le téléviseur en utilisant les 4 autres Vis De Support 2 restantes.
INSTALLATION INSTALLATION DU SOUNBAR SUR UN SOCLE DE TÉLÉVISEUR Vous pouvez installer le Soundbar sur un socle de téléviseur si vous disposez d’un modèle de téléviseur compatible. Vérifiez que vous disposez bien des accessoires ci-dessous. Pied de support : 3 de chaque Vis De Support 2 : 3 de chaque 1.
INSTALLATION 4. Alignez le centre du Soundbar avec le centre du socle du téléviseur, et poussez-le doucement aussi loin que possible dans le socle comme l’indique l’illustration. Veillez à ne pas faire vaciller le téléviseur. ● Il ne faut pas placer d’objets lourds ni se tenir debout sur l’unité principale. INSTALLATION DU SOUNDBAR SUR UN SOCLE AUTOPORTEUR 1.
INSTALLATION ASSEMBLAGE DU FIL DE SERRAGE Fil de serrage Fixez le fil de serrage sur l’unité de la façon illustrée, puis acheminez les câbles par le fil de serrage pour les ranger proprement. INSTALLATION DU COUVRE-PIED SUR LE CAISSON DES BASSES EXTRÊMES 1.
BRANCHEMENTS branchements ● On ne doit pas brancher le cordon d'alimentation de ce produit ou de votre téléviseur dans une prise murale à moins que toutes les connexions ne soient réalisées. ● Avant de déplacer ou installer ce produit, assurez-vous de couper l'alimentation et de débrancher le cordon d’alimentation.
BRANCHEMENTS ● Avant de déplacer ou installer le produit, assurez-vous de couper l'alimentation et de débrancher le cordon d’alimentation. ● Si l’unité principale est éteinte, le caisson des basses sans fil sera en mode de veille et le VOYANT DEL BLEU STANDBY (VEILLE) sur la partie supérieure s'allumera après que le clignotement pendant 30 secondes du voyant DEL bleu Link (Lien).
BRANCHEMENTS CONNEXIONS À L’AIDE D’UN CÂBLE TV OPTIQUE (NUMÉRIQUE) Câble Optique (non fourni) OPTICAL OUT OPTICAL IN 1. Connectez l’entrée OPTICAL IN (Audio) du Soundbar à la prise OPTICAL OUT du téléviseur. 2. Appuyez sur le bouton (Source) sur la face supérieure de l’unité principale ou la touche SOURCE de la télécommande pour sélectionner le mode D.IN.
BRANCHEMENTS TV SOUNDCONNECT Vous pouvez restituer le son du téléviseur par votre Soundbar branché à un téléviseur Samsung qui prend en charge la fonction de connexion TV Sound. Connexion 1. Allumez le téléviseur et le Soundbar. • Activez le menu du téléviseur.
BRANCHEMENTS CONNEXION AVEC UN PÉRIPHÉRIQUE EXTERNE CÂBLE HDMI HDMI est une interface numérique standard qui permet de connecter des appareils tels que des téléviseurs, des projecteurs, des lecteurs de DVD, des lecteurs Blu-ray, des décodeurs et bien plus encore. Étant donné que l’interface HDMI transmet un signal numérique de la plus haute qualité, vous pouvez profiter d’une restitution visuelle et sonore plus précise qui se rapproche de la source numérique d’origine.
BRANCHEMENTS + Câble AUX 1. Branchez l’entrée AUX IN (Audio) dans l’unité principale à la prise AUDIO OUT de l’appareil source. 2. Appuyez sur le bouton (Source) sur la face supérieure de l’unité principale ou la touche SOURCE de la télécommande pour sélectionner le mode AUX.
Page 57
BRANCHEMENTS ● Connectez le périphérique USB directement dans le port USB de l'appareil. Autrement, un problème de compatibilité USB pourrait survenir. ● Ne connectez pas plusieurs périphériques de stockage au produit via un lecteur multicarte. Un dysfonctionnement pourrait en résulter. ●...
FONCTIONS fonctions MODE ENTRÉE (Source) sur la face supérieure de l’unité principale ou la touche SOURCE de la Appuyez sur la touche télécommande pour sélectionner le mode que vous voulez. Mode d'entrée Écran d’affichage Entrée Optique D.IN Entrée ARC (HDMI OUT) Entrée AUX HDMI Entrée HDMI...
• Si l'appariement du périphérique Bluetooth avec le système Soundbar a échoué, supprimez l'appareil "[Samsung] HW-Jxxxx" précédent qui a été trouvé par le périphérique Bluetooth et, à partir de ce dernier, relancez la recherche du système Soundbar.
Page 60
● Vous ne pouvez pas brancher le Soundbar à un dispositif Bluetooth qui prend seulement en charge la fonction HF (Hands Free). ● Une fois l'appariement du Soundbar avec un périphérique Bluetooth réalisé, la sélection de "[Samsung] HW-Jxxxx" dans la liste des périphériques numérisés de l'appareil fera automatiquement passer le Soundbar en mode BT.
été coupée. Allumez le Soundbar et reconnectez-vous. UTILISATION DU LIEN MULTIPIÈCES Lorsque le Soundbar est branché à un appareil intelligent à l’aide de Multiroom App, vous pouvez relier plusieurs appareils Multiroom Samsung ensemble à l'aide d'une connexion sans fil. AVANT DE COMMENCER + Principes de Communication Appareil intelligent : Androïde ou iOS...
Page 62
Pour utiliser le Soundbar, vous devez télécharger, puis installer l'application Samsung Multiroom en y accédant par Google play ou l'App Store. Une fois l'application Samsung Multiroom installée, vous pouvez jouer les pistes musicales stockées sur votre appareil intelligent, des appareils branchés et d'autres fournisseurs de contenu et de stations radio Internet.
MISE À JOUR PAR USB Samsung pourrait offrir des mises à jour pour le micrologiciel du système Soundbar dans le futur. Si une mise à jour est offerte, vous pouvez l’intégrer au micrologiciel en connectant un périphérique USB contenant la mise à...
Page 64
FONCTIONS ● Après la mise à jour, tous les paramètres par défaut en usine sont réinitialisés. Nous vous recommandons de prendre note de vos paramètres pour pouvoir facilement les redéfinir après la fin de la mise à jour. Veuillez noter que la mise à jour du micrologiciel réinitialise aussi la connexion du caisson des basses. Si la connexion au caisson des basses n’est pas réétablie automatiquement après la mise à...
• Votre téléviseur prend-il en charge TV ¼ La fonction TV SoundConnect est prise en charge SoundConnect? par certains téléviseurs Samsung mis en marché après 2012. Assurez-vous que votre téléviseur prend la fonction TV SoundConnect en charge. ¼ Mettez votre téléviseur à jour avec la version du • La version du micrologiciel du téléviseur est-elle la...
à l'aide des directives AES (Audio Engineering Society). Caractéristiques nominales Samsung Electronics Co., Ltd se réserve le droit de modifier les caractéristiques sans préavis. Le poids et les dimensions sont approximatifs. Pour obtenir de l'information sur la source d'alimentation et la consommation électrique, veuillez vous reporter à...
Page 67
GARANTIE LIMITÉE À L’ACHETEUR INITIAL Samsung Electronics Canada Inc. (SECA) garantit ce produit contre tout défaut de fabrication. SECA garantit aussi que si cet appareil ne fonctionne pas convenablement durant la période de garantie SECA se réservera le droit de réparer ou de remplacer l’appareil défectueux.
Page 68
Derry Road West, Mississauga, Ontario L5N 0B9 Canada TEL: 1-800-SAMSUNG (1-800-726-7864) www.samsung.com/ca_fr/support Comment contacter Samsung dans le monde Si vous avez des suggestions ou des questions concernant les produits Samsung, veuillez contacter le Service Consommateurs Samsung. Area Contact Center Web Site ` North America www.samsung.com/ca/support (English)
