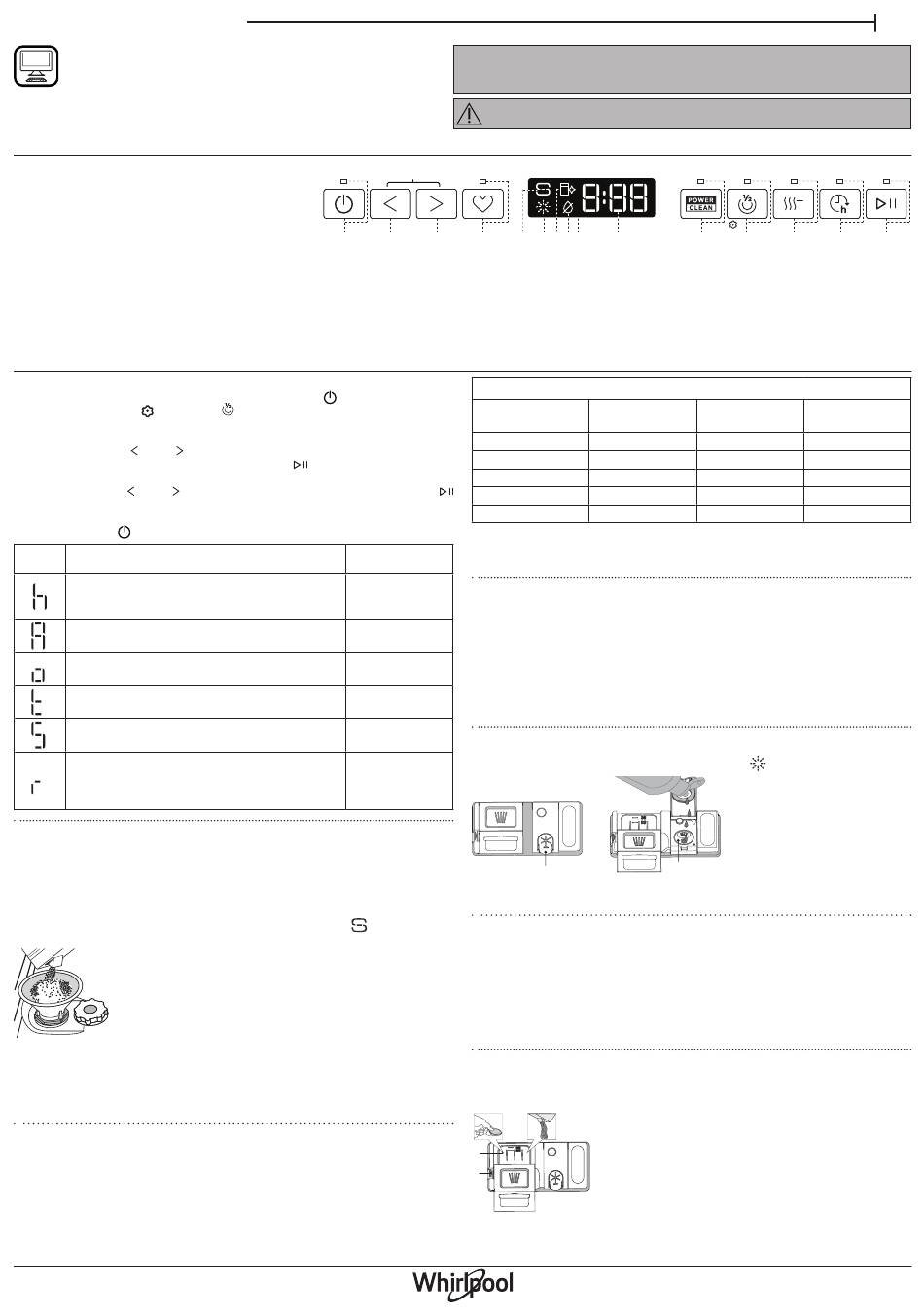

Daily Reference Guide
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.
In order to receive a more complete assistance, please
register your appliance on: www.whirlpool.eu/register
CONTROL PANEL
1. ON-OFF/Reset button with indicator light
2. PREVIOUS program button
3. NEXT program button
4. FAVOURITE program button with indicator
light
5. Salt reservoir empty indicator light
6. Rinse Aid reservoir empty indicator light
7. DESCALE indicator light
8. Closed Water Tap indicator light
9. Display
10. Program number and remaining time indicator
FIRST TIME USE
SETTING MENU
1. Switch on the appliance by pressing the ON-OFF
2. Hold the Settings (Half Load
a beep and the display shows „SEt".
3. After one second the first available setting (letter „h") will be displayed.
4. Press PREVIOUS /NEXT to scroll through the list of available settings
(see table below), then press START/Pause
value of the currently selected setting.
5. Press PREVIOUS /NEXT to change the value, then press START/Pause
to save the new value and return to the main menu.
6. To change another setting, repeat points 4 and 5.
7. Press ON-OFF
or wait 30 seconds to exit the menu.
LETTER SETTING
Water Hardness Level
(see "SETTING THE WATER HARDNESS"
and "WATER HARDNESS TABLE")
Rinse Aid Level
(see "ADJUSTING THE DOSAGE OF RINSE AID")
NaturalDry (see "OPTIONS AND FUNCTIONS")
"1" = On, "0" = Off
Light on the floor (see "OPTIONS AND FUNCTIONS")
"1" = On, "0" = Off
Sound
"1" = On, "0" = Off
Factory Settings
Press START/Pause to restore to the factory
default all the values of the settings included
in the settings menu.
FILLING THE SALT RESERVOIR
The use of salt prevents the formation of LIMESCALE on the dishes and on
the machine's functional components.
The salt reservoir is located in the lower part of the dishwasher (under the
lower rack on the left side).
• It is mandatory that the salt reservoir never be empty.
• It is important to set the water hardness.
• Salt must be filled when the SALT REFILL indicator light
panel is lit.
1. Remove the lower rack and unscrew the reservoir cap
(anticlockwise).
2. Position the funnel (see figure) and fill the salt reservoir
right up to its edge (approximately 0,5 kg); it is not un-
usual for a little water to leak out.
3. Only the first time you do this: fill the salt reservoir
with water.
4. Remove the funnel and wipe any salt residue away from the opening.
Make sure the cap is screwed on tightly so that no detergent can get into
the container during the wash program (this could damage the water
softener beyond repair).
Run a program every time as soon as you completed refilling the salt
reservoir to avoid corrosion.
Setting the water hardness
To allow the water softener to work in a perfect way, it is essential that the
water hardness setting is based on the actual water hardness in your house.
This information can be obtained from your local water supplier. The facto-
ry setting is "3". See „WATER HARDNESS TABLE"
To change, follow instructions in section "SETTING MENU".
Only use salt that has been specifically designed for dishwashers.
After the salt has been poured into the machine, the SALT REFILL indicator
light switches off.
1 2
button.
) button for 3 seconds, until you hear
1
50°
Eco
to view and change the
VALUES
(Default - in bold)
1 | 2 | 3 | 4 | 5
0 | 1 | 2 | 3 | 4 | 5
1 | 0
1 | 0
1 | 0
-
on the control
.
Before using the appliance carefully read Safety
and Installation Instructions. More information about your product
available on website: docs.whirlpool.eu
After installation, please remember to remove all transport protection
P
3 4 5 6 7 8 9
11. Power Clean® option button with indicator light
12. Half Load option button with indicator light/ Settings - 3 sec. press
13. Extra Dry option button with indicator light
14. Delay option button with indicator light
15. START/Pause button with indicator light
Level
2 3 4 5
1 (soft)
65° 55° 50°
2 (medium)
A A A
3 (average)
4 (hard)
5 (very hard)
If the salt container is not filled, the water softener and the heating
element may be damaged as a result of limescale accumulation.
Use of salt is recommended with any type of dishwasher detergent.
WATER SOFTENING SYSTEM
Water softener automatically reduces water hardness, consequently preventing
scale buildup on the heater, contributing also to better cleaning efficiency.
This system regenerates itself with salt, therefore it is required to refill
the salt container when empty. The frequency of regeneration depends
on the water hardness level setting - regeneration takes place once per 4-6
Eco cycles with the water hardness level set to 3. The regeneration process
occurs at the beginning of the cycle with additional fresh water.
• Single regeneration consumes: ~3L of water;
• Takes up to 5 additional minutes for the cycle;
• Consumes below 0.005kWh of energy.
FILLING THE RINSE AID DISPENSER
Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be
filled when the RINSE AID REFILL indicator light
B
3. Press the lid down until you hear a click to close it.
NEVER pour the rinse aid directly into the appliance tub.
Adjusting the dosage of rinse aid
If you are not completely satisfied with the drying results, you can adjust
the quantity of rinse aid used.
To change, follow instructions in the section "SETTING MENU".
If the rinse aid level is set to ZERO, no rinse aid will be supplied. The LOW
RINSE AID indicator light will not be lit if you run out of rinse aid.
A maximum of 6 levels can be set according to the dishwasher model.
• If you see bluish streaks on the dishes, set a low number (0-3).
• If there are drops of water or limescale marks on the dishes, set
a mid-range number (4-5).
FILLING THE DETERGENT DISPENSER
To open the detergent dispenser use the opening device C. Introduce
the detergent into the dry dispenser D only. Place the amount of
detergent for pre-washing directly inside the tub.
D
C
the right time according to the program.
Usage of detergent not designed for dishwashers may cause
malfunction or damage to the appliance.
parts from the dishwasher.
3 sec.
10 11 12
Water Hardness Table
°dH °fH
German degrees French degrees
6 7 8 9
0 - 6 0 - 10
45° 65°
7 - 11 11 - 20
12 - 16 21 - 29
17 - 34 30 - 60
35 - 50 61 - 90
W11553946 panel 2023-01-17
W11572189 button R 2021-10-01
W11572083 button L 2022-02-15
W11569647 display 2023-02-17
in the control panel is lit.
1. Open the dispenser B by
pressing and pulling up the
tab on the lid.
2. Pour in the rinse aid (max.110
ml), making sure it does not
overflow from the dispenser.
If this happens, clean the spill
A
immediately with a dry cloth.
1. When measuring out the detergent refer to the
mentioned earlier information to add the proper
quantity. Inside the dispenser D, there are indica-
tions to help the detergent dosing.
2. Remove detergent residues from the edges of the
dispenser and close the cover until it clicks.
3. Close the lid of the detergent dispenser by pulling
it up until the closing device is secured in place.
The detergent dispenser automatically opens up at
EN
13 14 15
°Clark
English degrees
10
0 - 7
65°
8 - 14
SELF CLEAN
15 - 20
21 - 42
43 - 62
