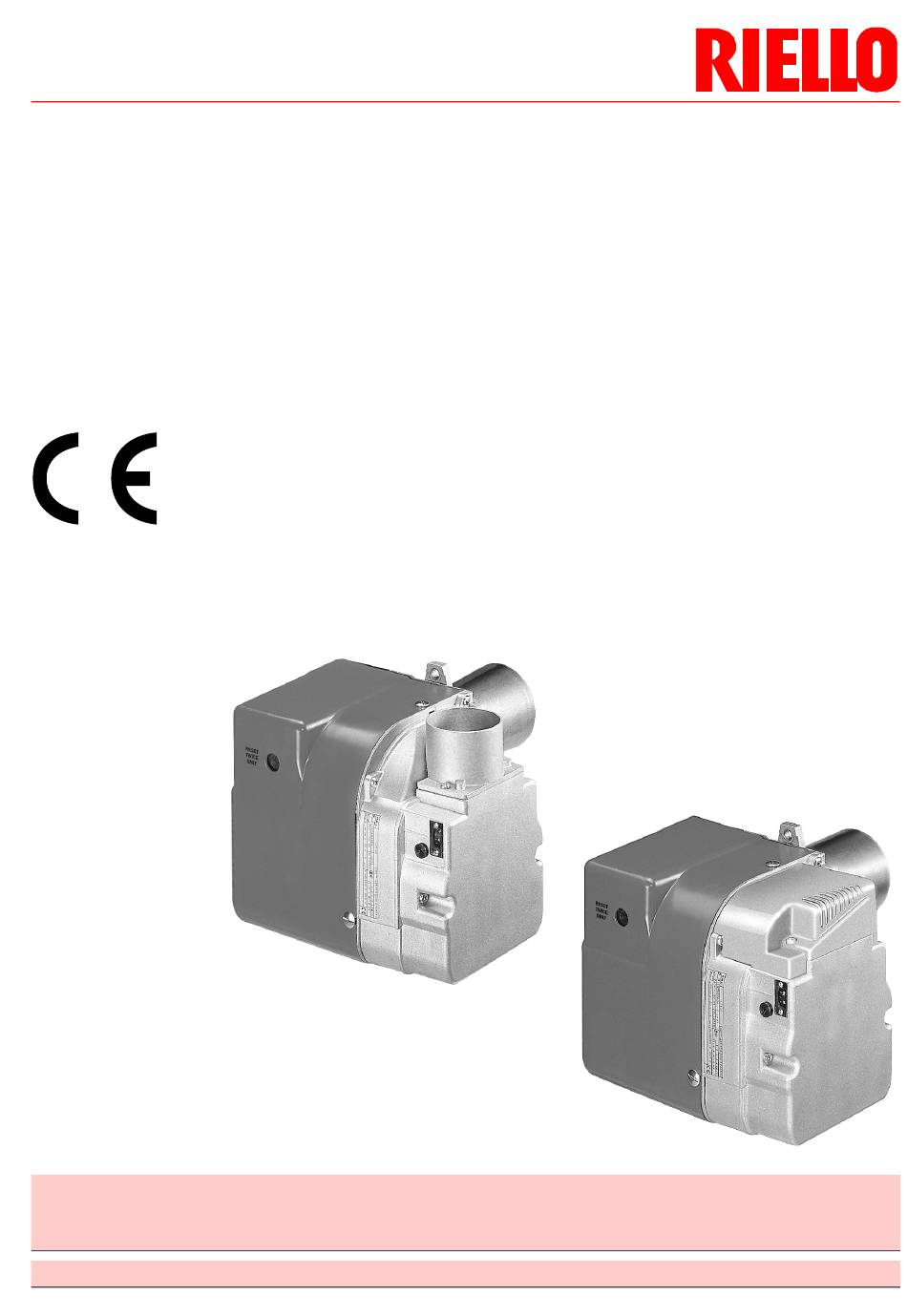

Installation, use and maintenance instructions
Kerosene and gas oil burners
One stage operation
KEROSENE BURNER
KEROSENE AND GAS OIL
BURNER
CODE
MODEL
TYPE
3748757
RDB2 90 - 120
487T50
2902458 (14) - 05/2016

Advertisement

Table of Contents
loading

Summary of Contents for Riello RDB2 90

  • Page 1 Installation, use and maintenance instructions Kerosene and gas oil burners One stage operation KEROSENE BURNER KEROSENE AND GAS OIL BURNER CODE MODEL TYPE 3748757 RDB2 90 - 120 487T50 2902458 (14) - 05/2016...
  • Page 2 Original instructions...
  • Page 3: Table Of Contents

    Contents Declaration....................................3 Information and general warnings............................4 Information about the instruction manual........................4 2.1.1 Introduction ..................................4 2.1.2 General dangers ................................4 2.1.3 Danger: live components ..............................4 Guarantee and responsibility ............................5 Guidance for the use of bio fuel blends up to 30% where gas oil use is permitted by the appliance Manufacturer ..5 2.3.1 Information and general instructions..........................
  • Page 4 Contents Maintenance programme ..............................21 9.2.1 Maintenance frequency ..............................21 9.2.2 Checking and cleaning ..............................21 10 Faults / Solutions ..................................22 2458...
  • Page 5: Declaration

    Address: Via Pilade Riello, 7 37045 Legnago (VR) Product: Kerosene and gas oil burners Model: RDB2 90 - 120 These products are in compliance with the following Technical Standard: EN 12100 EN 267 and according to the European Directives: 2006/42/EC...
  • Page 6: Information And General Warnings

    Information and general warnings Information and general warnings Information about the instruction manual 2.1.1 Introduction 2.1.3 Danger: live components The instruction manual supplied with the burner: This symbol indicates operations which, if not car- ➤ is an integral and essential part of the product and must not ried out correctly, lead to electric shocks with le- be separated from it;...
  • Page 7: Guarantee And Responsibility

    All components within the hydraulic circuit suitable for manual, operating negligence, incorrect installa- bio fuel use and supplied by Riello will be identified as Bio com- tion and carrying out of non authorised modifica- patible. No warranty is given in relation to the use of components...
  • Page 8: Information And General Instructions

    If this is not completed then due to the hydro- In no event shall Riello (and its subsidiaries) be liable for any in- scopic nature of Bio fuel, it will effectively clean the tank,...
  • Page 9: Safety And Prevention

    Safety and prevention Safety and prevention Introduction The burners have been designed and built in compliance with the type and pressure of the fuel, the voltage and frequency of the current regulations and directives, applying the known technical electrical power supply, the minimum and maximum deliveries for rules of safety and envisaging all the potential danger situations.
  • Page 10: Technical Description Of The Burner

    Nuts for flange to be fixed to boiler ........No. 2 Bio blend, it will be essential to use flexible oil Flexible oil pipe with nipple ..........No. 1 lines suitable for bio fuel use. Please contact Riello for further information. 2458...
  • Page 11: Burner Dimensions

    Technical description of the burner Burner dimensions Flange Burner D6114 Fig. 2 Firing rate The MAXIMUM OUTPUT is chosen from within the diagram area The work point may be found by plotting a vertical line from the (Fig. 3). desired delivery and a horizontal line from the pressure in the combustion chamber.
  • Page 12: Installation

    Installation Installation Notes on safety for the installation After carefully cleaning all around the area where the burner will The installation of the burner must be carried out be installed, and arranging the correct lighting of the environ- by qualified personnel, as indicated in this manual ment, proceed with the installation operations.
  • Page 13: Installer/Servicer Notes For The Use Of Gas Oil With Bio Blends Up To 30% Where Gas Oil Use Is Permitted By The Appliance Manufacturer

    30%" within the burner technical manual). be suitable for bio fuel use (check with Riello if in doubt). ➤ If a Bio blend is in use the installer must seek information...
  • Page 14: Boiler Fixing

    Installation Boiler fixing ➤ Put on the flange 1)(Fig. 6) the screw and two nuts. ➤ Fix the flange 1)(Fig. 7) to the boiler door 4) using screws 2) and (if necessary) the nuts 3) interposing the insulating gas- ket 5). The seal between burner and boiler must be airtight.
  • Page 15 Installation The combustion air supply is through a flexible or rigid pipe con- nected to the air intake. Consequently, you must comply with the following requirements and instructions: ➤ The combustion air intake tube must be: - fastened securely to the burner; - made of a suitable material, with temperature characteris- tics in the range - 30 °C to 80 °C;...
  • Page 16: Hydraulic Systems

    In case of use with gas oil containing up to 30% Bio blend, it will be essential to use flexible oil lines suitable for bio fuel use. WARNING Please contact Riello for further information. D10934 Fig. 10 Key (Fig. 10)
  • Page 17: One Pipe System

    Usually the tank is lower than the burner. You are advised to use additional filters on the fuel supply line. Riello recommends a good quality fuel filter at the CAUTION tank (Fig. 11 - Fig. 12) and a secondary filter (60 µ...
  • Page 18: Two Pipe System

    You are advised to use additional filters on the fuel supply line. Riello recommends a good quality fuel filter at the CAUTION tank (Fig. 13) and a secondary filter (60 µ for gas oil and 15 µ for kerosene) are used to protect the burner pump and nozzle from contamination.
  • Page 19: Electrical System

    Electrical system Electrical system Notes on safety for the electrical wiring ➤ The electrical wiring must be carried out with the electrical supply disconnected. ➤ Electrical wiring must be carried out by qualified personnel and in compliance with the regulations currently in force in the country of destination.
  • Page 20: Electrical Wiring

    Electrical system Electrical wiring 7.2.1 Control box 50Hz - 230V This operation must be performed with the burner turned off and mains power disconnected. DANGER To remove the control box (Fig. 15) from the burner follow of the Main switch istruction: ➤...
  • Page 21: Start-Up, Calibration And Operation Of The Burner

    Start-up, calibration and operation of the burner Start-up, calibration and operation of the burner Notes on safety for the first start-up The first start-up of the burner must be carried out Check the correct working of the adjustment, com- by qualified personnel, as indicated in this manual mand and safety devices.
  • Page 22: Pump Pressure

    Start-up, calibration and operation of the burner Pump pressure The pump leaves the factory set for kerosene working. 12 bar: pressure suitable for gas oil in most cases. 10 bar: maximum pressure for kerosene. 14 bar: improves flame retention; it is therefore suitable for igni- tions at low temperatures.
  • Page 23: Maintenance

    Burner lines suitable for bio fuel use. Check for excess wear or loose screws and clean the outside of Please contact Riello for further information. the burner. Fuel tank If water or contamination is present within the fuel tank, it is es- Check to make sure that no dust has accumulated inside the fan sential that this is removed before the equipment is to be used.
  • Page 24 Faults / Solutions Faults / Solutions Here below you can find some causes and the possible solutions When lock out lamp lights the burner will attempt to light only after for some problems that could cause a failure to start or incorrect pushing the reset button.
  • Page 28 RIELLO S.p.A. I-37045 Legnago (VR) Tel.: +39.0442.630111 http:// www.riello.it http:// www.riello.com Subject to modifications...
