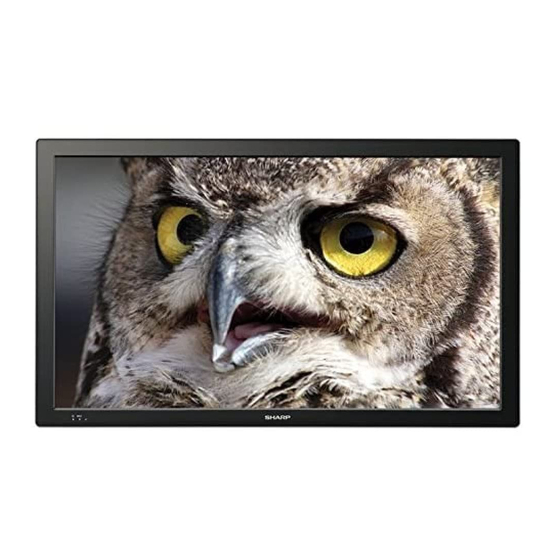

PN-T321
LCD MONITOR
IMPORTANT:
To aid reporting in case of loss or theft, please record the
product's model and serial numbers in the space provided.
The numbers are located in the rear of the product.
Products that have earned the ENERGY STAR
superior energy efficiency.
Read the manuals in the "Manual" folder of the provided CD-ROM. (Adobe Reader is required to view the manuals.)
• Operation Manual (PNT321_manual_English.pdf)
• USB Flash Drive Media Tool Operation Manual (PNT321_usb_English.pdf)
SETUP MANUAL
Model No.:
Serial No.:
®
are designed to protect the environment through
0QP0000000078 (1)
U.S.A. ONLY
Advertisement
Table of Contents
Related Manuals for Sharp PN-T321
Summary of Contents for Sharp PN-T321
-
Page 1: Setup Manual
PN-T321 LCD MONITOR IMPORTANT: To aid reporting in case of loss or theft, please record the product’s model and serial numbers in the space provided. The numbers are located in the rear of the product. Products that have earned the ENERGY STAR superior energy efficiency. Read the manuals in the “Manual” folder of the provided CD-ROM. (Adobe Reader is required to view the manuals.) • Operation Manual (PNT321_manual_English.pdf) • USB Flash Drive Media Tool Operation Manual (PNT321_usb_English.pdf) SETUP MANUAL Model No.: Serial No.: ® are designed to protect the environment through 0QP0000000078 (1) U.S.A. ONLY... -
Page 2: Dear Sharp Customer
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: T O REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. DEAR SHARP CUSTOMER Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. U.S.A. ONLY... -
Page 3: Safety Precautions
Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD product, please read the following precautions carefully before using the product. 1. Read instructions — All operating instructions must be read and understood before the product is operated. 2. K eep this manual in a safe place — These safety and operating instructions must be kept in a safe place for future reference. 3. Observe warnings — All warnings on the product and in the instructions must be observed closely. 4. Follow instructions — All operating instructions must be followed. 5. C leaning — Unplug the power cord from the AC outlet before cleaning the product. Use a dry cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. 6. A ttachments — Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents. 7. W ater and moisture — Do not use the product near water. Do not install the product in a place where water may splash onto it. Be careful of equipment which drains water such as an air-conditioner. 8. Ventilation — The vents and other openings in the cabinet are designed for ventilation. D o not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a sofa, rug or other similar surface, since they can block ventilation openings. Do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed. 9. P ower cord protection — The power cords must be routed properly to prevent people from stepping on them or objects from resting on them. -
Page 4: Safety Instruction
2 1. D o not stay in contact with the parts of the product that become hot for long periods of time. Doing so may result in low-temperature burns. WARNING: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate counter measures. If a monitor is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Using fixing devices like wall mount brackets recommended by the manufacturer. • Only using furniture that can safely support the monitor. • Ensuring the monitor is not overhanging the edge of the supporting furniture. • N ot placing the monitor on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the monitor to a suitable support. • Not standing the monitors on cloth or other materials placed between the monitor and supporting furniture. • Educating children about the dangers of climbing on furniture to reach the monitor or its controls. Especially for child safety - Don’t allow children to climb on or play with the monitor. - Don’t place the monitor on furniture that can easily be used as steps, such as a chest of drawers. - R emember that children can become excited while watching a program, especially on a “larger than life” monitor. Care should be taken to place or install the monitor where it cannot be pushed, pulled over, or knocked down. - C are should be taken to route all cords and cables connected to the monitor so that they cannot be pulled or grabbed by curious children. - D o not use the monitor where there is a lot of dust, where humidity is high, or where the monitor may come into contact with oil or steam, as this could lead to fire. -
Page 5: Mounting Precautions
• A mounting bracket compliant with VESA specifications is required. Do not use any screw holes other than VESA holes for installation. • To attach a VESA-compliant mounting bracket, use M6 screws that are 5/16 inch (8 mm) to 3/8 inch (10 mm) longer than the thickness of the mounting bracket. • When moving the monitor, do not place your hand on the screen. This may cause product damage, failure, or injury. • Install the monitor with the surface perpendicular to a level surface. If you tilt the monitor, do not tilt more than 20° up or down. • Mounting the monitor on the wall requires special expertise and the work must be performed by an authorized SHARP dealer. You should never attempt to perform any of this work yourself. Our company will bear no responsibility for accidents or injuries caused by improper mounting or mishandling. • This monitor should be used at an ambient temperature between 32°F (0°C) and 104°F (40°C). Provide enough space around the monitor to prevent heat from accumulating inside. For the monitor in horizontal orientation 7-7/8 [20] 2 [5]... -
Page 6: Supplied Components
If any component should be missing, please contact your dealer. Liquid Crystal Display Monitor: 1 Remote control unit: 1 (Battery preinstalled) Cable clamp: 1 Power cord Conversion cable (for AV component): 1 (green/blue/red) * Sharp Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission. * For environmental protection! Do not dispose of batteries in household waste. Follow the disposal instructions for your area. Caution • Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting cables. Also, read the manual of the equipment to be connected. • Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables connected to the input and output terminals may cause malfunctions and the other problems. AC input terminal Power cord (Supplied) For power outlet TIPS • Connect the audio used in each input mode to the audio input terminals below. Input mode Audio input terminal... -
Page 7: Preparing The Remote Control Unit
Setting the USB flash drive cover 1. Insert the USB flash drive into the USB port. 2. Attach the USB flash drive cover and secure with the provided screw. Insert the claw (1) into the monitor, and while pressing in the direction of (2), insert the claw (3) into the monitor. TIPS • If the USB flash drive will be attached, use a USB flash drive with dimensions no greater than 3-1/8 inch (80 mm) (L) × 15/16 inch (25 mm) (W) × 7/16 inch (12 mm) (H). • To remove the USB flash drive cover, reverse the procedure. Using excessive force may break the claws. Exercise caution. -
Page 8: Turning Power On/Off
• The main power must be turned on/off with the main power switch. Do not connect/disconnect the power cord or turn the breaker on/off while the main power switch is on. • When switching the main power switch or the POWER button off and back on, always wait for at least 5 seconds. • For a complete electrical disconnection, pull out the main plug. Turning Power On/Off Turning power on/off Press the POWER button or POWER switch to turn the power ON/OFF. When the main power is off, the power cannot be turned on with the POWER button. • Status of the power LED Green lit Orange lit Green flashing Caution • When switching the main power switch or the POWER button off and back on, always wait for at least 5 seconds. A short interval may result in a malfunction. Power LED Status Status of the monitor Power on Power off (Standby mode) Input signal waiting mode (DVI-D or D-SUB)
