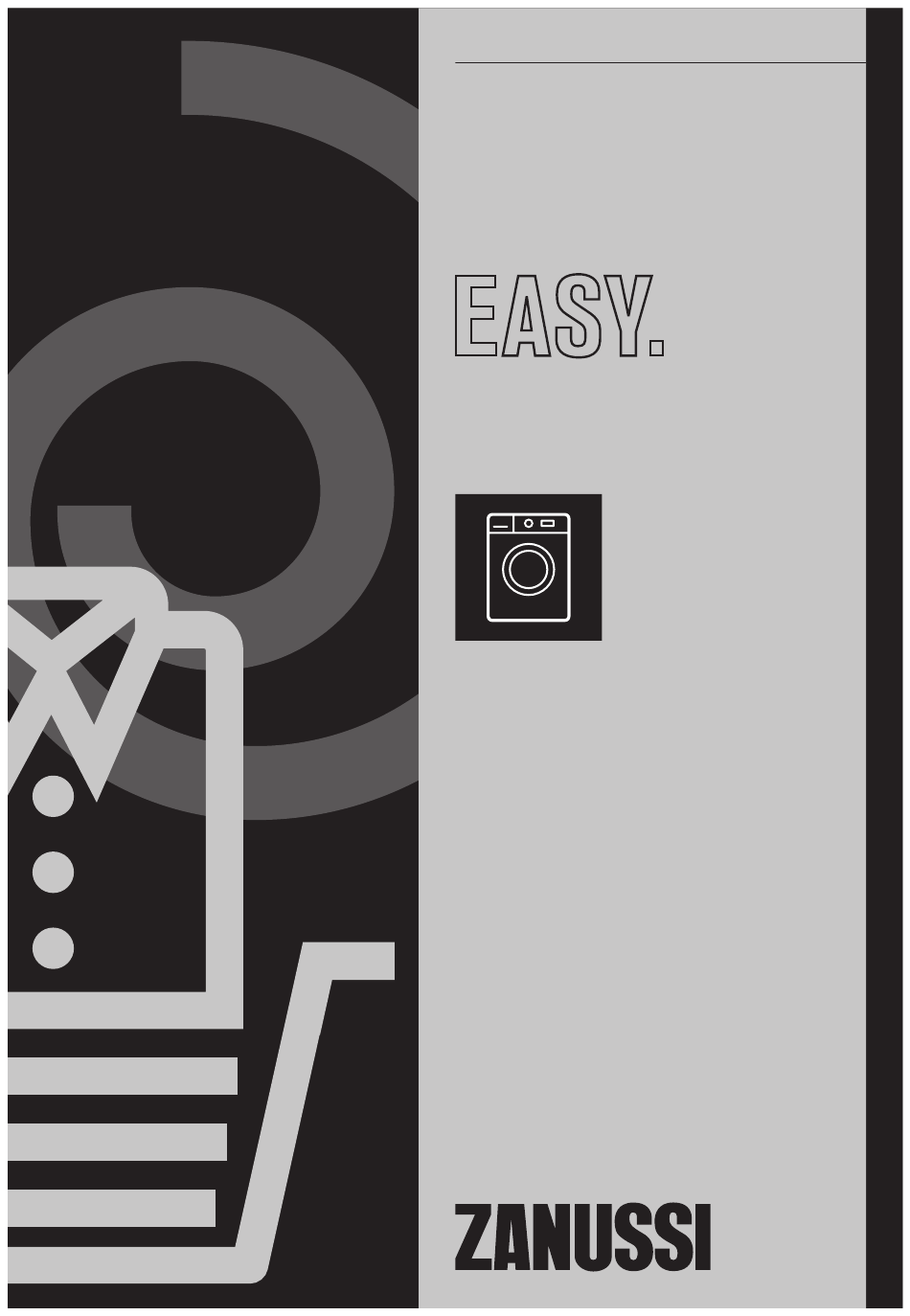

- Page 1 User Manual GETTING STARTED? EASY. ZAF824G1W EN User Manual Washing Machine...
-
Page 2: Safety Information
VISIT OUR WEBSITE TO: Get usage advice, brochures, trouble shooter, service and repair information: www.zanussi.com/support SAFETY INFORMATION Before beginning the installation and use of this appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. -
Page 3: Safety Instructions
This appliance is designed for single household domestic use • in an indoor environment. This appliance may be used in, offices, hotel guest rooms, bed • & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels. -
Page 4: Electrical Connection
• Do not install or use the appliance where the • Ensure that there are no visible water leaks temperature can be less than 0°C or where it is during and after the first use of the appliance. exposed to the weather. •... -
Page 5: Product Description
professional repairers, and that not all spare • Disconnect the appliance from the mains parts are relevant for all models. electrical and water supplies. • Concerning the lamp(s) inside this product and • Cut off the mains electrical cable close to the spare part lamps sold separately: These lamps appliance and dispose of it. -
Page 6: Technical Data
The rating plate reports the model name (A), product number (B),electrical ratings (C) and se- rial number (D). Mod. xxxxxxxxx Prod.No. 910000000 00 000V ~ 00Hz 0000 W 00000000 TECHNICAL DATA Dimension Width/ Height/ Total depth 59,6 cm /84,7 cm /57,7 cm Electrical connection Voltage 230 V... -
Page 7: Information For Installation
hose from the hose holders. 1. Install the appliance on a flat hard floor. The appliance must be levelled and stable. Make sure that the appliance does not touch the wall or other units and there is air circulation below the appliance. - Page 8 4. To a stand pipe with vent hole - Insert the drain You can extend the drain hose to hose directly into a drain pipe. Refer to the maximum 400 cm. Contact the illustration. authorised service centre for the other drain hose and the extension.
-
Page 9: Stacking Kit
FIXING PLATE KIT If you install the appliance on a plinth that is not an accessory supplied by ZANUSSI, secure the appliance in the fixing plates. Read carefully the instructions supplied with the accessory. -
Page 10: Control Panel Description
chapter 'Care and Cleaning' for best maintenance and care of the appliance. CONTROL PANEL DESCRIPTION Programme knob Night touchpad Centrif. reduction touchpad Extra Aclarado/Enxag. touchpad Temp. ºC touchpad Inicio/Pausa touchpad Display Inicio Diferido touchpad Pre-Lava. touchpad Flexi Time touchpad Fácil Plancha touchpad DISPLAY A. -
Page 11: Programme Chart
PROGRAMME CHART Reference spin Programme speed Maximum Programme description Default temperature Spin speed load (Type of load and level of soiling) Temperature range range Eco 40-60 1200 rpm 8 kg White cotton and fast-coloured cotton. (1200- 400 Normally soiled items. The energy consumption 40 °C rpm) decreases and the time of the washing pro-... - Page 12 Reference spin Programme speed Maximum Programme description Default temperature Spin speed load (Type of load and level of soiling) Temperature range range 1200 rpm 8 kg White cotton items. This programme removes Anti-Alergia (1200- 400 micro-organisms thanks to a washing phase 60 °C rpm) with the temperature maintained above 60°C...
- Page 13 Programme ■ ■ ■ ■ ■ ■ ■ Delicados ■ ■ ■ ■ ■ Lana/Lãs ■ ■ ■ ■ ■ ■ ■ Denim ■ ■ ■ ■ ■ ■ ■ Sport ■ ■ ■ Centrif./Drenar ■ ■ ■ ■ ■ Aclarado/Enxag.
- Page 14 Universal pow- Liquid for col- Delicates Programme Liquid Universal Special oureds woollens ▲ ▲ Rápido 30 min. ▲ ▲ ▲ Rápido 60 min. 1) At temperature higher than 60 °C the use of powder detergent is recommended. ▲ = Recommended -- = Not recommended OPTIONS This option is recommended for heavily soiled...
- Page 15 to wash items with daily soil (max. half load The appliance empties the water out recommended). automatically after 18 hours approximately. to wash quickly items with almost no soil. The Flexi Time is available only with the INICIO DIFERIDO programmes in the table. With this option you can delay the start of a programme to a more convenient time.
-
Page 16: Before First Use
BEFORE FIRST USE 1. Connect the mains plug to the mains socket. During installation or before first use 2. Open the water tap. you may observe some water in the 3. Put a small quantity of detergent in the appliance. This is residual water left in compartment for washing phase. -
Page 17: Filling The Detergent And Additives
FILLING THE DETERGENT AND ADDITIVES Compartment for washing phase. If you use liquid detergent, put it immediately before you start the programme. Compartment for liquid additives (fabric conditioner, starch). Maximum level for quantity of liquid additives. Flap for powder or liquid deter- gent. -
Page 18: Starting A Programme Without The Delay Start
• The display shows the level of the Time Manager, the programme duration and the indicators of the phases of the programme. 2. If necessary, change the temperature and the spin speed or add available options. When you activate an option, the indicator of the set option comes on. -
Page 19: Interrupting A Programme And Changing The Options
You can cancel or change the set of Before starting the new programme the delay start before you press the the appliance could drain the water. In . To cancel the delay start: this case, make sure that the detergent is still in the detergent compartment, if •... -
Page 20: Hints And Tips
STAND-BY The washing programme is completed, but there is water in the drum: Some minutes after the end of the washing • The drum turns regularly to prevent the creases programme, if you do not deactivate the appliance, in the laundry. the energy saving status activates. -
Page 21: Stubborn Stains
STUBBORN STAINS • the wash load to turn grey, • greasy clothes, For some stains, water and detergent is not • mould in the appliance. sufficient. Excessive detergent may cause: We recommend that you pre-treat these stains • sudsing, before you put the items in the appliance. •... - Page 22 After each cycle, keep the door and the detergent Regularly examine the drum to check for limescale. dispenser slightly ajar to get air circulation and dry Regular detergents already contain water softening the humidity inside the appliance: this will prevent agents, but we recommend to run a cycle with an mildew and odours.
-
Page 23: Cleaning The Detergent Dispenser
Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface. Always obey the instructions that you find on the packaging of the product. CLEANING THE DETERGENT DISPENSER CLEANING THE INLET HOSE AND THE VALVE FILTER... -
Page 24: Frost Precautions
45° 20° FROST PRECAUTIONS 5. When the drain pump is empty, install the inlet hose again. If the appliance is installed in an area where the temperature can be less than 0° C, remove the WARNING! Make sure that the remaining water from the inlet hose and the drain temperature is higher than 0 °C before pump. - Page 25 Remaining moisture at the end of spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture. Values and programme duration may differ depending on different conditions (e.g. room tem- perature, water temperature and pressure, load size and type of laundry, supply voltage) and also if you change the default setting of a programme.
-
Page 26: Troubleshooting
Programme Litres hh:mm °C Delicados 0.400 50.0 1:15 35.00 30.0 1200 30°C Lana/Lãs 0.300 60.0 1:05 30.00 30.0 1200 30°C 1) Reference indicator of the spin speed. 2) Suitable for washing heavily soiled textiles. 3) Suitable for washing lightly soiled cottons, synthetic and mixed fabrics. 4) It also performs as quick washing cycle for lightly soiled laundry. - Page 27 • Make sure that the door is properly closed. The appliance door is open or not closed cor- rectly. • The programme was not finished properly or the appliance stopped too early. Switch the appliance off and on again. Internal fail. No commu- •...
-
Page 28: Environmental Concerns
Problem Possible solution • Make sure the levelling of the appliance is correct. Refer to "Installa- The appliance makes an tion instruction". unusual noise and vi- • Make sure that the packaging and/or the transit bolts are removed. brates. Refer to "Installation instruction". •... - Page 32 WWW.ZANUSSI.COM/SHOP...
