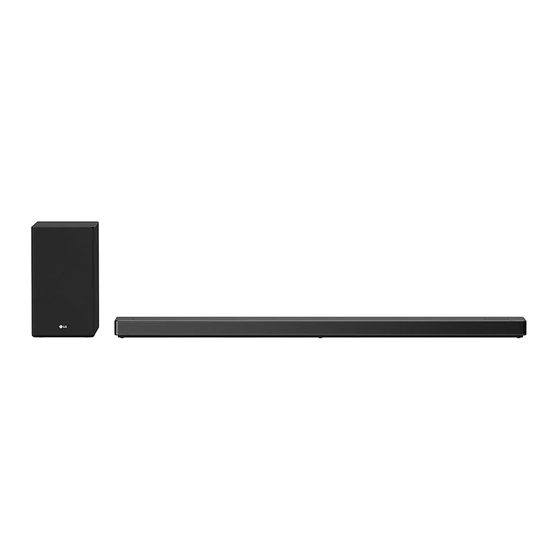

Wi-fi sound bar
Hide thumbs Also See for SN10YG:

Advertisement

Quick Links

SIMPLE MANUAL
LG Wi-Fi
Sound Bar
Please read this manual carefully before operating your set and retain it for
future reference.
To view the instructions of advanced features, visit http://www.lg.com and
then download Owner's Manual. Some of the content in this manual may differ
from your unit.
MODEL
SN10YG
www.lg.com
MFL71446083
2001_Rev01
Copyright © 2020 LG Electronics Inc. All Rights Reserved.

Advertisement

Table of Contents
loading

Summary of Contents for LG SN10YG

  • Page 1 Please read this manual carefully before operating your set and retain it for future reference. To view the instructions of advanced features, visit http://www.lg.com and then download Owner’s Manual. Some of the content in this manual may differ from your unit.
  • Page 2 Front Panel Subwoofer Connection Place the wireless subwoofer near the sound bar and Microphone follow steps below. a Connect the power cord of the sound bar and the wireless subwoofer to the outlet. b Turn on the sound bar. The sound bar and wireless subwoofer will be automatically connected.
  • Page 3 TV Connection Network Connection Connect the sound bar and TV using Optical ( ) or HDMI ARC ( ). Optical Connection a Connect the sound bar to the TV using Optical cable. b Set up [External Speaker (Optical)] on your TV a Check network condition.
  • Page 4 How to Use “Google Assistant” When connect to Wi-Fi, this app may Make sure the unit is connected to Wi-Fi. request to create a Google Account. You will need a Google account to use this app. Case 1. Say “Hey Google” “Google Home”...
  • Page 5 You can manage the speaker settings and control the Internet speaker by using “LG Wi-Fi Speaker” . “What movies are showing this weekend?” Download “LG Wi-Fi Speaker” on the App Store or Google Play Store. “Why is the sky blue?” “What is the smallest country in Europe?”...
  • Page 6 Remote control Additional Information Replacement of Battery Power Refer to the main label. requirements Power Refer to the main label. consumption Approx. Dimensions 1443.0 mm x 63.0 mm x (W x H x D) 146.0 mm (with foot) (56.8 inch x 2.5 inch x 5.7 inch) Bus Power 5 V 0 500 mA Supply (USB)
  • Page 7 However, LG Electronics will also provide open source code to there is no guarantee that interference will not occur you on CD-ROM for a charge covering the cost of in a particular installation.
  • Page 8 For models using an adapter CAUTION Only use the AC adapter supplied with this device. Do not use a power supply from another device or another manufacturer. Using any other power cable or RISK OF ELECTRIC SHOCK DO NOT OPEN power supply may cause damage to the device and void your warranty.
  • Page 9 LGE Open Source Software Notice This product from LG Electronics, Inc. contains the open source software detailed below. Please refer to the indicated open source licenses (as are included following this notice) for the terms and conditions of their use.
  • Page 10 Copyright (c) 1996-2008 Jean Tourrilhes The source code for the above may be obtained free of charge from LG Electronics, Inc. at http://opensource.lge.com. LG Electronics, Inc. will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
  • Page 11 Attribution This software is based in part on the work of the Independent JPEG Group. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/) Apache-2.0 Apache License Version 2.0, January 2004 http://www.apache.org/licenses/ TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION “Licensor”...
  • Page 12 complies with the conditions stated in this License. 5. Submission of Contributions. Unless You explicitly state otherwise, any Contribution intentionally submitted for inclusion in the Work by You to the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions. Notwithstanding the above, nothing herein shall supersede or modify the terms of any separate license agreement you may have executed with Licensor regarding such Contributions.
  • Page 13 Introduction The FreeType Project is distributed in several archive packages; some of them may contain, in addition to the FreeType font engine, various tools and contributions which rely on, or relate to, the FreeType Project. This license was inspired by the BSD, Artistic, and IJG (Independent JPEG Group) licenses, which all encourage inclusion and use of free software in commercial and freeware products alike.
  • Page 14 Discusses general use and applications of FreeType, as well as future and wanted additions to the library and distribution. If you are looking for support, start in this list if you haven’t found anything to help you in the documentation. o freetype-devel@nongnu.org Our home page can be found at http://www.freetype.org...
  • Page 15 most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.) considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as...
  • Page 16 permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.
  • Page 17 Independent JPEG Group” . (3) Permission for use of this software is granted only if the user accepts full responsibility for any undesirable consequences; the authors accept NO LIABILITY for damages of any kind. acknowledge us. Permission is NOT granted for the use of any IJG author’s name or company name in advertising or publicity relating to this software or products derived from it.
  • Page 18 users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License.
  • Page 19 distribution medium does not bring the other work under the scope of this License. 3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License.
  • Page 20 8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
  • Page 21 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Also add information on how to contact you by electronic and paper mail. You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the library, if necessary. Here is a sample;...
  • Page 22 NTP License (NTP) Copyright (c) (CopyrightHoldersName) (From 4-digit-year)-(To 4-digit-year) Permission to use, copy, modify, and distribute this software and its documentation for any purpose with or without fee is hereby granted, provided that the above copyright notice appears in all copies and that both the copyright notice and this permission notice appear in supporting documentation, and that (TrademarkedName) makes no representations about the suitability this software for any purpose.
  • Page 23 AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. The licence and distribution terms for any publically available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and Unicode-TOU Unicode Terms of Use For the general privacy policy governing access to this site, see the Unicode Privacy Policy.
  • Page 24 this Agreement without Unicode’s prior written consent. 3. Taxes. The user agrees to pay any taxes arising from access to this website or use of the information herein, except for those based on Unicode’s net income. 4. Severability. If any provision of this Agreement is declared invalid or unenforceable, the remaining provisions of this Agreement shall remain in effect. 5.
  • Page 25 LG Electronics, Inc. Limited Warranty - USA Should your LG Electronics product (“Product”) fail due to a defect in material or workmanship under normal use, during the warranty period (“Warranty Period”) set forth below, LG Electronics (“LG”) will, at its option either repair or replace the Product upon receipt of original Proof of Purchase (“POP”).
  • Page 26 LG Customer Information Center 1-800-243-0000 USA, Consumer 1-888-865-3026 USA, Commercial Register your product Online! www.lg.com Printed in China...
  • Page 27 OWNER’S MANUAL LG Wi-Fi Sound Bar Please read this manual carefully before operating your set and retain it for future reference. MODEL SN10YG (SN10YG, SPN8-W) www.lge.com 2001_Rev01 Copyright © 2020 LG Electronics Inc. All Rights Reserved.
  • Page 28 Getting Started Safety Information NOTICE: For safety marking information including product identification and supply ratings, please refer to the main label on the bottom or the other surface CAUTION of the product. RISK OF ELECTRIC SHOCK CAUTION concerning the Power Cord DO NOT OPEN The Power Plug is the disconnecting device.
  • Page 29 Getting Started Symbols Refers to alternating current (AC). Refers to direct current (DC). Refers to class II equipment. Refers to stand-by. Refers to “ON” (power). Refers to dangerous voltage.
  • Page 30: Table Of Contents

    – Surround sound – How to Affix the Ferrite Core Connecting to your TV – Using an OPTICAL cable – LG Sound Sync – Using an HDMI cable – ARC (Audio Return Channel) function – eARC (Enhanced Audio Return Channel) function –...
  • Page 31 – NOTES to use wireless command – NOTES to release Demo mode – Available voice commands “LG Wi-Fi Speaker” Appendix – Installing “LG Wi-Fi Speaker” App Using a BLUETOOTH Wireless Technology File requirement – About BLUETOOTH Trademarks and licenses – BLUETOOTH profiles Specifications –...
  • Page 32: Getting Started

    Getting Started Introduction Symbol used in this manual Note Indicates special notes and operating features. > Caution Indicates cautions for preventing possible damages from abuse.
  • Page 33: Front Panel

    Input source / Function Display Wi-Fi WI-FI Bluetooth Optical OPT/HDMI ARC e-ARC LG Sound Sync (Wired) HDMI IN 1 HDMI1 HDMI IN 2 HDMI2 You can use Bluetooth function after making Wi-Fi network connection by using Google Home app. (Volume) - Adjusts volume level.
  • Page 34 Getting Started - Enables Google Assistant to receive your voice commands. To cancel it, press again. (Page 36) Remote sensor Google Assistant LED - Changes LED status according to Google Assistant performance. Status Description All four LEDs are on. Ready to listen to your voice command.
  • Page 35: Rear Panel

    Getting Started Rear panel USB Port - Connect USB memory device to the USB port on the back of the unit. OPTICAL IN - Connect the OPTICAL IN jack on the back of the unit to OPTICAL OUT jack on the TV. HDMI OUT (TV eARC/ARC) - Connect the HDMI OUT (TV eARC/ARC) jack on the back of the unit to ARC jack on the TV.
  • Page 36: Remote Control

    Getting Started Remote control Replacement of Battery Remove the battery cover on the rear of the remote control, and insert the battery with 4 and 5 matched correctly. Risk of fire or explosion if the battery is replaced by an incorrect type. 1 (Standby) - Switches the unit ON or OFF.
  • Page 37 Getting Started SOUND EFFECT - Selects a sound effect mode by using SOUND EFFECT. On Display Description Analyzes the property of the input sound and provides the AI SOUND PRO sound optimized for the content in real time. Reinforces the bass and powerful sound. BASS BLAST or BASS BLAST+ STANDARD You can enjoy premium sound with MERIDIAN technology.
  • Page 38 Getting Started (Sound tuning) - Adjusts sound level of each speaker. Select the speaker you want to adjust by using and adjust the sound level by using VOL o/p . Adjusting rear speakers level is applied only when the rear speakers are connected. See the page 13 for more information of speakers.
  • Page 39: Speakers Position

    Getting Started Speakers position Center speaker Front speakers Top speakers Side speakers Subwoofer Rear speakers You can enjoy surround sound by using Wireless Rear Speaker kit. Wireless Rear Speakers Kit sold separately (SPK8-S).
  • Page 40: Installing The Sound Bar

    Getting Started > Caution Installing the sound bar y For best performance of wireless connection such as Bluetooth or wireless subwoofer, You can hear the sound by connecting the unit to the do not install the unit on Metallic furniture other device: TV, Blu-ray disc player, DVD player, etc.
  • Page 41: Mounting The Unit On A Wall

    Getting Started Mounting the unit on a Preparation materials Unit wall > Caution Wall bracket install guide y Do not install this unit upside down. It can damage the parts of this unit or be the cause Wall bracket of personal injury. y Do not hang onto the installed unit and avoid Screws any impact to the unit.
  • Page 42 Getting Started 1. Match the TV’ s BOTTOM EDGE of Wall bracket 5. Put the unit on the brackets to match screw install guide with the bottom of TV and attach to holes on the bottom of the unit. the position. 2.
  • Page 43: Connecting

    IPv4 and IPv6, the network automatically connects to IPv4 or IPv6 when connecting to the network. You can check the each network status by selecting the settings of My Speakers ([Settings]>[IP Info.]) on the “LG Wi-Fi Speaker” app.
  • Page 44: Launch The App To Connect Wi-Fi

    Connecting Launch the app to connect Wi-Fi 3. When the speaker is properly connected to Wi-Fi, “CONNECTED” will appear on the display window Make sure your smart device Wi-Fi feature is turned with sound. on. Once a connecting operation is performed, it does Note not need to be performed again.
  • Page 45: Organizing Cables (Optional)

    Connecting Organizing cables (Optional) You can organize the cable with cable ties. 1. Hold the cables together with cable ties as shown below. 2. Tighten cable ties. Note y After all connections are completed, you can arrange cables as needed. y Cable ties are not provided.
  • Page 46: Wireless Subwoofer And Rear Speaker

    Connecting Wireless subwoofer Manually pairing wireless subwoofer When your connection is not completed, you can and rear speaker (Sold check red LED on the wireless subwoofer and the wireless subwoofer does not make sound. To solve Separately) connection the problem, follow the steps below. 1.
  • Page 47: Rear Speakers Connection

    Connecting Note Rear speakers connection (Sold y It takes a few seconds (and may take longer) Separately) for the main unit and the subwoofer to communicate with each other and make Connecting the rear speakers sounds. y The closer the main unit and the subwoofer, 1.
  • Page 48: Surround Sound

    Connecting > Caution Manually pairing wireless receiver y Use the speaker supplied with this unit When your connection is not completed, you can only. Using any other speaker may cause see the red LED on the wireless receiver and rear malfunction.
  • Page 49 Connecting Surround function ON Output Sound Effect Input No rear speakers Rear speakers connected 2.0 Ch AI SOUND PRO 5.1 Ch 7.1 Ch or more 2.0 Ch BASS BLAST 5.1 Ch BASS BLAST+ 7.1 Ch or more 2.0 Ch STANDARD 5.1 Ch 7.1 Ch or more 2.0 Ch...
  • Page 50 Connecting Surround function OFF Output Sound Effect Input No rear speakers Rear speakers connected 2.0 Ch AI SOUND PRO 5.1 Ch Dolby Others 7.1 Ch or more 2.0 Ch BASS BLAST 5.1 Ch BASS BLAST+ 7.1 Ch or more 2.0 Ch STANDARD 5.1 Ch Dolby...
  • Page 51: How To Affix The Ferrite Core

    Connecting Note How to Affix the Ferrite Core y If there is a strong electromagnetic wave Ferrite core may not be provided depending on each product nearby, interference may occur. Put nation’ s regulations. the main unit and wireless receiver away from there.
  • Page 52: Connecting To Your Tv

    Using an OPTICAL cable compatible with the LG TV that supports LG Sound Sync. Make sure of the LG Sound Sync logo is on your 1. Connect the OPTICAL IN jack on the back of the unit to OPTICAL OUT jack on the TV using an Controllable function by LG TV’...
  • Page 53: Using An Hdmi Cable

    Using an HDMI cable LG Sound Sync with wired connection If you connect this unit to a TV that supports HDMI 1. Connect your LG TV to the unit by using an CEC and ARC (Audio Return Channel), you can optical cable.
  • Page 54: Arc (Audio Return Channel) Function

    HDMI OUT of the unit. Some functions of this unit are controlled by the eARC (Enhanced Audio Return TV’ s remote control when this unit and LG TV’ s with Channel) function SIMPLINK are connected through HDMI connection.
  • Page 55 HDMI cable (length is controls. generally limited to 4.5 m (15 ft)). * Trade names for CEC are SimpLink (LG) , Anynet+ y You cannot change the video resolution in (Samsung), BRAVIA Sync (Sony), EasyLink (Philips), the HDMI1/HDMI2 mode. Change the video etc.
  • Page 56 Connecting Optional equipment connection DOLBY ATMOS® What is DOLBY ATMOS®? Dolby Atmos gives you amazing experience you’ve never before by overhead sound, and all the richness, clarity, and power of Dolby sound. DTS:X® What is DTS:X®? In the real world, sound is all around us, moving freely in any direction.
  • Page 57 Connecting HDMI IN connection OPTICAL IN connection You can enjoy the sound from the external device Connect an optical output jack of external devices to which is connected to HDMI IN (1) or HDMI IN (2) the OPTICAL IN jack. jack on this unit.
  • Page 58 Connecting USB connection Optional equipment connection You can enjoy both sound and picture from the Connect USB memory device to the USB port on the external device you connect. back of the unit. Note It is recommended that you purchase a USB gender separately for the convenience of USB insertion and extraction.
  • Page 59 Connecting USB device requirement Playable file y Devices which require additional program Sampling Frequency installation connected to a computer, are not MP3: within 32 to 48 kHz supported. OGG: within 32 to 48 kHz y Do not extract the USB device while in operation. AAC: within 32 to 48 kHz y For a large capacity USB, it may take longer than a...
  • Page 60 Connecting Note y Folders and files on the USB are recognized as below. : Folder *ROOT : File y If there is no file in a folder, the folder will not appear. y File will be played from file to file one by one.
  • Page 61: Operating

    Operating Note USB operation y The resume point may be cleared when you pull out the power cord or removing the USB device from the unit. 1. Connect the USB device to the USB port. y Repeat/Random playback operates as follows. 2.
  • Page 62: How To Use The Google Assistant

    Then the speaker is activated and ready to receive your voice commands. Google. For more information, visit the below web site. y Set up, Usage and more: http://support.google. com/assistant/answer/7540703 y Compatible LG appliance models: Visit http://www.lg.com and then search the information...
  • Page 63 Operating Note Voice command y After connecting to Wi-Fi, this function is 1. Time available to use. If Google Assistant LED “What time is it?”, “What time is it now?”, “What (White) blinks, the speaker is not connected time is it in Spain?” to Wi-Fi.
  • Page 64: Reference Site For Google Assistant Help

    Operating Reference site for Google Assistant Help Set up the Google Assistant on your https://support.google.com/assistant/answer/7538816 speakers Listen to music https://support.google.com/assistant/answer/7539710 Play music on your TV or speakers https://support.google.com/assistant/answer/7539867 Play TV shows & movies https://support.google.com/assistant/answer/7539991 Control smart home devices https://support.google.com/assistant/answer/7540703 Create a shopping list https://support.google.com/assistant/answer/7540969 Buy items on your shopping list https://support.google.com/assistant/answer/7384588#speaker...
  • Page 65: Control Your Tv And Sound Bar With Voice Command

    You have to say voice commands in English. LG TV y Available TV: Web OS version 4.5 or later TV (LG TV models released after 2019 years) Volume up on LG TV Volume of your LG TV y Available voice commands might be revised increases.
  • Page 66 Operating Sound Bar Commands Action Turn off LG sound bar Turns off your LG Sound Bar. Power off LG sound bar Wi-Fi network Changes to the Wi-Fi function. BLUETOOTH Changes to the BT (Bluetooth) function. OPTICAL Changes to the Optical function.
  • Page 67: Installing "Lg Wi-Fi Speaker" App

    1. Tap the Apple “App Store” icon or “Google Play Store” icon. You should connect to Wi-Fi by using “Google Home” 2. Type in “LG Wi-Fi Speaker” in the search bar and app prior using this app. (Page 18) tap “Search” .
  • Page 68: Using A Bluetooth Wireless Technology

    Operating Using a BLUETOOTH Listening to Music of a BLUETOOTH Device Wireless Technology Before you start the pairing procedure, make sure that the Bluetooth feature on your smart device is turned on. Refer to your Bluetooth device’ s user About BLUETOOTH guide.
  • Page 69 When one Bluetooth device has connected y If the LG TV is turned off, this sound bar will to this unit, another device cannot find and enter “READY” (Bluetooth ready) mode.
  • Page 70 Operating Using Voice command to connect BLUETOOTH If the speaker has paired to a Bluetooth device before, you can use “Google Assistant” to connect Bluetooth. Say “Connect”, “Connect to Bluetooth” or “Hey Bluetooth” . To disconnect it, say “Cancel”, “Unpair devices” or “Clear all devices”...
  • Page 71: Other Operations

    When the TV is off, this sound bar switches to the is set to [External speaker]. Networked standby mode. y This function does not operate on LG TV’ s Note magic remote control. y After the unit is turned on by AUTO POWER...
  • Page 72: Auto Function Change

    CEC supported device is turned on. If you want to use the auto function change, turn off SIMPLINK function on your LG TV. It takes for about 30 seconds to turn off SIMPLINK.
  • Page 73: Standby Mode

    Operating Standby mode Reset the Speaker The speaker switches to the standby mode if there is If the speaker doesn’t respond, reset the speaker. no music playback or no button operation. Press and hold the > on the unit until you hear the beep sound once.
  • Page 74: Troubleshooting

    Check connection of the external device such as TV, DVD/Blu-Ray player. function does not work. y Check the state of SIMPLINK on your LG TV and turn off SIMPLINK. y Depending on the connected device, this function may not operate.
  • Page 75 Check the details below and adjust the unit according to them. sound of the unit is low. y Switch the state of DRC function to [OFF] by using “LG Wi-Fi Speaker” . y With the sound bar connected with TV, change the AUDIO DIGITAL OUT setting on TV Setup Menu from [PCM] to [AUTO] or [BITSTREAM].
  • Page 76: Network

    Troubleshooting Network Symptoms Cause & Solution Cannot connect the y The wireless communication may be interrupted from household devices that speaker to your home are using radio frequencies. Move the speaker away from them. network. y Check your router. Try turning it off and back on. y Check that the Wi-Fi feature is turned on in your smart device.
  • Page 77: Notes To Use Wireless

    Troubleshooting NOTES to use wireless Symptoms Cause & Solution This device may have y Wireless may not operate normally in weak signal area. wireless interference. y Please install the device close enough to wireless subwoofer. y Do not install the device on metal furniture for optimum performance. Bluetooth device may y When any part of your body contact the transceiver of the Bluetooth device malfunction or make...
  • Page 78: Appendix

    Bluetooth y Depending on the types of file or ways of SIG, Inc. and any use of such marks by LG recording, it may not play back. Electronics is under license.
  • Page 79: Specifications

    Appendix Specifications General Power requirements Refer to the main label on the unit. Power consumption Refer to the main label on the unit. Approx. 1443.0 mm x 63.0 mm x 146.0 mm (with foot) Dimensions (W x H x D) (56.8 inch x 2.5 inch x 5.7 inch) Operating temperature 5 °C to 35 °C (41 °F to 95 °F)
  • Page 80 Appendix Wireless subwoofer Power requirements Refer to the main label on the subwoofer. Power consumption Refer to the main label on the subwoofer. Type 1 Way 1 Speaker Impedance 3 Ω Rated Input Power 220 W RMS Max. Input Power 440 W RMS Approx.
  • Page 81: Handling The Unit

    Appendix Handling the Unit Important Information Relating to Network When shipping the Unit Services Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum All information, data, documents, communications, protection, re-pack the unit as it was originally downloads, files, text, images, photographs, graphics, packed at the factory.
  • Page 82: Terms Of Use

    If you do not agree to these Terms amount specified below, but we are not responsible of Use, you may not access or use the LG Software. for any loss or damage that is not foreseeable .
  • Page 83 If you permit a child to use your LG Smart TV to If any part of these Terms of Use is found to be access the Services, you are solely responsible for...
  • Page 84 In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
