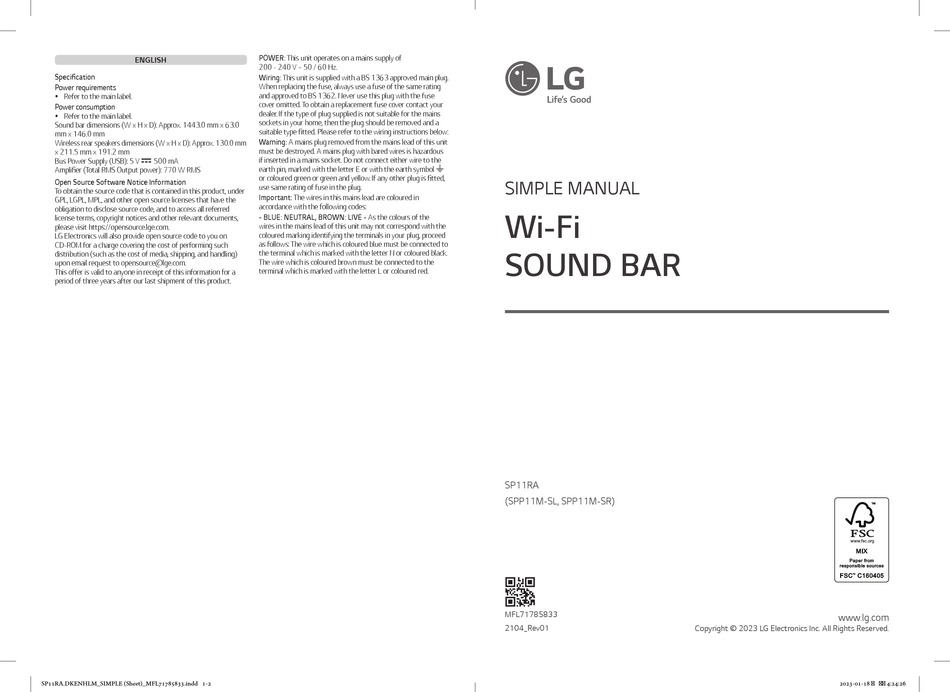

LG SPP11M-SR Simple Manual

ENGLISH
Specification
Power requirements
y Refer to the main label.
Power consumption
y Refer to the main label.
Sound bar dimensions (W x H x D): Approx. 1443.0 mm x 63.0
mm x 146.0 mm
Wireless rear speakers dimensions (W x H x D): Approx. 130.0 mm
x 211.5 mm x 191.2 mm
Bus Power Supply (USB): 5 V 0 500 mA
Amplifier (Total RMS Output power): 770 W RMS
Open Source Software Notice Information
To obtain the source code that is contained in this product, under
GPL, LGPL, MPL, and other open source licenses that have the
obligation to disclose source code, and to access all referred
license terms, copyright notices and other relevant documents,
please visit https://opensource.lge.com.
LG Electronics will also provide open source code to you on
CD-ROM for a charge covering the cost of performing such
distribution (such as the cost of media, shipping, and handling)
upon email request to opensource@lge.com.
This offer is valid to anyone in receipt of this information for a
period of three years after our last shipment of this product.
SP11RA.DKENHLM_SIMPLE (Sheet)_MFL71785833.indd 1-2
POWER: This unit operates on a mains supply of
200 - 240 V ~ 50 / 60 Hz.
Wiring: This unit is supplied with a BS 1363 approved main plug.
When replacing the fuse, always use a fuse of the same rating
and approved to BS 1362. Never use this plug with the fuse
cover omitted. To obtain a replacement fuse cover contact your
dealer. If the type of plug supplied is not suitable for the mains
sockets in your home, then the plug should be removed and a
suitable type fitted. Please refer to the wiring instructions below:
Warning: A mains plug removed from the mains lead of this unit
must be destroyed. A mains plug with bared wires is hazardous
if inserted in a mains socket. Do not connect either wire to the
earth pin, marked with the letter E or with the earth symbol 6
or coloured green or green and yellow. If any other plug is fitted,
use same rating of fuse in the plug.
Important: The wires in this mains lead are coloured in
accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE - As the colours of the
wires in the mains lead of this unit may not correspond with the
coloured marking identifying the terminals in your plug, proceed
as follows: The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
SIMPLE MANUAL
Wi-Fi
SOUND BAR
SP11RA
(SPP11M-SL, SPP11M-SR)
MFL71785833
2104_Rev01
www.lg.com
Copyright © 2023 LG Electronics Inc. All Rights Reserved.
