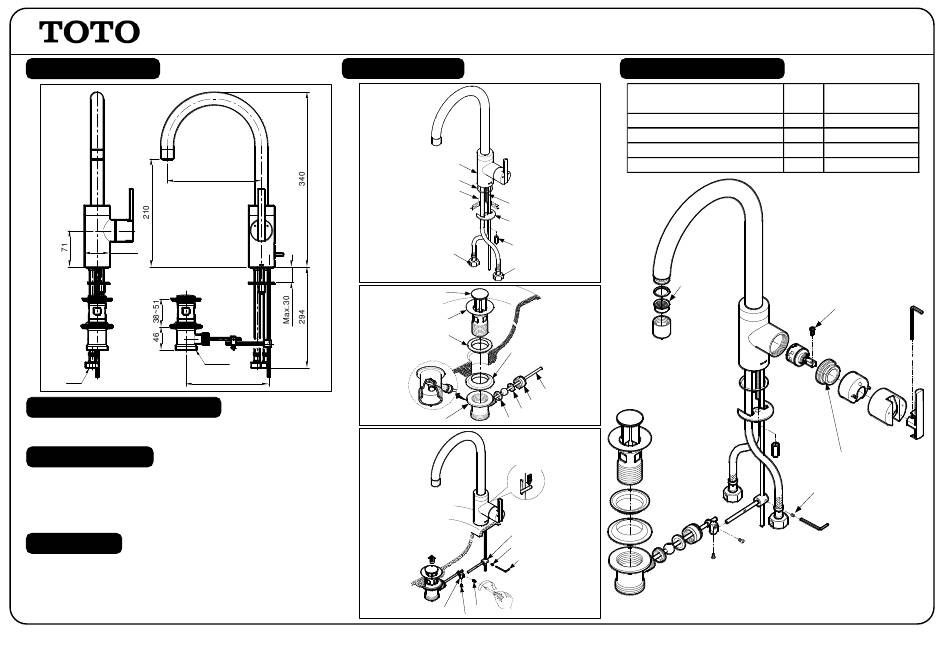

Toto EGO TX108LEBR Quick Start Manual

SPECIFICATIONS
Ø50
G½
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water.
Wipe entire surface completely dry with clean soft cloth. Many
cleaners may contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect the finish and
are not recommended for cleaning
ATTENTION
1.Don t use abrasive cleaners or solvents on faucets and fittings.
2. As the product model is constantly updated, the actual product
may not look the same as it shown in the diagram, but the
basic installation principles are the same.
S06771BR
INSTALLATION
1
183
2
G1¼
231~300
3
"EGO" SINGLE LEVER LAVATORY FAUCET
Body
Packing
Ø35 Hole
Setting Bolt
Washer
Nut
To Hot
Water S upply
To Cold Water
Sup ply
Plug
Siphon
Packing
Triangle
Packing
Pivot Rod
Nut
Washer
Packing
Kick Box
Bottom
Position
Additional Rod
OPEN
Bolt
Position
Hex. Key
Bolt
Pop-Up Clip
Bolt
W/ 1 ¼" POP-UP WASTE
TROUBLESHOOTING
PROBLEM
Flow rate unsatisfactory
Water leaks around the handle
Handle is loose
Plug cannot open and close
1. AERATOR
TX108LEBR
CHECK
SOLUTION
POINT
1
Remove and clean
2 Tighten
3 Tighten
4 Tighten
3. BOLT
2. CONNECTING
NUT
4. BOLT
R3
