DELL U3424DWB

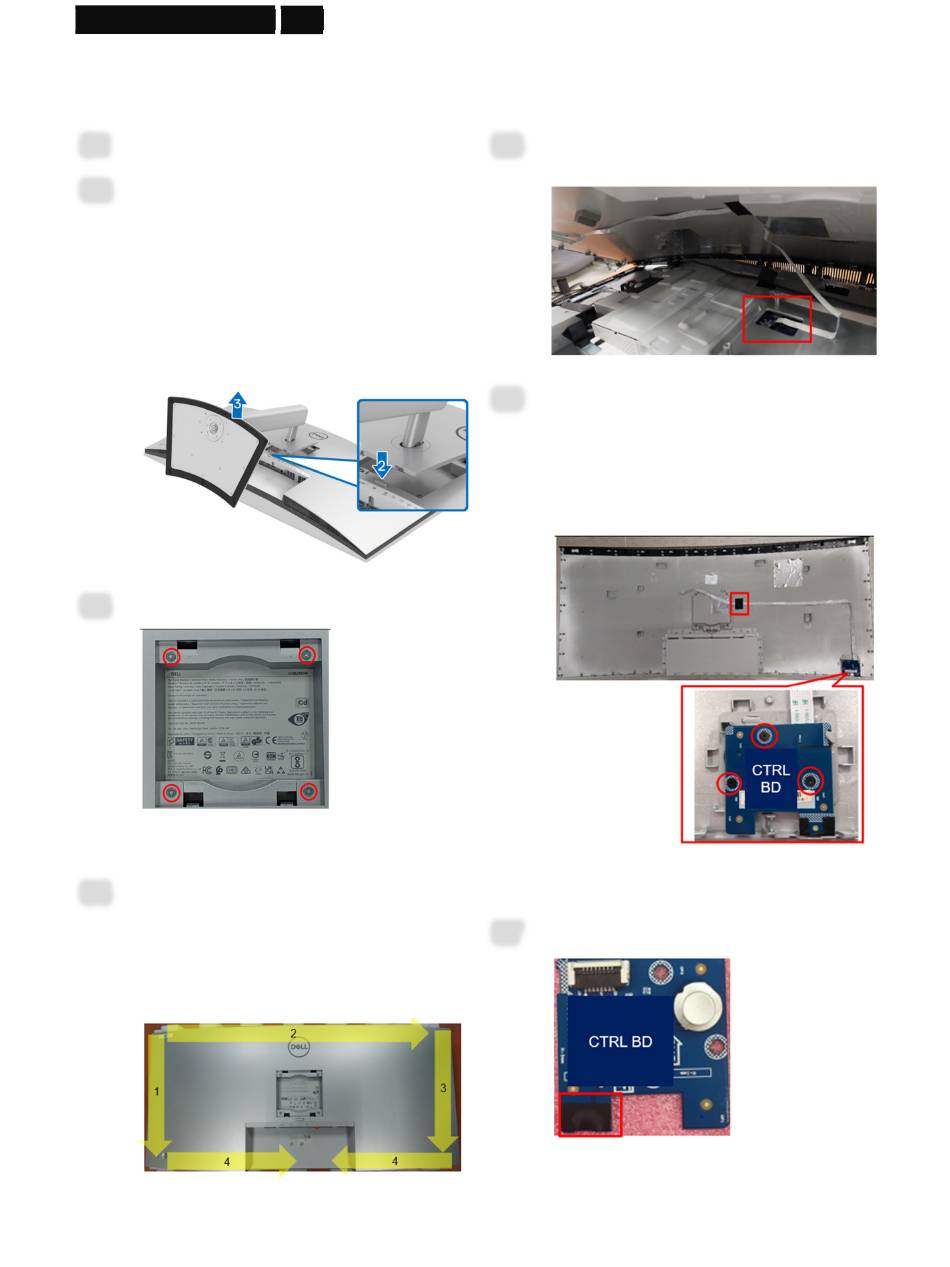

1. Disassembly Procedures
S1
Turn off power
To remove the stand:
S2
Place U3824DW monitor on U3818DW
curve sponge jig
Press and hold the stand release button
at the back of the display
Lift the stand assembly up and away
from the monitor
Unlock 4 screws on Rear Cover
S3
(Screw Torque:8-10Kgf)
Use hands or Bar Scraper to
S4
disassemble Rear Cover from Middle
Frame
Notice the disassembly order:
Left Side=>Top Side =>Right Side
=>Bottom Side
1
Pull out "CTRL BD FFC" from I/F BD to
S5
take off Rear Cover
Tear off a tape from Rear Cover
S6
Tear off "CTRL FFC" from Rear Cover
Unlock 3 screws to disassemble "CTRL
BD" from Rear Cover
(Screw Torque: 2.0+0.5 Kgf)
Tear off a rubber from CTRL BD
S7
