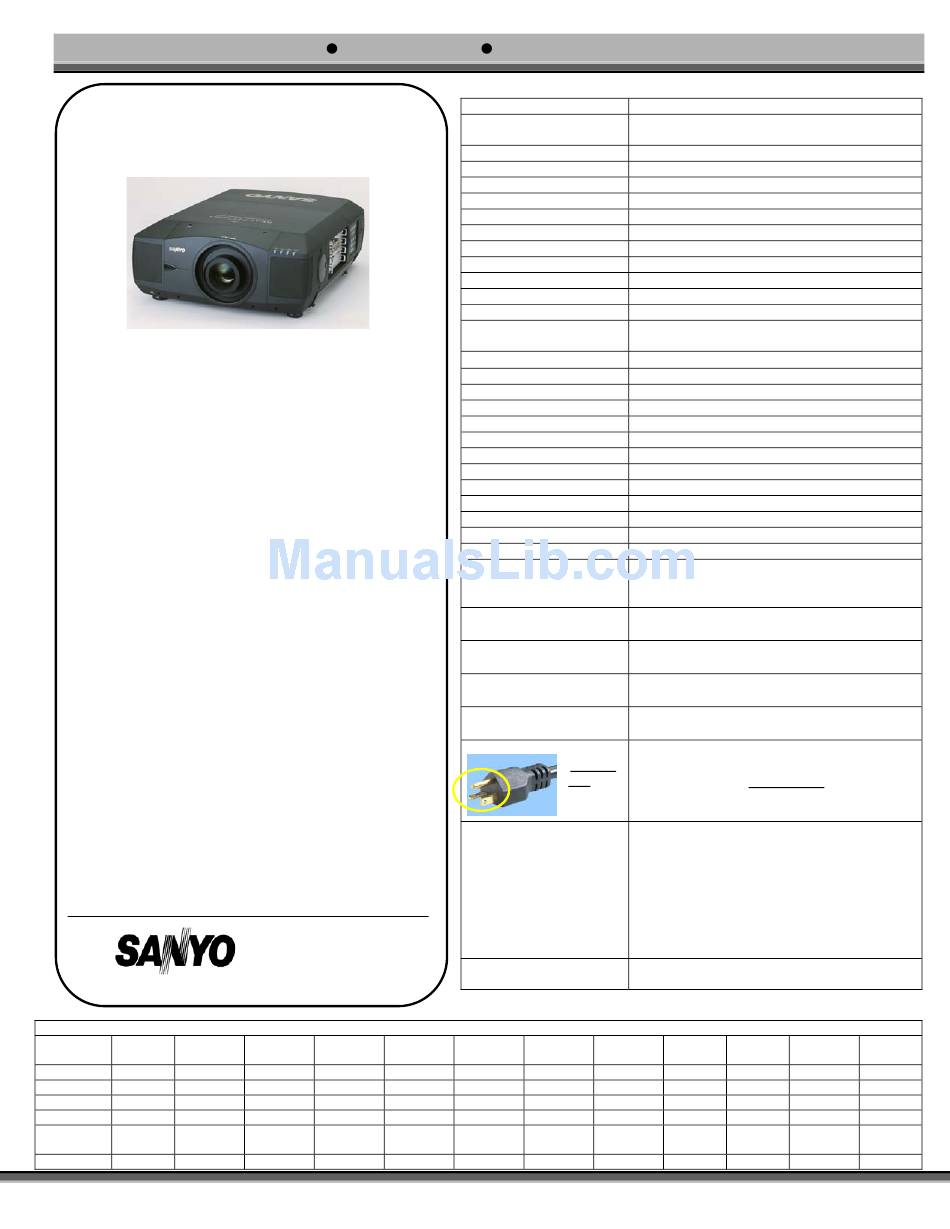

Sanyo PLC-XF46N Specifications

1 2 , 0 0 0 A N S I L U M E N S
PLC-XF46N
XGA Digital Multimedia Projector
* Lens sold separately
WORLD'S FIRST 12,000 ANSI LUMENS LCD PROJECTOR!
Utilizing four high-output 300-watt UHP lamps as its light source,
the PLC-XF46N delivers an amazing 12,000 ANSI lumens of
brightness. Stacking two projectors in the twin-stack
configuration can achieve up to 24,000 ANSI lumens of
brightness.
OUTSTANDING CONTRAST RATIO – 1300:1
PLC-XF46N contains a new liquid crystal panel with high-
contrast optical system that achieves a contrast ratio as large as
1300:1, exhibiting natural and smooth gradation.
AUTO PICTURE CONTROL
By optimizing the dynamic range of luminance signals and
reflecting the gamma settings and offsets, the PLC-XF46N
displays the most genuine contrast and sharpness of images
according their characteristics. Remarkable depth and
outstanding picture quality are results of auto picture control.
VERTICAL/HORIZONTAL EDGE ENHANCEMENT
Images so crisp and smooth that are only made possible by a
seamless edge enhancement technique. Enhancing image
outlines while minimizing granular noise emphasis, the PLC-
XF46N generates sharp and realistic images.
NETWORK CONTROL/ADMINISTRATION
An optional PJ-Net Organizer network board allows for simple
control and management of projectors via a CAT5 network
connection. The administrator can use a network management
software called PJ Master (optional accessory), and be able to
centrally control all PJ-Net Organizer-mounted projectors within
the network.
24/7* OPERATION
A newly developed liquid crystal panel with an optical
compensator that creates linear polarization, together with
improved optical block cooling system, gives the PLC-XF46N the
capability of being operated on a 24/7* basis.
* In order to maintain a stable lamp condition, at least one hour of rest for the
projector is required in each 24-hour period.
* For appropriate care and use of the projector, regular cleaning of air filters is
necessary. Cleaning is recommended once a week. However, the frequency on
which cleaning is required depends upon the installation or operation environments.
PRESENTATION TECHNOLOGIES
Type Short Short
Fixed Zoom
Part No. LNS-W01Z LNS-W02Z
Zoom No Yes (power)
Throw Ratio 1.2:1 1.35 – 1.8:1
F Stop 2.5 2.5 – 2.9
Lens Shift(H) 8:1 – 1:8 8:1 – 1:8
(V) 3:2 – 2:3 3:2 – 2:3
Weight 12.8 lbs. 5.5 lbs.
Issued 5/06
T R U E X G A
21605 Plummer Street
Chatsworth, CA 91311
Ph: 888-337-1215 (toll-free)
Fax 818.717.2719
www.sanyolcd.com
L e n s S p e c i f i c a t i o n s
On-Axis Short Short
Short Fixed Zoom Zoom
LNS-W03 LNS-W04 LNS-W06
No Yes (power) Yes (power)
0.8:1 1.5 – 2.0:1 1.2 – 1.5:1
2.6 1.7 – 2.3 2.3 – 2.8
1:1 8:1 – 1:8 8:1 – 1:8
1:1 1:1 1:1
6.6 lbs 6.2 lbs. 6.6 lbs.
D I G I T A L M U L T I M E D I A P R O J E C T O R
S p e c i f i c a t i o n s
Resolution
Brightness
Uniformity
LCD Panel System
Number of Pixels
Contrast Ratio
Projection Lens
Image Size
Aspect Ratio
Throw Distance
Zoom/Focus
Throw Ratio
Zoom Ratio
Power Lens Shift
Digital Keystone Correction
Projection Lamp
Scanning Frequency
Dot Clock
Color System
Computer Compatibility UXGA, SXGA+, SXGA, WXGA, XGA, SVGA, VGA, MAC
Voltage
BTU Rating
dB Rating
Power Consumption
Dimensions (WxHxD)
Net Weight
User Maintenance
Detachable Input Panels
POA-MD18DVI
POA-MD16VD1
POA-MD03VD2A
POA-MD04VGA
Fixed Input/Output Panel Serial in & Serial out (D-Sub 9 x 2) • Audio out (RCA x 2)
Included Accessories
* AC Power
Cord
NEMA5-20
Wired remote cable • Real Color Manager Pro CD-ROM
(20A/125V)
Optional Accessories POA-MD08HD - HD-SDI Input Board
POA-MD13NET - Network Board
POA-MD15SDI - SD-SDI Input Board
POA-MD17SDID - HD-SDI & SD-SDI Input Board
POA-LNA02 - Lens Mount Adapter
POA-LNA01 - Lens Mount Adapter (for all other lenses)
PLCCSE14 - Hard Shipping Case
6103274928 - Replacement Lamp
Warranty
Because its products are subject to continuous improvement, SANYO reserves the right to modify product design and
specifications without notice and without incurring any obligations.
Standard Standard Standard
Zoom 1 Zoom 2 Zoom 3
LNS-S01 LNS-S02Z LNS-S03
Yes (power) Yes (power) Yes (power)
1.8 – 2.9:1 2.0 – 2.6:1 2.6 – 3.5:1
2.6 – 3.5 2.0 – 2.3 1.7 – 2.6
10:0 – 0:10 10:0 – 0:10 8:1 – 1:8
3:2 – 2:3 3:2 – 2:3 3:2 – 2:3
3.7 lbs. 4.2 lbs. 8.2 lbs.
XGA (1024 x 768)
12,000 ANSI Lumens (4-lamp mode)
6,000 ANSI Lumens (2-lamp mode)
90% (corner to corner)
1.8" TFT polysilicon type x 3
2,359,296 (786,432 x 3)
1300:1 (full on/off)
Lens Sold Separately
Dependent on Lens
4:3
Dependent on Lens
Dependent on Lens
Dependent on Lens
Dependent on Lens
Up/Down Ratio 10:0 – 0:10 or 8:1 – 1:8
Left/Right Ratio 3:2 – 2:3 or 1:1 (Dependent on Lens)
+/- 30° (Vertical)
300W UHP x 4
H Sync: 15-120kHz, V Sync: 50-120Hz
230MHz
PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43
120V AC 16A Max, 50//60 Hz (auto sense/select)
5797
51.0
1700W
22.9"x9.9"x30.8" (not including Adjustable Feet)
80.5 lbs.
Clean air filters, replace lamp assembly
Digital Visual Interface (DVI-I w/HDCP) • Left & Right
Audio (RCA x 2) • Control (Min DIN 8-pin)
RGB & Component (5-BNC) • Left & Right Audio
(RCA x 2) • Control (Min DIN 8-pin)
Composite & Y/C (2-BNC) • S-Video (Mini DIN 4-pin)
• Left & Right Audio (RCA x 2)
VGA (D-Sub 15) • Left & Right Audio (RCA x 2)
• Control (Min DIN 8-pin)
• USB (type B) • Wired RC jack (Stereo mini)
Wired/Wireless I/R Remote Control • Two "AA" type
batteries • Owner's manual (CD-ROM & Quick
Reference Guide) • AC power cord* • VGA Cable •
• Lens Mount Adapters (POA-LNA02 & POA-LNA01)
(for LNS-W02, W02KS, M01, S01 lenses)
Three years parts and labor; 90 days original lamp;
Quick Repair Program under warranty
Semi-Long Long Fixed Long Zoom
Zoom
LNS-M01Z LNS-T01Z LNS-T02
Yes (power) NO Yes (power)
3.5 – 4.6:1 7.0:1 4.6 – 6.0:1
2.0 – 2.6 2.0 2.0 – 2.9
8:1 – 1:8 8:1 – 1:8 8:1 – 1:8
3:2 – 2:3 3:2 – 2:3 3:2 – 2:3
4.2 lbs. 8.4 lbs. 6.8 lbs.
Long Zoom
LNS-T03
Yes (power)
6.2 – 9.0:1
2.2 – 2.5
8:1 – 1:8
3:2 – 2:3
16.1 lbs.
