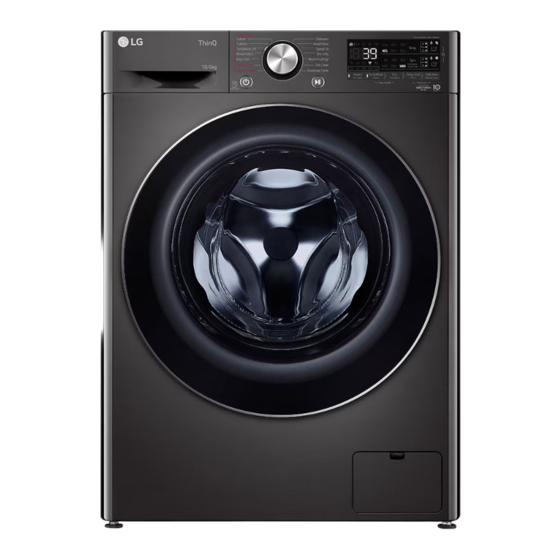

LG FV1410H3P Owner's Manual

LG FV1410H3P Owner's Manual

Hide thumbs Also See for FV1410H3P:
Table of Contents

Advertisement

Quick Links

Download this manual
global_main.book.book Page 1 Wednesday, January 26, 2022 10:19 AM
OWNER'S MANUAL
WASHER AND DRYER
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
ENGLISH
FV1410H3W
FV1410H3P
FV1411H3B
MFL71781364
Rev.02_080922
Copyright © 2022 LG Electronics Inc. All Rights Reserved.
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG FV1410H3P

Summary of Contents for LG FV1410H3P

  • Page 1 This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. ENGLISH FV1410H3W FV1410H3P FV1411H3B www.lg.com MFL71781364 Rev.02_080922 Copyright © 2022 LG Electronics Inc. All Rights Reserved.

  • Page 2: Table Of Contents

    Preparing the Wash Load ................23 Adding Detergents and Softeners ..............23 Programme Table ....................26 Drying Programme ..................30 Extra Options and Functions ................33 SMART FUNCTIONS LG ThinQ Application ..................36 Smart Diagnosis ....................38 MAINTENANCE Cleaning After Every Wash................40 Cleaning the Appliance Periodically ..............40 TROUBLESHOOTING...

  • Page 3: Safety Instructions

    global_main.book.book Page 3 Wednesday, January 26, 2022 10:19 AM SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below.
  • Page 4 Maximum Capacity The maximum capacity in some cycles for dry clothes to be used : FV1411H3B FV1410H3W FV1410H3P 10 kg (Wash) / 6 kg (Dry) 11 kg (Wash) / 7 kg (Dry) The recommended maximum capacity for each washing programme may differ.
  • Page 5 global_main.book.book Page 5 Wednesday, January 26, 2022 10:19 AM SAFETY INSTRUCTIONS • Remove all objects from pockets such as lighters and matches. • The appliance is not to be used if industrial chemicals have been used for cleaning. Installation • This appliance should only be transported by two or more people holding the appliance securely.
  • Page 6 • Do not touch the door during a high temperature programme. • In case of a water leak from the appliance or flood, disconnect the power plug and contact the LG Electronics customer information centre. • Turn off water taps to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur.
  • Page 7 • Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the...
  • Page 8 global_main.book.book Page 8 Wednesday, January 26, 2022 10:19 AM SAFETY INSTRUCTIONS Disposal • Before discarding an old appliance, unplug it. Cut off the cable directly behind the appliance to prevent misuse. • Dispose of all packaging materials (such as plastic bags and styrofoam) away from children.

  • Page 9: Installation Parts And Specifications

    global_main.book.book Page 9 Wednesday, January 26, 2022 10:19 AM INSTALLATION INSTALLATION Parts and Specifications NOTE • Appearance and specifications may change without notice to improve the quality of the appliance. Front View Rear View Control Panel Power Plug Detergent Dispenser Drawer Transit Bolts Drum Drain Hose...
  • Page 10 Page 10 Wednesday, January 26, 2022 10:19 AM INSTALLATION Specifications Model FV1410H3W FV1410H3P FV1411H3B Power Supply 220‒240 V~, 50 Hz Product Weight 73 kg Dimension(mm) D’’ D’ 1100...
  • Page 11 global_main.book.book Page 11 Wednesday, January 26, 2022 10:19 AM INSTALLATION Accessories Cold Supply Hose Anti–slip Sheets*1 Spanner Elbow Bracket for Securing Drain Hose Caps for Covering Transit Bolt Holes Tie Strap*1 *1 The included accessories vary depending on the model you purchased.

  • Page 12: Installation Place Requirements

    global_main.book.book Page 12 Wednesday, January 26, 2022 10:19 AM INSTALLATION Installation Place Index Clearance (mm) Requirements Before installing the appliance, check the following information to make sure that the appliance should be installed in a correct place. WARNING Installation Location •...

  • Page 13: Unpacking The Appliance

    INSTALLATION grounded/earthed in accordance with all local NOTE codes and ordinances. • You can purchase rubber cups (part No. 4620ER4002B) from the LG service centre. Unpacking the Appliance Lifting the Appliance Off the Ventilation Foam Base • Make sure that air circulation around the...

  • Page 14: Levelling The Appliance

    global_main.book.book Page 14 Wednesday, January 26, 2022 10:19 AM INSTALLATION Starting with the bottom two transit bolts • If the appliance rocks when pushing the top use the spanner (included) to fully loosen all plate of the appliance diagonally, adjust the feet transit bolts by turning them counterclockwise.
  • Page 15 Failure to do so may cause vibration or noise. • Do not install the washing machine on a plinth, stand or elevated surface unless it is manufactured by LG Electronics for use with this model. Using Anti-Slip Sheets This feature may vary depending on the model purchased.

  • Page 16: Connecting The Water Supply Hose

    Water Tap NOTE Connecting Screw-Type Hose to Tap with Thread • Additional anti-slip sheets are available at LG Screw the supply hose connector onto the water Electronics service centre. supply tap. Connecting the Water...
  • Page 17 global_main.book.book Page 17 Wednesday, January 26, 2022 10:19 AM INSTALLATION Remove the guide plate if the tap is too large Remove the guide plate if the tap is too large to fit the adapter. to fit the adapter. Push the adapter onto the end of the tap so Push the adapter onto the end of the tap so that the rubber seal is connected to be that the rubber seal is connected to be...

  • Page 18: Installing The Drain Hose

    global_main.book.book Page 18 Wednesday, January 26, 2022 10:19 AM INSTALLATION Connecting the Hose to the • Securing the drain hose correctly will protect the floor from damage due to water leakage. Appliance Screw the supply hose to the water inlet valve on the back of the appliance.

  • Page 19: Operation Operation Overview

    global_main.book.book Page 19 Wednesday, January 26, 2022 10:19 AM OPERATION OPERATION Operation Overview • Add the proper amount of detergent to the detergent dispenser. If desired, add bleach or fabric softener to the appropriate areas of Using the Appliance the dispenser. Before the first wash, select the Cotton wash programme and add a half amount of the Turn on the appliance.

  • Page 20: Control Panel

    • This allows you to select an additional programmes and will light when selected. Remote Start With the LG ThinQ app, you can use a smartphone to control your appliance remotely. • In order to use this function, refer to SMART FUNCTIONS.
  • Page 21 global_main.book.book Page 21 Wednesday, January 26, 2022 10:19 AM OPERATION Description Customizing Washing Programme Buttons Use these buttons to adjust the water temperature or spin speed settings for the selected programme. • The current settings are shown in the display. •...
  • Page 22 global_main.book.book Page 22 Wednesday, January 26, 2022 10:19 AM OPERATION Description lights up when the Rinse+ option is activated. lights up when the Pre Wash option is activated. lights up when the appliance is connected to Wi-Fi network at home. lights up when the programme starts and the door is locked.

  • Page 23: Preparing The Wash Load

    global_main.book.book Page 23 Wednesday, January 26, 2022 10:19 AM OPERATION Preparing the Wash Load NOTE Sort the wash load for best washing results, and • The dashes under the symbol give you then prepare the clothes according to the symbols information about the type of fabric and the on their care labels.
  • Page 24 global_main.book.book Page 24 Wednesday, January 26, 2022 10:19 AM OPERATION detergents that are suitable for Drum (front • Minimum load: 1/3 of full load. load) type washers. • If too many suds occur, reduce the detergent amount. Using the Dispenser •...
  • Page 25 global_main.book.book Page 25 Wednesday, January 26, 2022 10:19 AM OPERATION Adding Water Softener • Pour fabric softener to the maximum fill line. Pouring excessive fabric softener over the maximum fill line can cause it to dispense too A water softener, such as anti-limescale can be used to cut down on the use of detergent in areas early, which may stain the clothes.

  • Page 26: Programme Table

    global_main.book.book Page 26 Wednesday, January 26, 2022 10:19 AM OPERATION Programme Table Washing Programme Cotton 40 ℃ (Cold to 95 ℃) Max. Load: Rating Description Washes normally soiled clothes by combining various drum motions. Cotton+ 60 ℃ (Cold to 60 ℃) Max.
  • Page 27 FV1410H3W) • Test accordance in conformity with IEC60456. For water efficiency labeling program, select program "Cotton + 60 ℃ + 1400 rpm". (For model: FV1410H3P/FV1411H3B) • The test results depend on water pressure, water hardness, water inlet temperature, room temperature, type and amount of load, degree of soiling utilized detergent, fluctuations in the main electricity supply and chosen additional options.
  • Page 28 global_main.book.book Page 28 Wednesday, January 26, 2022 10:19 AM OPERATION NOTE • Rinse+ option can be selected for every washing programme in this table except the Dry Only and Steam Refresh programmes. • Delay End and Add Item options can be selected for every washing programme in this table except the Steam Refresh programme.
  • Page 29 global_main.book.book Page 29 Wednesday, January 26, 2022 10:19 AM OPERATION Spin Speed Programme Default Available Easy Care 1400 rpm Allergy Care 1400 rpm Steam Refresh Delicates 800 rpm Up to 800 rpm Hand/Wool 800 rpm Up to 800 rpm Speed 14 400 rpm Dry Only -/1000 to 1400 rpm...

  • Page 30: Drying Programme

    global_main.book.book Page 30 Wednesday, January 26, 2022 10:19 AM OPERATION Drying Programme Blankets and Duvets Check fabric care labels on blankets and duvets General Tips for Drying before using the drying programme. Some blankets and duvets may shrink by the heated air. Use the automatic programmes to dry most loads.
  • Page 31 global_main.book.book Page 31 Wednesday, January 26, 2022 10:19 AM OPERATION Time 30/60/120 minutes Press the Power button. Change the drying time according to the maximum load. Select a wash programme. • Fabric Type: Cotton, towels • Max. Load: 1 kg (30 minutes), 2 kg (60 Add detergent.
  • Page 32 global_main.book.book Page 32 Wednesday, January 26, 2022 10:19 AM OPERATION NOTE • If you select the programme, you will be unable to select a dry programme. If this occurs, press the Power button twice to cycle the machine off and back on. Using Air Condensing Dry without Water EcoHybrid option is available for air condensing...

  • Page 33: Extra Options And Functions

    global_main.book.book Page 33 Wednesday, January 26, 2022 10:19 AM OPERATION Extra Options and Select a washing programme. Functions Customize the washing programme (Temp., You can use the extra options and functions to Spin and Rinse+) as necessary. customize the programmes. Customizing a Washing Press the Start/Pause button.
  • Page 34 global_main.book.book Page 34 Wednesday, January 26, 2022 10:19 AM OPERATION Change the washing programme (Rinse+, NOTE Temp. and Spin) as necessary. • For safety reasons, the door remains locked when the water level or temperature inside of To use special options, press Steam or the drum is high.
  • Page 35 global_main.book.book Page 35 Wednesday, January 26, 2022 10:19 AM OPERATION • When the controls are locked, and the remaining time are alternatively shown on the display during the wash while this function is engaged. • Turning off the power will not reset this function. You must deactivate this function before you can access any other functions.

  • Page 36: Smart Functions

    Page 36 Wednesday, January 26, 2022 10:19 AM SMART FUNCTIONS SMART FUNCTIONS LG ThinQ Application notifications on a smartphone. The notifications are triggered even if the LG ThinQ application is off. The LG ThinQ application allows you to communicate with the appliance using a smartphone.
  • Page 37 Use a smartphone to control your appliance wireless router manual. remotely. You can also monitor your cycle • LG ThinQ is not responsible for any network operation so you know how much time is left in the connection problems or any faults, cycle.

  • Page 38: Smart Diagnosis

    LG ThinQ application. Wireless function S/W version: V 1.0 For consideration of the user, this device should be • Launch the LG ThinQ application and select the installed and operated with a minimum distance of Smart Diagnosis feature in the menu. Follow 20 cm between the device and the body.
  • Page 39 global_main.book.book Page 39 Wednesday, January 26, 2022 10:19 AM SMART FUNCTIONS Place the mouthpiece of your smartphone close to the Power button. Press and hold the Temp. button for 3 seconds or longer while holding the smartphone mouthpiece to the Power button until the data transfer is complete.

  • Page 40: Maintenance

    global_main.book.book Page 40 Wednesday, January 26, 2022 10:19 AM MAINTENANCE MAINTENANCE WARNING • Unplug the appliance before cleaning to avoid the risk of electric shock. Failure to follow this warning may result in serious injury, fire, electric shock, or death. •...
  • Page 41 global_main.book.book Page 41 Wednesday, January 26, 2022 10:19 AM MAINTENANCE Run this function once a month (or more often if appliance. Clean the inlet filter every six months or needed) to reduce build-up of detergent and so, or more often if the water is very hard or softener and other residue.
  • Page 42 global_main.book.book Page 42 Wednesday, January 26, 2022 10:19 AM MAINTENANCE Cleaning the Dispenser Drawer Open the cover cap and pull out the drain tube. Detergent and fabric softener can build up in the dispenser drawer. Liquid detergents can remain under the dispenser drawer and not dispense completely.

  • Page 43: Troubleshooting

    Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to LG Electronics service centre.
  • Page 44 • Check and clean the drain filter. Door sensor malfunctions. dE dE1 dEz dE4 DOOR ERROR • Please call LG service centre. You can find your local LG service centre phone number in the warranty card. This is a control error. CONTROL ERROR •...
  • Page 45 global_main.book.book Page 45 Wednesday, January 26, 2022 10:19 AM TROUBLESHOOTING Noises You Might Hear Symptoms Possible Cause & Solution Rattling and clanking Foreign objects, such as keys, coins, or safety pins may be in the drum. noise • Stop the appliance, check the drum for foreign objects. If the noise continues after the appliance is restarted, call for service.
  • Page 46 global_main.book.book Page 46 Wednesday, January 26, 2022 10:19 AM TROUBLESHOOTING Symptoms Possible Cause & Solution Appliance does not Control panel has powered off due to inactivity. operate. • This is normal. Press the Power button to turn the appliance on. Appliance is unplugged.
  • Page 47 global_main.book.book Page 47 Wednesday, January 26, 2022 10:19 AM TROUBLESHOOTING Symptoms Possible Cause & Solution Appliance is not filling Inlet filter clogged. properly. • Make sure the inlet filters on the fill valves are not clogged. Inlet hoses may be kinked. •...
  • Page 48 global_main.book.book Page 48 Wednesday, January 26, 2022 10:19 AM TROUBLESHOOTING Symptoms Possible Cause & Solution Staining Bleach or softener is dispensed too soon. • Dispenser compartment is overfilled. It makes bleach or softer dispensed rapidly. Always measure bleach or softener to prevent overfilling. •...
  • Page 49 global_main.book.book Page 49 Wednesday, January 26, 2022 10:19 AM TROUBLESHOOTING Symptoms Possible Cause & Solution Staining Bleach or softener was added directly to the clothes in the drum. • Always use the detergent dispenser to ensure that bleach or softener is properly dispensed at the right time in the programme.
  • Page 50 • Find the Wi-Fi network connected to your smartphone and remove it, then not connected to the register your appliance on LG ThinQ. Wi-Fi network. Mobile data for your smartphone is turned on. • Turn off the Mobile data of your smartphone and register the appliance using the Wi-Fi network.
  • Page 51 global_main.book.book Page 51 Wednesday, January 26, 2022 10:19 AM TROUBLESHOOTING Symptoms Possible Cause & Solution Your home appliance The router frequency is not 2.4 GHz. and smartphone are • Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 not connected to the GHz and connect the appliance to the wireless router.
  • Page 52 global_main.book.book Page 52 Wednesday, January 26, 2022 10:19 AM...
