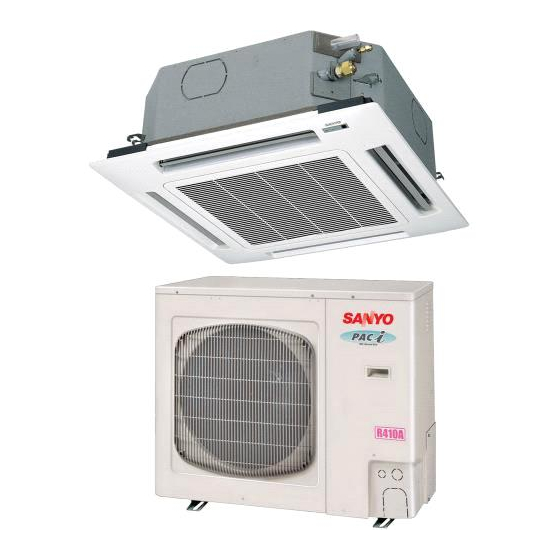

XHS1271
XHS1872
COOL/DRY/HEAT Model
This air conditioner uses
the new refrigerant R410A.
107
Pub.
OI-85264181
© SANYO 2008
000
INSTRUCTION MANUAL
Inverter-Controlled Split System Air Conditioner
Climatiseur de type séparé contrôlé par inverseur
Save These Instructions!
Conserver ce mode d'emploi
MODE D'EMPLOI
Advertisement
Table of Contents
Related Manuals for Sanyo 12XHS71
Summary of Contents for Sanyo 12XHS71
- Page 1 XHS1271 XHS1872 COOL/DRY/HEAT Model This air conditioner uses the new refrigerant R410A. Pub. OI-85264181 © SANYO 2008 INSTRUCTION MANUAL Inverter-Controlled Split System Air Conditioner MODE D’EMPLOI Climatiseur de type séparé contrôlé par inverseur Save These Instructions! Conserver ce mode d’emploi...
-
Page 2: Table Of Contents
FEATURES This air conditioner is an inverter type unit that automatically adjusts capability as appropriate. Details on these functions are provided below; refer to these descriptions when using the air conditioner. • Microprocessor Controlled Operation The interior compartment of the remote control unit contains several features to facilitate automatic operation, easy logically displayed for easy use. -
Page 3: Product Information
• Do not install the air conditioner where excessively high heat-generating objects are placed. Avoid: To protect the air conditioner from heavy corrosion, avoid installing the outdoor unit where salty sea water can splash directly onto it or in sulphurous air near a spa. OI-107-3-EG... -
Page 4: Names Of Parts
Consequently, the shape may differ from that of the air conditioner which you have selected. This air conditioner consists of an indoor unit and an outdoor unit. You can control the air conditioner with the remote control unit. Air Intake Air from the room is drawn into this section and passes through air filters which remove dust. -
Page 5: Remote Control Unit (Display)
REMOTE CONTROL UNIT (DISPLAY) Displayed when the time display is set to 12-hour time. (1) Operation mode AUTO ... HEAT ... MILD DRY ... COOL ... FAN ... (2) Fan speed Automatic operation ... HIGH ... MEDIUM... LOW ... (3) Temperature setting 60 –... -
Page 6: Remote Control Unit
: The air conditioner starts at the set time. : The air conditioner stops at the set time. : The air conditioner stops and starts, or starts and stops, at the set times every day. For details, see “SETTING THE TIMER”. - Page 7 • The remote control unit sends the temperature signal to the air conditioner regularly at five minute intervals. If the signal from the remote control unit stops for more than 15 minutes due to the loss of the remote control unit or other trouble, the air conditioner will switch to the temperature sensor which is built into the indoor unit and control the room temperature.
-
Page 8: Using The Remote Control Unit
• In direct sunlight • Behind a curtain or other places where it is covered • More than 26 ft.(8 m) away from the air conditioner • In the path of the air conditioner’s airstream • Where it may become extremely hot or cold •... -
Page 9: Operation With The Remote Control Unit
STEP 1 Press the MODE selector button to STEP 2 Press the ON/OFF operation button. To stop the air conditioner, press the ON/OFF operation button again. • To change the temperature setting; press the NOTE temperature setting buttons and change the setting to the desired temperature. -
Page 10: Adjusting The Fan Speed
A. In Cooling and DRY Mode: ( When the night setback mode is selected, the air conditioner automatically raises the temperature setting 2 °F when 30 minutes have passed after the selection was made, and then another 2 °F after another 30 minutes have passed, regardless of the indoor temperature when night setback was selected. -
Page 11: Special Remarks
Heating ( ) Operation Heating performance • Because this air conditioner heats a room by drawing in the heat of the outside air (heat pump system), the heating efficiency will fall off when the outdoor temperature is very low. If sufficient heat cannot be obtained with this air conditioner, use another heating appliance together with it. - Page 12 4. How to set daily ON/OFF repeat timer (Example) To start operation at 7:10 am. and stop the air conditioner at 11:00 am. 10:30 pm. Indication Present time...
-
Page 13: Using The 1-Hour Off Timer
USING THE 1-HOUR OFF TIMER 1. 1-Hour OFF Timer This function causes the unit to operate for one hour and then stop, regardless of whether the unit is on or off when this button is pressed. indicator in the display indicates that this function is operating. -
Page 14: Operation Without The Remote Control Unit
If you have lost the remote control unit or it has trouble, follow the steps below. When the air conditioner is not running Each time the OPERATION button is pressed, the type of operation conducted is indicated by the changing color of the OPERATION lamp. - Page 15 Air filter The air filter collects dust and other particles from the air and should be cleaned once every 6 months. If the filter gets blocked, the efficiency of the air conditioner drops greatly. NOTE The frequency with which the filter should be cleaned depends on the environment in which the unit is used.
-
Page 16: Troubleshooting
TROUBLESHOOTING If your air conditioner does not work properly, first check the following points before requesting service. If it still does not work properly, contact your dealer or service center. Trouble Possible Cause Air conditioner does 1. Power failure. not run at all.
